Composite Design Pattern Using Java

Introduction


A composite design pattern is a structural design pattern. It allows developers to create multiple nested objects of the same type to complete one single system hierarchy.

Players in this pattern:
  • Component: this player defines a base contract with the composite class to allow to create nested objects.
  • Composite: this player, is one who will implement the contract defined by the component.
  • Client: this player, with the help of a composite player, will complete the system hierarchy for a particular requirement
We will see with an example.

Requirement: Build a smart city with smart block features.

We will define 3 players:
  • AbstractBlock – Component
  • Block – Composite
  • Client
We will build an Abstract block with Add, Remove block features. If we want we can implement Add, Remove features explicitly. In my case, I am using List, by default I will be having Add, and Remove features available for adding/removing blocks.
  1. import java.util.List;
  2.
  3. public abstract class AbstractBlock {
  4.     public String name;
  5.     public double size;
  6.
  7.     public abstract void buildBlock();
  8.
  9.     public List<AbstractBlock> subBlocks;
  10. }
Now implement a Composite object i.e. Block by implementing/inheriting component (i.e. in our code AbstractBlock)
  1. import java.util.*;
  2.
  3. public class Block extends  AbstractBlock {
  4.     public  Block(){
  5.        subBlocks = new ArrayList<>();
  6.     }
  7.     @Override
  8.     public void buildBlock() {
  9.         System.out.println("Block built with name " + name + " with size " + size + "unit");
  10.     }
  11. }
 In the above code we can see that, we provided the implementation for buildBlock method. Based on our need we can make concrete or non-concrete methods as well.

Below the client class code:
  1. public class Client {
  2.
  3.     public static void main(String[] args) {
  4.         AbstractBlock smartCity = new Block();
  5.         smartCity.name = "SmartCity";
  6.         smartCity.size = 100000;
  7.
  8.         AbstractBlock smartlayOut = new Block();
  9.         smartlayOut.name = "SmartlayOut";
  10.         smartlayOut.size = 10000;
  11.         smartCity.subBlocks.add(smartlayOut);
  12.
  13.         AbstractBlock smartHome = new Block();
  14.         smartHome.name = "smartHome";
  15.         smartHome.size = 1000;
  16.         smartlayOut.subBlocks.add(smartHome);
  17.
  18.         AbstractBlock smartRoom = new Block();
  19.         smartRoom.name = "smartRoom";
  20.         smartRoom.size = 1000;
  21.         smartHome.subBlocks.add(smartRoom);
  22.
  23.         AbstractBlock smartLocker = new Block();
  24.         smartLocker.name = "smartLocker";
  25.         smartLocker.size = 20;
  26.         smartRoom.subBlocks.add(smartLocker);
  27.
  28.         AbstractBlock smartFolder = new Block();
  29.         smartFolder.name = "smartFolder";
  30.         smartFolder.size = 10;
  31.         smartLocker.subBlocks.add(smartFolder);
  32.
  33.         AbstractBlock smartFile = new Block();
  34.         smartFile.name = "smartFile";
  35.         smartFile.size = 5;
  36.         smartFolder.subBlocks.add(smartFile);
  37.
  38.         Build(smartCity);
  39.         System.out.println();
  40.     }
  41.
  42.     private static void Build(AbstractBlock block) {
  43.         block.buildBlock();
  44.         block.subBlocks.forEach(a -> Build(a));
  45.     }
  46. }
In the above code, we can see that the client has a unitized composite object and built first:
  • Smart City followed by Smart Layout
  • Smart Layout followed by Smart Home
  • Smart Home followed by Smart Room
  • Smart Room followed by Smart Locker
  • Smart Locker followed by Smart Folder
  • Smart Folder followed by Smart File

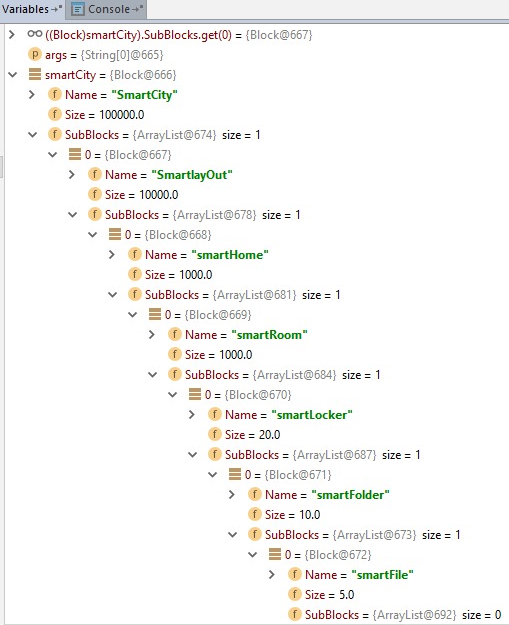

After executing this code we can same hierarchy in tree format. For easy understating, I put snap ob object hierarchy in tree format.

Composite Design Pattern Using Java

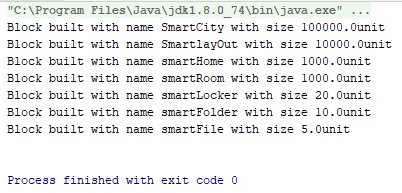

Below is the output snap:

Composite Design Pattern Using Java

When we have a requirement of implementing some nested objects with the same type, then we can go for this design pattern.

We can extend this composite object to any extent with N numbers of blocks inside blocks.


Summary


Above is a simple example of using a composite design pattern, you can download the uploaded source code and try adding more blocks. I hope it helps.
