Introduction

In this article, we will learn the following things

Create a .NET 6 REST API using VS 2022
Create Unit Test
Create an Azure pipeline for CI/CD process
Deploy to Azure Cloud

Prerequisites

Azure account - If you don't have it already you can create one for free by visiting Cloud Computing Services | Microsoft Azure.
Github Account
Azure DevOps Account
Visual Studio 2022
SQL Server Management Studio

Create a .NET 6 REST API

In this section, we will create a simple .NET 6 REST API that can perform CRUD operations on a SQL Server on Azure Cloud.

Create a New Project

1. Open VS 2022 and choose ASP .NET Core Web API project and click Next

Create a .NET 6 REST API

2. Give a meaningful name for your project and click Next

Create a .NET 6 REST API

3. Choose the framework as .NET 6 and click create

Create a .NET 6 REST API

4. This will create a new project for you with a default controller and a model class. Since we will be creating our own controller and Model classes let's start by deleting the default files. Open solution Explorer and delete the following files - WeatherForecastController.cs, and WeatherForecast.cs

Create a .NET 6 REST API

Add Model and DbContext class

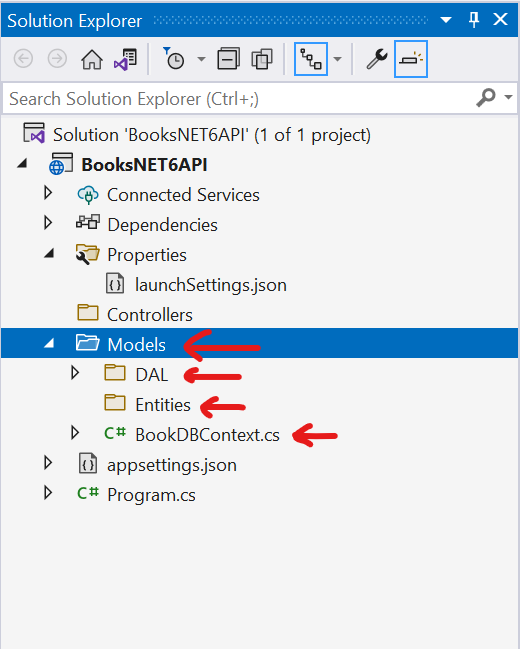

1. In the Solution Explorer right-click on your project and add a new folder called Model, add two subfolders DAL and Entities inside Model and also add a new class called BookDBContext. Inside DAL add two subfolders called Contract and Implementation.

Create a .NET 6 REST API

2. In the Entities folder add a new class Book. This class will be used by EF-core to build the DB table using the code-first approach. Copy-paste the following code into Book.cs file

using System.ComponentModel.DataAnnotations;
using System.ComponentModel.DataAnnotations.Schema;

namespace BooksNET6API.Models.Entities
{
    public class Book
    {
        public Book()
        {
        }

        [Key]
        public int Id { get; set; }
        [Column(TypeName = "nvarchar(100)")]
        [Required]
        public string Name { get; set; }
        [Column(TypeName = "nvarchar(50)")]
        [Required]
        public string Genere { get; set; }
        [Column(TypeName = "nvarchar(50)")]
        [Required]
        public string PublisherName { get; set; }
    }
}

3. Install the following NuGet packages - Microsoft.EntityFrameworkCore, Microsoft.EntityFrameworkCore.SqlServer and Microsoft.EntityFrameworkCore.Tools

4. Copy-paste the following code into BookDBContext class

using BooksNET6API.Models.Entities;
using Microsoft.EntityFrameworkCore;

namespace BooksNET6API.Models
{
    public class BookDBContext: DbContext
    {
        public DbSet<Book> Books { get; set; }
        public BookDBContext(DbContextOptions<BookDBContext> options) : base(options)
        {

        }
    }
}

5. We have to add a connection string. For this article, we will be using Microsoft SQL Server local DB. Open the appsettings.json file and add the connection string

{
  "ConnectionStrings": {
    "DefaultConnection": "Data Source=(localdb)\\MSSQLLocalDB;Initial Catalog=BookDBRestAPI;Integrated Security=True"
  },
  "Logging": {
    "LogLevel": {
      "Default": "Information",
      "Microsoft.AspNetCore": "Warning"
    }
  },
  "AllowedHosts": "*"
}

6. Configure the connection string in Program.cs class. Unlike .NET 5 or .NET 3.1, we don't have a Startup class anymore. Both Startup and Program classes are merged into one. Open program.cs and copy-paste the following code. We have added line 6 and line 7 which pulls the connection string from the config file and registers the DbContext with services.


using BooksNET6API.Models;
using Microsoft.EntityFrameworkCore;

var builder = WebApplication.CreateBuilder(args);
string connString = builder.Configuration.GetConnectionString("DefaultConnection");
builder.Services.AddDbContext<BookDBContext>(options =>
{
    options.UseSqlServer(builder.Configuration.GetConnectionString("DefaultConnection"));

});
// Add services to the container.

builder.Services.AddControllers();
// Learn more about configuring Swagger/OpenAPI at https://aka.ms/aspnetcore/swashbuckle
builder.Services.AddEndpointsApiExplorer();
builder.Services.AddSwaggerGen();

var app = builder.Build();

// Configure the HTTP request pipeline.
if (app.Environment.IsDevelopment())
{
    app.UseSwagger();
    app.UseSwaggerUI();
}

app.UseHttpsRedirection();

app.UseAuthorization();

app.MapControllers();

app.Run();

Add Migrations

1. The next step is to add migrations and create the DB table using EF Core. Go to Tools-> NuGet Package Manager -> Package Manager Console and run the following commands

add-migration AddBooktoDB
update-database

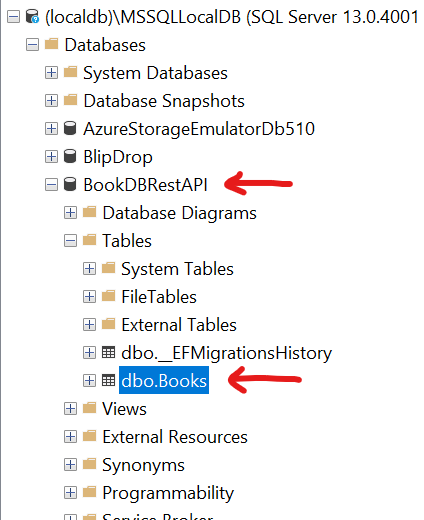

2. Go to SQL Server and check if a database named BookDBRestAPI is created or not. Inside the database, there should be a table named Books.

Create a .NET 6 REST API

Add a new Controller

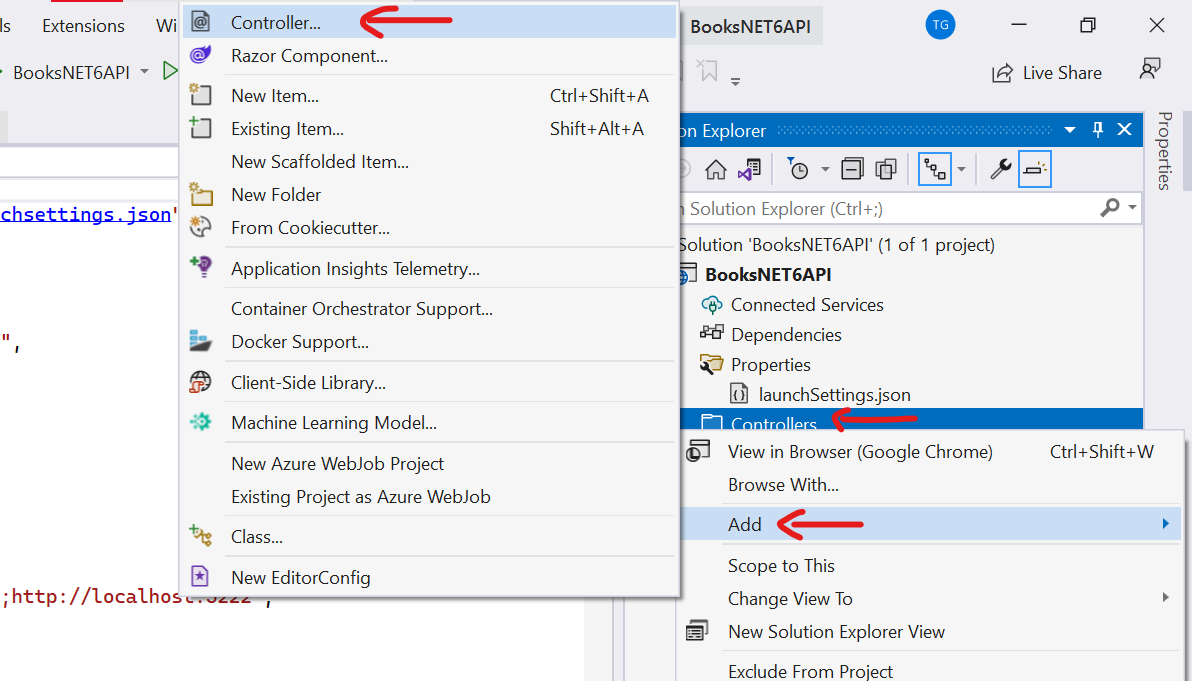

1. In solution explorer, right-click on Controllers folder -> Add -> Controller...

Create a .NET 6 REST API

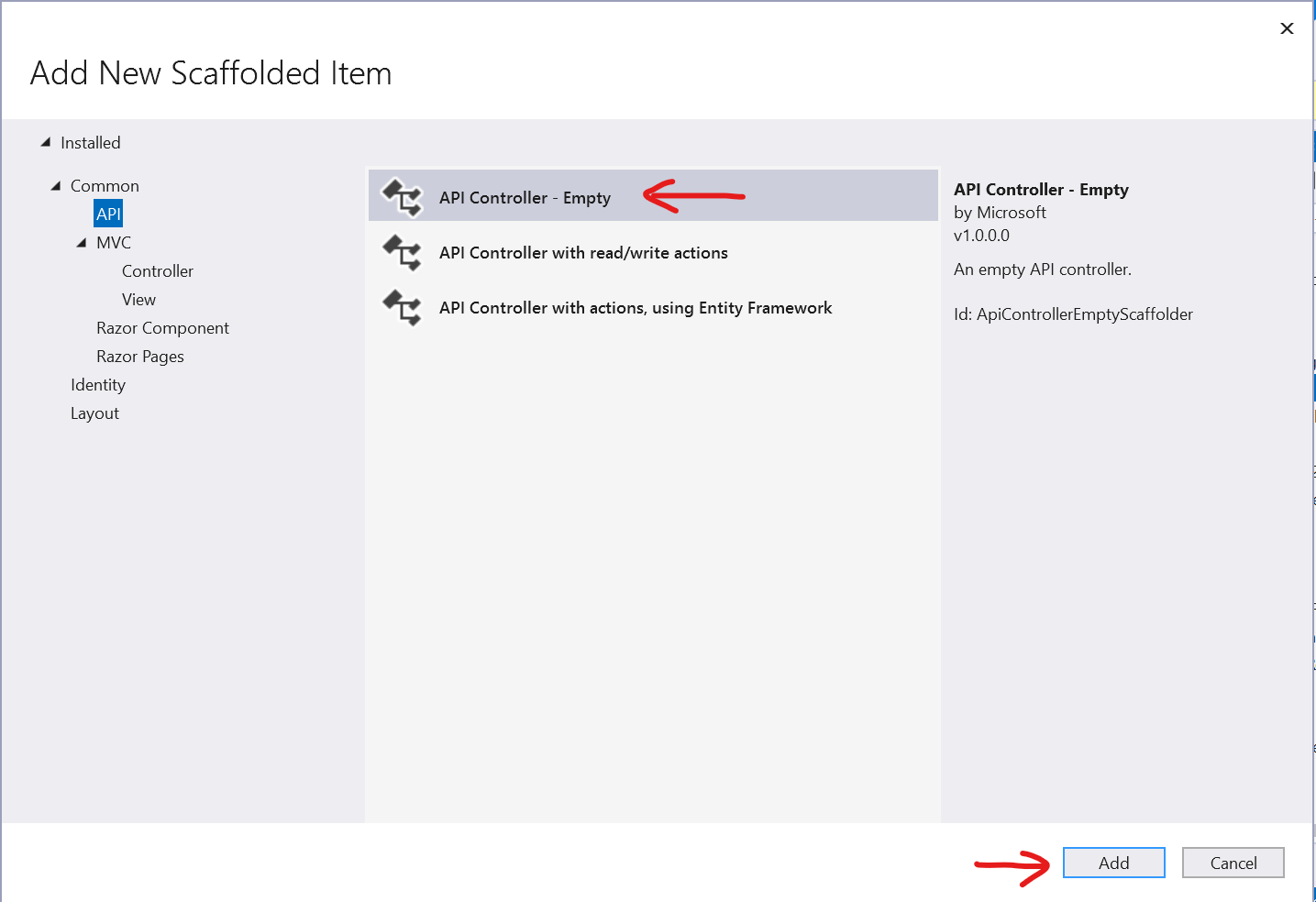

2. Choose API-> API Controller - Empty and click Add

Create a .NET 6 REST API

3. Copy-paste the following code into BooksController class

#nullable disable
using BooksNET6API.Models;
using BooksNET6API.Models.DAL.Contract;
using BooksNET6API.Models.Entities;
using Microsoft.AspNetCore.Mvc;
using Microsoft.EntityFrameworkCore;

namespace BooksNET6API.Controllers
{
    [Route("api/[controller]")]
    [ApiController]
    public class BooksController : ControllerBase
    {
        private readonly IBookRepo bookRepo;

        public BooksController(IBookRepo _bookRepo)
        {
            bookRepo = _bookRepo;
        }

        [HttpGet]
        public async Task<ActionResult<IEnumerable<Book>>> GetBooks()
        {
            try
            {
                return await bookRepo.GetBooks();
            }
            catch
            {
                return StatusCode(500);
            }
        }

        [HttpGet("{id}")]
        public async Task<ActionResult<Book>> GetBook(int id)
        {
            try
            {
                var book = await bookRepo.GetBook(id);
                return book;
            }
            catch
            {
                return StatusCode(500);
            }
        }


        [HttpPut("{id}")]
        public async Task<IActionResult> PutBook(int id, Book book)
        {
            try
            {
                var result = await bookRepo.PutBook(id, book);
                return result;
            }
            catch(DbUpdateConcurrencyException ex)
            {
                return StatusCode(409);
            }
            catch (Exception ex)
            {
                return StatusCode(500);
            }
        }


        [HttpPost]
        public async Task<ActionResult<Book>> PostBook(Book book)
        {
            try
            {
                var result = await bookRepo.PostBook(book);
                return CreatedAtAction("GetBook", new { id = result.Value.Id }, book);
            }
            catch
            {
                return StatusCode(500);
            }
        }

        [HttpDelete("{id}")]
        public async Task<IActionResult> DeleteBook(int id)
        {
            try
            {
                var result = await bookRepo.DeleteBook(id);
                return result;
            }
            catch
            {
                return StatusCode(500);
            }
        }


    }
}

Create Repository Class

We will be following the Repository Design pattern.

1. Create an interface IBookRepo in Models->DAL->Contract folder. Copy-paste the following code into IBookRepo

using BooksNET6API.Models.Entities;
using Microsoft.AspNetCore.Mvc;

namespace BooksNET6API.Models.DAL.Contract
{
    public interface IBookRepo
    {
        Task<ActionResult<IEnumerable<Book>>> GetBooks();
        Task<ActionResult<Book>> GetBook(int id);
        Task<IActionResult> PutBook(int id, Book book);
        Task<ActionResult<Book>> PostBook(Book book);
        Task<IActionResult> DeleteBook(int id);
    }
}

2. Create a class BookRepo in Models->DAL->Implementation folder. Copy-paste the following code

using BooksNET6API.Models.DAL.Contract;
using BooksNET6API.Models.Entities;
using Microsoft.AspNetCore.Mvc;
using Microsoft.EntityFrameworkCore;

namespace BooksNET6API.Models.DAL.Implementation
{
    public class BookRepo:IBookRepo
    {
        private readonly BookDBContext bookDBContext;
        public BookRepo(BookDBContext _bookDBContext)
        {
            bookDBContext = _bookDBContext;
        }

        public async Task<IActionResult> DeleteBook(int id)
        {
            var book = await bookDBContext.Books.FindAsync(id);
            if (book == null)
            {
                return new NotFoundResult();
            }

            bookDBContext.Books.Remove(book);
            await bookDBContext.SaveChangesAsync();

            return new NoContentResult();
        }

        public async Task<ActionResult<Book>> GetBook(int id)
        {
            var book = await bookDBContext.Books.FindAsync(id);

            if (book == null)
            {
                return new NotFoundResult();
            }

            return book;
        }

        public async Task<ActionResult<IEnumerable<Book>>> GetBooks()
        {
            return await bookDBContext.Books.ToListAsync();
        }

        public async Task<ActionResult<Book>> PostBook(Book book)
        {
            bookDBContext.Books.Add(book);
            await bookDBContext.SaveChangesAsync();

            return book;
        }

        public async Task<IActionResult> PutBook(int id, Book book)
        {
            if (id != book.Id)
            {
                return new BadRequestResult();
            }

            bookDBContext.Entry(book).State = EntityState.Modified;

            try
            {
                await bookDBContext.SaveChangesAsync();
            }
            catch (DbUpdateConcurrencyException)
            {
                if (!BookExists(id))
                {
                    return new NotFoundResult();
                }
                else
                {
                    throw;
                }
            }

            return new NoContentResult();
        }
        private bool BookExists(int id)
        {
            return bookDBContext.Books.Any(e => e.Id == id);
        }
    }
}

3. Add the following code to Program.cs

builder.Services.AddScoped<IBookRepo, BookRepo>();

Create Unit Test using xUnit and Moq

1. Right click on solution -> Add -> New Project

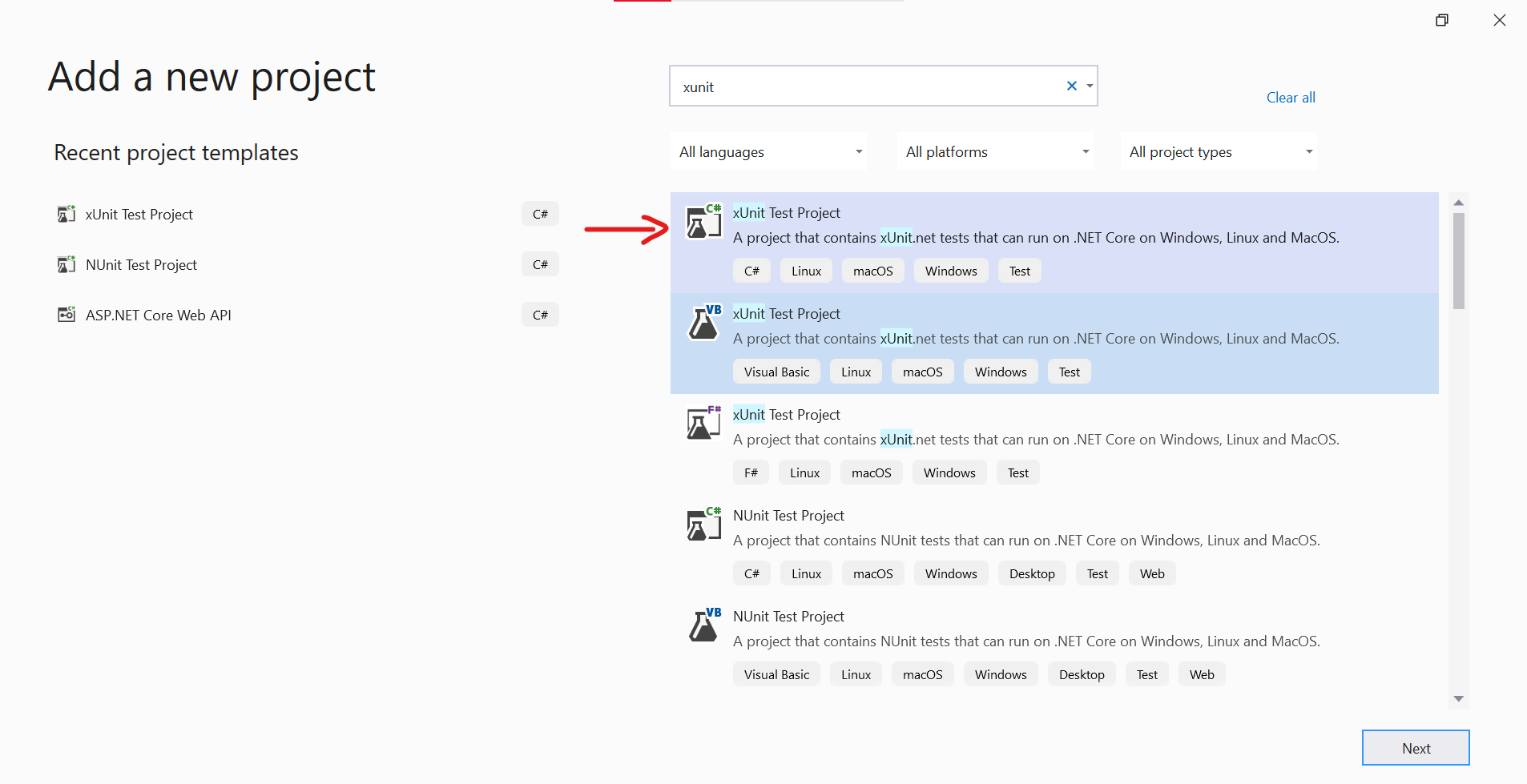

2. Choose xUnit Test project. Give it a proper name and choose the framework as .NET 6

Create Unit Test using xUnit and Moq

3. Install the NuGet package - Moq v 4.16.1, FluentAssertions v 6.4.0

4. Copy-paste the following code in your unit test class

using BooksNET6API.Controllers;
using BooksNET6API.Models;
using BooksNET6API.Models.DAL.Contract;
using BooksNET6API.Models.Entities;
using FluentAssertions;
using Microsoft.AspNetCore.Mvc;
using Microsoft.EntityFrameworkCore;
using Moq;
using System;
using System.Threading.Tasks;
using Xunit;

namespace BookRestAPIXUnitTest
{
    public class BookRestAPIUnitTest
    {
        private BooksController booksController;
        private int Id = 1;
        private readonly Mock<IBookRepo> bookStub = new Mock<IBookRepo>();
        Book sampleBook = new Book
        {
            Id = 1,
            Name = "State Patsy",
            Genere = "Action/Adventure",
            PublisherName = "Queens",
        };
        Book toBePostedBook = new Book
        {
            Name = "Federal Matters",
            Genere = "Suspense",
            PublisherName = "Harpers",
        };
        [Fact]
        public async Task GetBook_BasedOnId_WithNotExistingBook_ReturnNotFound()
        {
            //Arrange
            //use the mock to set up the test. we are basically telling here that whatever int id we pass to this method
            //it will always return null
            booksController = new BooksController(bookStub.Object);
            bookStub.Setup(repo => repo.GetBook(It.IsAny<int>())).ReturnsAsync(new NotFoundResult());
            //Act
            var actionResult = await booksController.GetBook(1);
            //Assert
            Assert.IsType<NotFoundResult>(actionResult.Result);
        }
        [Fact]
        public async Task GetBook_BasedOnId_WithExistingBook_ReturnBook()
        {
            //Arrange
            //use the mock to set up the test. we are basically telling here that whatever int id we pass to this method
            //it will always return a new Book object
            bookStub.Setup(service => service.GetBook(It.IsAny<int>())).ReturnsAsync(sampleBook);
            booksController = new BooksController(bookStub.Object);
            //Act
            var actionResult = await booksController.GetBook(1);
            //Assert
            Assert.IsType<Book>(actionResult.Value);
            var result = actionResult.Value;
            //Compare the result member by member
            sampleBook.Should().BeEquivalentTo(result,
                options => options.ComparingByMembers<Book>());
        }
        [Fact]
        public async Task PostVideoGame_WithNewVideogame_ReturnNewlyCreatedVideogame()
        {
            //Arrange
            bookStub.Setup(repo => repo.PostBook(It.IsAny<Book>())).ReturnsAsync(sampleBook);

            booksController = new BooksController(bookStub.Object);
            //Act
            var actionResult = await booksController.PostBook(toBePostedBook);
            //Assert
            Assert.Equal("201", ((CreatedAtActionResult)actionResult.Result).StatusCode.ToString());

        }
        [Fact]
        public async Task PostVideoGame_WithException_ReturnsInternalServerError()
        {
            //Arrange
            bookStub.Setup(service => service.PostBook(It.IsAny<Book>())).Throws(new Exception());
            booksController = new BooksController(bookStub.Object);
            //Act
            var actionResult = await booksController.PostBook(null);
            //Assert
            Assert.Equal("500", ((StatusCodeResult)actionResult.Result).StatusCode.ToString());
        }
        [Fact]
        public async Task PutVideoGame_WithException_ReturnsConcurrencyExecption()
        {
            //Arrange
            bookStub.Setup(service => service.PutBook(It.IsAny<int>(), It.IsAny<Book>())).Throws(new DbUpdateConcurrencyException());
            booksController = new BooksController(bookStub.Object);
            //Act
            var actionResult = await booksController.PutBook(Id, sampleBook);
            //Assert
            Assert.Equal("409", ((StatusCodeResult)actionResult).StatusCode.ToString());

        }
        [Fact]
        public async Task PutVideoGame_WithException_ReturnsExecption()
        {
            //Arrange
            bookStub.Setup(service => service.PutBook(It.IsAny<int>(), It.IsAny<Book>())).Throws(new Exception());
            booksController = new BooksController(bookStub.Object);
            //Act
            var actionResult = await booksController.PutBook(Id, sampleBook);
            //Assert
            Assert.Equal("500", ((StatusCodeResult)actionResult).StatusCode.ToString());
        }
        [Fact]
        public async Task PutVideoGame_WithExistingVideogame_BasedOnId_ReturnUpdatedVideogame()
        {
            //Arrange
            bookStub.Setup(service => service.PutBook(It.IsAny<int>(), It.IsAny<Book>())).ReturnsAsync(new NoContentResult());
            booksController = new BooksController(bookStub.Object);
            //Act
            var actionResult = await booksController.PutBook(Id, sampleBook);
            //Assert
            actionResult.Should().BeOfType<NoContentResult>();
        }
    }
}
