Implement CI/CD For SharePoint Framework - Part Two

In this article, we will see how we can implement Continuous Deployment using Azure DevOps to automate the SPFx solution deployment.

Overview


CI and CD are common acronyms in modern software development practices. It helps developers to deliver the product faster with transparency. In the previous article, we learned the CI, CD concepts and set up the build process to achieve Continuous Integration.


Continuous Deployment


Continuous Deployment (CD) takes a package from the build and deploys it to a designated environment. Successful and failed deployments can be tracked by developers.

Continuous Deployment with SharePoint Framework involves the below steps.
  1. Create the Release Definition
  2. Link the Build Artifact
  3. Create the Environment
  4. Install NodeJS
  5. Install Office 365 CLI
  6. Connect to App Catalog
  7. Add Solution Package to App Catalog
  8. Deploy the App
  9. Set Environment Variables

Create the Release Definition

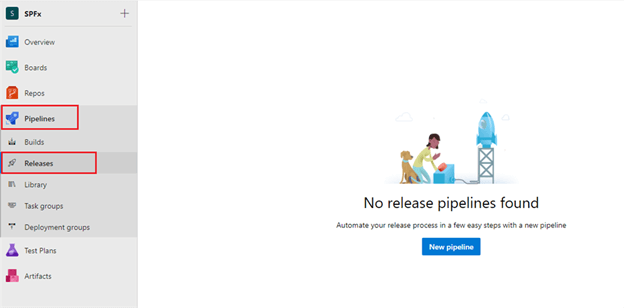

  • From left navigation, click Pipelines > Releases.
  • Click “New pipeline”.
Implement CI/CD For SharePoint Framework

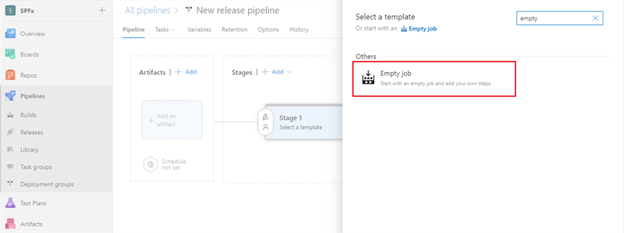

  • Create a new release definition with an empty template.
Implement CI/CD For SharePoint Framework


Link the Build Artifact

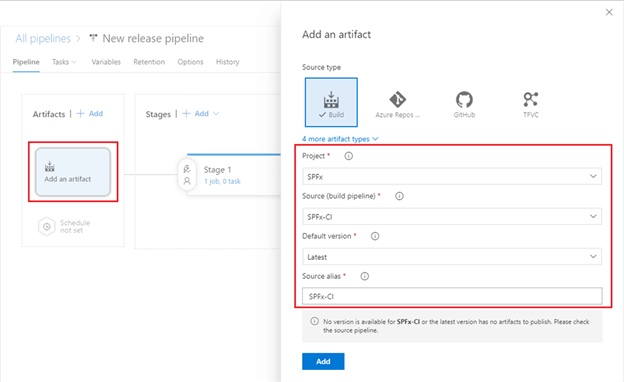

  1. Click “Add an artifact”
  2. Under “Source (build pipeline)”, select the previously created build definition
  3. Note down “Source alias” for future use.
  4. Click Add.
Implement CI/CD For SharePoint Framework

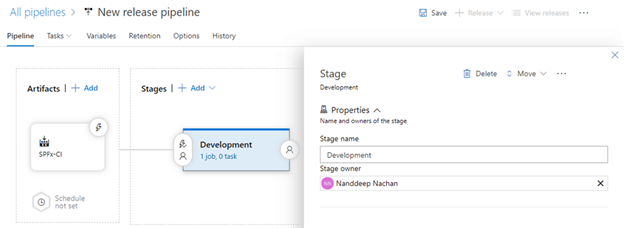

Create the Environment


Define an environment to deploy the build artifacts.
  1. Under Stages, click “Stage 1”.
  2. Name your environment.
Implement CI/CD For SharePoint Framework

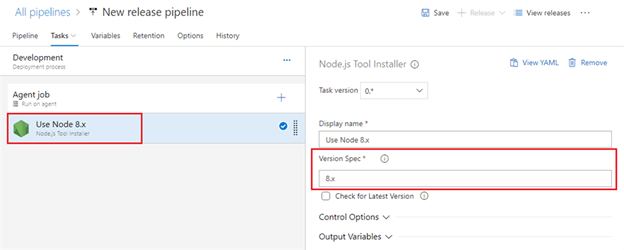

Install NodeJS

  1. Under environment, click “1 job, 0 task”.
  2. The task configuration window will appear, same as in build definition.
  3. On the default agent, click + sign.
  4. Search for “Node”.
  5. Add Node.js tool installer.
  6. Specify the version as 8.x, since SharePoint Framework supports Node version 8.x.
Implement CI/CD For SharePoint Framework

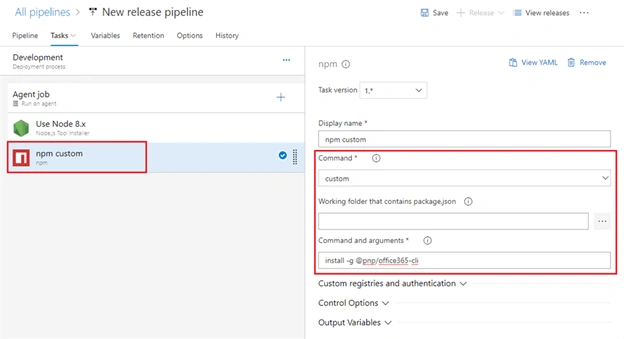

Install Office 365 CLI


Office 365 Common Language Interface (CLI) is an open source project from OfficeDev PnP Community.

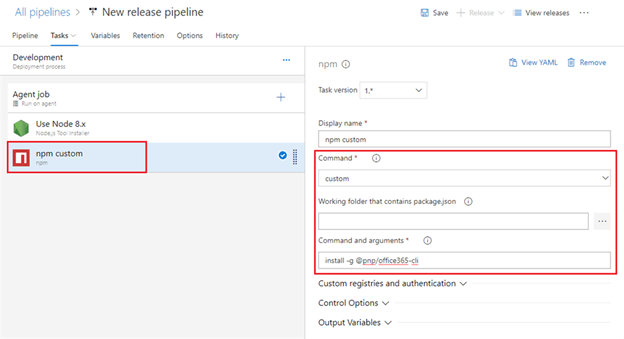

  1. Add npm task.
  2. Under “Command”, select custom.
  3. In the “Command and Arguments”, type install -g @pnp/office365-cli.
Implement CI/CD For SharePoint Framework

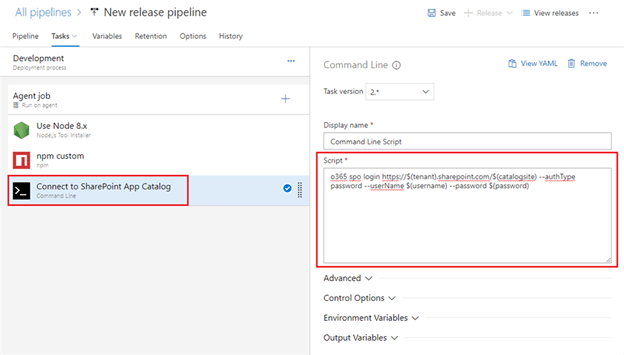

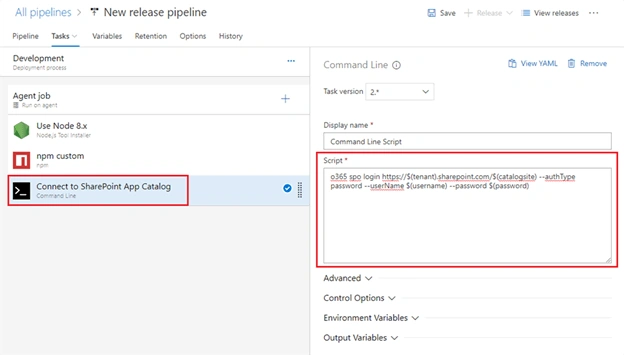

Connect to App Catalog


We need to authenticate against App Catalog of our tenant.
  1. Add the “Command Line” task.
  2. In the “Script” field, type in below command

    o365 spo login https://$(tenant).sharepoint.com/$(catalogsite) --authType password --userName $(username) --password $(password)
Implement CI/CD For SharePoint Framework

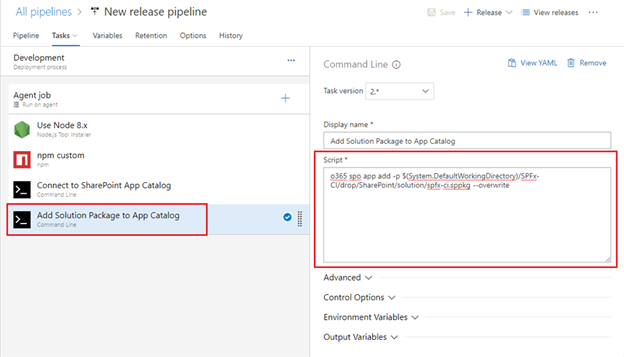

Add Solution Package to App Catalog


Now, we need to upload the solution package to app catalog.
  1. Add “Command Line” task.
  2. In the “Script” field, type in below command,

    o365 spo app add -p $(System.DefaultWorkingDirectory)/SPFx-CI/drop/SharePoint/solution/spfx-ci.sppkg --overwrite
Where SPFx-CI is source alias setup during “Link the Build Artifact” step.

Implement CI/CD For SharePoint Framework

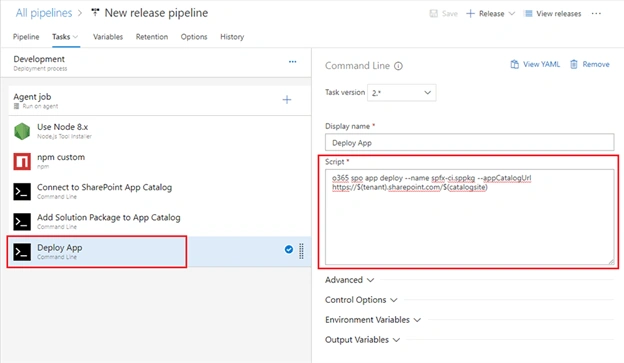

Deploy the App


We need to deploy the app to App Catalog to make it available to all site collections within the tenant.

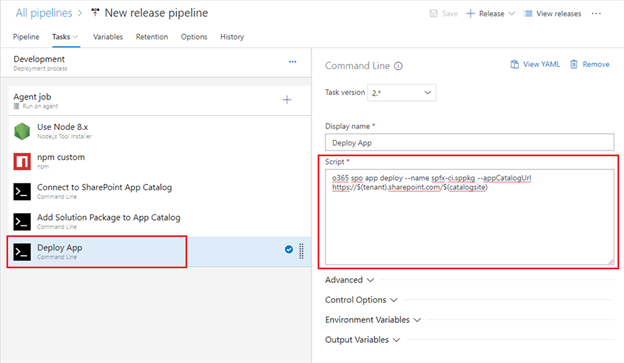

  1. Add “Command Line” task.
  2. In the “Script” field, type in below command.

    o365 spo app deploy --name spfx-ci.sppkg --appCatalogUrl https://$(tenant).sharepoint.com/$(catalogsite)



Implement CI/CD For SharePoint Framework



Set Environment Variables


We need to define the process variables used in earlier steps.

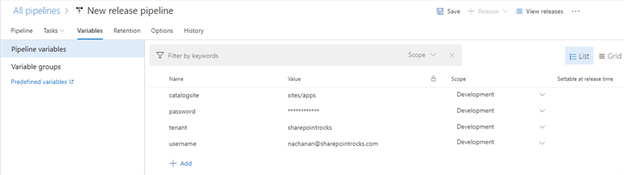

  1. Click the Variables tab.
  2. Under Pipeline variables, add below variables.
Implement CI/CD For SharePoint Framework


Setup Trigger for Deployment


We can manually trigger the deployment. However, the ideal scenario is to trigger the deployment on successful build completion. Follow below steps to setup trigger.

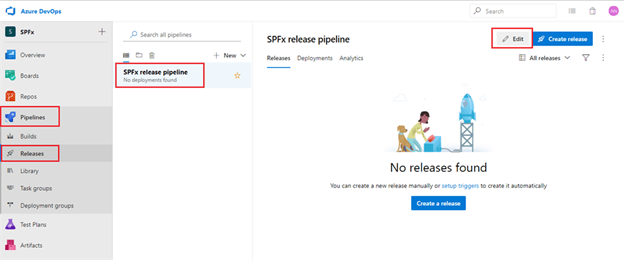

  • From the left menu, click Pipelines > Releases.
  • Open our release pipeline, we created earlier.
  • Click Edit.
Implement CI/CD For SharePoint Framework

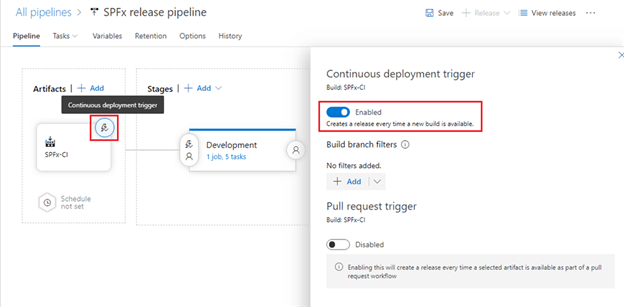

  • Under Artifacts, click Continuous deployment trigger.
  • Enable the continuous deployment.
Implement CI/CD For SharePoint Framework
  • Click Save.

Test Continuous Deployment


Follow the below steps to test the continuous deployment.

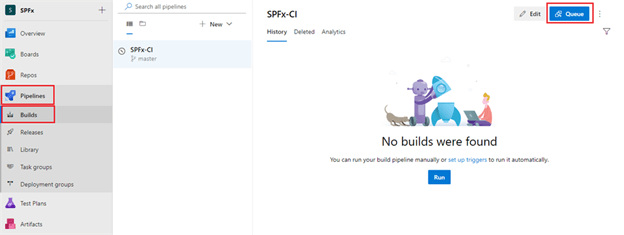

  • Under Pipelines click Builds.
  • Click Queue.
Implement CI/CD For SharePoint Framework

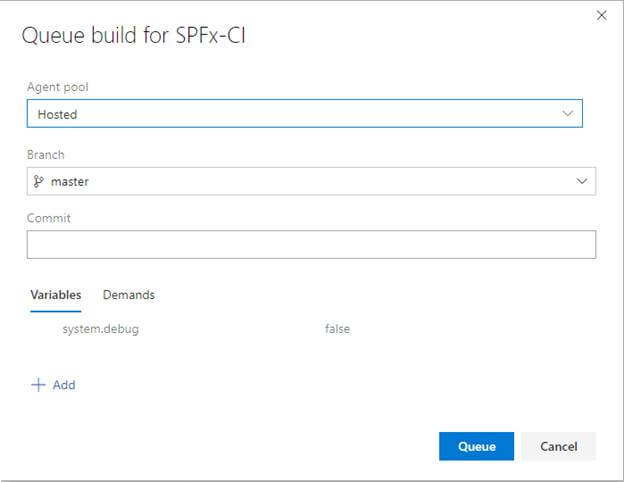

  • Select the branch. Click Queue.
Implement CI/CD For SharePoint Framework

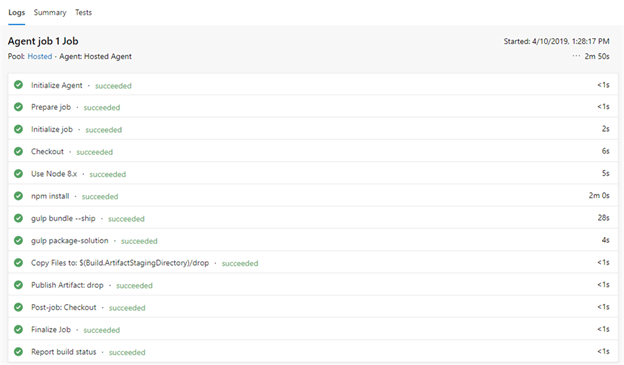

  • Once the build runs, see the logs and fix the issues if any.
Implement CI/CD For SharePoint Framework

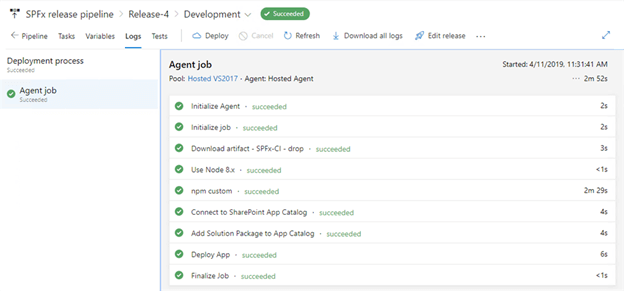

  • Once the build is successful, auto deployment will trigger (if configured). Once the deployment runs, see the logs and fix the issues if any.
Implement CI/CD For SharePoint Framework
  • Verify the app (.sppkg) is deployed to SharePoint app catalog.

Summary


CI/CD helps to automate the build and deployment process when a solution being worked on by the team is undergoing continuous changes. Azure DevOps helps to automate SPFx solution builds and deployment.
