Modern Architecture Shop (Clean Architecture And Microservices)

Introduction


Modern Architecture Shop is a clean-lightweight.NET microservices application, showcasing the use of Dapr to build microservices-based applications. It is a simple online shop with all the core components that make up such a system, for example, a frontend for users authentication, product catalog, and basket and payment processing, etc.

Dapr is an event-driven, portable runtime for building microservices on edge and cloud. This project intended to show how you can make a clean microservices application with Dapr.

The project design decisions, balancing between realism and a simple demo showcase, but in the context of a real working application, you have to take some other design decisions which fit better to your functional and non-functional requirements.

The backend microservices are written in C# (however, it's worth noting that Dapr is language independent), and the frontend is a Blazor. All APIs are REST & HTTP & gRPC based.

Tech Stacks


Demo



This project is related to a series of C#Corner articles:
  • Modern Architecture Shop (Clean Architecture and Microservices), Part I (Done) This article is about the current application architecture and what we can do to make the project architecture clean.
  • Modern Architecture Shop (Clean Architecture in the Microservices, DDD), Part II (Future) This article shows you how to separate the infrastructure from the application. In other words, make the infrastructure dependent on the application.
  • Modern Architecture Shop Fixing the tech problems (Future-article) Logging/Debugging/Testing is essential to create a successful: Zipkin, Serilog, Seq in our shop. And extending the services, Payment Services, and more UI.
  • Modern Architecture Shop Dapr Pure (Future) In this article, we will use Dapr in-depth.
The final goal of this project is to make a clean microservices application that can be deployed to the Kubernetes platform and run on Dapr runtime with and without Tye options.

The first showcase is using Dapr in a very simple way (No: State Management, Actors, etc.).

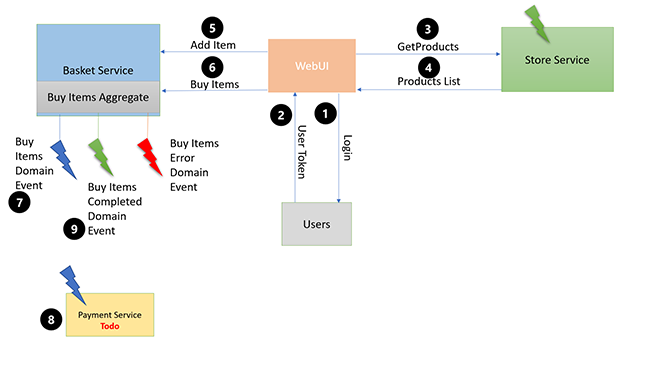

Obviously, this means we have to do everything by ourselves, for example, if you add a product to the basket, then you have to send a domain event which can be procced in the store service and make the product as reserved.

Also, you have to send the data as an aggregate(Transaction), and if any error is occurring during the data processing, then you have to roll back the data.

Finally, I will implement the same services with Dapr (State Management, Actors, Communication, etc.). After that, you can compare the two solutions, and I will show you how Dapr can simplify the problems and making the development process more comfortable.


Store Service


This service represents the store. The current implementation is very minimal; With this service, you can add/remove/update products to/from/in any store or add/remove a new store.

API routes

/api/products GET All products

The service contains all products. Each registered user can add/remove items to/from his shopping cart(Basket Service). Admin users can add/remove products (still in progress) to/from the stores.
  • Store - Dapr Interaction
  • Pub/Sub: Subscribes to the store-queue topic to receive new notification from the basket service.
  • State. Stores: next version
  • Actor: next version
  • Bindings: next version
  • Basket service
Provides a basket service to the Store.

API routes
  1. /api/item/{itemJson}    Post a new item and store it in the user basket
  2. /api/item/{Id}          Delete the item with the given Id from the basket
  3. /api/items              Get all items from the basket for the logged-in user
The service is responsible for maintaining the user's shopping carts and persisting them. Submitting a cart will validate the cart contents and turn it into an order item, which is sent to the Payment service for further processing.
  • Cart - Dapr Interaction
  • Pub/Sub: The basket service pushes shopping carts entities to the store-queue topic and to the payment topic to complete the order.
  • State. Stores: next version
  • Actor: next version
  • Bindings: next version
  • Service Invocation: next version
Users Management Service

Provides a simple user management service to the Modern Store. Only registered users can use the Shop to place orders etc.
  • The service generates the bearer token.
  • Users - Dapr Interaction
  • State: todo
BlazorUI - Frontend

This is the application user interface offering direct user interaction with the system and is responsible for managing the shop. It is programmed in Blazor, and all data is fetched via a REST API endpoint.

Frontend host

Blazor Server.


Clean Architecture


Clean Architecture is the key to Loosely-Coupled-Application. It allows you completely to decouple the application from the infrastructure.

Loosely-Coupled-Application

Clean Architecture Separates
  • User Interface
  • Database
  • Use Cases
  • Domain

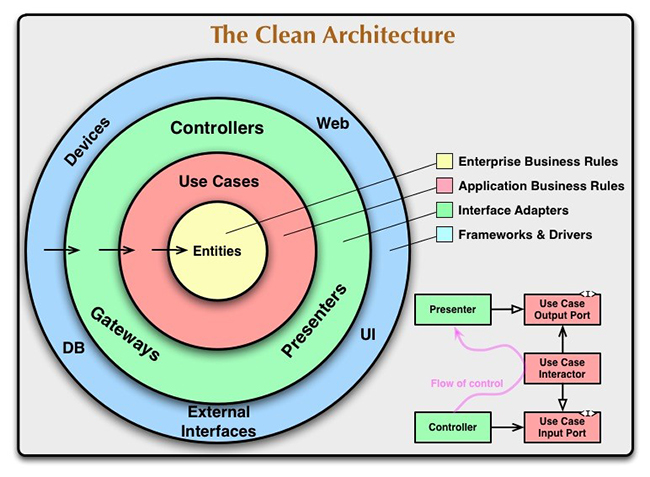

Clean Architecture Circle Diagram from Uncle Bob book

Benefits
  • Independent of Database
  • Independent of Frameworks
  • Effective testable
  • Independent of any external agency
  • All business logic is in use cases
Clean architecture can solve the below-listed problems:
  • Decisions are taken too early
  • It's hard to change,
  • It's centered around frameworks
  • It's centered around the database
  • We focus on technical aspects
  • It's hard to find things
  • Business logic is spread everywhere
  • Heavy tests

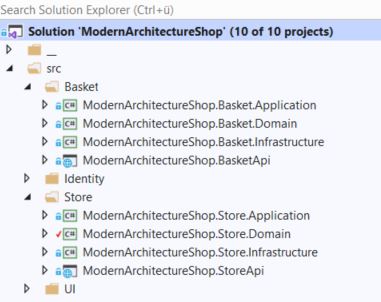

ModernArchitectureShop architecture

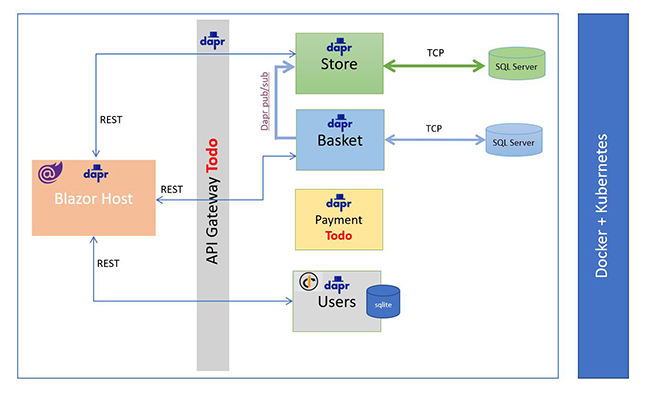

Architecture Overview



Each domain service is divided into four parts:


.Domain

It contains only the POCOs and related domain events.

.Application

It contains the Uses Cases, Interfaces for the infrastructure, and other business logic stuff.

.Infrastructure

It contains Infrastructure stuff like databases etc.

.Api

The WebAPI stuff.

Note
StoreApi and the BasketApi assemblies are mixing the Infrastructure and the WebAPI and the Application Logic. In the next version, I will separate them according to the clean architecture principles.


ModernArchitectureShop.BlazorUI Service


In the ModernArchitectureShop.BlazorUI.Startup.cs I have registered all services, and I have added the HTTP clients to the services.

HTTP Clients

IdentityService.cs

Is responsible for the login/logout

ProductService.cs

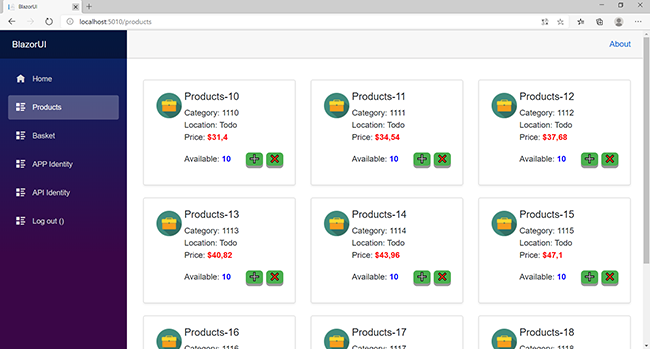

Retrieves all products from the Store and display them the Products.razor

BasketProductService.cs

It manages the basket, for example, adding or removing items to/from the basket.

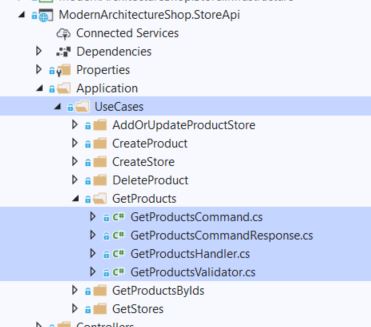

ModernArchitectureShop.StoreApi Service


The WebApi for the Store.

Controllers

ProductsController.cs loads the products from the store service and forward them to the BlazorUI as follows,
  1. public async Task<IActionResult> GetProducts([FromQuery]
  2. GetProductsCommand command)
  3. {
  4.   var result = await _mediator.Send(command);
  5.   return Ok(result);
  6. }
The MediatR design pattern is used to reduce the dependencies between objects.

As shown below, the GetProductsHanlder is called from the mediator.

  1. public async Task<GetProductsCommandResponse>
  2. Handle(GetProductsCommand command, CancellationToken cancellationToken)
  3. {
  4.   var query = _dbContext.Set<Product>();
  5.
  6.   var totalOfProducts = await query.CountAsync(cancellationToken);
  7.   var products = await query.AsNoTracking()
  8.     .OrderBy(x => x.Code)
  9.     .Skip((command.PageIndex - 1) \* command.PageSize)
  10.     .Take(command.PageSize)
  11.     .Include(x => x.ProductStores)
  12.     .ThenInclude(x => x.Store)
  13.     .ProjectTo<ProductDto>(_mapper.ConfigurationProvider)
  14.     .ToListAsync(cancellationToken);
  15.
  16.    var result = new GetProductsCommandResponse
  17.    {
  18.     Products = products,
  19.     TotalOfProducts = totalOfProducts
  20.    };
  21.
  22.   return result;
  23. }
The data is displayed in the products.razor, as follows:
  1. protected override async Task OnParametersSetAsync()
  2. {
  3.   var response = await ProductService.GetProductsAsync(ProcessUrl());
  4.
  5.   if (response.StatusCode == (int) System.Net.HttpStatusCode.OK)
  6.   {
  7.     _productsModel =JsonConvert.DeserializeObject<ProductsModel>(response.Content);
  8.   }
  9.   else
  10.   {
  11.     _errorMessage = $"Error: {response.Error}";
  12.     _productsModel = new ProductsModel();
  13.   }
  14. }
The response above contains the products and the count. Finally, the products are displayed, as shown below.
  1. protected override async Task OnParametersSetAsync()
  2. {
  3.   var response = await ProductService.GetProductsAsync(ProcessUrl());
  4.
  5.   if (response.StatusCode == (int) System.Net.HttpStatusCode.OK)
  6.   {
  7.     _productsModel =JsonConvert.DeserializeObject<ProductsModel>(response.Content);
  8.   }
  9.   else
  10.   {
  11.     _errorMessage = $"Error: {response.Error}";
  12.     _productsModel = new ProductsModel();
  13.   }
  14. }

ModernArchitectureShop.BasketApi


It contains tow controllers: ItemController.cs and ItemsController.cs

ItemController creates and deletes items to/from the basket.

ItemsController retrieves items from the database.

Again, here I have used MediatR:
  1. \\Application\\UsesCases\\AddItemHandler
  2.
  3. public async Task<ItemDto> Handle(AddItemCommand command, CancellationToken cancellationToken)
  4. {
  5.   var itemFromCommand = _mapper.Map<Item>(command);
  6.   var items = _dbContext.Set<Item>();
  7.
  8.   var itemFromDb = await items.SingleOrDefaultAsync(x => x.ItemId ==  command.ItemId, cancellationToken: cancellationToken);
  9.
  10.   if (itemFromDb != null)
  11.   {
  12.     _mapper.Map(itemFromCommand, itemFromDb);
  13.     items.Update(itemFromDb);
  14.   }
  15.   else
  16.   {
  17.     await _dbContext.Items.AddAsync(itemFromCommand, cancellationToken);
  18.   }
  19.
  20.   await _dbContext.SaveChangesAsync(cancellationToken);
  21.   await _itemCreatedNotificationHandler.Handle(new ItemCreatedMessage(), cancellationToken);
  22.
  23.   return _mapper.Map<ItemDto>(itemFromCommand);
  24. }
Once the items are added to the database, the ItemCreatedMessage.cs (Dapr) message is being published to the Store. We need this message, for example, to update the reserved items.
  1. \\Application\\UsesCases\\GetItemsHandler
  2.
  3. public async Task<GetItemsCommandResponse> Handle(GetItemsCommand command, CancellationToken cancellationToken)
  4. {
  5.   var query = _dbContext.Set<Item>();
  6.
  7.   var totalOfItems = await query.Where(i => i.Username == command.Username).CountAsync(cancellationToken);
  8.   var items = await query.AsNoTracking()
  9.     .OrderBy(x => x.Code)
  10.     .Skip((command.PageIndex - 1) \* command.PageSize)
  11.     .Take(command.PageSize)
  12.     .ProjectTo<ItemDto>(_mapper.ConfigurationProvider)
  13.     .Where(i => i.Username == command.Username)
  14.     .ToListAsync(cancellationToken);
  15.
  16.   var result = new GetItemsCommandResponse
  17.   {
  18.     Items = items,
  19.     TotalOfItems = totalOfItems,
  20.   };
  21.
  22.  return result;
  23. }

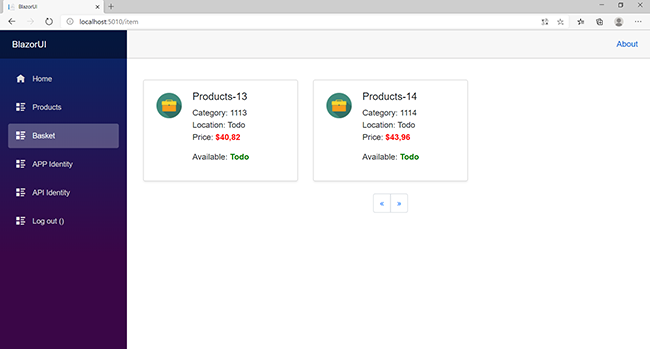

The code above fetches the items and returns them to the UI host, then items.razor can display them.


Summary


ModernArchitectureShop is a modern light microservices application. We have seen that the current implementation is not ideal, and it needs some cleanups. In the next article, I will decouple the application from the infrastructure, and I will extend the project.

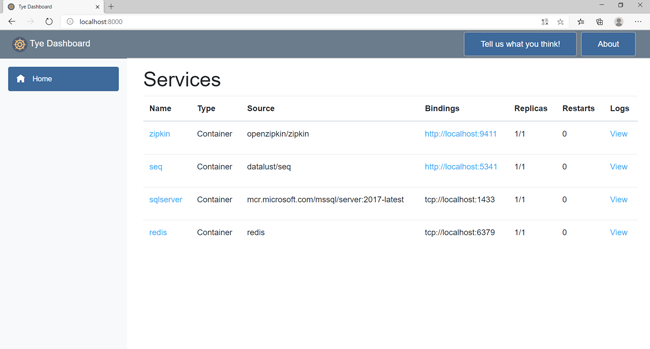

Tye Dashboard

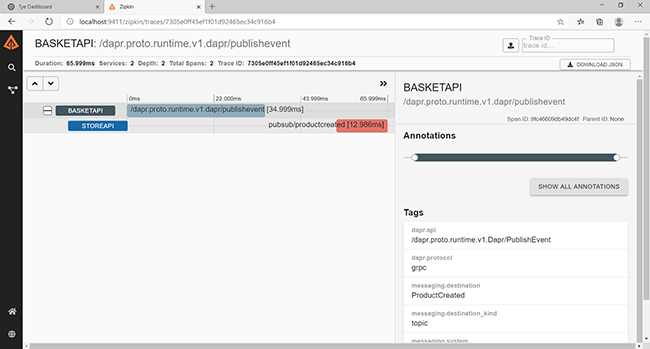

Zipkin
