RatingBar Android App Using Android Studio

Introduction


Android RatingBar can be used to get a rating from the user. The Rating returns a floating-point number. It may be 2.0, 3.5, 4.0 etc. Android RatingBar displays the rating in stars. In this article, I will show you how to create a RatingBar Android App using Android Studio.

Requirements
Important Points to Remember

The getRating() method of the Android RatingBar class returns the rating number.

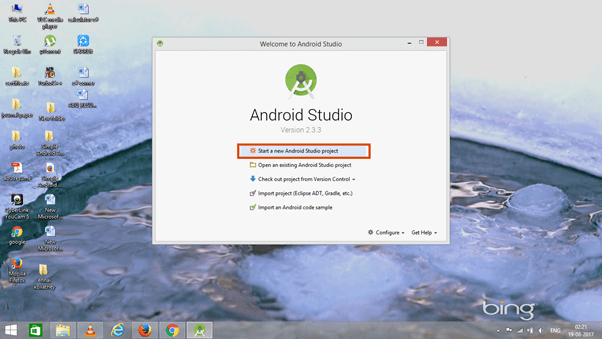

Create a New Project

Open Android Studio and create a New Android Studio Project.

RatingBar Android App

activity_main.xml

Drag the RatingBar and Button from the palette now the activity_main.xml file will look like this,
  1. <RelativeLayout
  2.     xmlns:android="http://schemas.android.com/apk/res/android"
  3.     xmlns:tools="http://schemas.android.com/tools"
  4.     android:layout_width="match_parent"
  5.     android:layout_height="match_parent"
  6.     tools:context=".MainActivity" >
  7.
  8.     <RatingBar
  9.         android:id="@+id/ratingBar1"
  10.         android:layout_width="wrap_content"
  11.         android:layout_height="wrap_content"
  12.         android:layout_alignParentTop="true"
  13.         android:layout_centerHorizontal="true"
  14.         android:layout_marginTop="44dp" />
  15.
  16.     <Button
  17.         android:id="@+id/button1"
  18.         android:layout_width="wrap_content"
  19.         android:layout_height="wrap_content"
  20.         android:layout_alignLeft="@+id/ratingBar1"
  21.         android:layout_below="@+id/ratingBar1"
  22.         android:layout_marginLeft="92dp"
  23.         android:layout_marginTop="66dp"
  24.         android:text="submit" />
  25.
  26. </RelativeLayout>
RatingBar Android App

Activity class

Let's write the code to display the rating of the user.

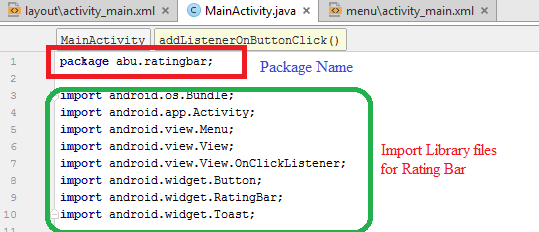

MainActivity.java- The Header File

RatingBar Android App
  1. package abu.ratingbar;
  2.
  3. import android.os.Bundle;
  4. import android.app.Activity;
  5. import android.view.Menu;
  6. import android.view.View;
  7. import android.view.View.OnClickListener;
  8. import android.widget.Button;
  9. import android.widget.RatingBar;
  10. import android.widget.Toast;
Declare the Button with Rating Bar,

RatingBar Android App
  1.  public class MainActivity extends Activity {
  2.     RatingBar ratingbar1;
  3.     Button button;
  4.     @Override
  5.     protected void onCreate(Bundle savedInstanceState) {
  6.         super.onCreate(savedInstanceState);
  7.         setContentView(R.layout.activity_main);
  8.         addListenerOnButtonClick();
  9.     }
  10.
  11.     public void addListenerOnButtonClick(){
  12.         ratingbar1=(RatingBar)findViewById(R.id.ratingBar1);
  13.         button=(Button)findViewById(R.id.button1);
  14.
  15.         button.setOnClickListener(new OnClickListener(){
  16.
  17.             @Override
  18.             public void onClick(View arg0)                 String rating=String.valueOf(ratingbar1.getRating());
  19.                 Toast.makeText(getApplicationContext(), rating, Toast.LENGTH_LONG).show();
  20.             }
  21.
  22.         });
  23.     }
  24.     @Override
  25.     public boolean onCreateOptionsMenu(Menu menu) {
  26.
  27.         getMenuInflater().inflate(R.menu.activity_main, menu);
  28.         return true;
  29.     }
  30.
  31. }

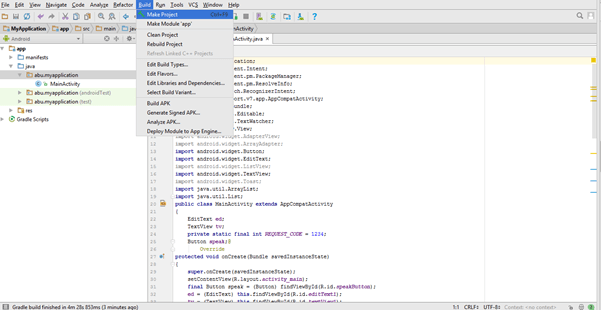

Debug The Error

Now, go to the menu bar and click make a project or press ctrl+f9 to debug the error.

RatingBar Android App

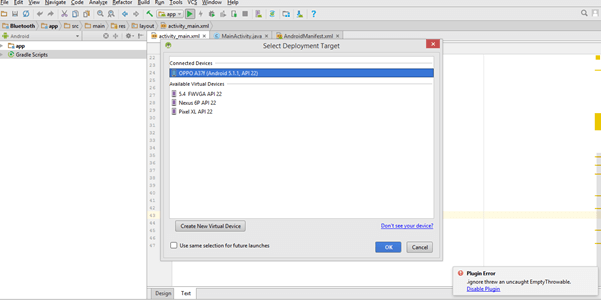

Run the project

Then click Run button or press shift+f10 To run the project. And choose the virtual machine and click OK.

RatingBar Android App

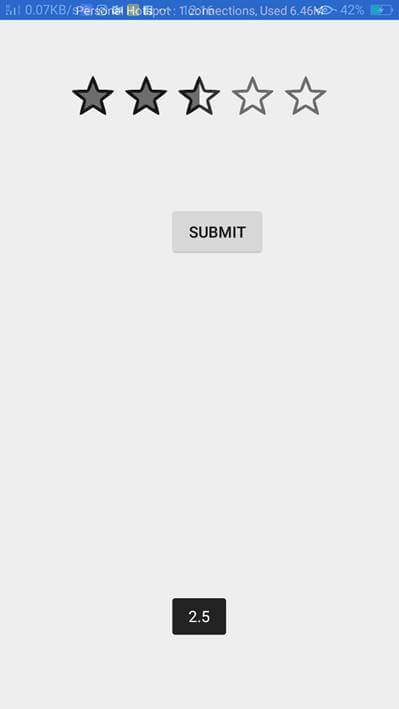

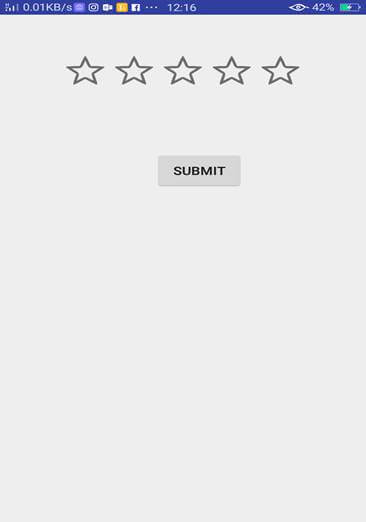

Output

We have successfully created a RatingBar Android application using Android Studio.

RatingBar Android App

RatingBar Android App
