Reading An Excel File In UiPath

In this article, we are going to see how to open an existing excel file and read the data from it and open notepad and write into it.

What is RPA


RPA stands for Robotic Process Automation,  an emerging form of business process automation technology which provides easy GUI based tools and activity to automate business processes.

Here we are using UiPath RPA Tool.

First Install RPA Tool UiPath Community Edition from here.

Simple Hello World and Web Scraping Projects/Program articles are already here in C# Corner.

Now we will create Automation using UiPath to read the data from the existing Excel file and paste that data into Notepad.

Step1

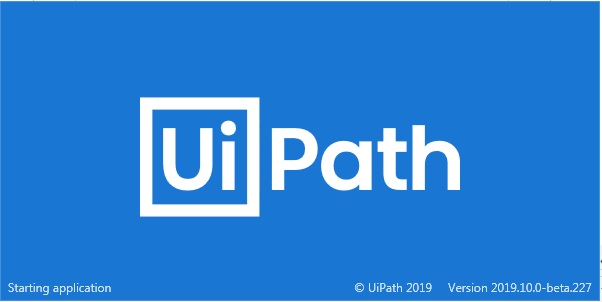

Open Uipath Studio

opening UiPath

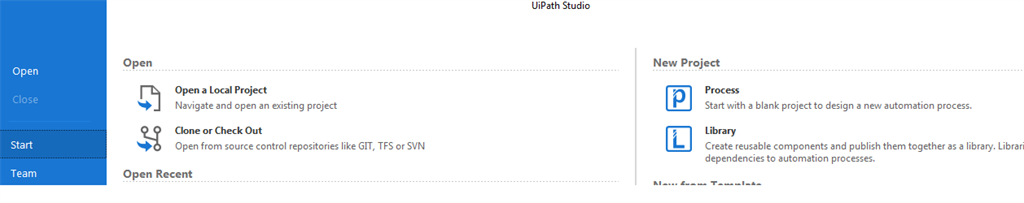

Under New Project click on Process for blank project

selecting a New Project

It will give you the below screen,

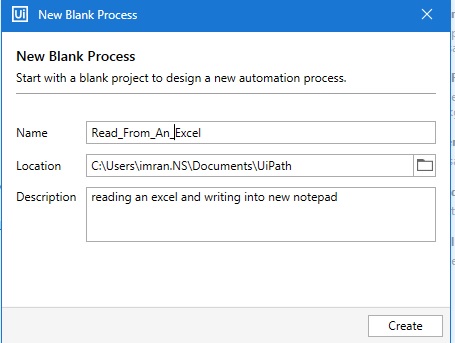

New Blank Process

Type Name and Description then click on the Create button

Step 2

As this is a very simple step first we will be reading an excel then we will open a notepad and write the invoice number into it. So we will choose Sequence activity as everything is in linear/sequence form.

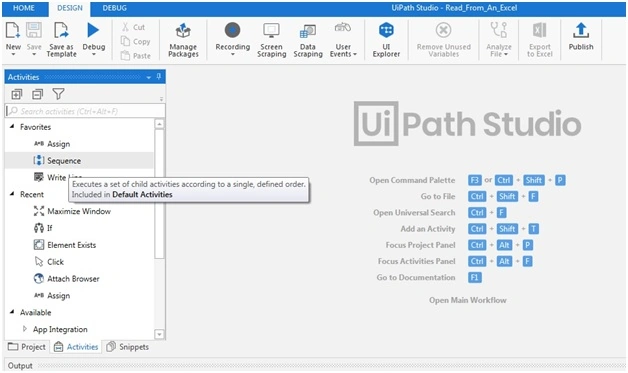

open main workflow

Click open main workflow

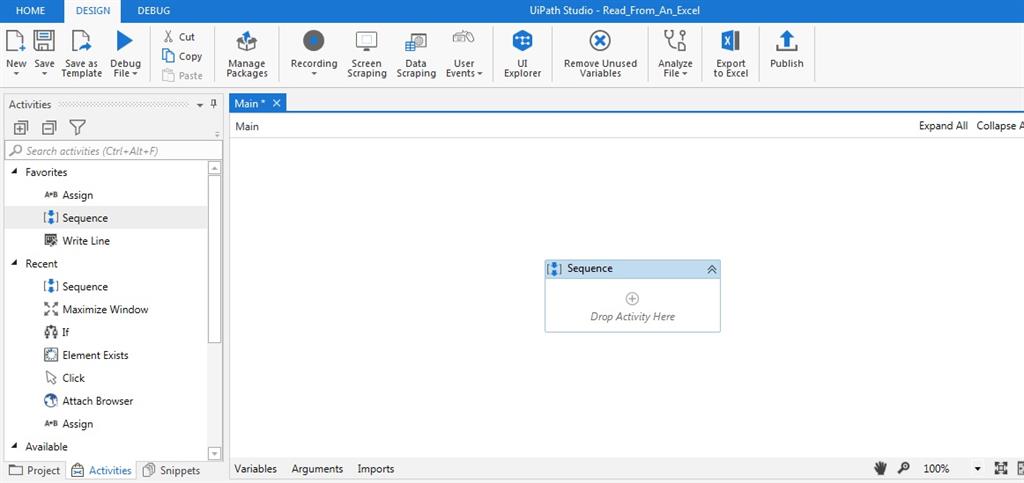

Drag sequence activity under main

Drag Sequence activity under main

Change properties displayName from Sequence to “Read Excel and paste into notepad”

Step 3

For reading an excel first we will choose the activity called "Excel Application Scope" from activities

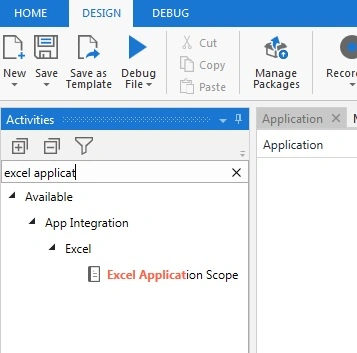

Type "Excel application scope" into search activities

selecting excel scope activity

Drag it into "drag activities here" under main

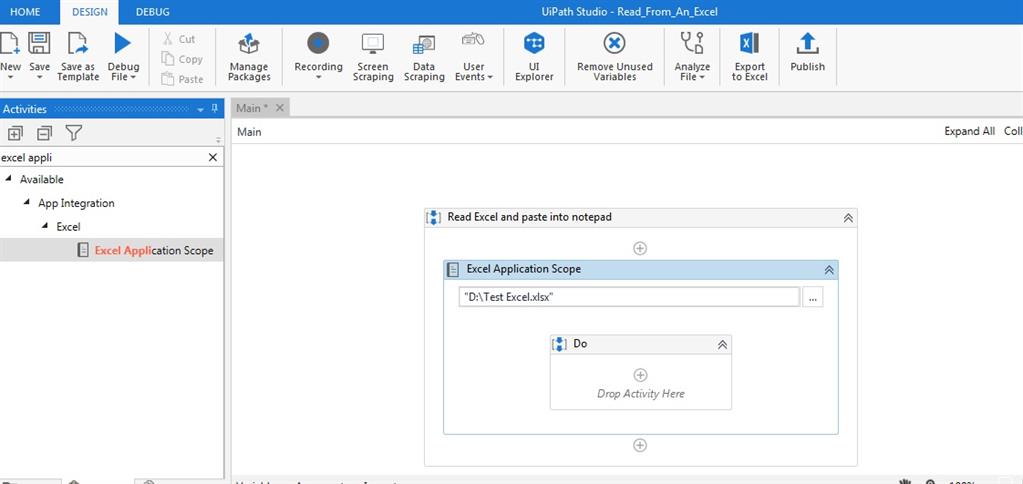

Give the Excel path in WorkbookPath Properties or else just click … and browse to the Excel file.

Selecting Excel

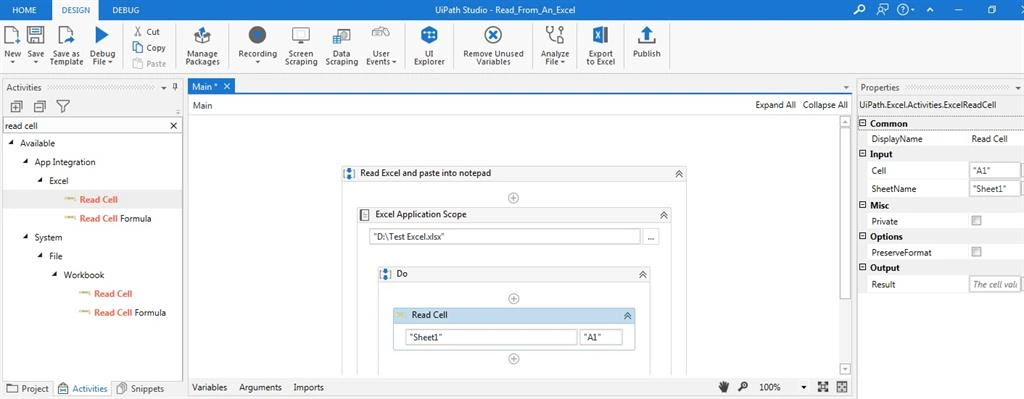

Search Read Excel and drag it as below:

search read cell and drag

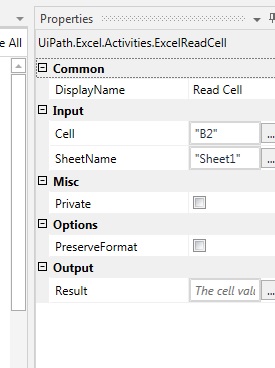

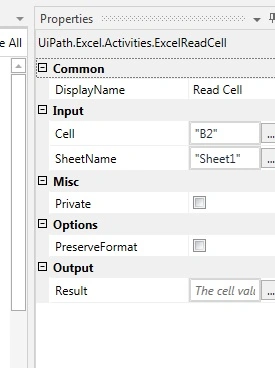

Now give the cell value and Sheet name from an existing Excel sheet as below

giving values to existing excel

To store a result we need a variable

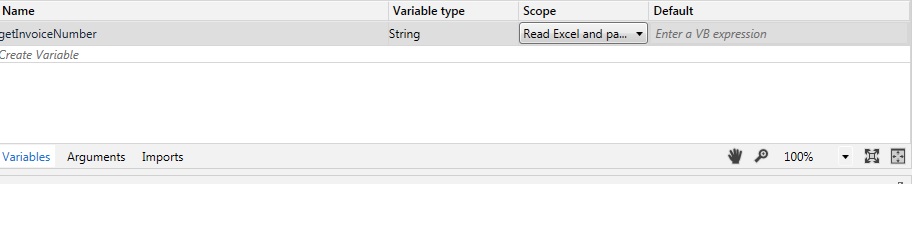

Create a variable by clicking on variable,

Select proper variable type and scope

create a variable

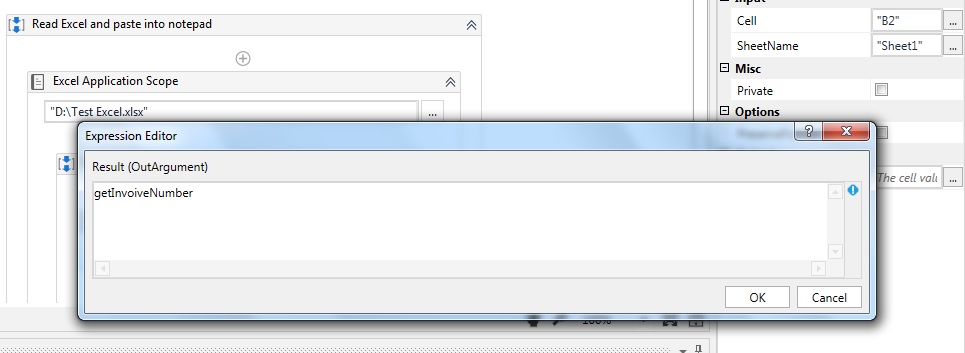

Pass that variable to Result.

pass the variable to results

Now we have read the data invoice number from Excel and stored it in the Variable called getInvoiveNumber

Step 4

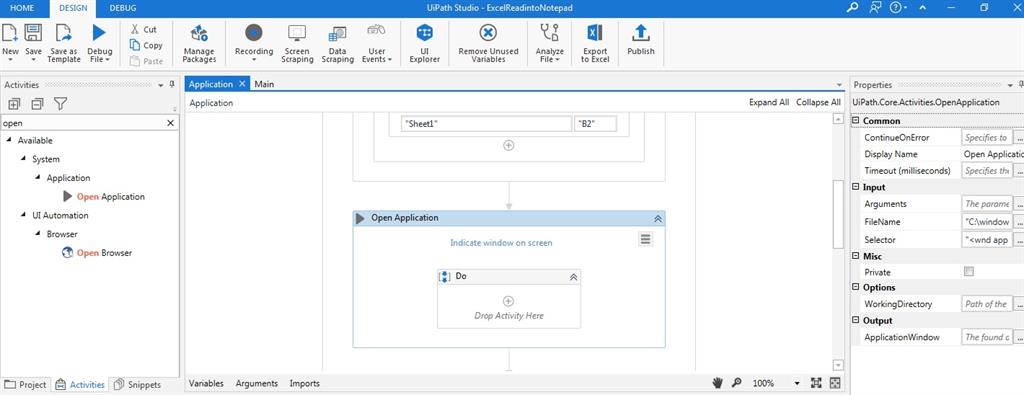

Open Notepad Application by taking open application activity from activities.

open application notepad

Pass the "C:\windows\system32\notepad.exe" into FileName Property

Open Notepad

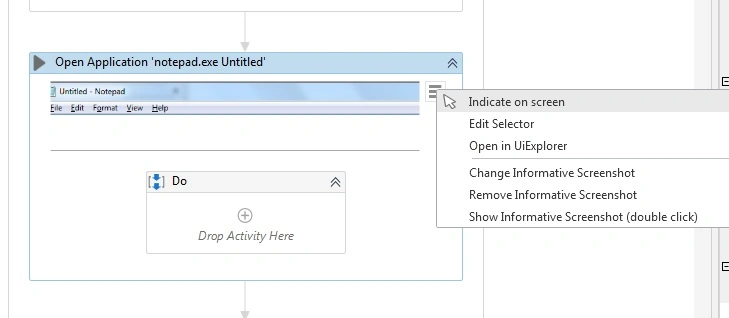

Click on Indicate on Screen in Open application activity and click on the notepad screen.
Click on indicate screen notepad

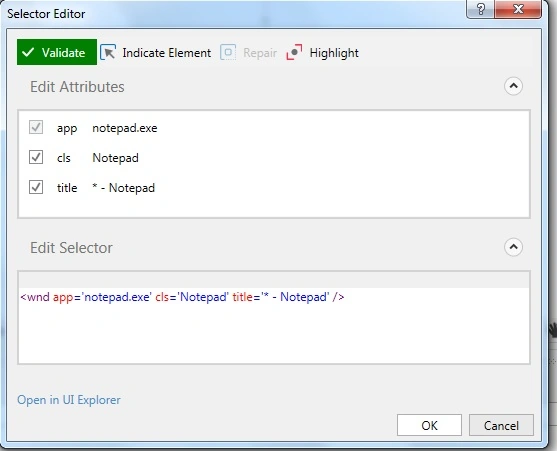

Selector for Notepad

selector for notepad

Note
Here I have replaced Notepad with '*' to make it dynamic

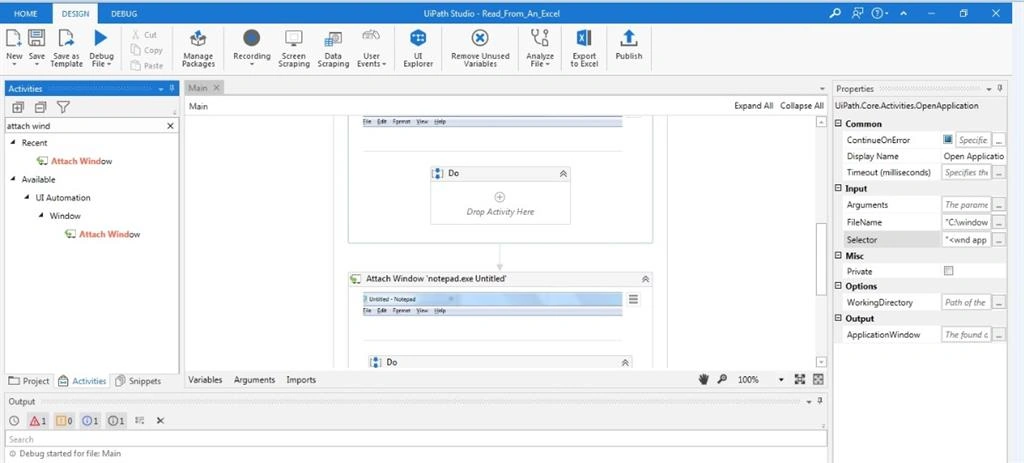

Now we need to attach that notepad window

For that take attach window activity as shown

attach window

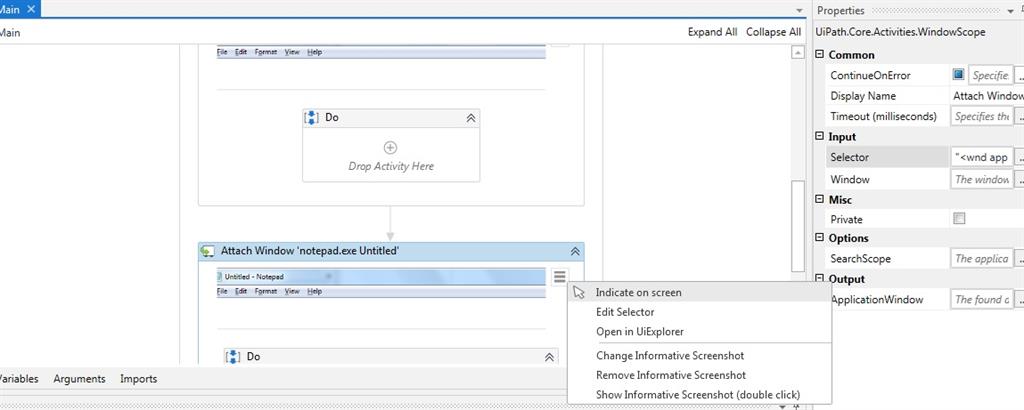

Go to indicate on screen and click on notepad

attach window indicate screen

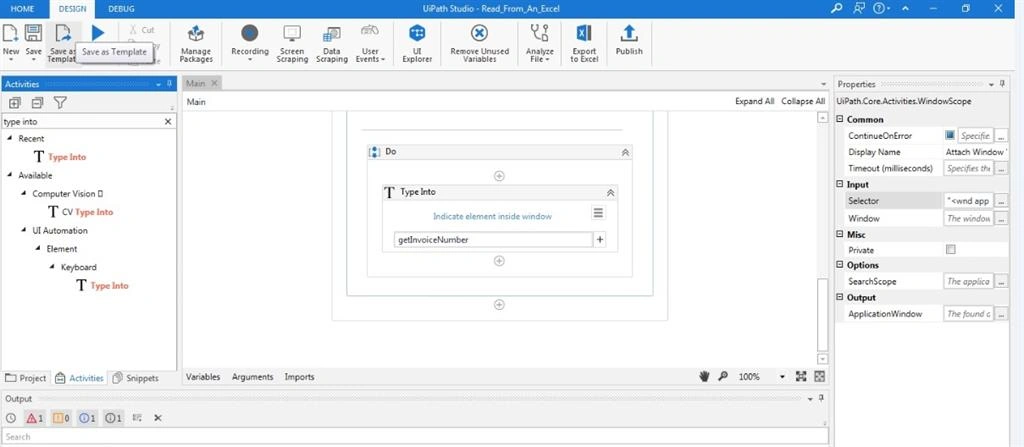

Now choose the type into activity to type the  invoice number to Notepad

type into activity

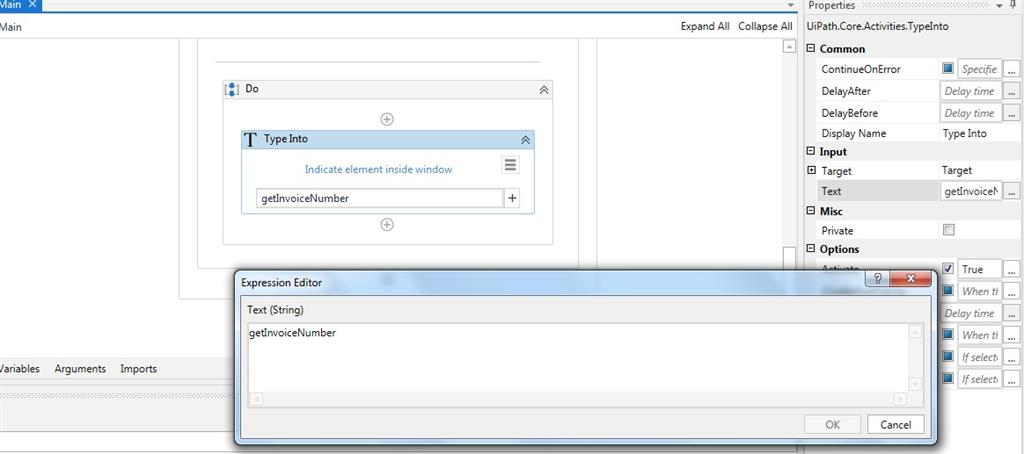

Go to properties in text field and pass the variable that has stored the invoice number in variable getInvoiceNumber

pass variable to type into activity

Now run the automation/sequence by clicking on Debug button.

It will take the data from Excel and paste on notepad


Conclusion


Now you are able to write the Automation using UiPath for taking data from existing Excel and typing it to any application using type into activity. You can use the given use case explained here in any of your projects.
