Step By Step Installation Of Active Directory On Windows Server 2019 Core

I have recently started using windows server core version not only to save space it is also use very low memory to run my domain controllers.

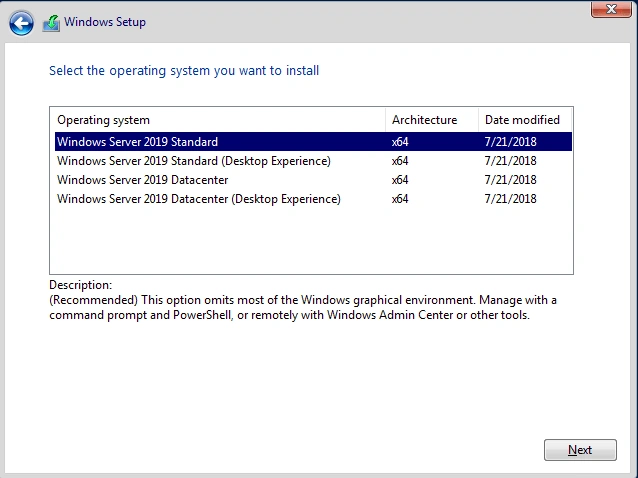

To explore Server 2019 further, we will try to run Active Directory services with Server 2019 Core edition. For the Installation of Server 2019 Core check out this link (select the version shown in the below figure).

Step By Step Installation Of Active Directory On Windows Server 2019 Core

I have recently started using Windows Server Core which not only saves space but also uses very low memory to run my domain controllers.

To install Active Directory, we need to set our Server as per the recommended configuration for AD.

  • System Name
  • Static IP
  • Date and Time

This will make sure that everything is set as per the recommendation. Once your server is ready, open the command prompt and type start PowerShell

Step By Step Installation Of Active Directory On Windows Server 2019 Core

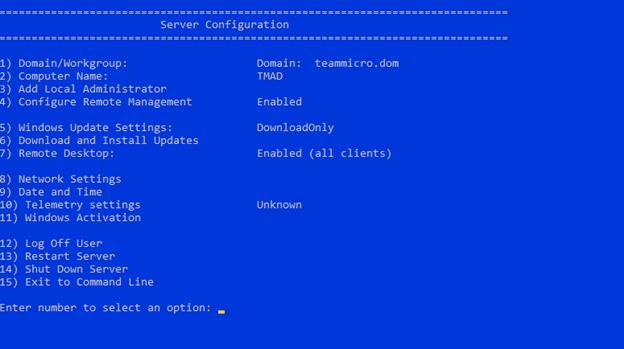

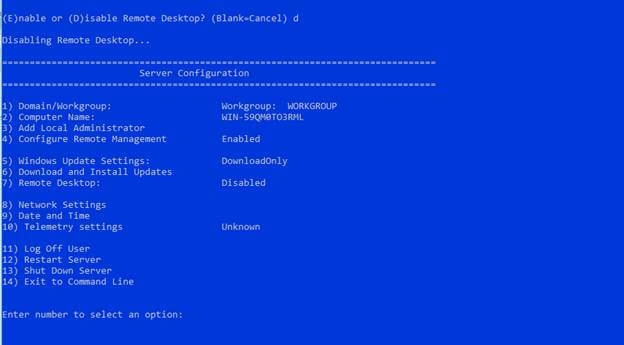

Then, you need to run the sconfig command. This gives you the system details.

Step By Step Installation Of Active Directory On Windows Server 2019 Core

Next, we need to change the system name. It will prompt you to restart the system.

The next step will be to set the static IP for the system.

By opening PowerShell, type the following commands.

Run

Get-NetAdapter

This will give the name of the adapter which we will use as the interface alias.

$ipaddress = “10.0.64.2”

$dnsaddress = “127.0.0.1”

New-NetIPAddress –InterfaceAlias Ethernet –IPAddress –AddressFamily IPv4 -PrefixLength 24

Step By Step Installation Of Active Directory On Windows Server 2019 Core

Update DNS

Set-DnsClientServerAddress -InterfaceAlias Ethernet -ServerAddresses $dnsaddress

Step By Step Installation Of Active Directory On Windows Server 2019 Core

Once done, restart the server.

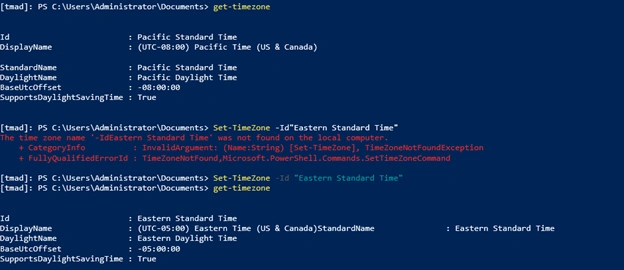

Now, let us set the time zone. For that, type the following commands in PowerShell.

Get-timezone

Set-TimeZone -Id "Eastern Standard Time"

Step By Step Installation Of Active Directory On Windows Server 2019 Core

Once everything is set, it will start installing AD Service.

We can do the installation in two ways here.

  • Windows Admin Center (this will help you to install roles and features but to configure the same, we need to use PowerShell only).
  • PowerShell command

Using Windows Admin Center

For Windows Admin Center, we need to set up and add a server (Follow Link).

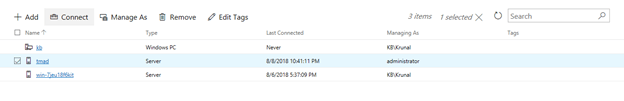

Once the server is connected to Windows Admin Center, you need to connect the server.

Step By Step Installation Of Active Directory On Windows Server 2019 Core

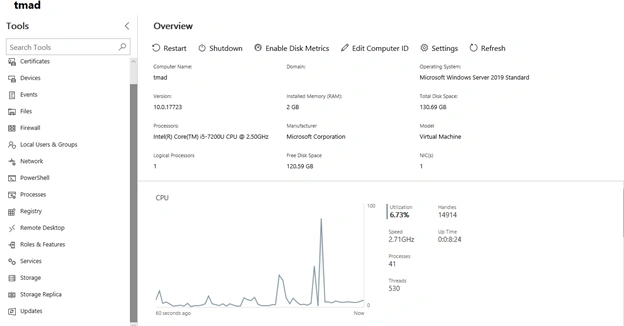

Once the server is connected, you will find the overview of the system utilization page.

Step By Step Installation Of Active Directory On Windows Server 2019 Core

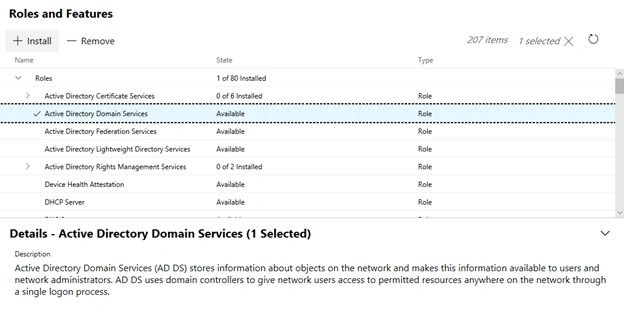

On the left side tools, you have to select Roles & features. Now you can select whichever role you need to install and click Install.

Step By Step Installation Of Active Directory On Windows Server 2019 Core

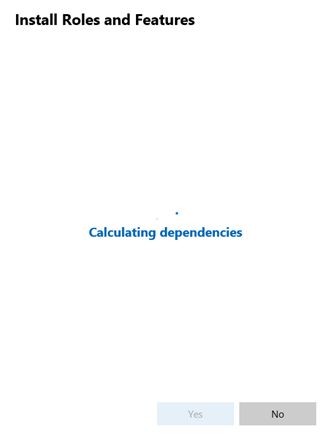

This will start checking dependencies

Step By Step Installation Of Active Directory On Windows Server 2019 Core

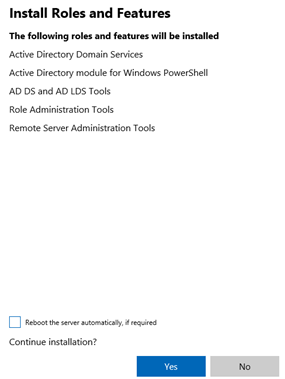

It will give you a list of the roles you are going to install.

Step By Step Installation Of Active Directory On Windows Server 2019 Core

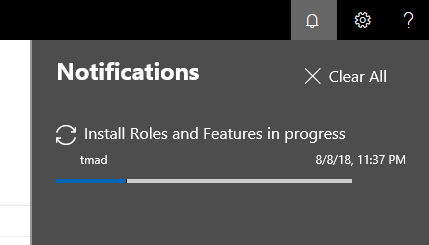

You will find a notification window with a progress update there.

Step By Step Installation Of Active Directory On Windows Server 2019 Core

Using PowerShell

PowerShell Command to start creating Domain Controller

Get-WindowsFeature AD-Domain-Service | Install-WindowsFeature

Step By Step Installation Of Active Directory On Windows Server 2019 Core

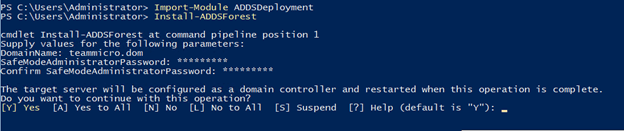

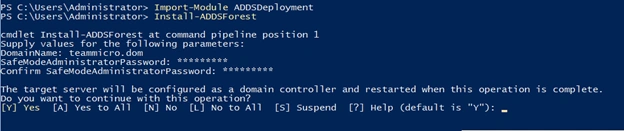

Import-Module ADDSDeplyoment

Install-ADDSForest

Step By Step Installation Of Active Directory On Windows Server 2019 Core



Step By Step Installation Of Active Directory On Windows Server 2019 Core

This will ask you for the Domain Name and SafeMode password. Make sure you write this down in a safe place. It will be very useful in case of disaster recovery.

You can select Y or A as an answer to the question.

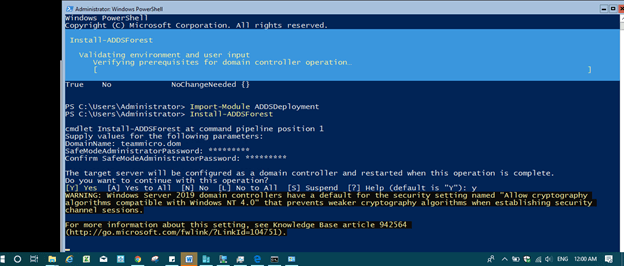

While installation is going on you will see some warning.

Step By Step Installation Of Active Directory On Windows Server 2019 Core

Once everything is done the server will reboot automatically.

Once a server is ready we will create a new Admin user which helps admin to do day to day work.

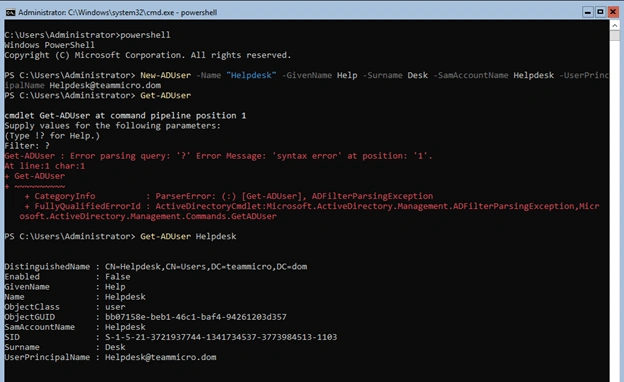

New-ADUser –Name “Helpdesk” – GivenName Help –Surname Desk –SamAccountName Helpdesk – UserPrincipalName Helpdesk@teammicro.dom

To verify the user details:

Get-ADUser Helpdesk

Step By Step Installation Of Active Directory On Windows Server 2019 Core

You will find the user is not active yet. Before enabling the user, set the password for that user.

Command to set password:

Set-ADAccountPassword ‘CN=Helpdesk,CN=users,DC=Teammicro,DC=Dom’ -Reset -NewPassword (ConvertTo-SecureString -AsPlainText “Test@123” -Force)

Step By Step Installation Of Active Directory On Windows Server 2019 Core

Enable the AD user

Enable-ADAccount -Identity Helpdesk

Step By Step Installation Of Active Directory On Windows Server 2019 Core

Add the user to Domain Admins group

Add-AdGroupMember ‘Domain Admins’ Helpdesk

Step By Step Installation Of Active Directory On Windows Server 2019 Core

Now it will configure over Active Directory and be ready for use.

Step By Step Installation Of Active Directory On Windows Server 2019 Core

We have covered installation of Active Directory on server 2019 core.

I hope this will help you and save you time when you create your own AD services.

Feel free to ask any questions.

Thank you for reading.
