Swipe Lock In Android Using Android Studio

Introduction

In this article, we are going learn how to add Swipe Lock functionality to an Android application using Android Studio. It is a type of library which locks the screen. This kind of lock is used in all smartphones.

Step 1

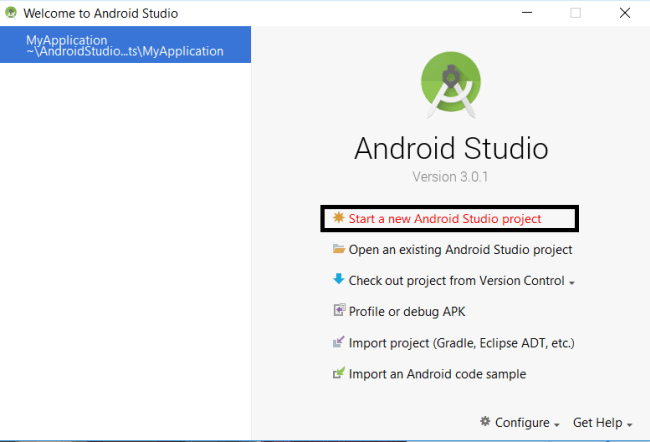

Create a new project in Android Studio.



Android

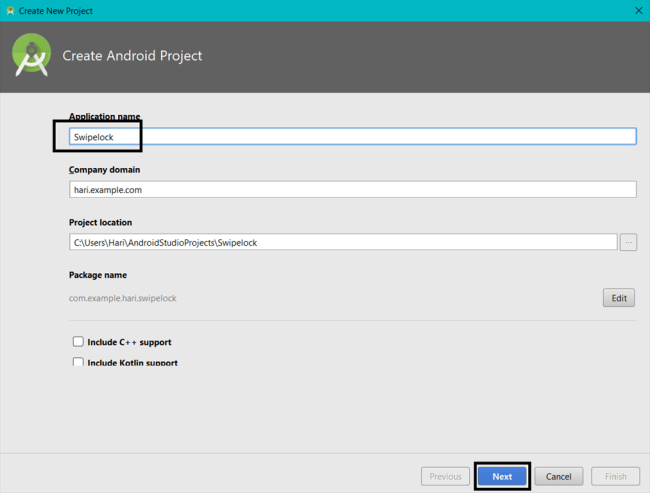

Give a name to the project and click "Next".

 Android

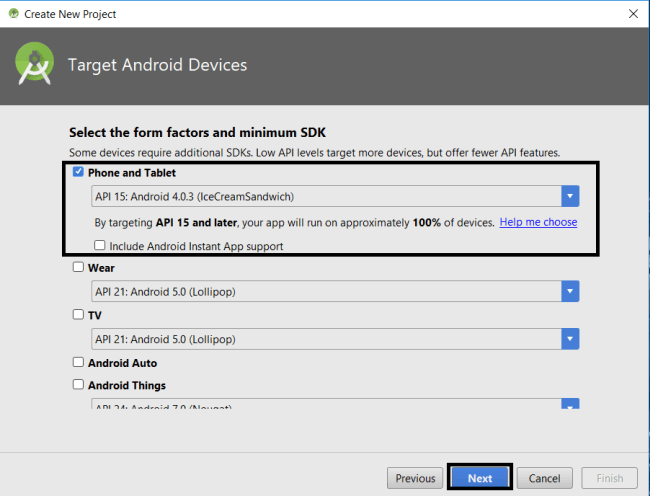

Select the "Phone and Tablet" option and click "Next".

 Android

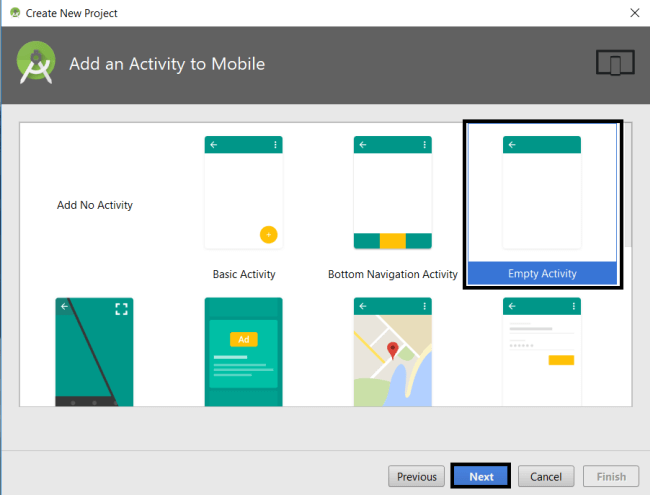

Select an empty activity and click "Next".

 Android

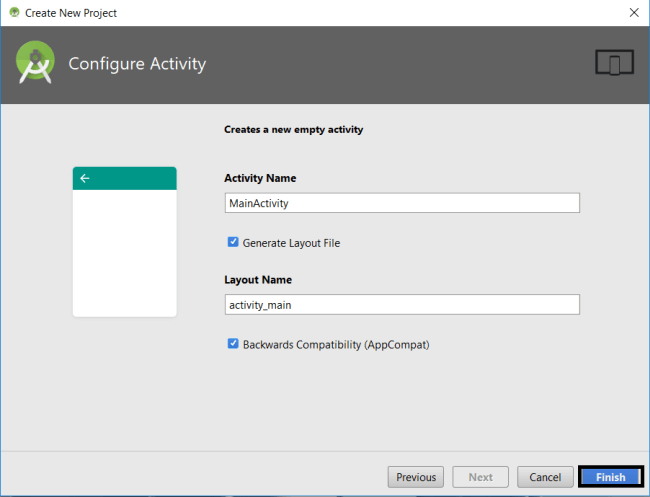

At last, give the activity name and click on "Finish".

 Android

Step 2

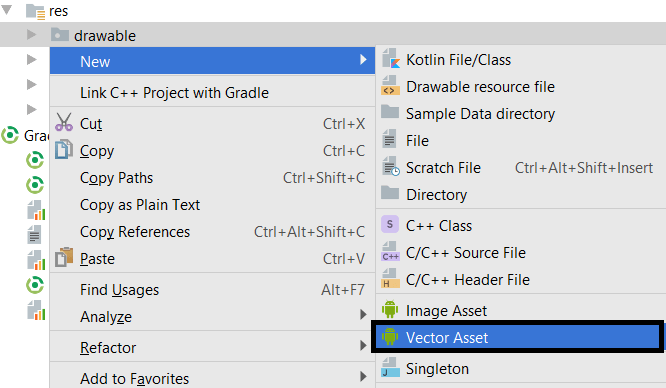

Next, locate app>>res>>drawable folder and Create new vector assets.

 Android

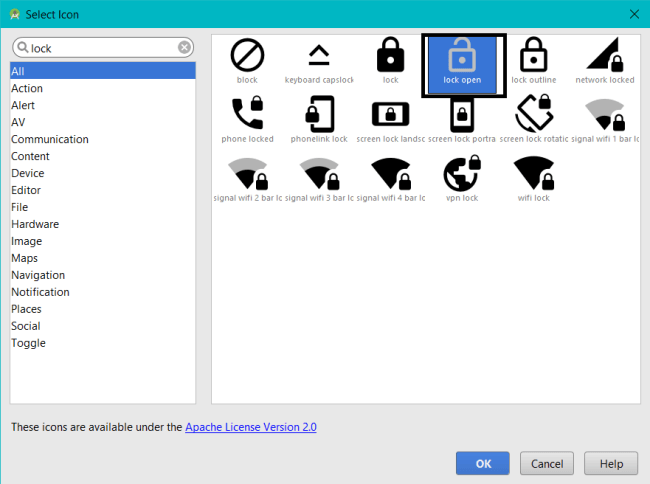

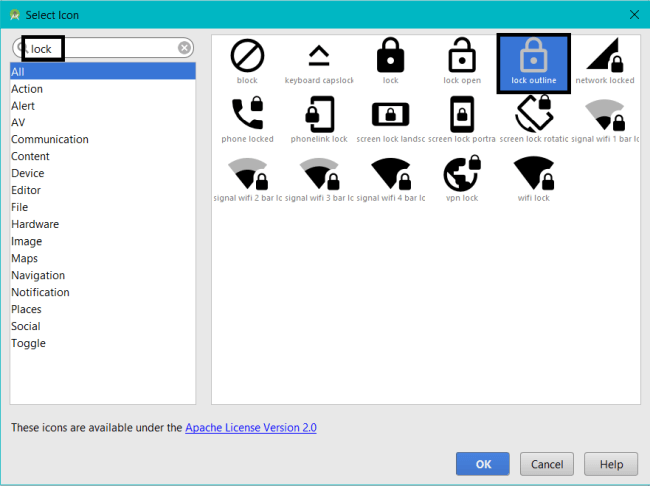

Then, choose the lock open icon from list:

 Android

Step 3

Repeat Step 2 to choose the closed lock icon from the list.

 Android

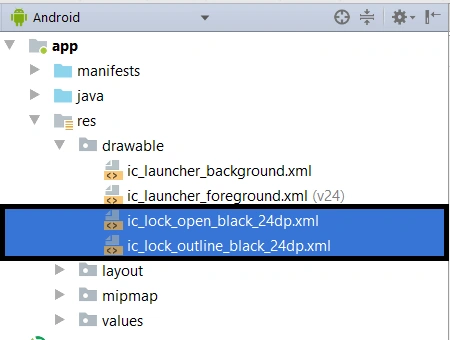

Check whether it is done correctly.

 Android

Step 4

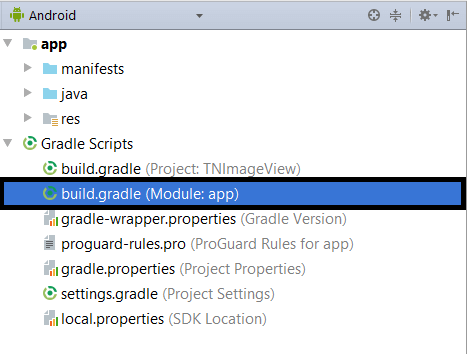

Locate the Gradle Scripts>>Build.Gradle.

 Android

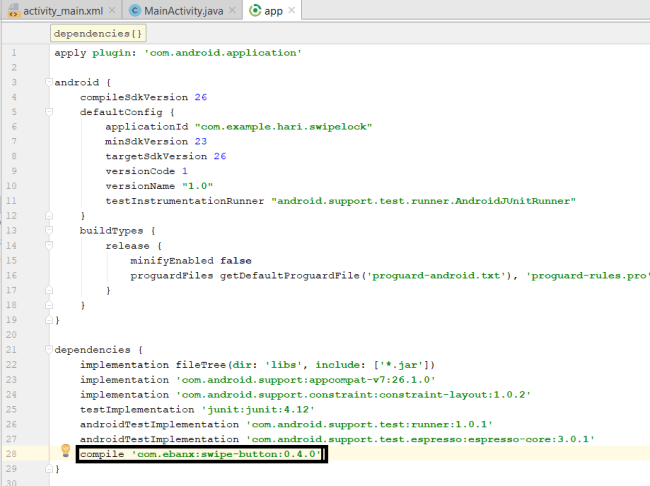

And, type the following dependency in your app's build.gradle.



Android



Code copy is here.
  1. compile 'com.ebanx:swipe-button:0.4.0'
Step 5

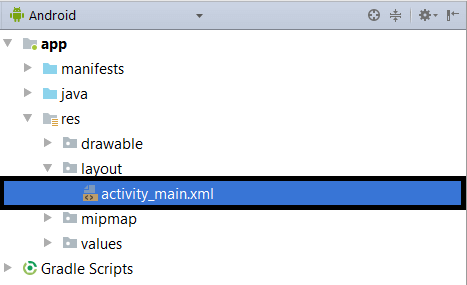

Next, go to app >> res >> layout >> activity_main.xml. Select activity page.

 Android

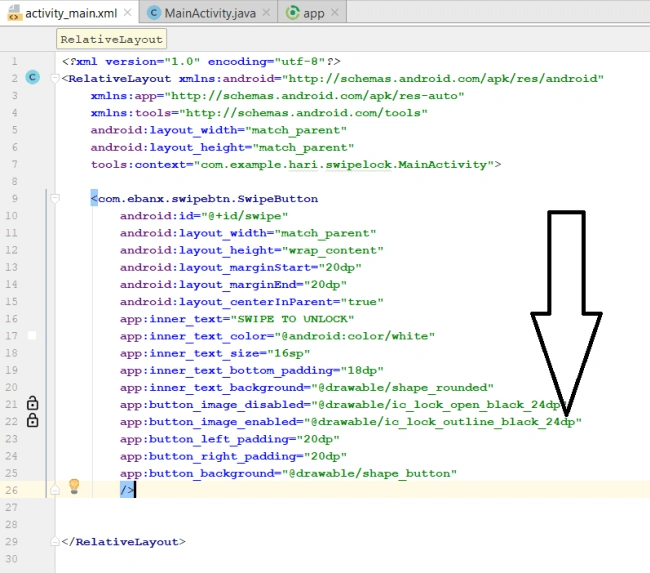

Just type the code as following.

 Android

The code copy is here.
  1. <com.ebanx.swipebtn.SwipeButton
  2.         android:id="@+id/swipe"
  3.         android:layout_width="match_parent"
  4.         android:layout_height="wrap_content"
  5.         android:layout_marginStart="20dp"
  6.         android:layout_marginEnd="20dp"
  7.         android:layout_centerInParent="true"
  8.         app:inner_text="SWIPE TO UNLOCK"
  9.         app:inner_text_color="@android:color/white"
  10.         app:inner_text_size="16sp"
  11.         app:inner_text_bottom_padding="18dp"
  12.         app:inner_text_background="@drawable/shape_rounded"
  13.         app:button_image_disabled="@drawable/ic_lock_open_black_24dp"
  14.         app:button_image_enabled="@drawable/ic_lock_outline_black_24dp"
  15.         app:button_left_padding="20dp"
  16.         app:button_right_padding="20dp"
  17.         app:button_background="@drawable/shape_button"
  18.         />
Step 6

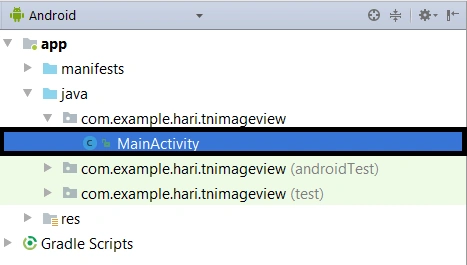

Next, go to app >> java>>Mainactivity.java. Select Mainactivity page.

 Android

Just type the code as follows

 Android

Code copy is here.
  1. @Override
  2.     protected void onCreate(Bundle savedInstanceState) {
  3.         super.onCreate(savedInstanceState);
  4.         setContentView(R.layout.activity_main);
  5.
  6.         SwipeButton swipeButton = (SwipeButton)findViewById(R.id.swipe);
  7.         swipeButton.setOnStateChangeListener(new OnStateChangeListener() {
  8.             @Override
  9.             public void onStateChange(boolean active) {
  10.                 Toast.makeText(MainActivity.this,"Active :"+active, Toast.LENGTH_SHORT).show();
  11.             }
  12.         });
Step 7

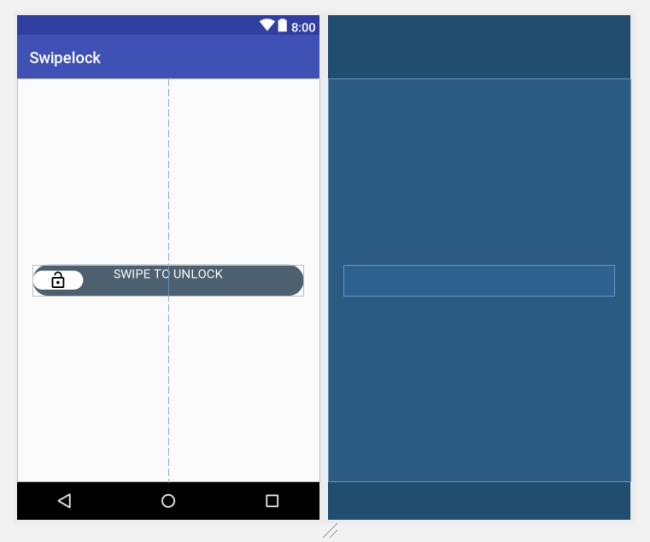

Verify the preview.

After the code is applied, the preview will appear like this.

 Android

Step 8

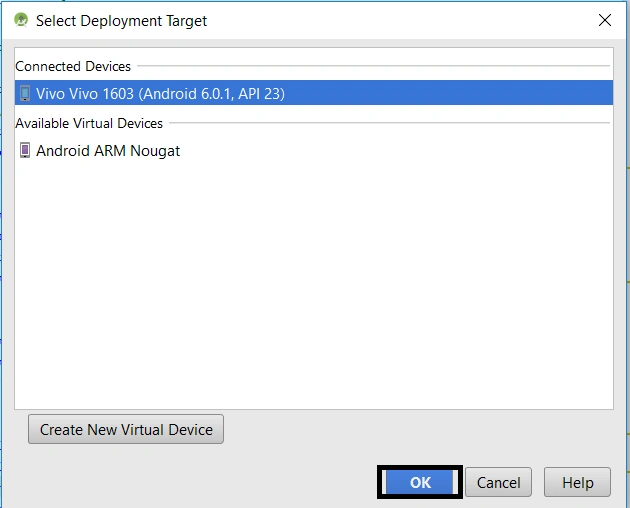

Next, go to Android Studio and deploy the application. Select an Emulator or your mobile with USB debugging enabled. Give it a few seconds to make installations and set permissions.

 Android

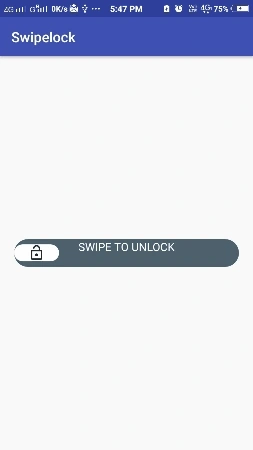

Run the application in your desired emulator (Shift + F10).

 Android

Explanation of source code

The source code used in the activitymain.xml file will implement a lock in the app and render the Swipe Animation to the Lock.

Summary

We have just created the app to see how the Swipe lock works and learned where to use it.
