Upload any type of File through a C# Web Service


This article shall describe an approach that may be used to upload any sort of a file through a web service from a Windows Forms application. The approach demonstrated does not rely on the ASP.NET file uploader control and allows the developer the opportunity to upload files programmatically and without user intervention. Such an approach may be useful for doing something like processing out the contents of a local message queue when internet service is available (if the user base were mobile and had only intermittent connectivity). The article also addresses the use of a file size check as a precursor to allowing a file to upload through the service.

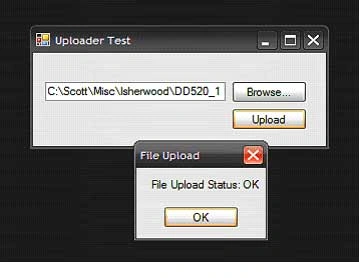

Figure 1: Test Application Shown Uploading a File.

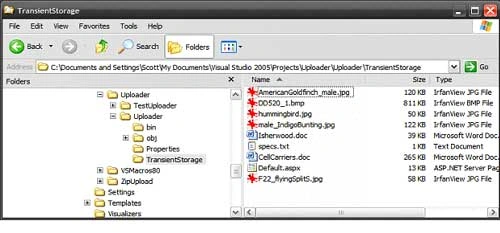

Figure 2: Mixed bag of different file types in transient storage folder.

Getting Started

The solution contains two projects; one is an ASP.NET Web Service project (Uploader) and the other is a Win Forms test application (TestUploader) used to demonstrate uploading files through the web method provided in the web service project.

The web service project contains only a single web service (FileUploader) which in turn contains only a single Web Method (UploadFile). The Win Forms application contains only a single form which contains the controls (one textbox and two buttons used in conjunction with an OpenFileDialog control) and code necessary to select and upload files through the web service.

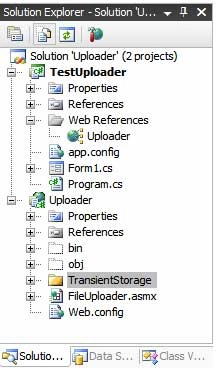

Figure 3: Solution Explorer with the both Projects Visible.

Code:  Uploader Web Service Project

The Uploader web service project is an ASP.NET web service project containing a single web service called, "FileUploader"; this web service exposes a single web method called, "UploadFile".

The code for this web service begins with the following:

  1. using System;
  2. using System.Data;
  3. using System.Web;
  4. using System.Collections;
  5. using System.Web.Services;
  6. using System.Web.Services.Protocols;
  7. using System.ComponentModel;
  8. using System.IO;
  9. namespace Uploader
  10. {
  11.     /// <summary>
  12.     /// This web method will provide an web method to load any
  13.     /// file onto the server; the UploadFile web method
  14.     /// will accept the report and store it in the local file system.
  15.     /// </summary>
  16.     [WebService(Namespace = "http://tempuri.org/")]
  17.     [WebServiceBinding(ConformsTo = WsiProfiles.BasicProfile1_1)]
  18.     [ToolboxItem(false)]
  19.     public class FileUploader : System.Web.Services.WebService
  20.     {
The class starts out with the default imports; I added System.IO to the defaults to support the use of file and memory streams. The web service namespace is left as the default http://tempuri.org/ which of course will have to updated if the service were deployed.

The remainder of the code supplied in this class is used to define the web method used to upload the file; the code is annotated. The essential process is that, files converted to byte arrays are passed along with the full name of the file (not the path) including the extension as arguments to the UploadFile web method. The byte array is passed to a memory stream, and a file stream is opened pointing to a newly created file (named the name of the original file) within the target folder used to store the files. Once the file stream has been created, the memory stream is written into the file stream and then the memory stream and file stream are disposed of.

The web method is setup to return a string; if all goes well, the string returned will read, "OK", if not, the error message encountered will be returned to the caller.

  1. [WebMethod]
  2. public string UploadFile(byte[] f, string fileName)
  3. {
  4.     // the byte array argument contains the content of the file
  5.     // the string argument contains the name and extension
  6.     // of the file passed in the byte array
  7.     try
  8.     {
  9.         // instance a memory stream and pass the
  10.         // byte array to its constructor
  11.         MemoryStream ms = new MemoryStream(f);
  12.         // instance a filestream pointing to the
  13.         // storage folder, use the original file name
  14.         // to name the resulting file
  15.         FileStream fs = new FileStream(System.Web.Hosting.HostingEnvironment.MapPath
  16.                     ("~/TransientStorage/") +fileName, FileMode.Create);
  17.         // write the memory stream containing the original
  18.         // file as a byte array to the filestream
  19.         ms.WriteTo(fs);
  20.         // clean up
  21.         ms.Close();
  22.         fs.Close();
  23.         fs.Dispose();
  24.         // return OK if we made it this far
  25.         return "OK";
  26.     }
  27.     catch (Exception ex)
  28.     {
  29.         // return the error message if the operation fails
  30.         return ex.Message.ToString();
  31.     }
  32. }
Code:  Test Uploader Win Forms Application

The test application contains a single Windows Form class; this form contains a text box used to display the name of the file selected for upload, a browse button used to launch an open file dialog box which is used to navigate to and select a file for upload, and an upload button which is used to pass the file to web service so that the selected file may be stored on the server.

The code for this class begins with the following:

  1. using System;
  2. using System.Collections.Generic;
  3. using System.ComponentModel;
  4. using System.Data;
  5. using System.Drawing;
  6. using System.Text;
  7. using System.Windows.Forms;
  8. using System.IO;
  9. namespace TestUploader
  10. {
  11.     /// <summary>
  12.     /// A test form used to upload a file from a windows application using
  13.     /// the Uploader Web Service
  14.     /// </summary>
  15.     public partial class Form1 : Form
  16.     {
  17.         public Form1()
  18.         {
  19.             InitializeComponent();
  20.         }
  21.         private void Form1_Load(object sender, EventArgs e)
  22.         {
  23.             // do nothing
  24.         }
Aside from the default imports, I have added only System.IO to the list. This being necessary to support working with files. The namespace and class declarations are in the default configuration. In addition to System.IO, the project also adds in a web reference pointing to the File Uploader web service, the reference is given the alias of Uploader.

The next bit of code in the class is private method used to prepare the file for submittal to the web service and to actually make that submittal. The code below is annotated to describe the activity but the essential parts of the operation are to check the file size to see if the web service will accept the file (by default, the web server will accept uploads smaller than 4 MB in size, the web config file must be updated in order to support larger uploads), and to convert the file to a byte array. When everything is ready, the byte array and the name of the file including the extension is passed to an instance of the web service web method.

Note that, when setting up the demo, you will have remove and add the web reference back into the project in order for it to work for you.

  1. /// <summary>
  2. /// Upload any file to the web service; this function may be
  3. /// used in any application where it is necessary to upload
  4. /// a file through a web service
  5. /// </summary>
  6. /// <param name="filename">Pass the file path to upload</param>
  7. private void UploadFile(string filename)
  8. {
  9.     try
  10.     {
  11.         // get the exact file name from the path
  12.         String strFile = System.IO.Path.GetFileName(filename);
  13.         // create an instance fo the web service
  14.         TestUploader.Uploader.FileUploader srv = new
  15.         TestUploader.Uploader.FileUploader();
  16.         // get the file information form the selected file
  17.         FileInfo fInfo = new FileInfo(filename);
  18.         // get the length of the file to see if it is possible
  19.         // to upload it (with the standard 4 MB limit)
  20.         long numBytes = fInfo.Length;
  21.         double dLen = Convert.ToDouble(fInfo.Length / 1000000);
  22.         // Default limit of 4 MB on web server
  23.         // have to change the web.config to if
  24.         // you want to allow larger uploads
  25.         if (dLen < 4)
  26.         {
  27.             // set up a file stream and binary reader for the
  28.             // selected file
  29.             FileStream fStream = new FileStream(filename,
  30.             FileMode.Open, FileAccess.Read);
  31.             BinaryReader br = new BinaryReader(fStream);
  32.             // convert the file to a byte array
  33.             byte[] data = br.ReadBytes((int)numBytes);
  34.             br.Close();
  35.             // pass the byte array (file) and file name to the web service
  36.             string sTmp = srv.UploadFile(data, strFile);
  37.             fStream.Close();
  38.             fStream.Dispose();
  39.             // this will always say OK unless an error occurs,
  40.             // if an error occurs, the service returns the error message
  41.             MessageBox.Show("File Upload Status: " + sTmp, "File Upload");
  42.         }
  43.         else
  44.         {
  45.              // Display message if the file was too large to upload
  46.              MessageBox.Show("The file selected exceeds the size limit for uploads.""File Size");
  47.          }
  48.     }
  49.     catch (Exception ex)
  50.     {
  51.          // display an error message to the user
  52.          MessageBox.Show(ex.Message.ToString(), "Upload Error");
  53.     }
  54. }
Following the UploadFile method, the next bit of code is used to handle the browse button's click event. This code is used merely to display an open file dialog to the user and to take the file selected through that dialog and display the file name in the form's file name text box.
  1. /// <summary>
  2. /// Allow the user to browse for a file
  3. /// </summary>
  4. /// <param name="sender"></param>
  5. /// <param name="e"></param>
  6. private void btnBrowse_Click(object sender, EventArgs e)
  7. {
  8.     openFileDialog1.Title = "Open File";
  9.     openFileDialog1.Filter = "All Files|*.*";
  10.     openFileDialog1.FileName = "";
  11.     try
  12.     {
  13.         openFileDialog1.InitialDirectory = "C:\\Temp";
  14.     }
  15.     catch
  16.     {
  17.         // skip it
  18.     }
  19.     openFileDialog1.ShowDialog();
  20.     if (openFileDialog1.FileName == "")
  21.         return;
  22.     else
  23.         txtFileName.Text = openFileDialog1.FileName;
  24. }
The class wraps up with the button click event handler for the Upload button. This handler merely checks for text in the file name text box and, if something is there, it sends the value to the Upload method.
  1. /// <summary>
  2. /// If the user has selected a file, send it to the upload method,
  3. /// the upload method will convert the file to a byte array and
  4. /// send it through the web service
  5. /// </summary>
  6. /// <param name="sender"></param>
  7. /// <param name="e"></param>
  8. private void btnUpload_Click(object sender, EventArgs e)
  9. {
  10.     if (txtFileName.Text != string.Empty)
  11.         UploadFile(txtFileName.Text);
  12.     else
  13.         MessageBox.Show("You must select a file first.""No File Selected");
  14. }
That wraps up all of the client and server side code necessary to upload any sort of file to a server from a Win Forms application.


This article was intended to demonstrate an easy approach to uploading any sort of a file to a web server from a Win Forms application. This example uses the default upload size of 4096 KB, if you need to upload larger files, you will need to alter this value by changing the httpRuntime maxRequestLength property to the desired value; at the same time you may need to increase the executionTimeout property to a greater value as well in order to support longer upload times. Take care when altering the values as Microsoft has established the default 4 MB limit to provide some safety against attempts to upload extremely large files that may hamper access to the server.
