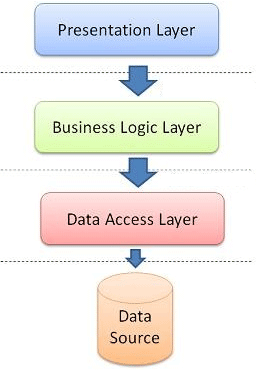

How to Retrieve Images from Database (In Layer Architecture)



Now I want to retrieve these images from the database and display in a Grid View.

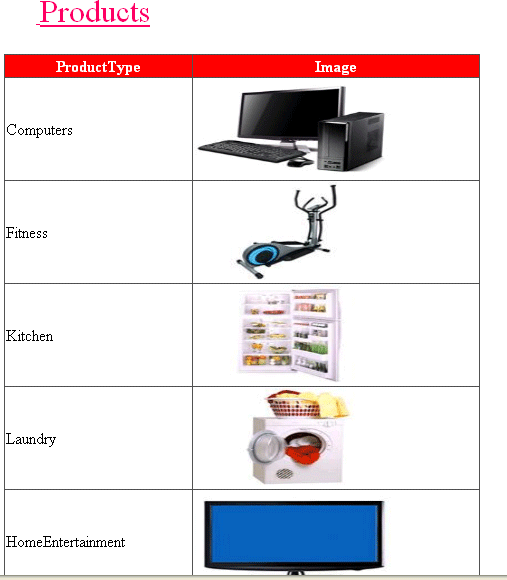

These are the products I want to retrieve from the database.



Presentation Layer


Take a page SearchComputers.aspx

Under SearchComputers.aspx page:
  1. <asp:GridView ID="GVImages" runat="server" AutoGenerateColumns="false" HeaderStyle-BackColor="red" HeaderStyle-ForeColor="white" Height="278px" Width="476px">
  2.      <Columns>
  3.           <asp:BoundField DataField="ProductId" HeaderText="ID" Visible="false" />
  4.           <asp:BoundField DataField="ProductType" HeaderText="ProductType" />
  5.           <asp:TemplateField HeaderText="Image">
  6.                <ItemTemplate>
  7.                     <asp:ImageButton ID="ImageButton1" runat="server" ImageUrl='<%# "Handler.ashx?id="+ Eval("ProductId")%>' Width="200" Height="100" />
  8.                </ItemTemplate>
  9.           </asp:TemplateField>
  10.      </Columns>
  11.      <HeaderStyle BackColor="Red" ForeColor="White"></HeaderStyle>
  12. </asp:GridView>
Under SearchComputers.aspx page.cs :
  1. protected void Page_Load(object sender, EventArgs e) {
  2.      // SelectProducts is class.Now we should create a object for that class.
  3.
  4.      SelectProducts b = new SelectProducts();
  5.      DataSet ds = new DataSet();
  6.      ds = b.FetchAllImagesInfo();
  7.      GVImages.DataSource = ds;
  8.      GVImages.DataBind();
  9. }
If you want to retrieve images from a database you should use a Generic Handler Class.

 That class name is Handler.ashx

Under Handler.ashx Class
  1. <%@ WebHandler Language="C#" Class="Handler" %>
  2. using System;
  3. using System.Web;
  4. using System.Data.SqlClient;
  5. using System.Configuration;
  6. using System.Data;
  7. using System.IO;
  8. public class Handler: IHttpHandler {
  9.     public void ProcessRequest(HttpContext context) {
  10.         string id = context.Request.QueryString["id"];
  11.         SqlConnection con = new SqlConnection();
  12.         con.ConnectionString = System.Configuration.ConfigurationManager.ConnectionStrings["ConnectionString"].ConnectionString;
  13.         // Create SQL Command
  14.         SqlCommand cmd = new SqlCommand();
  15.         cmd.CommandText = "Select Image from Products where ProductId ='" + id + "'";
  16.         cmd.CommandType = System.Data.CommandType.Text;
  17.         cmd.Connection = con;
  18.         SqlParameter ProductId = new SqlParameter("@ProductId", System.Data.SqlDbType.Int);
  19.         ProductId.Value = context.Request.QueryString["id"];
  20.         cmd.Parameters.Add(ProductId);
  21.         con.Open();
  22.         SqlDataReader dReader = cmd.ExecuteReader();
  23.         dReader.Read();
  24.         context.Response.BinaryWrite((byte[]) dReader["Image"]);
  25.         dReader.Close();
  26.         con.Close();
  27.     }
  28.     public bool IsReusable {
  29.         get {
  30.             return false;
  31.         }
  32.     }
  33. }

Business Access Layer


Take a Class i.e. SelectProducts.cs

Under SelectProducts.cs class
  1. public DataSet FetchAllImagesInfo() {
  2.     return ds = SqlHelper.ExecuteDataset(clsConnection.Connection, CommandType.StoredProcedure, "sp_GetProductsWithImage");
  3. }
  4. // Here "sp_GetProductsWithImage" is the stored procedure Name.

Data Access Layer

  1. public class clsConnection {
  2.     public clsConnection() {
  3.         //
  4.         // TODO: Add constructor logic here
  5.         //
  6.     }
  7.     public static string Connection = ConfigurationManager.ConnectionStrings["ConnectionString"].ConnectionString;
  8. }
Under Web.config:
  1. <connectionStrings>
  2.      <add name="ConnectionString" connectionString="user Id=sa;Password=123;DataBase=RentalShopping;Data Source=server2" providerName="System.Data.SqlClient" />
  3. </connectionStrings>
  4. //Here write your database name,userid,password,datasource.
    Under the DataBase:

    Create one database i.e RentalShopping.Under Database create one table.I have created one table i.e Products.
    1. CREATE TABLE [dbo].[Products]
    2. (
    3.       [ProductId] [int] IDENTITY(101,1) NOT NULL,
    4.       [ProductType] [varchar](50) NULL,
    5.       [Image] [image] NULL
    6. }
    This is the Stored Procedure
    1. USE[RentalShopping]
    2. GO
    3. SET ANSI_NULLS ON
    4. GO
    5. SET QUOTED_IDENTIFIER ON
    6. GO
    7. Create PROCEDURE[dbo]. [sp_GetProductsWithImage]
    8. as
    9. begin
    10. select * from Products
    11. end
    If you want to store images into a database, see my article Click Here
