Creating Bar Chart in QlikView

Introduction

QlikView bar chart is a diagram in which the numerical values of variables that we defined in a QlikView expression are represented by the height or length of lines. The bar chart also uses rectangles for displaying data. In a bar chart there is equal width. A bar chart shows data virtually.

In a previous article I described how to create a table box in a QlikView application. A table box is important for a chart because it shows all the data.

Create table box in QlikView

Let's start with the creation of a line chart.

Step 1: Select chart

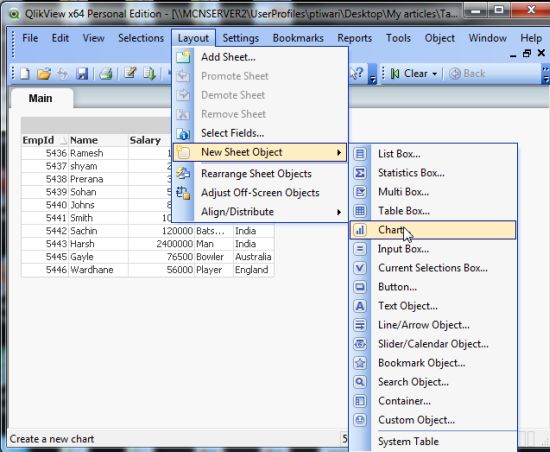

In the menu bar, there is an option for layout. Click on "Layout" and select "New Sheet Object" -> "Chart".

chart

Step 2: General window

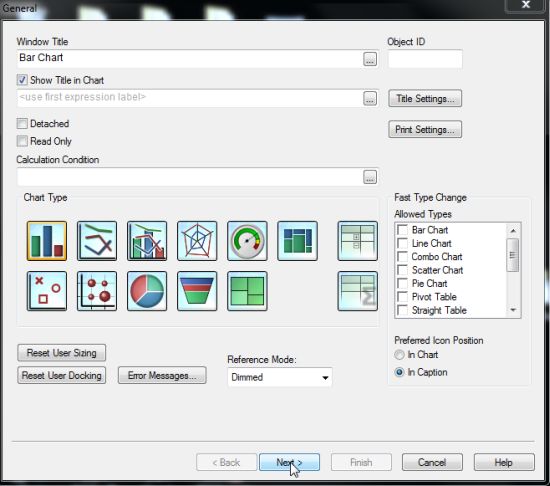

In this window we select chart type. There are various chart types given and select line chart type click on the Next button.

chart type

Step 3: Add dimension

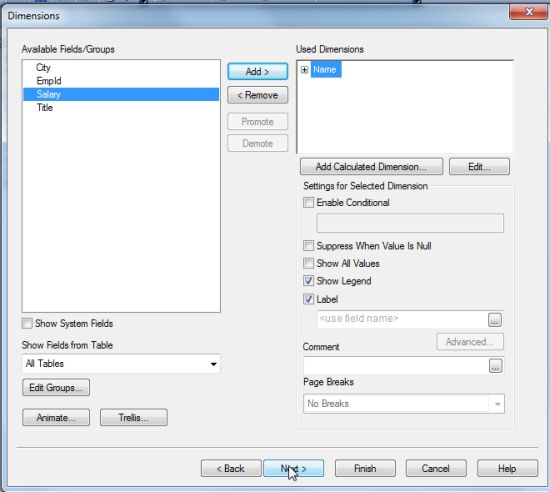

In this window we add a dimension because dimensions describe the calculated data. Then click on the Next button.

dimension

Step 4: Edit expression

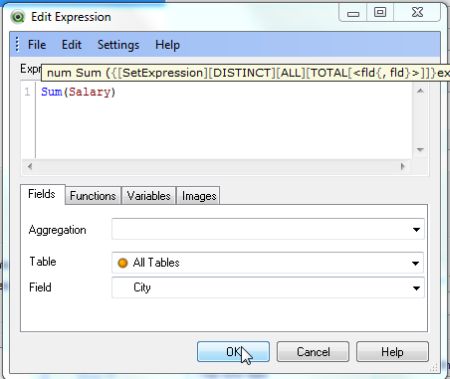

In this window we perform an aggregate function with any one dimension and click on the OK button.

Edit

Step 5: Expression window

Then this window will be opened and click on the Finish button.

Expression

Step 6: Final window

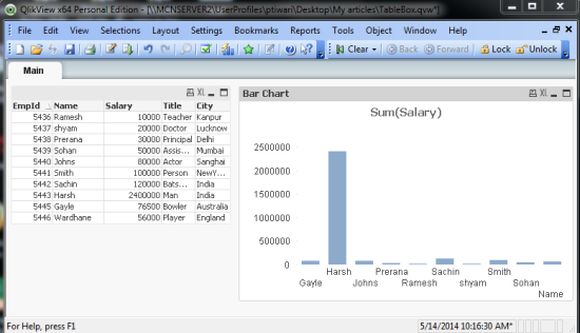

Then you will have a chart. This chart shows the total sum of the salaries.

final1

This chart shows a normal type of line chart. You can see it in the expression window.

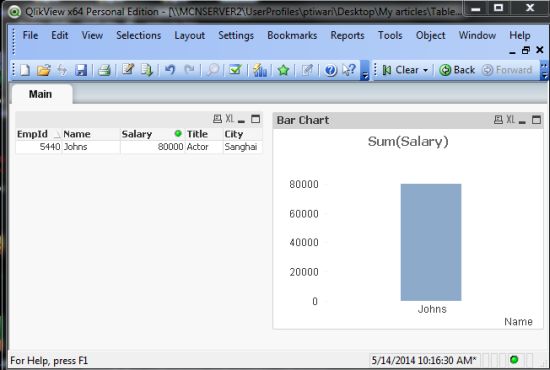

If you select a data item in the table then the bar chart shows that value.

selected data

Summary

This article provides a basic introduction to a QlikView bar chart and also describes how to create a bar chart in a QlikView application.
