Draw Ellipse in HTML5

Introduction


In this article, we draw an Ellipse in HTML.

First, we download the file in the following attachment:
  1. Kinectic_beta.js
These files are added to the project then use the following procedure.

Step 1

Open Visual Studio 2010 and click "File" -> "New" -> "Website...". A window is opened. In this window give the name of your application as "Draw_Ellipse" and then click "Ok".

Step 2

Add a "kinetic_beta.js" file. The project will then have been created; a new window is opened on the right side. This window is called the Solution Explorer. The Solution Explorer contains the js file and HTML file.


Coding

Draw_Ellipse.html
  1. <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
  2. <html xmlns="http://www.w3.org/1999/xhtml">
  3. <head>
  4.     <title></title>
  5. </head>
  6. <body>
  7. <h3>        Draw Ellipse in HTML5 </h3>
  8.   <div id="container"></div>
  9.     <script src="Kinetic_beta.js" type="text/javascript"></script>
  10.     <script>
  11.         var stage = new Kinetic.Stage({
  12.             container: 'container',
  13.             width: 308,
  14.             height: 200
  15.         });
  16.         var layer = new Kinetic.Layer();
  17.         var ellipse = new Kinetic.Ellipse({
  18.             x: stage.getWidth() / 2,
  19.             y: stage.getHeight() / 2,
  20.             radius: {
  21.                 x: 120,
  22.                 y: 70
  23.             },
  24.             fill: 'blue',
  25.             stroke: 'black',
  26.             strokeWidth: 4
  27.         });
  28.         // add the shape to the layer
  29.         layer.add(ellipse);
  30.
  31.         // add the layer to the stage
  32.         stage.add(layer);
  33.         </script>
  34. </body>
  35. </html>

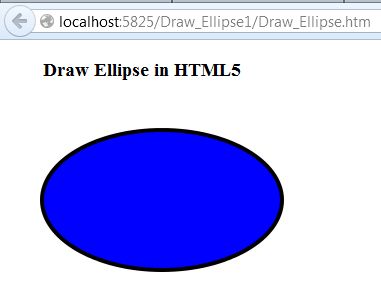

Output


For more information, download the attached sample application.
