List Updating in SharePoint 2010 Programmatically Using VS 2010

By Vijay Prativadi on June 27, 2012
Today, in this article let’s play around with one of the interesting and most useful concepts in SharePoint 2010.
  • 0
  • 0
  • 13570

Introduction



Today, in this article let's play around with one of the interesting and most useful concepts in SharePoint 2010.


Question: What is a list?



In simple terms "When you create a custom list, a new empty list is created with just two columns - Title and Attachments. The list contains a single default view. Once you create the list, you can add more columns, views, and so on".



I think we are now good to go and implement this wonderful concept.



Step 1: Create a custom list and modify the view.



Step 2: Open SharePoint 2010 Central Administration and navigate to specific site.

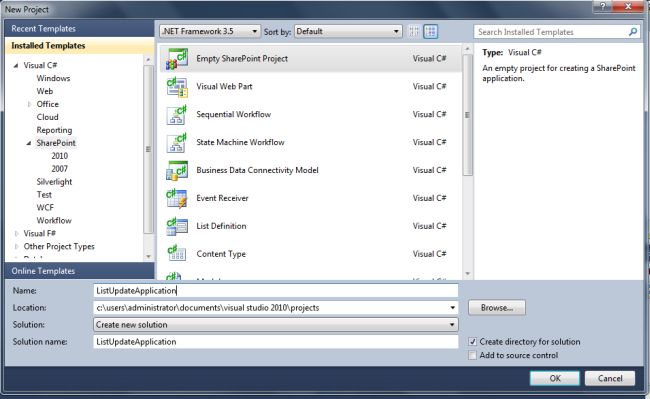

Step 3: Open Visual Studio 2010 and create an "Empty SharePoint project":

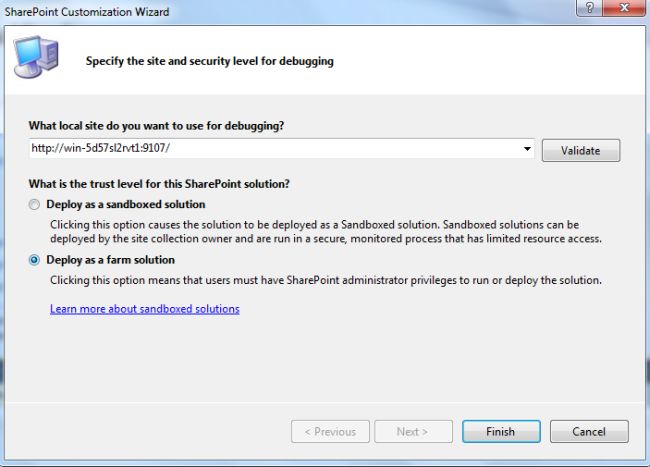

Step 4: Select "Deploy as a farm solution" and click on the "Finish" button. Now an empty project will be created:

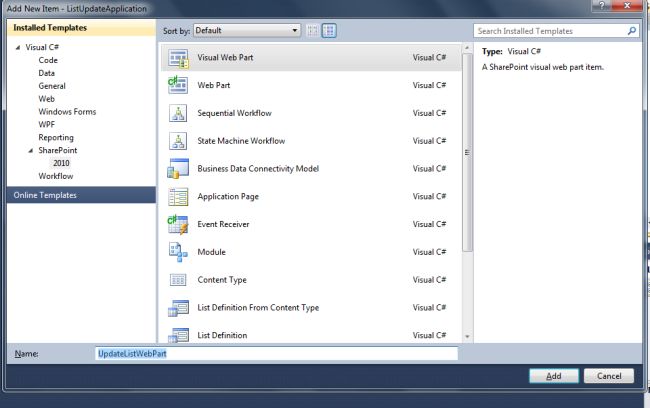

Step 5: Add a new visual webpart for that project:






Step 6: The complete code of visualwebpart1usercontrol.ascx looks like this:



<%@ Assembly Name="$SharePoint.Project.AssemblyFullName$" %>

<%@ Assembly Name="Microsoft.Web.CommandUI, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>

<%@ Register TagPrefix="SharePoint" Namespace="Microsoft.SharePoint.WebControls"

    Assembly="Microsoft.SharePoint, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>

<%@ Register TagPrefix="Utilities" Namespace="Microsoft.SharePoint.Utilities" Assembly="Microsoft.SharePoint, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>

<%@ Register TagPrefix="asp" Namespace="System.Web.UI" Assembly="System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35" %>

<%@ Import Namespace="Microsoft.SharePoint" %>

<%@ Register TagPrefix="WebPartPages" Namespace="Microsoft.SharePoint.WebPartPages"

    Assembly="Microsoft.SharePoint, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>

<%@  Control Language="C#" AutoEventWireup="true" CodeBehind="UpdateListWebPartUserControl.ascx.cs"

    Inherits="ListUpdateApplication.UpdateListWebPart.UpdateListWebPartUserControl" %>

<div>

    <center>

        <table>

            <tr>

                <td colspan="2">

                    <asp:label id="Label1" runat="server" text="Update List Data via Object Modelling - SharePoint 2010"

                        font-bold="true" font-size="Large" font-names="Verdana" forecolor="Maroon"></asp:label>

                </td>

            </tr>

            <tr>

                <td>

                    <asp:label id="Label6" runat="server" text="Please Enter ID" font-size="Large" font-names="Verdana"

                        font-italic="true"></asp:label>

                </td>

                <td>

                    <asp:textbox id="TextBox4" runat="server"></asp:textbox>

                </td>

            </tr>

            <tr>

                <td>

                    <asp:label id="Label2" runat="server" text="Please Enter FirstName" font-size="Large"

                        font-names="Verdana" font-italic="true"></asp:label>

                </td>

                <td>

                    <asp:textbox id="TextBox1" runat="server"></asp:textbox>

                </td>

            </tr>

            <tr>

                <td>

                    <asp:label id="Label3" runat="server" text="Please Enter LastName" font-size="Large"

                        font-names="Verdana" font-italic="true"></asp:label>

                </td>

                <td>

                    <asp:textbox id="TextBox2" runat="server"></asp:textbox>

                </td>

            </tr>

            <tr>

                <td>

                    <asp:label id="Label4" runat="server" text="Please Enter Age" font-size="Large" font-names="Verdana"

                        font-italic="true"></asp:label>

                </td>

                <td>

                    <asp:textbox id="TextBox3" runat="server"></asp:textbox>

                </td>

            </tr>

            <tr>

                <td colspan="2">

                    <asp:button id="Button1" runat="server" text="Update Data" font-names="Verdana" width="166px"

                        backcolor="Orange" font-bold="True" onclick="Button1_Click" />

                </td>

            </tr>

            <tr>

                <td colspan="2">

                    <asp:label id="Label5" runat="server" font-bold="true" font-names="Verdana" forecolor="Maroon"></asp:label>

                </td>

            </tr>

        </table>

    </center>

</div>


Step 7:
The complete code of visualwebpart1usercontrol.ascx.cs looks like this:



using System;

using System.Web.UI;

using System.Web.UI.WebControls;

using System.Web.UI.WebControls.WebParts;

using Microsoft.SharePoint;

namespace ListUpdateApplication.UpdateListWebPart

{

    public partial class UpdateListWebPartUserControl : UserControl

    {

        protected void Page_Load(object sender, EventArgs e)

        {

            TextBox4.Focus();

        }

        protected void Button1_Click(object sender, EventArgs e)

        {

            if (string.IsNullOrEmpty(TextBox4.Text))

            {

                Label5.Text = "Please Enter Some Values";

            }

            else

            {

                SPSite site = SPContext.Current.Site;

                SPWeb web = site.OpenWeb();

                web.AllowUnsafeUpdates = true;

                SPList list = web.Lists["Student"];

                SPListItem item = list.GetItemById(Convert.ToInt32(TextBox4.Text));

                item["First Name"] = TextBox1.Text;

                item["Last Name"] = TextBox2.Text;

                item["Age"] = Convert.ToInt32(TextBox3.Text); item.Update();

                Label5.Text = "Data Successfully Updated";

                TextBox1.Text = string.Empty;

                TextBox2.Text = string.Empty;

                TextBox3.Text = string.Empty;

                TextBox4.Text = string.Empty;

            }

        }

    }

}



Step 8: Deploy the solution file and add the created webpart to the SharePoint site:

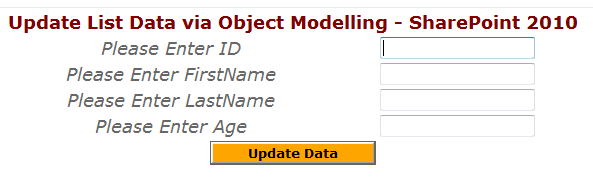

Step 9: The output of the application looks like this:







Step 10: When updating the list the output of the application looks like this:










I hope this article is useful for you.
