Maintain Security on List in SharePoint 2010 Programmatically Using VS 2012

By Vijay Prativadi on September 06, 2012
Today, in this article let’s play around with one of the interesting and most useful concepts in SharePoint 2010.
  • 0
  • 0
  • 3148

Introduction

Today, in this article let's play around with one of the interesting and most useful concepts in SharePoint 2010.

Question: What is maintaining security on a list?


In simple terms "It enables specification of the control accessibility of who can use any specific list at certain levels".

Step 1: Open SharePoint 2010 Central Administration and navigate to a specific site.

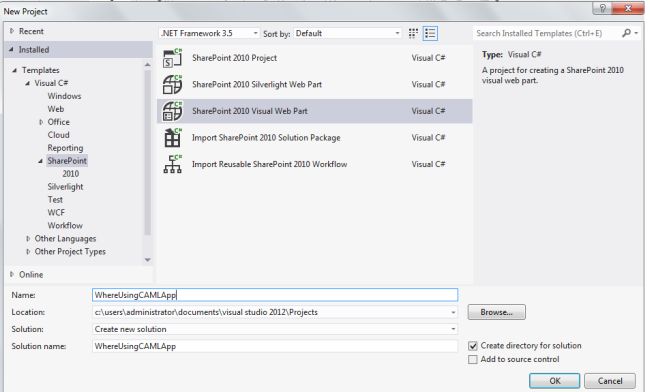

Step 2: Open up Visual Studio 2012 and try to create a "SharePoint Visual Web Part" project, as in:

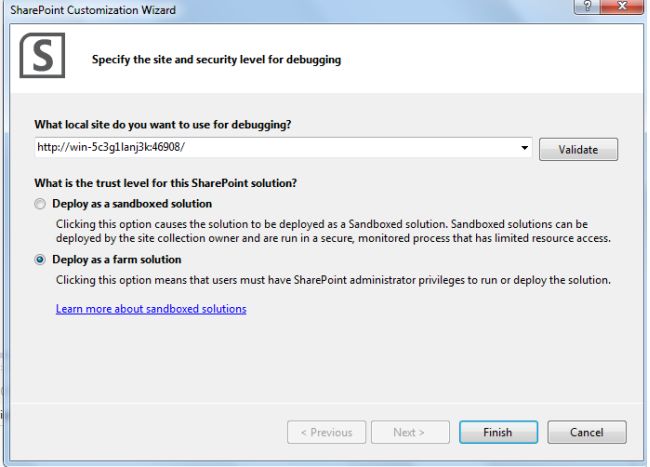

Step 3: Select "Deploy as a farm solution" as in the following and click the "Finish" button.





Step 4: The complete code of visualwebpart1usercontrol.ascx looks like this:



<%@ Assembly Name="$SharePoint.Project.AssemblyFullName$" %>

<%@ Assembly Name="Microsoft.Web.CommandUI, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>

<%@ Register TagPrefix="SharePoint" Namespace="Microsoft.SharePoint.WebControls"

    Assembly="Microsoft.SharePoint, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>

<%@ Register TagPrefix="Utilities" Namespace="Microsoft.SharePoint.Utilities" Assembly="Microsoft.SharePoint, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>

<%@ Register TagPrefix="asp" Namespace="System.Web.UI" Assembly="System.Web.Extensions, Version=3.5.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35" %>

<%@ Import Namespace="Microsoft.SharePoint" %>

<%@ Register TagPrefix="WebPartPages" Namespace="Microsoft.SharePoint.WebPartPages"

    Assembly="Microsoft.SharePoint, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c" %>

<%@  Control Language="C#" AutoEventWireup="true" CodeBehind="VisualWebPart1.ascx.cs"

    Inherits="ListReadWriteSecApp.VisualWebPart1.VisualWebPart1" %>

<%--<center>--%>

<div>

    <table style="font-family: Verdana; text-align: center;">

        <tr>

            <td colspan="2">

                <asp:label id="Label1" runat="server" text="List Read/Write Security - SharePoint 2010 via Visual Studio 2012"

                    font-bold="true" forecolor="Maroon" font-size="Large"></asp:label>

            </td>

        </tr>

        <tr>

            <td>

                <asp:label id="Label5" runat="server" text="Please Enter List Name:"></asp:label>

            </td>

            <td>

                <asp:textbox id="TextBox1" runat="server" width="117px"></asp:textbox>

            </td>

        </tr>

        <tr>

            <td>

                <asp:label id="Label2" runat="server" text="Please Enter List Security Option:"></asp:label>

            </td>

            <td>

                <asp:dropdownlist id="DropDownList1" runat="server" width="117px"><asp:ListItem>Read Security</asp:ListItem><asp:ListItem>Write Security</asp:ListItem></asp:dropdownlist>

            </td>

        </tr>

        <tr>

            <td>

                <asp:label id="Label3" runat="server" text="Please Enter Security Option Value:"></asp:label>

            </td>

            <td>

                <asp:textbox id="TextBox2" runat="server" width="117px"></asp:textbox>

            </td>

        </tr>

        <tr>

            <td colspan="2">

                <asp:button id="Button1" runat="server" text="Create Security" forecolor="Orange"

                    font-bold="true" backcolor="Black" onclick="Button1_Click" width="168px" />

            </td>

        </tr>

        <tr>

            <td colspan="2">

                <asp:label id="Label4" runat="server" font-bold="true"></asp:label>

            </td>

        </tr>

    </table>

</div>

<%--</center>--%>



Step 5: The complete code of visualwebpart1usercontrol.ascx.cs looks like this:



using Microsoft.SharePoint;

using System;

using System.ComponentModel;

using System.Web.UI.WebControls.WebParts;namespace ListReadWriteSecApp.VisualWebPart1

{

    [ToolboxItemAttribute(false)]

    public partial class VisualWebPart1 : WebPart

    {

        // Uncomment the following SecurityPermission attribute only when doing Performance Profiling using

        // the Instrumentation method, and then remove the SecurityPermission attribute when the code is ready

        // for production. Because the SecurityPermission attribute bypasses the security check for callers of

        // your constructor, it's not recommended for production purposes.

        // [System.Security.Permissions.SecurityPermission(System.Security.Permissions.SecurityAction.Assert, UnmanagedCode = true)]

        public VisualWebPart1()

        {

        }

        protected override void OnInit(EventArgs e)

        {

            base.OnInit(e);

            InitializeControl();

        }

        protected void Page_Load(object sender, EventArgs e)

        {

            TextBox1.Focus();

        }

        protected void Button1_Click(object sender, EventArgs e)

        {

            if (string.IsNullOrEmpty(TextBox1.Text) || string.IsNullOrEmpty(TextBox2.Text))

            {

                Label4.Text = "Please Enter Some Values";

                Label4.ForeColor = System.Drawing.Color.Red;

            }

            else

            {

                var lists = SPContext.Current.Web.Lists;

                foreach (SPList ret in lists)

                {

                    if (ret.Title.Equals(TextBox1.Text))

                    {

                        int num = int.Parse(TextBox2.Text);

                        switch (num)

                        {

                            case 1:case 2:

                                {

                                    if (DropDownList1.SelectedItem.ToString() == "Read Security")

                                    {

                                        ret.ReadSecurity = int.Parse(TextBox2.Text);

                                        Label4.Text = DropDownList1.SelectedItem + " - Created Successfully";

                                        Label4.ForeColor = System.Drawing.Color.Green;

                                    }

                                    else if (DropDownList1.SelectedItem.ToString() == "Write Security")

                                    {

                                        ret.WriteSecurity = int.Parse(TextBox2.Text);

                                        Label4.Text = DropDownList1.SelectedItem + " - Created Successfully";

                                        Label4.ForeColor = System.Drawing.Color.Green;

                                    }

                                    break;

                                }

                            case 4:

                                {

                                    if (DropDownList1.SelectedItem.ToString() == "Write Security")ret.WriteSecurity = int.Parse(TextBox2.Text);

                                    Label4.Text = DropDownList1.SelectedItem + " - Created Successfully";

                                    Label4.ForeColor = System.Drawing.Color.Green;break;

                                }

                            default:Label4.Text = "Please Enter Valid Number as 1, 2 or 4";

                                Label4.ForeColor = System.Drawing.Color.Red;break;

                        }

                        TextBox1.Text = string.Empty;

                        TextBox2.Text = string.Empty;

                    }

                }

            }

        }

    }

}



Step 6: Deploy the solution file and add the new webpart to a SharePoint site.

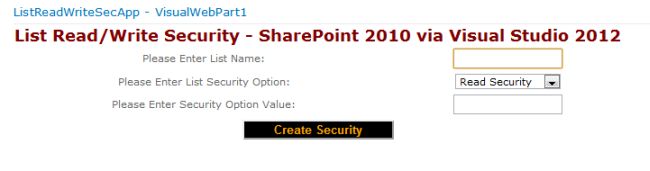

Step 7: The output of the application looks like this:

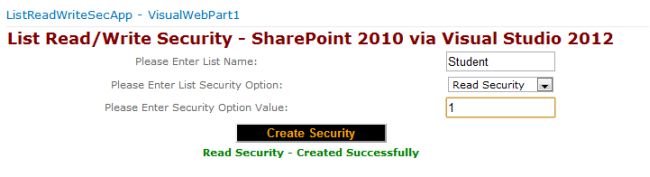

Step 8: Data entering output of the application looks like this:

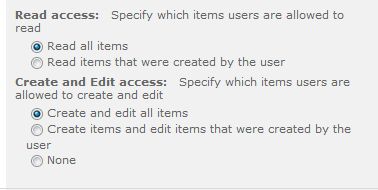

Step 9: Security specified on list output of the application looks like this:




I hope this article is useful for you.
