WCF 4.5 New Feature Channel Factory Caching

By Vijay Prativadi on October 01, 2012
Today, in this article let’s play around with one of the interesting and most useful concepts in WCF 4.5.
  • 0
  • 0
  • 8481

Introduction

Today, in this article let's play around with one of the interesting and most useful concepts in WCF 4.5.

Question: What is channel factory caching?

In simple terms "It enables caching of channel factories when you consume the service on a client. A new CacheSetting property has been introduced in WCF 4.5 which provides flexibility to set it up".

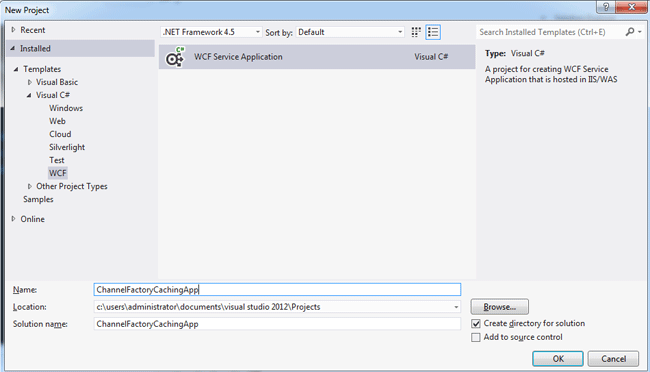

Step 1: Create a new WCF 4.5 project.


Step 2: The complete code of IService1.cs looks like this:


using System;

using System.Collections.Generic;

using System.Linq;

using System.Runtime.Serialization;

using System.ServiceModel;
 using
System.ServiceModel.Web;

using System.Text;

namespace ChannelFactoryCachingApp
 {

// NOTE: You can use the "Rename" command on the "Refactor" menu to change the interface name "IService1" in both code and config file together.

    [ServiceContract]
     public interface
IService1

    {
         [OperationContract]
         double Add(double a, double b);
         [OperationContract]
         double Sub(double a, double b);
         [OperationContract]
         double Mul(double a, double b);
         [OperationContract]
         double Div(double a, double b);
     }
 }


Step 3: The complete code of Service1.svc.cs looks like this:


using System;

using System.Collections.Generic;

using System.Linq;

using System.Runtime.Serialization;

using System.ServiceModel;

using System.ServiceModel.Web;

using System.Text;

using WcfService1;

namespace ChannelFactoryCachingApp
 {

// NOTE: You can use the "Rename" command on the "Refactor" menu to change the class name "Service1" in code, svc and config file together.

    // NOTE: In order to launch WCF Test Client for testing this service, please select Service1.svc or Service1.svc.cs at the Solution Explorer and start debugging.
     public class Service1 :
IService1

    {
         public double Add(double a, double b)
         {
             return a + b;
         }
         public double Sub(double a, double b)
         {
             return a - b;
         }
         public double Mul(double a, double b)
         {
             return a * b;
         }
         public double Div(double a, double b)
         {
             return a / b;
         }
     }
 }


Step 4: The complete code of web.config file looks like this:


<?xml version="1.0"?>

<configuration>
   <
appSettings>
     <
add key="aspnet:UseTaskFriendlySynchronizationContext" value="true" />

  </appSettings>
   <
system.web>
     <
compilation debug="true" targetFramework="4.5" />

    <httpRuntime targetFramework="4.5"/>

  </system.web>
   <
system.serviceModel>
     <
behaviors>
       <
serviceBehaviors>
         <
behavior>
           <!--
To avoid disclosing metadata information, set the values below to false before deployment -->
           <
serviceMetadata httpGetEnabled="true" httpsGetEnabled="true"/>

          <!-- To receive exception details in faults for debugging purposes, set the value below to true. Set to false before deployment to avoid disclosing exception information -->
           <
serviceDebug includeExceptionDetailInFaults="false"/>

        </behavior>
       </
serviceBehaviors>
     </
behaviors>
     <
protocolMapping>
       <
add binding="basicHttpsBinding" scheme="https" />

    </protocolMapping>
     <
serviceHostingEnvironment aspNetCompatibilityEnabled="true" multipleSiteBindingsEnabled="true" />

  </system.serviceModel>
   <
system.webServer>
     <
modules runAllManagedModulesForAllRequests="true"/>

    <!--To browse web app root directory during debugging, set the value below to true.Set to false before deployment to avoid disclosing web app folder information.-->
     <
directoryBrowse enabled="true"/>

  </system.webServer>
 </
configuration>

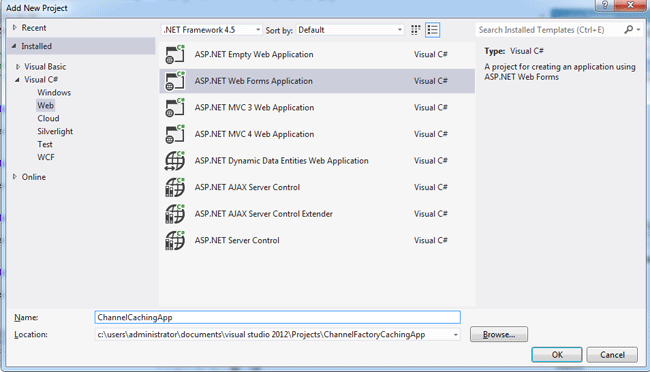

Step 5: Create an "ASP.NET Web Forms Application" project and add the service reference of the new WCF project; see:


Step 6: The complete code of WebForm1.aspx looks like this:


<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="WebForm1.aspx.cs" Inherits="ChannelCachingApp.WebForm1" %>

<!DOCTYPE html>

<html xmlns="http://www.w3.org/1999/xhtml">

<head id="Head1" runat="server">

    <title></title>

</head>
 <
body>

    <form id="form1" runat="server">

    <center>

        <div>

            <table>

                <tr>

                    <td colspan="2">

                        <asp:Label ID="Label1" runat="server" Text="Arthmetic Operations - WCF 4.5 Channel Factory and Caching"

                            Font-Bold="true" Font-Size="Large" Font-Names="Verdana" ForeColor="Maroon"></asp:Label>

                    </td>

                </tr>

                <tr>

                    <td>

                        <asp:Label ID="Label3" runat="server" Text="Please Enter First Number" Font-Size="Large"

                            Font-Names="Verdana" Font-Italic="true"></asp:Label>

                    </td>

                    <td>

                        <asp:TextBox ID="TextBox2" runat="server" Width="120px"></asp:TextBox>

                    </td>

                </tr>

                <tr>

                    <td>

                        <asp:Label ID="Label2" runat="server" Text="Please Enter Second Number" Font-Size="Large"

                            Font-Names="Verdana" Font-Italic="true"></asp:Label>

                    </td>

                    <td>

                        <asp:TextBox ID="TextBox1" runat="server" Width="120px"></asp:TextBox>

                    </td>

                </tr>
                 <tr
>

                    <td colspan="2" style="text-align: center">

                        <asp:Button ID="Button1" runat="server" Text="Addition" Font-Names="Verdana" Width="213px"

                            BackColor="Orange" Font-Bold="True" OnClick="Button1_Click" />

                    </td>

                </tr>

                <tr>

                    <td colspan="2" style="text-align: center">

                        <asp:Button ID="Button2" runat="server" Text="Substraction" Font-Names="Verdana"

                            Width="213px" BackColor="Orange" Font-Bold="True" OnClick="Button2_Click" />

                    </td>

                </tr>

                <tr>

                    <td colspan="2" style="text-align: center">

                        <asp:Button ID="Button3" runat="server" Text="Multiplication" Font-Names="Verdana"

                            Width="213px" BackColor="Orange" Font-Bold="True" OnClick="Button3_Click" />

                    </td>

                </tr>

                <tr>

                    <td colspan="2" style="text-align: center">

                        <asp:Button ID="Button4" runat="server" Text="Division" Font-Names="Verdana" Width="213px"

                            BackColor="Orange" Font-Bold="True" OnClick="Button4_Click" />

                    </td>

                </tr>

                <tr>

                    <td colspan="2" style="top: 50px; text-align: center">

                        <asp:Label ID="Label5" runat="server" Font-Bold="true" Font-Names="Verdana" ForeColor="Maroon"></asp:Label>

                    </td>

                </tr>

            </table>

        </div>

    </center>

    </form>

</body>
 </
html>

Step 7: The complete code of WebForm1.aspx.cs looks like this:


using ChannelCachingApp.ServiceReference1;

using System;

using System.Collections.Generic;

using System.Linq;

using System.ServiceModel;

using System.Web;

using System.Web.UI;

using System.Web.UI.WebControls;
 namespace
ChannelCachingApp
 {
     public partial class WebForm1 : System.Web.UI.
Page

    {
         protected void Page_Load(object sender, EventArgs e){}
         protected void Button1_Click(object sender, EventArgs e)
         {
             if (string.IsNullOrEmpty(TextBox1.Text) || string.IsNullOrEmpty(TextBox2.Text))
             {
                 Label5.Text = "Please Enter Some Values";
                 Label5.ForeColor = System.Drawing.Color.Red;
             }

else

            {
                 System.ServiceModel.ClientBase<IService1>.CacheSetting = CacheSetting.Default;
                 Label5.Text = "The Addition of " + TextBox1.Text + " and " + TextBox2.Text + " is " +
                     objClient.Add(double.Parse(TextBox1.Text), double.Parse(TextBox2.Text));
                 Label5.ForeColor = System.Drawing.Color.Green;
                 TextBox1.Text = string.Empty;
                 TextBox2.Text = string.Empty;
             }
         }
         protected void Button2_Click(object sender, EventArgs e)
         {
             if (string.IsNullOrEmpty(TextBox1.Text) || string.IsNullOrEmpty(TextBox2.Text))
             {
                 Label5.Text = "Please Enter Some Values";
                 Label5.ForeColor = System.Drawing.Color.Red;
             }

else

            {
                 System.ServiceModel.ClientBase<IService1>.CacheSetting = CacheSetting.Default;
                 Label5.Text = "The Substraction of " + TextBox1.Text + " and " + TextBox2.Text + " is " +
                     objClient.Sub(double.Parse(TextBox1.Text), double.Parse(TextBox2.Text));
                 Label5.ForeColor = System.Drawing.Color.Green;
                 TextBox1.Text = string.Empty;
                 TextBox2.Text = string.Empty;
             }
         }
         protected void Button3_Click(object sender, EventArgs e)
         {
             if (string.IsNullOrEmpty(TextBox1.Text) || string.IsNullOrEmpty(TextBox2.Text))
             {
                 Label5.Text = "Please Enter Some Values";
                 Label5.ForeColor = System.Drawing.Color.Red;
             }

else

            {
                 System.ServiceModel.ClientBase<IService1>.CacheSetting = CacheSetting.AlwaysOff;
                 Label5.Text = "The Multiplication of " + TextBox1.Text + " and " + TextBox2.Text + " is " +
                     objClient.Mul(double.Parse(TextBox1.Text), double.Parse(TextBox2.Text));
                 Label5.ForeColor = System.Drawing.Color.Green;
                 TextBox1.Text = string.Empty;
                 TextBox2.Text = string.Empty;
             }
         }
         protected void Button4_Click(object sender, EventArgs e)
         {
             if (string.IsNullOrEmpty(TextBox1.Text) || string.IsNullOrEmpty(TextBox2.Text))
             {
                 Label5.Text = "Please Enter Some Values";
                 Label5.ForeColor = System.Drawing.Color.Red;
             }

else

            {
                 System.ServiceModel.ClientBase<IService1>.CacheSetting = CacheSetting.AlwaysOn;
                 Label5.Text = "The Division of " + TextBox1.Text + " and " + TextBox2.Text + " is " +
                     objClient.Div(double.Parse(TextBox1.Text), double.Parse(TextBox2.Text));
                 Label5.ForeColor = System.Drawing.Color.Green;
                 TextBox1.Text = string.Empty;TextBox2.Text = string.Empty;
             }
         }

        #region Instance VariablesService1Client objClient = new Service1Client();

        #endregion

    }
 }

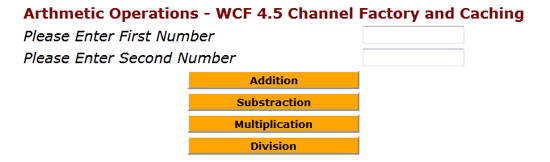

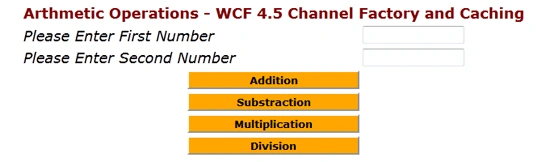

Step 8: The output of application looks like this:

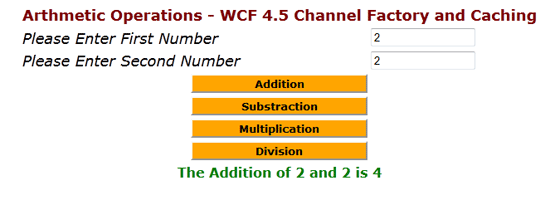

Step 9: The addition operation output of the application looks like this:


I hope this article is useful for you. I look forward for your comments and feedback. Thanks Vijay Prativadi
