Window in SilverLight 5 Via WCF Service

Posted by Vijay Prativadi Articles | Silverlight with C# March 31, 2012
Today, in this article let’s concentrate on another SilverLight application, whereby communicating with a WCF Service to perform some operation.
  • 0
  • 0
  • 4689

Introduction

Today, in this article let's concentrate on another SilverLight application, whereby communicating with a WCF Service to perform some operation.

Question: What is Window?

In simple terms SilverLight 5 applications enable us to create native windows which can run outside of the browser. Let's get this implemented practically for a better idea of this.

Step 1: The complete code of the IService1.cs looks like this.

using System;

using System.Collections.Generic;

using System.Linq;

using System.Runtime.Serialization;

using System.ServiceModel;

using System.ServiceModel.Web;

using System.Text;



namespace WCF_Window_SL

{

    // NOTE: You can use the "Rename" command on the "Refactor" menu to change the interface name "IService1" in both code and config file together.

    [ServiceContract]

    public interface IService1

    {

        [OperationContract]

        double add(double a, double b);



        [OperationContract]

        double sub(double a, double b);



        [OperationContract]

        double mul(double a, double b);



        [OperationContract]

        double div(double a, double b);

    }

}



Step 2: The complete code of the Service1.svc.cs looks like this.



using System.ServiceModel.Web;

using System.Text;



namespace WCF_Window_SL

{

    // NOTE: You can use the "Rename" command on the "Refactor" menu to change the class name "Service1" in code, svc and config file together.

    public class Service1 : IService1

    {

        public double add(double a, double b)

        {

            return a + b;

        }

        public double sub(double a, double b)

        {

            return a - b;

        }

        public double mul(double a, double b)

        {

            return a * b;

        }

        public double div(double a, double b)

        {

            return a / b;

        }

    }

}



Step 3: The complete code of the Web.Config looks like this.



<?xml version="1.0"?>

<configuration>

  <system.web>

    <compilation debug="true" targetFramework="4.0" />

  </system.web>

  <system.serviceModel>

    <behaviors>

      <serviceBehaviors>

        <behavior>

          <!-- To avoid disclosing metadata information, set the value below to false and remove the metadata endpoint above before deployment -->

          <serviceMetadata httpGetEnabled="true"/>

          <!-- To receive exception details in faults for debugging purposes, set the value below to true.  Set to false before deployment to avoid disclosing exception information -->

          <serviceDebug includeExceptionDetailInFaults="false"/>

        </behavior>

      </serviceBehaviors>

    </behaviors>

    <serviceHostingEnvironment multipleSiteBindingsEnabled="true" />

  </system.serviceModel>

  <system.webServer>

    <modules runAllManagedModulesForAllRequests="true"/>

  </system.webServer>

</configuration>



Step 4: The complete code of the Clientaccesspolicy.xml looks like this (to avoid cross domain problem in SilverLight).



<?xml version="1.0" encoding="utf-8"?>

<access-policy>

  <cross-domain-access>

    <policy>

      <allow-from http-request-headers="SOAPAction">

        <domain uri="*"/>

      </allow-from>

      <grant-to>

        <resource path="/" include-subpaths="true"/>

      </grant-to>

    </policy>

  </cross-domain-access>

</access-policy>



Step 5: The complete code of the ArthmeticWindow.xaml (UserControl) looks like this.



<UserControl x:Class="Silverlight_Window_Application.ArthmeticWindow"

    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"

    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"

    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"

    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"

    mc:Ignorable="d"

    d:DesignHeight="300" d:DesignWidth="400">



    <Grid x:Name="LayoutRoot" Background="White" Width="392">



        <Button Content="X"

                Height="23"

                HorizontalAlignment="Left"

                Background="Red"

                Margin="362,0,0,0"

                Name="btnClose"

                VerticalAlignment="Top"

                Width="26"

                Click="btnClose_Click"/>



        <Border BorderBrush="Silver"

                BorderThickness="3"

                Height="78"

                HorizontalAlignment="Left"

                Margin="12,109,0,0"

                Name="border1"

                VerticalAlignment="Top"

                Width="368">



            <TextBlock Foreground="DeepSkyBlue"

                       FontWeight="Bold"

                       FontFamily="Gabriola"

                       Typography.StylisticSet7="True"

                       FontSize="25"

                       Width="276"

                       Height="52"

                       Name="txtResult"/>

        </Border>



        <TextBlock Height="23"

                   HorizontalAlignment="Left"

                   Margin="18,28,0,0"

                   Name="textBlock1"

                   Text="Please Enter First Number"

                   FontFamily="Verdana"

                   FontSize="15"

                   VerticalAlignment="Top" />



        <TextBlock Height="23"

                   HorizontalAlignment="Left"

                   Margin="18,81,0,0"

                   Name="textBlock2"

                   Text="Please Enter Second Number: "

                   FontFamily="Verdana"

                   FontSize="15"

                   VerticalAlignment="Top" />



        <TextBox Height="23"

                 HorizontalAlignment="Right"

                 Margin="0,28,4,0"

                 Name="textBox1"

                 VerticalAlignment="Top"

                 Width="120" />



        <TextBox Height="23"

                 HorizontalAlignment="Left"

                 Margin="268,80,0,0"

                 Name="textBox2"

                 VerticalAlignment="Top"

                 Width="120" />



        <Button Content="Addition"

                FontFamily="Verdana"

                FontSize="15"

                Background="DeepSkyBlue"

                Height="23"

                HorizontalAlignment="Left"

                Margin="12,207,0,0"

                Name="button1"

                VerticalAlignment="Top"

                Width="122"

                Click="button1_Click"/>



        <Button Background="DeepSkyBlue"

                Content="Subtraction"

                FontFamily="Verdana"

                FontSize="15"

                Height="23"

                HorizontalAlignment="Left"

                Margin="258,207,0,0"

                Name="button2"

                VerticalAlignment="Top"

                Width="122"

                Click="button2_Click"/>



        <Button Background="DeepSkyBlue"

                Content="Multiplication"

                FontFamily="Verdana"

                FontSize="15"

                Height="23"

                HorizontalAlignment="Left"

                Margin="58,265,0,0"

                Name="button3"

                VerticalAlignment="Top"

                Width="122"

                Click="button3_Click"/>



        <Button Background="DeepSkyBlue"

                Content="Division"

                FontFamily="Verdana"

                FontSize="15"

                Height="23"

                HorizontalAlignment="Left"

                Margin="221,265,0,0"

                Name="button4"

                VerticalAlignment="Top"

                Width="122"

                Click="button4_Click"/>

    </Grid>

</UserControl>



Step 6: The complete code of the ArthmeticWindow.xaml.cs (UserControl) looks like this.


using System;

using System.Collections.Generic;

using System.Linq;

using System.Net;

using System.Windows;

using System.Windows.Controls;

using System.Windows.Documents;

using System.Windows.Input;

using System.Windows.Media;

using System.Windows.Media.Animation;

using System.Windows.Shapes;

using Silverlight_Window_Application.ServiceReference1;



namespace Silverlight_Window_Application

{

    public partial class ArthmeticWindow : UserControl

    {

        public ArthmeticWindow()

        {

            InitializeComponent();

            border1.Visibility = System.Windows.Visibility.Collapsed;

        }

        public void btnClose_Click(object sender, RoutedEventArgs e)

        {

            obj.Close();

        }

        private void add_Call(object sender, addCompletedEventArgs e)

        {

            txtResult.Text = "Addition Result is:  " + e.Result.ToString();

            border1.Visibility = System.Windows.Visibility.Visible;

        }

        private void button1_Click(object sender, RoutedEventArgs e)

        {

            border1.Visibility = System.Windows.Visibility.Collapsed;

            if (string.IsNullOrEmpty(textBox1.Text) || string.IsNullOrEmpty(textBox2.Text))

            {

                MessageBox.Show("Please Enter Some Values", "SilverLight 5 - Window via WCF", MessageBoxButton.OKCancel);

            }

            else

            {

                objClient.addCompleted += new EventHandler<addCompletedEventArgs>(add_Call);

                objClient.addAsync(Convert.ToDouble(textBox1.Text), Convert.ToDouble(textBox2.Text));

                textBox1.Text = "";

                textBox2.Text = "";

            }

        }

        private void sub_Call(object sender, subCompletedEventArgs e)

        {

            txtResult.Text = "Subtraction Result is:  " + e.Result.ToString();

            border1.Visibility = System.Windows.Visibility.Visible;

        }

        private void button2_Click(object sender, RoutedEventArgs e)

        {

            border1.Visibility = System.Windows.Visibility.Collapsed;

            if (string.IsNullOrEmpty(textBox1.Text) || string.IsNullOrEmpty(textBox2.Text))

            {

                MessageBox.Show("Please Enter Some Values", "SilverLight 5 - Window via WCF", MessageBoxButton.OKCancel);

            }

            else

            {

                objClient.subCompleted += new EventHandler<subCompletedEventArgs>(sub_Call);

                objClient.subAsync(Convert.ToDouble(textBox1.Text), Convert.ToDouble(textBox2.Text));

                textBox1.Text = "";

                textBox2.Text = "";

            }

        }



        private void mul_Call(object sender, mulCompletedEventArgs e)

        {

            txtResult.Text = "Multiplication Result is:  " + e.Result.ToString();

            border1.Visibility = System.Windows.Visibility.Visible;

        }



        private void button3_Click(object sender, RoutedEventArgs e)

        {

            border1.Visibility = System.Windows.Visibility.Collapsed;

            if (string.IsNullOrEmpty(textBox1.Text) || string.IsNullOrEmpty(textBox2.Text))

            {

                MessageBox.Show("Please Enter Some Values", "SilverLight 5 - Window via WCF", MessageBoxButton.OKCancel);

            }

            else

            {

                objClient.mulCompleted += new EventHandler<mulCompletedEventArgs>(mul_Call);

                objClient.mulAsync(Convert.ToDouble(textBox1.Text), Convert.ToDouble(textBox2.Text));

                textBox1.Text = "";

                textBox2.Text = "";

            }

        }

        private void div_Call(object sender, divCompletedEventArgs e)

        {

            txtResult.Text = "Division Result is:  " + e.Result.ToString();

            border1.Visibility = System.Windows.Visibility.Visible;

        }

        private void button4_Click(object sender, RoutedEventArgs e)

        {

            border1.Visibility = System.Windows.Visibility.Collapsed;

            if (string.IsNullOrEmpty(textBox1.Text) || string.IsNullOrEmpty(textBox2.Text))

            {

                MessageBox.Show("Please Enter Some Values", "SilverLight 5 - Window via WCF", MessageBoxButton.OKCancel);

            }

            else

            {

                objClient.divCompleted += new EventHandler<divCompletedEventArgs>(div_Call);

                objClient.divAsync(Convert.ToDouble(textBox1.Text), Convert.ToDouble(textBox2.Text));

                textBox1.Text = "";

                textBox2.Text = "";

            }

        }

        #region Instance Varibles

        Service1Client objClient = new Service1Client();

        Window obj = new Window();

        #endregion

    }

}



Step 7: The complete code of the MainPage.xaml looks like this.



<UserControl x:Class="Silverlight_Window_Application.MainPage"

    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"

    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"

    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"

    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"

    mc:Ignorable="d"

    d:DesignHeight="300" d:DesignWidth="389">



    <Grid x:Name="LayoutRoot" Background="White" Width="392">



        <Button Content="Click To Perform Arthmetic"

                FontFamily="Gabriola"

                FontWeight="Bold"

                FontSize="22"

                Height="67"

                HorizontalAlignment="Right"

                Margin="0,108,89,0"

                Name="button1"

                VerticalAlignment="Top"

                Width="206"

                Background="DeepSkyBlue"

                Click="button1_Click"

                Typography.StylisticSet7="True"/>

    </Grid>

</UserControl>



Step 8: The complete code of the MainPage.xaml.cs looks like this.


using System;

using System.Collections.Generic;

using System.Linq;

using System.Net;

using System.Windows;

using System.Windows.Controls;

using System.Windows.Documents;

using System.Windows.Input;

using System.Windows.Media;

using System.Windows.Media.Animation;

using System.Windows.Shapes;



namespace Silverlight_Window_Application

{

    public partial class MainPage : UserControl

    {

        public MainPage()

        {

            InitializeComponent();

        }



        private void button1_Click(object sender, RoutedEventArgs e)

        {

            Window obj_Window = new Window();

            obj_Window.Width = 500;

            obj_Window.Height = 350;

            obj_Window.Title = "Arthimetic New Window SL 5 via WCF";

            obj_Window.Content = new ArthmeticWindow();

            obj_Window.Visibility = System.Windows.Visibility.Visible;

        }



    }

}



Step 9: Before you rebuild and run the application.

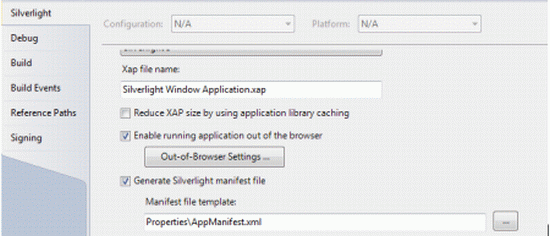

Go To Properties of SilverLight Application.



Select the CheckBox, Enable running application out of browser.

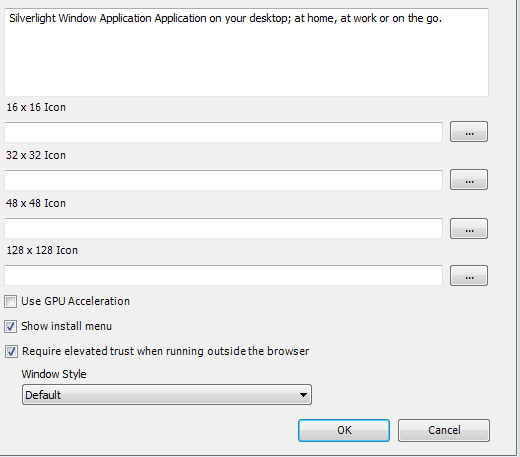

Then, click on Out of Browser Setting - Button.



Select the CheckBox, Require Elevated trust when running the application outside of the browser.

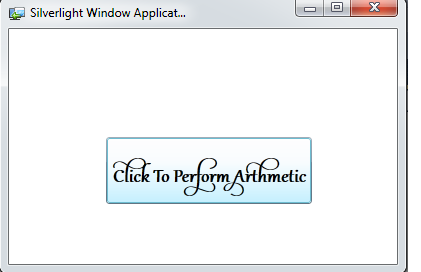

Step 10: The output of the application looks like this.

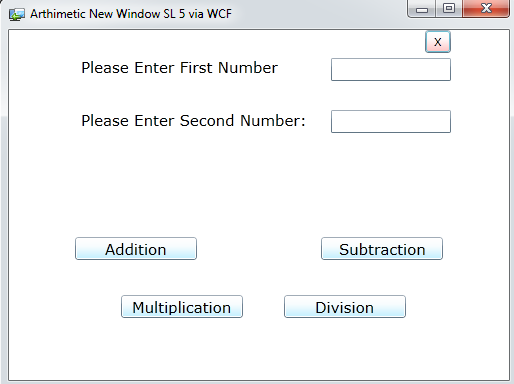

Step 11: The output of the Arithmetic Window Application looks like this.

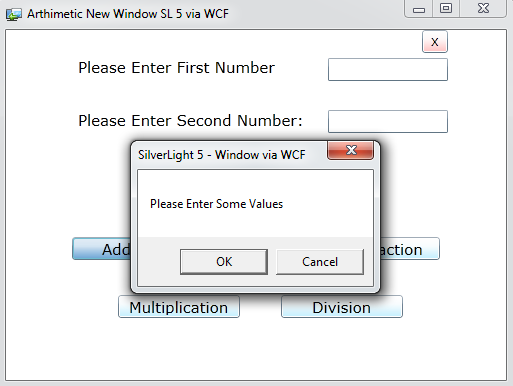

Step 12: The output of the Nothing Entered Application looks like this.

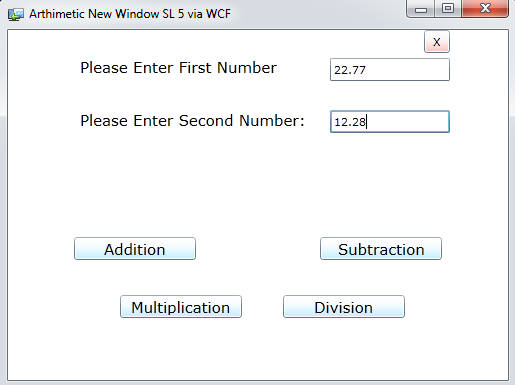

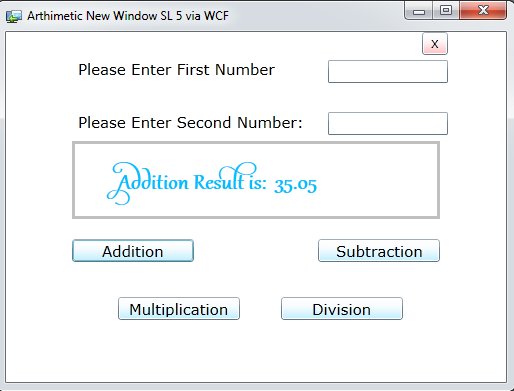

Step 13: The output of the Addition Operation Application looks like this.




I hope this article is useful for you. I look forward to your comments and feedback.
