MVC Application With MongoDB - Part 1

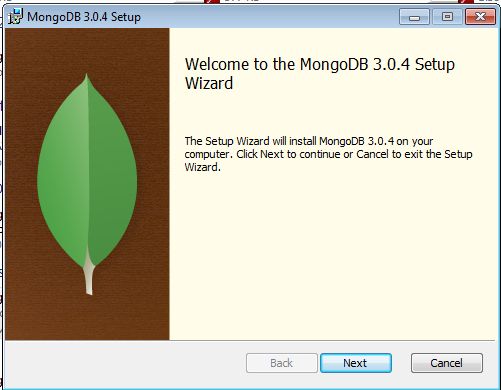

Step 1: Let’s start with MongoDB server installation for our application. In this application I am using MongoDB 3.0.4 server. The following image indicate the installation of server. Setup files downloaded from MongoDB official website.

MongoDB

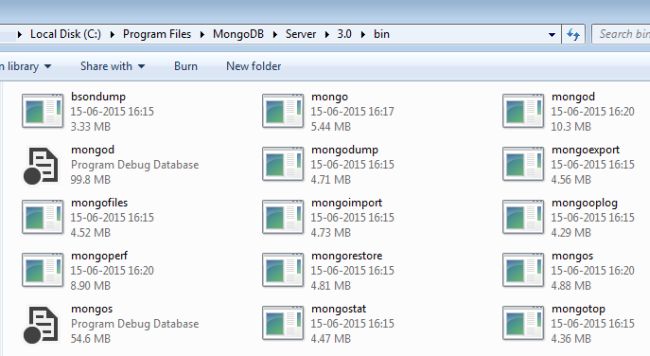

Step 2: Now it’s time to check server has installed properly or not on machine. So go to location ‘C:\Program Files\MongoDB\Server\3.0\bin’. After successful installation of server bin folder contains the following mentioned files.

exe

Step 3: Start MongoDB.

To start MongoDB, execute the following from the command prompt: C:\ProgramFiles\MongoDB\Server\3.0\bin\mongod

This will start the main MongoDB database process. Now waiting for connections message in the console. Output indicate that mongod.exe running successfully.

Output

Step 4: Connect to MongoDB in order to perform database operations

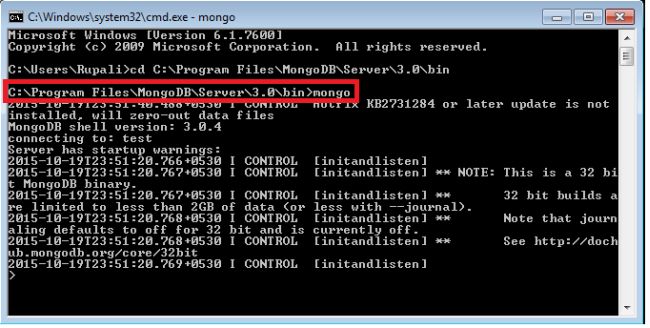

Run command from new command prompt: C:\Program Files\MongoDB\Server\3.0\bin\mongo

Execute command ‘show dbs’ – it shows a list of database present at server.

Execute command

MVC Application with MongoDB

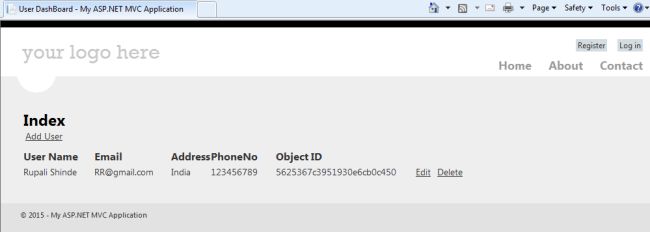

MVC Application UI: We are going to design the following user interface using MVC & all CRUD operations are performed using MongoDB database, so all the methods which we are going to use are with respect to MongoDB database syntax.

MVC Application

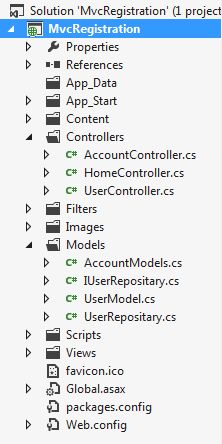

Application Folder & File Structure are as follows:

MVC Rgistration

UserRepositary Model Class File: We are going to use this model class to perform CRUD operation in MongoDB database.

Create Application Database

  1. using MongoDB.Bson;
  2. using MongoDB.Driver;
  3. using MongoDB.Driver.Builders;
  4. using System;
  5. using System.Collections.Generic;
  6. using System.Linq;
  7. using System.Web;
  8.
  9. namespace MvcRegistration.Models
  10. {
  11.     public class UserRepositary : IUserRepositary
  12.     {
  13.         ObjectId id = new ObjectId();
  14.
  15.         MongoClient client = null;
  16.         MongoServer server = null;
  17.         MongoDatabase database = null;
  18.         MongoCollection UserDetailscollection = null;
  19.
  20.         string connectionString = "mongodb://localhost";
  21.         private List<UserModel> _UserList = new List<UserModel>();
  22.
  23.         public UserRepositary()
  24.         {
  25.             try
  26.             {
  27.                 client = new MongoClient(connectionString);
  28.
  29.                 server = client.GetServer();
  30.
  31.                 database = server.GetDatabase("MVCDB");
  32.
  33.                 UserDetailscollection = database.GetCollection<UserModel>("UserModel");
  34.             }
  35.             catch (Exception ex)
  36.             {
  37.                 Console.WriteLine(ex.Message);
  38.             }
  39.         }
  40.     }
  41. }
Above code will create 'MVCDB' database at MongoDB server.

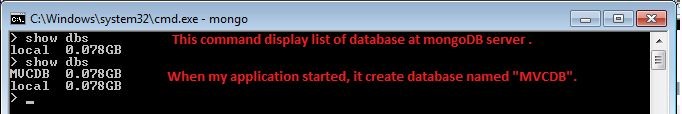

We can test weather database is created or not using command 'show dbs'.

show dbs
