RoundedCornersExtender Control in AJAX Using ASP.NET

Posted by A K Articles | AJAX February 14, 2012
The RoundedCornersExtender control adds rounded corners to elements. In this article you will learn how to use the RoundedCornersExtender control in AJAX.
  • 0
  • 0
  • 10715

Introduction

The RoundedCornersExtender control adds rounded corners to elements. Its properties are given below.

  • TargetControlID : It set the ID of control which will be attached with RoundedCornersExtender.
  • Radius : It  is used to set the radius of corner. The default is 5.
  • Corners :  It is used to set the corner of the target element. There are different values for this. They are All, Buttom, ButtomLeft, ButtonRight, Left, None, Right, Top, TopLeft and TopRight.
  • Color : It is used to set the color of corners.


Now we take a ASP.NET Web Application and then we use a RoundedCornersExtender control to our application. Follow the given steps.

Step 1 : Take a ASP.NET Web Application.
Step 2 : Go to Toolbox and take ScriptManager at first on the form.



Step 3 : Take a Panel and take three Labels, two TextBoxes and one Button control inside the Panel. Change the Text property of a Label and Button like in the following figure.



Step 4 : Go to the ToolBox and take a RoundedCornersExtender control.



Code on .aspx page

<
asp:RoundedCornersExtender ID="RoundedCornersExtender1" runat="server">
        </asp:RoundedCornersExtender>

Step 5 : Set the property of RoundedCornersExtender control.

       <asp:RoundedCornersExtender ID="RoundedCornersExtender1" TargetControlID="Panel1" Color="Black" Corners="Bottom" runat="server">
        </asp:RoundedCornersExtender>


Code on .aspx page

<
head runat="server">
    <title></title>
    <style type="text/css">
    .pannelbg
    {
        background-color:White;
        width:400px;

    }
    </style
>

</
head>
<
body style="background-color:Green">
    <form id="form1" runat="server" >
    <asp:ScriptManager ID="ScriptManager1" runat="server">
    </asp:ScriptManager>
    <div>
        <asp:Panel ID="Panel1" CssClass="pannelbg" runat="server">
        <asp:Label ID="lbllogin" Text="Login..." Font-Bold="true" Font-Size="20"  ForeColor="Red" runat="server"></asp:Label><br /><br />
        <table style="height:200; width:300">
        <tr>
        <td><asp:Label ID="lblusername" Text="User Name" Font-Bold="true" Font-Size="18" ForeColor="Red" runat="server"></asp:Label></td>
         <td><asp:TextBox ID="txtusername" Height="30" Width="150" Font-Size="20" runat="server"></asp:TextBox></td>
        </tr>
        <tr>
        <td><asp:Label ID="lblpwd" Text="Password" Font-Bold="true" Font-Size="18" ForeColor="Red" runat="server"></asp:Label></td>
         <td><asp:TextBox ID="txtpwd" Height="30" Width="150" Font-Size="20" TextMode="Password" runat="server"></asp:TextBox></td>
         <td></td>
        </tr>
        <tr>
        <td><asp:Button ID="btnlogin" Text="Login" Font-Bold="true" Height="41px"
                Font-Size="20" ForeColor="Black" runat="server" /> </td>
         <td></td>
        </tr>
        </table>
        </asp:Panel>
        <asp:RoundedCornersExtender ID="RoundedCornersExtender1" TargetControlID="Panel1" Color="Black" Corners="Bottom" runat="server">
        </asp:RoundedCornersExtender>
    </div>
    </form
>

</
body>

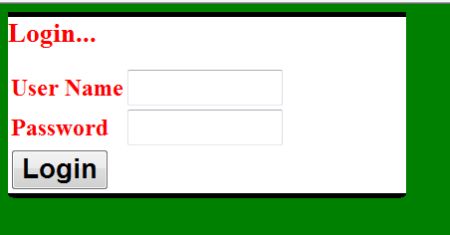

Run the application.


Now set the Radius and Corners properties.

<
asp:RoundedCornersExtender ID="RoundedCornersExtender1" TargetControlID="Panel1" Radius="10" Color="Black" Corners="BottomRight" runat="server">
        </asp:RoundedCornersExtender>

Run the application.



Set its Corners property to "None".
