Binding With CollectionViewSource in Windows Store Apps

Posted by Gaurav Gupta Articles | Windows Store Apps October 25, 2012
In this article we are going to learn about the CollectionViewSource Class and how it use in Windows Store Apps.
  • 0
  • 0
  • 8887

Today we will learn a new way to bind the data to the the control using CollectionViewSource. CollectionViewSource provides a proxy over collection classes to enable Position in the list of objects. It also support grouping feature in binding.

You can also see the binding modes in Windows Store Apps from here.

We can define a CollectionViewSource either in the page resources or in the immediate parent control. It has a property called Source that defines the collection of objects or data to bind to the control. We can set it in our code behind.

CollectionViewsSource is XAML markup and for all our data lists and bind them to the corresponding controls all in XAML. Then at runtime in our code we set the Source properties.

In this article we will show an example of how to use a CollectionViewSource in Windows Store Apps using XAML and C#.

Here is how to do it.

Step 1

Create a Blank Windows Store application using C#.

Step 2

First of all we need to create a class in which we put all the data and create a custom source.

Add a .cs file to the application:

  • Go to Solution Explorer.
  • Right-click on the root.
  • Select add option and click on the Class.
  • Give it name.


Write the following code in the .cs file:

namespace CollectionViewSourceDataBidig

{

    public class Players

    {

        public string Name { get; set; }

        public string Country { get; set; }

        public string Sport { get; set; }

        // this is how you can create a custom indexer in C#

    }



    // This class is used to demonstrate grouping.

    public class PlayerList

    {

        List<Players> player = new List<Players>();

        public PlayerList()

        {

            player.Add(new Players() { Name = "Sachin Tendulkar", Country = "India", Sport = "Cricket" });

            player.Add(new Players() { Name = "Kevin Peterson", Country = "England", Sport = "Cricket" });

            player.Add(new Players() { Name = "Greme Smith", Country = "South Africa", Sport = "Cricket" });

            player.Add(new Players() { Name = "Brett Lee", Country = "Australia", Sport = "Cricket" });

        }

        public List<Players> GetPlayerList()

        {

            return player;

        }

    }

}

Step 3

In this step I create a CollectionViewSource in a XAML file; it is:

<Page.Resources>

     <CollectionViewSource x:Name="MyCollection"  Source="{Binding}"></CollectionViewSource>

</Page.Resources>

Step 4

Create a Markup for ListView in which we bind the data using the CollectionViewSource and show it; it is:

<ListView VerticalAlignment="Center" HorizontalAlignment="Center" x:Name="lvGroupInfoCVS" ItemsSource="{Binding Source={StaticResource MyCollection}}">

      <ListView.ItemTemplate>

           <DataTemplate>

               <Border Background="Red" Width="200" CornerRadius="10" HorizontalAlignment="Left">

                   <StackPanel Orientation="Vertical">

                       <TextBlock Text="{Binding Name}" Style="{StaticResource BasicTextStyle}" HorizontalAlignment="Center" FontWeight="Bold"/>

                       <TextBlock Text="{Binding Country}" Style="{StaticResource BasicTextStyle}" HorizontalAlignment="Center" FontWeight="Bold"/>

                       <TextBlock Text="{Binding Sport}" Style="{StaticResource BasicTextStyle}" HorizontalAlignment="Center" FontWeight="Bold"/>

                    </StackPanel>

                    </Border>

            </DataTemplate>

     </ListView.ItemTemplate>

</ListView>

In the above code I set the ItemsSource property to CollectionViewSource by giving it's name. It automatticaly binds the collection to the list that contains in the CollectionViewSource.

Step 5

Set the source property of the CollectionViewSource in our code behind.

PlayerList players=new PlayerList();

MyCollection.Source = players.GetPlayerList();

Step 6

Now, build the app and run it.

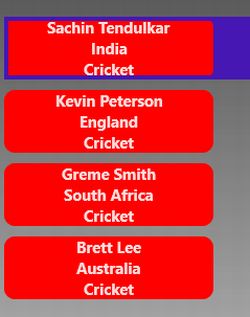

You will see that all the data has been bound to the ListView Control using the CollectionViewSource, as in:
