Generic 'T, K' Database Component

Posted by art_scott Articles | ADO.NET December 17, 2005
I have written a C# 2.0 (Visual Studio 2005), Generic Database component, The component has simplified the architecture and the implementation by allowing me to keep the number of overloaded methods to a minimum.
  • 0
  • 0
  • 9974


Why did I use Generic <T, K>?

This keeps the number of overloaded methods down to a minimum without using objects. Let me explain.
Method One, without Generic <T, K>:

  1. You would be to have an overloaded method for every type of CONNECTION and DATATYPE.
  2. Because of the different DATATYPES, you would need to rename the methods.
  3. I am sure that you can see that very soon, you have tons of methods and tons of code.
  4. For a developer user of the component this becomes complex.
  5. From a maintenance/enhancement point of view, this becomes tiring and can be costly.

Method Two, without Generic <T, K>:
  1. You have the same methods that I do, but both the CONNECTION and the DATATYPE are cast as objects.
  2. Well we all know that we can have compile issues and usability issues with objects, which is where Generics <T, K> are now part of Visual Studio 2005.

Technical Details of the component
  1. I have replaced the T with CONNECTION and the K with DATATYPE.

  2. When initializing the object, the first parameter, your CONNECTION, can be any of the following types:
    1. A Connection String
    2. A System.Data.SqlClient.SqlConnection
    3. A System.Data.OleDb.OleDbConnection
    4. A System.Data.Odbc.OdbcConnection
    5. An ADODB.Connection
    6. A Oracle.DataAccess.Client.OracleConnection
    7. To name a few...

  3. When Initializing the object, the second parameter, your DATATYPE, can be any of the following types:
    1. A System.String, here your data would be a disconnection XML formatted string, needed by those systems that can only handle strings.
    2. A System.Data.DataSet
    3. A System.Data.DataTable
    4. A System.Xml.XmlDocument

  4. There are four (4) exposed Public Methods, three (3) of them are overloaded:
    1. public DATATYPE Create(CONNECTION, string sql, string tableName)
    2. public DATATYPE Create(string provider, string sql)
    3. public DATATYPE Create(CONNECTION, string sql, string[] parameterList, string tableName, int Timeout)
    4. public void Update(CONNECTION, DATATYPE, string sql, string tableName)

Usage here is when you want to update/insert/etc data utilizing Typed DataSets

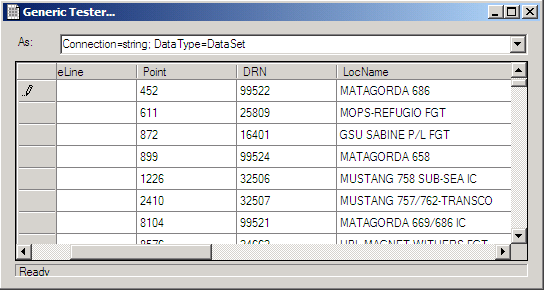

When the user updates the appropriate line/column

After editing the data, the next method called (as highlighted below), will update the table utilizing Typed Dataset. This also works for inserts as well.
