Checkpoint Property Values Parametrization in QTP in Testing

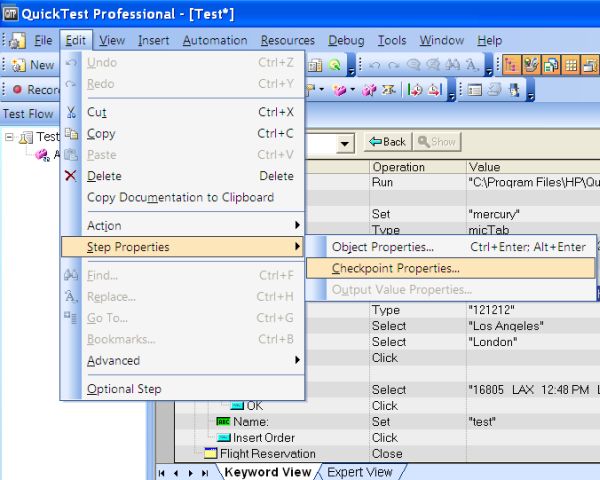

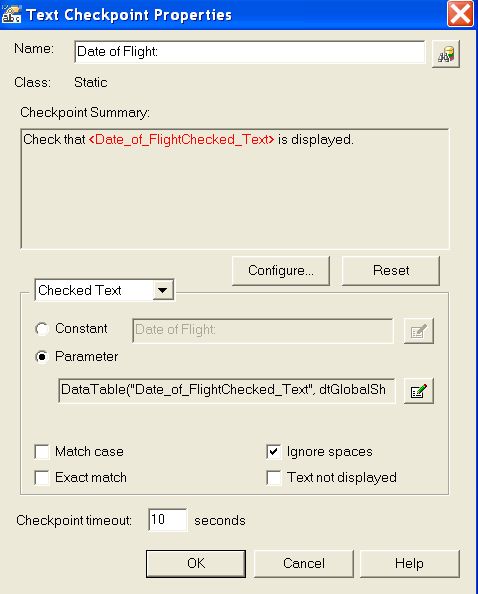

  1. Open the dialog box for the checkpoint properties by choosing Edit > Step Properties > Checkpoint Properties.

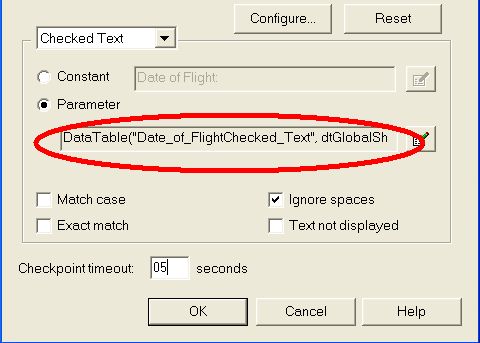

  2. In the Configure Value area of the dialog box, select parameter. If the value is already parametrized the Parameter box displays the current parameter definition for the value. If the value is not yet parametrized, the Parameter box displays the default parameter definition for the value.


  3. Accept or change the displayed parameter definition.
  4. To accept the displayed parameter statement and choose the dialog box, click OK.
  5. To change the parameter type or modify the value settings for the selected property, click the Parameter options button. The parameter options dialog box opens for the displayed parameter type.


  6. To accept the displayed parameter statement and parametrize another of the displayed values, select another property and follow the previous steps.
