Tip: How to add a Page Header to a Sub Report in Crystal Reports?

Sub Reports in Crystal Reports do have report headers but do not support page headers. Wonder why? We can mimic the functionality with the help of a formula and a Group.

Author Rank :
Page Views : 65484
Downloads : 0
Rating :
 Rate it
Level : Beginner
   Print Read/Post comments Post a comment  Similar Articles
   Email to a friend  Bookmark  Author's other articles

Nevron Chart
Become a Sponsor
DevExpress Free UI Controls
Become a Sponsor
 Tag Cloud
 Latest Jobs
More ...
 Latest Interview Questions
More ...

Work around, work around, work around !!! This is what I do when I end up creating reports that require little bit of customization and there are times when you are tired of work arounds. Come on. Give me a break. Crystal Reports product costs so much and Business Objects folks seem to be adding patches to the old code. I would suggest them to rethink about it and rewrite the whole damn thing.



OK, I will stop being tetchy now. Let's get back to work.



Sub Reports in Crystal Reports do have report headers but do not support page headers. Wonder why? We can mimic the functionality with the help of a formula and a Group. Just follow these below steps:



Step 1: Create a Formula as following. I call my formula ShowPH:



WhileReadingRecords;

" "

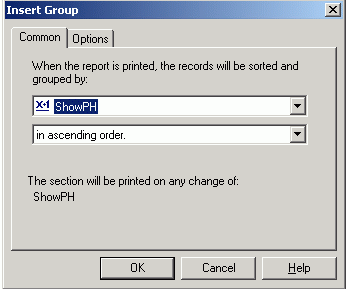

Step 2: Add a Group from Insert Menu-select Group and you will see Insert Group. Select ShowPH formula there and click on Options tab.

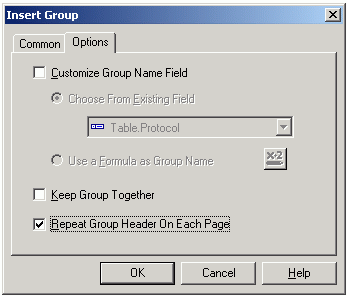

On Options tab, select "Repeat Group Header on Each Page".





It will add a group to your sub report.

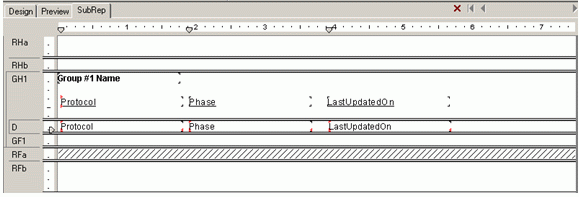

Step 3: Now add all text you want to display on the header of each page on the Group section area.





Using these steps will add headers to the pages of a sub report.
