Graphics using GDI+

By Mike Gold on February 05, 2002
This sample project shows how to draw various graphics objects on a Form using GDI+ objects.
  • 0
  • 0
  • 36922
Download Files:


In .NET, GDI+ functionality resides in the System.Drawing.dll. Before you start using GDI+ classes, you must add reference to the System.Drawing.dll and import System.Drawing namespace. In this sample, I use class GraphicsPath, which is defined in the System.Drawing.Drawing2D namespace.

Creating this project is simple. Create a Windows application and add reference to the System.Drawing.dll using Project->Add Reference menu item. See Figure 1.

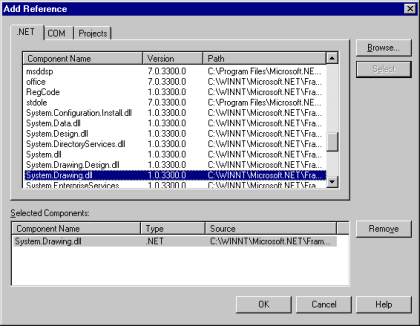

Figure 1. Adding reference to System.Drawing.dll

After that add these two lines.

using System.Drawing;
using System.Drawing.Drawing2D;

Note: If you create a Windows application using VS.NET, you only need write only one line.

using System.Drawing.Drawing2D;

After that add a Form_Paint event handler using the Properties Window. See Figure 2.

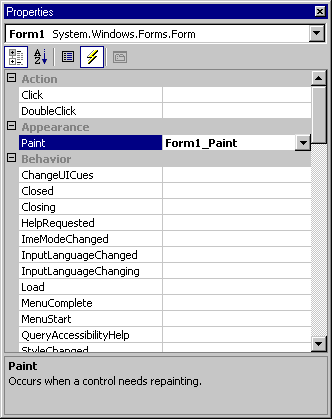

Figure 2. Adding Form_Paint event handler.

And write the following code on the Form_Paint event handler.

private void Form1_Paint(object sender, System.Windows.Forms.PaintEventArgs e)
{
Graphics g = e.Graphics ;
Rectangle rect =
this.ClientRectangle;
// Rectangle rect = new Rectangle(50, 30, 100, 100);
// paints a gradiant background to the whole window
LinearGradientBrush lBrush = new LinearGradientBrush(rect, Color.Red, Color.Yellow,
LinearGradientMode.BackwardDiagonal);
g.FillRectangle(lBrush, rect);
// draws an arc
Pen pn = new Pen( Color.Blue );
rect =
new Rectangle(50, 50, 200, 100);
g.DrawArc( pn, rect, 12, 84 );
// Rectangle rect = new Rectangle(50, 50, 200, 100);
// draws a line with a blue violet pen
Pen pn2 = new Pen( Color.BlueViolet );
Point pt1 =
new Point( 30, 30);
Point pt2 =
new Point( 110, 100);
g.DrawLine( pn2, pt1, pt2 );
// illustrates how to draw graphic test
g.DrawString("Welcome to the Graphics World", this.Font, new SolidBrush(Color.Azure ), 10,10);
// draws an ellipse in the bottom corner of the screen
Pen pn3 = new Pen( Color.Aqua , 5 );
rect =
new Rectangle(ClientRectangle.Right - 60, ClientRectangle.Bottom - 60, 50, 50);
g.DrawEllipse( pn3, rect );
// draw a graphic path with bezier curves
GraphicsPath path = new GraphicsPath(new Point[] {
new Point(40, 140), new Point(275, 200),
new Point(105, 225), new Point(190, ClientRectangle.Bottom),
new Point(50, ClientRectangle.Bottom), new Point(20, 180), },
new byte[] {
(
byte)PathPointType.Start,
(
byte)PathPointType.Bezier,
(
byte)PathPointType.Bezier,
(
byte)PathPointType.Bezier,
(
byte)PathPointType.Line,
(
byte)PathPointType.Line,
});
PathGradientBrush pgb =
new PathGradientBrush(path);
pgb.SurroundColors =
new Color[] { Color.Green,Color.Yellow,Color.Red, Color.Blue,
Color.Orange, Color.White, };
g.FillPath(pgb, path);
}

Compile and run the project. The output looks like Figure 3.

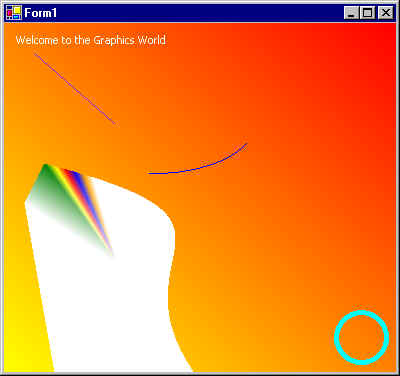

Figure 3.
