Using ListViews in C#

Posted by Mike Gold Articles | Windows Controls C# January 18, 2001
As a Visual C++ user for 10 years I can say that Microsoft deserves praise for their new ListView class. The MFC ListView class was, well, unpleasant to use. C# makes life a bit easier with a richer property and method set for ListViews. Also, you can now, set the ListView to select an entire row in report mode, something that in Visual C++ you had to write a whole custom ListView control to do. Note also the nice grid lines.
Reader Level:
Download Files:


As a Visual C++ user for 10 years I can say that Microsoft deserves praise for their new ListView class.  The MFC ListView class was, well, unpleasant to use.  C# makes life a bit easier with a richer property and method set for ListViews.  Also, you can now, set the ListView to select an entire row in report mode, something that in Visual C++ you had to write a whole custom ListView control to do.  Note also the nice grid lines.

Below are the files included for the Visual.NET Project.  Form1.cs contains all the code in this article:

The above mini application shows you how to create a ListView in report mode and make it persistent with streams. The ListView's columns are initialized with the following code:

public void InitializeListView()
{
ColumnHeader header1 =
this.listView1.InsertColumn(0, "Name", 10*listView1.Font.SizeInPoints.ToInt32() , HorizontalAlignment.Center);
ColumnHeader header2 =
this.listView1.InsertColumn(1, "E-mail", 20*listView1.Font.SizeInPoints.ToInt32(), HorizontalAlignment.Center);
ColumnHeader header3 =
this.listView1.InsertColumn(2, "Phone", 20*listView1.Font.SizeInPoints.ToInt32(), HorizontalAlignment.Center );
}

The routine uses the font sizes to determine the width of the column and the alignment flags to determine where to put the header text.   The property for making the ListView a ReportView is called View and is set in the property window.  Setting the FullRowSelect property allows the user to select the entire row of a ListView.

In this example, we use the edit box fields to populate the rows in our listview.  Below is the routine for inserting rows into our contact list:

protected void addbutton_Click (object sender, System.EventArgs e)
{
// create the subitems to add to the list
string[] myItems = new string[]{textBox2.Text, textBox3.Text};
// insert all the items into the listview at the last available row
listView1.InsertItem(listView1.ListItems.Count, textBox1.Text, 0, myItems);
}

Populating a ListView is similar to how it was in Visual C++.  Unfortunately,  there is still exists the concept of subitems, where the first column  is populated separately from the rest of the ListView.  But its not really such a big deal, because it's still much easier to do in C# than in the past as you can see in the code above.  The first parameter is the row index we want to insert the text. The second parameter is the first column string (textBox1.Text).  The third parameter is the imageindex of the imagelist.  Since we are not using an image list here, we just set it to 0.  myItems are the subitems in columns 2 and 3. (Or columns 1 and 2, if you count  the first column as column #0.). The ListView class also has a few other versions of InsertItem so that you can pick the one that best suits your needs for the particular view.

Another function of this ListView Example is the ability to delete rows.  In this example we trap the KeyDown event and look for the delete key. If the delete key is pressed, the program will remove the selected rows:

protected void Form1_KeyDown (object sender, System.WinForms.KeyEventArgs e)
{
// determine the value of the key pressed. If the value is delete (46), remove all selected rows
int nKeyValue = e.KeyData.ToInt32();
if (nKeyValue == 46)
{
for (int i = listView1.SelectedItems.Count - 1; i >= 0; i--)
{
ListItem li = listView1.SelectedItems[i];
listView1.ListItems.Remove(li);
}
}
}

Persistence using Streams:

Several articles on this site already cover streams, so  I'll only talk briefly about them here.

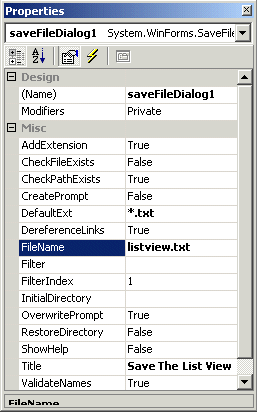

The FileStream allows you to read or write to a file.  You can use the StreamWriter class to manipulate this stream for writing. In this example we use the SaveFileDialog component to prompt the user for the file we want to save too. The programmer can set this component for the extensions, defaults, Title and other specifics for the appearance of this dialog:

The code for writing the ListView out to a tab-delimited text file is shown below:

protected void savebutton_Click (object sender, System.EventArgs e)
{
try
{
// get the file name to save the list view information in from the standard save dialog
if (this.saveFileDialog1.ShowDialog() == DialogResult.OK)
{
// open a stream for writing and create a StreamWriter to use to implement the stream
FileStream fs = new FileStream(@saveFileDialog1.FileName , FileMode.OpenOrCreate, FileAccess.Write);
StreamWriter m_streamWriter =
new StreamWriter(fs);
m_streamWriter.Flush();
// Write to the file using StreamWriter class
m_streamWriter.BaseStream.Seek(0, SeekOrigin.Begin);
// write each row of the ListView out to a tab-delimited line in a file
for (int i = 0; i < this.listView1.ListItems.Count; i++)
{
m_streamWriter.WriteLine(listView1.ListItems[i].Text + "\t" + listView1.ListItems[i].SubItems[0].ToString() + "\t" + listView1.ListItems[i].SubItems[1].ToString());
}
// Close the file
m_streamWriter.Flush();
m_streamWriter.Close();
}
}
catch(Exception em)
{
}
}

Reading the file back in is done by creating a stream for reading and using the StreamReader to interpret the contents of the file. As each file is read in, it is parsed using the string functions IndexOf (to locate the tabs) and Substring (to parse out the column information).  After the information is
parsed, it is then written to the individual columns in the ListView:

protected void readbutton_Click (object sender, System.EventArgs e)
{
try
{
if (this.openFileDialog1.ShowDialog() == DialogResult.OK)
{
FileStream fs =
new FileStream(openFileDialog1.FileName , FileMode.Open, FileAccess.Read);
StreamReader m_streamReader =
new StreamReader(fs);
// Read to the file using StreamReader class
m_streamReader.BaseStream.Seek(0, SeekOrigin.Begin);
string strLine = m_streamReader.ReadLine();
int nStart = 0;
int count = 0;
// Read each line of the stream and parse until last line is reached
while (strLine != null)
{
int nPos1 = strLine.IndexOf("\t",nStart);
string str1 = strLine.Substring(0, nPos1); // get first column string

nStart = nPos1 + 1;
int nPos2 = strLine.IndexOf("\t",nStart);
string str2 = strLine.Substring(nStart, nPos2 - nStart); // get second column string
nStart = nPos2 + 1;
string str3 = strLine.Substring(nStart); // get last column string
listView1.InsertItem(count, str1, 0, new string[]{str2, str3}); // Add the row to the ListView
count++; // increment row
nStart = 0; // reset
strLine = m_streamReader.ReadLine(); // get next line from the stream
}
// Close the stream
m_streamReader.Close();
}
}
catch(Exception em)
{
System.Console.WriteLine(em.Message.ToString());
}
}


This application can probably aid as a starting point for doing many spreadsheet-like applications.  For example, the application could be used to create a program that goes through all the people on the list and emails them a letter addressing them with their name. (See  the SMTP article on this site Sending mail in .NET using C#  by Mahesh Chand).  It could also be the starting point for entering contacts into a database using ADO+(see the article on this site Write data to an access database using SQL Query and ADO by Mahesh Chand.)  I think you'll find that creating any such application in C# should prove quicker and easier than it was with Visual Studio 6.0.
