All About API: Introduction To Web API - Part One

Introduction

In this article we will see what is an API, why should we create it and how to create a simple Web API project.

What is Web API?

Web API is fully supported and extensible framework for building HTTP based endpoints. This framework makes it very easy to build HTTP services. It is built on top of ASP.NET. It does not dictate an architectural style but it’s a good platform to build RESTful applications.

Why should we use it?

Most of the time when any application needs a service layer, for example, HTML 5 application or mobile application or client server desktop application. In a real world scenario any mobile recharge company wants to expose endpoints to do the recharge, it has to create an API i.e. service layer and expose it to the world so that other companies can use that Uri and do the recharge.

Let’s create our first Web API project:

  • Open Visual Studio Editor.

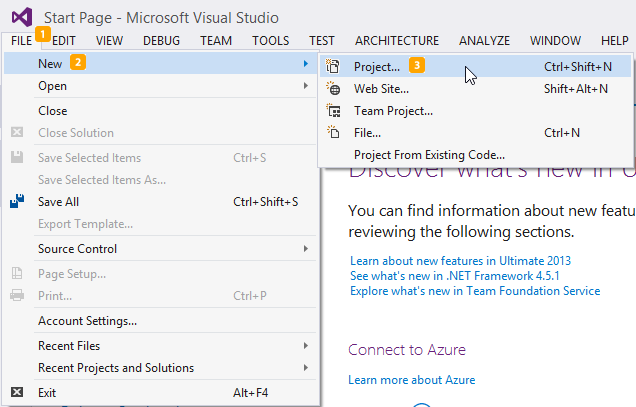

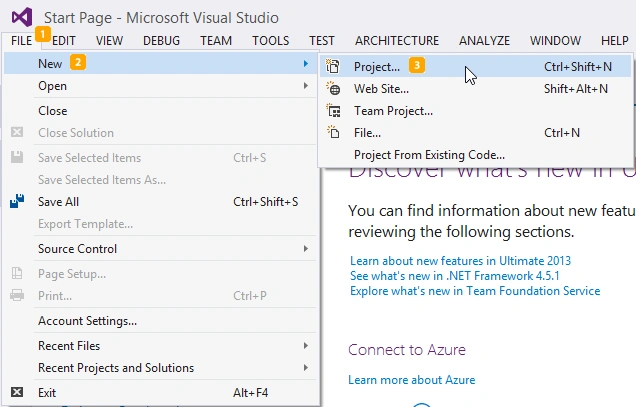

  • Select ‘File’ menu, expand ‘New’ and click on ‘Project…’

    File

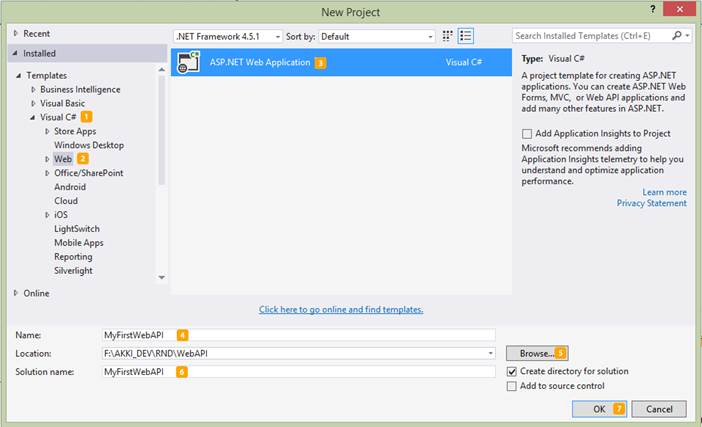

  • Expand ‘Visual C#’ and select ‘Web’ from the left panel.

  • Select ‘ASP.NET Web Application’.

  • Provide appropriate name of the application and select the location.

  • Click on ‘OK’ button.

    OK

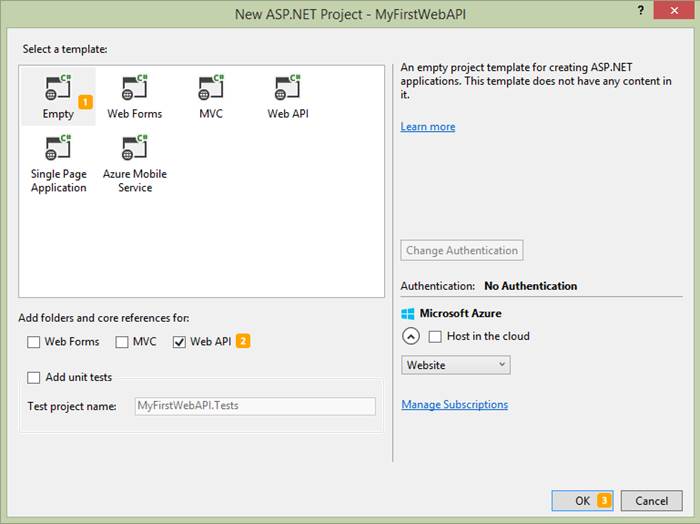

  • Select ‘Empty’ as a template and check ‘Web API’ check box.

  • Press ‘OK’ button and it will create an empty Web API project.

    Empty

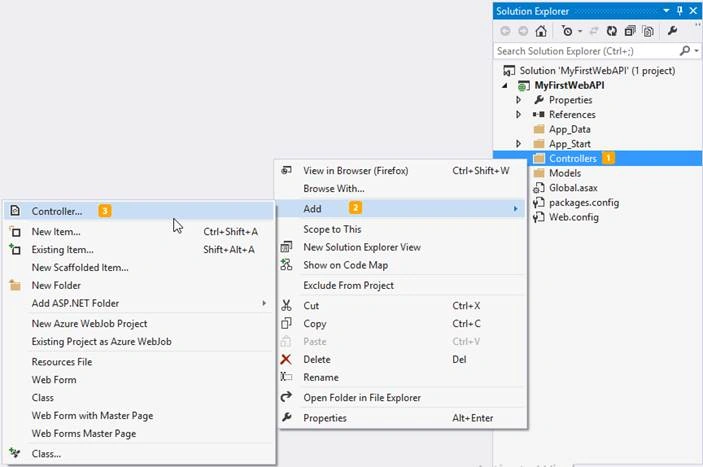

  • Right click on ‘Controllers’, expand ‘Add’ and click on ‘Controller…’

    Controllers

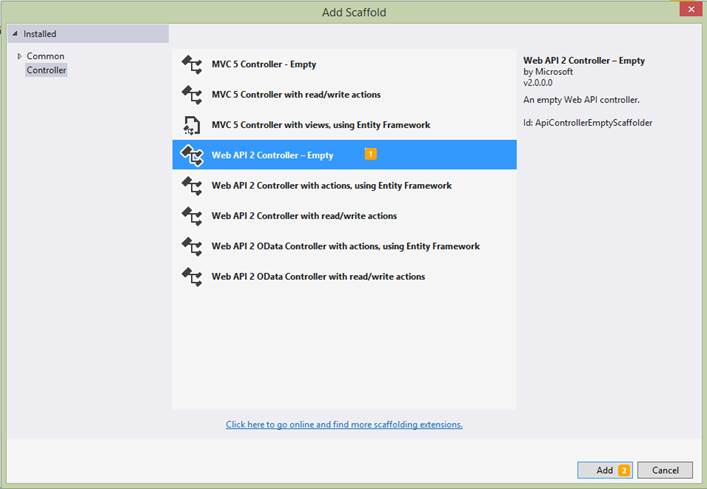

  • Select ‘Web API 2 Controller – Empty’ and press ‘Add’ button,

    Add

  • Provide appropriate name and press ‘Add’ button,

    Add

  • This controller is inherited from API controller with the namespace System.Web.Http. ApiController defines properties and methods for controller.

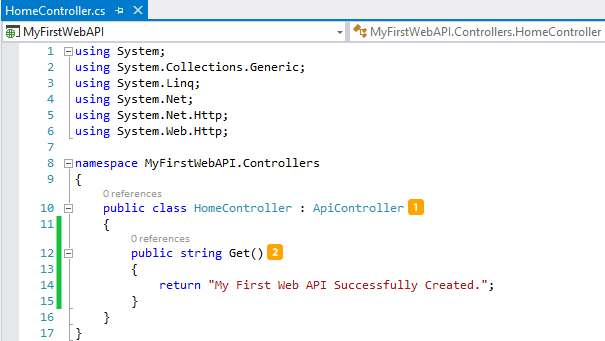

  • Create one Get method which will return static string.

    code

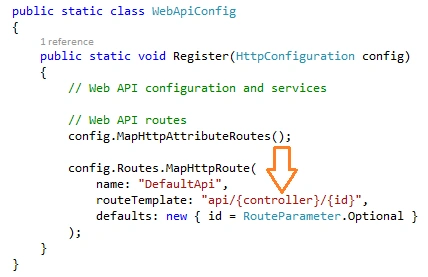

  • Now let’s go through the WebApiConfig file where routes are mapped. MapHttpRoute maps the specified route template and sets default route values.

    code

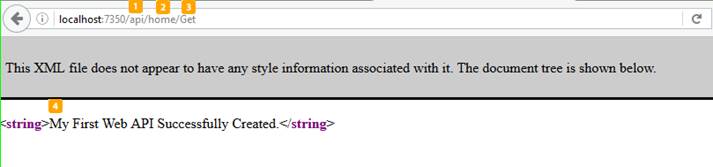

  • Run the application and as per route template add first API, then controller i.e. Home and Api method i.e. Get.

  • You will get the string in the browser, returned by the Get method.

    method

Here it seems that API in the route is mandatory but it is not like that. It is just a convention. You can remove ‘api’ from route template and still it works.

Conclusion

Here in this article we have seen only Get method, which means we have used only ‘GET’ http verb. In the next article we will see other HTTP methods like POST, PUT and DELETE.
