How To Add Excel Data Source In Microsoft PowerApps

Introduction



Before reading this article, please go through the article's link, given below.

• Quick Start on Microsoft PowerApps

In PowerApps, we can add a connection to an existing external data source. The external data source available in PowerApps connects to Excel, Facebook, Twitter, SharePoint, Salesforce, OneDrive, DropBox etc.



We can display and manage the data in the source from your app, as given below.

• Connect to OneDrive and manage the data in an Excel Workbook in your app.
• Connect to Twilio and send an SMS message from your app.
• Connect to SQL Azure and update a table from your app.
• Send a tweet.

Here, we are going to see how we connect Excel file in the Microsoft PowerApps.



Developer Requirements

1. Download PowerApps from Windows Store.
2. Microsoft Excel.

Follow the steps, given below to add Excel as an external data source in PowerApps.

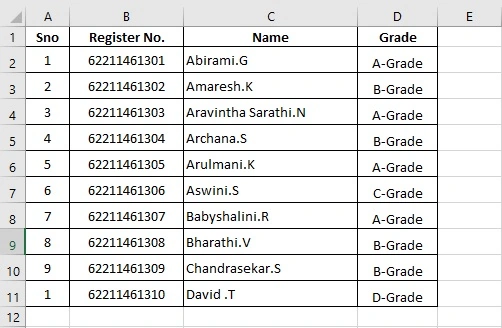

Step 1 Create an Excel file



Here, we first create an Excel file and save it as StudentDetails and enter the data.

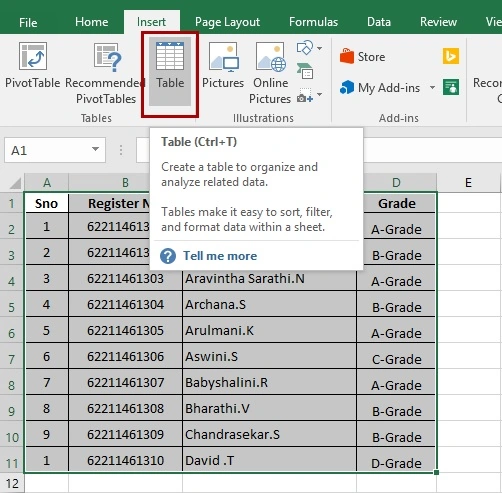

Step 2 We convert the data into Table



Now, we convert our data into Table format. Select the content and go to the Insert menu. Choose the Table.





Now, create Table Window, which is displayed. Now, we need to tap the OK button.

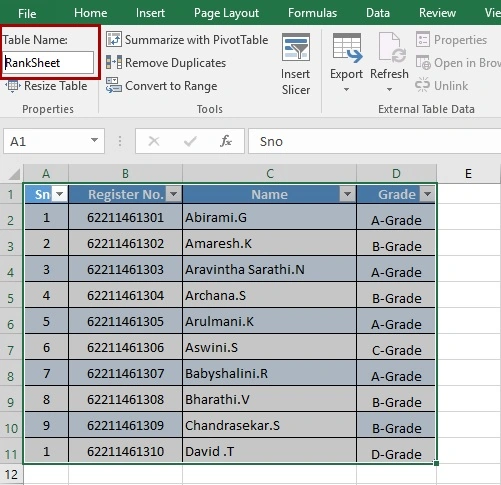

Now, our data is converted into the table and we need to change the name of the table as RankSheet. Save the Excel file.



Note



We link our PowerApp through this table name only.

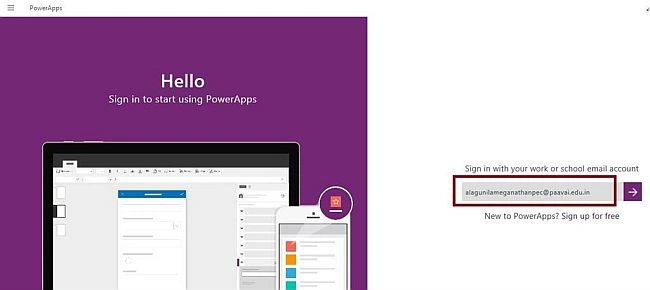

Step 3 Log in to the PowerApps



After downloading PowerApps from the Window store, we need Microsoft related organization’s Office 365 ID or (MSDN, Microsoft, Skype, Office 365, etc.) to login with it.





Step 4 Create a New App in PowerApp

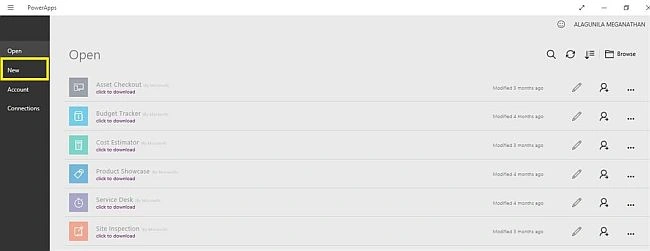

After login, we can see the Dashboard. Subsequently, we need to click on the New button.

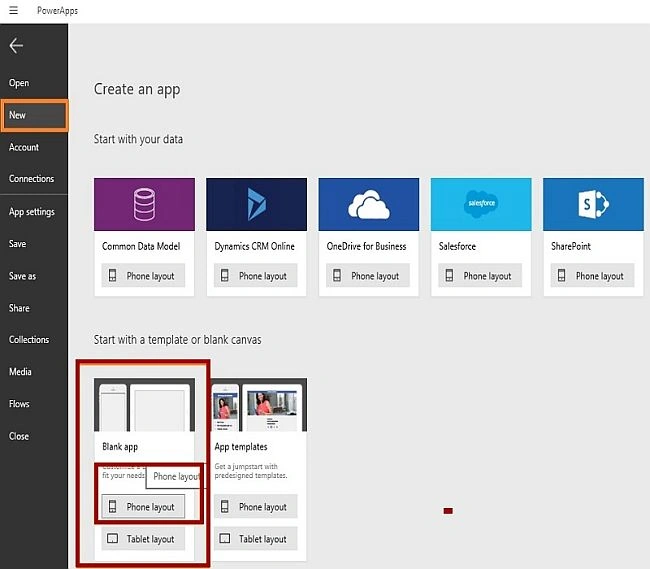

Step 5 Choose the blank App

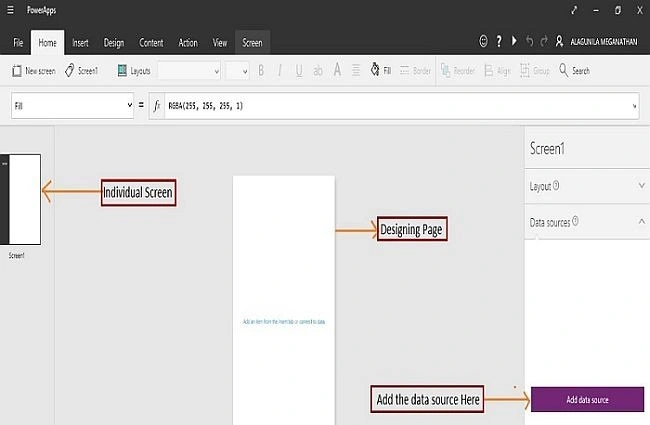

Step 6 Designing the App



Now, let's start to design the app. On the left side, we can see the individual screens to add our data. On the right side, we see the list of layouts.



On the top, we see the formula bar. See the Properties of the screen, which you will select.



On the right side, we see the Add data source to add the external data source.





Step 7



Click on the Add Data Source.





Step 8 Choose the Connection



Here, we have many connections to add the external data source. Static is required to add the external Excel file.

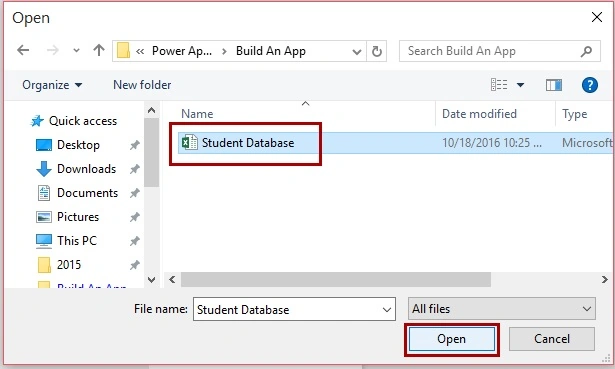

Step 9



Choose the Excel file.





Step 10 Adding the Table Name



Here, they list out the tables present in your table. We have to choose the table name (RankSheet), which was given in the Excel file and click the Connect button.





Now, the table is added into PowerApps.

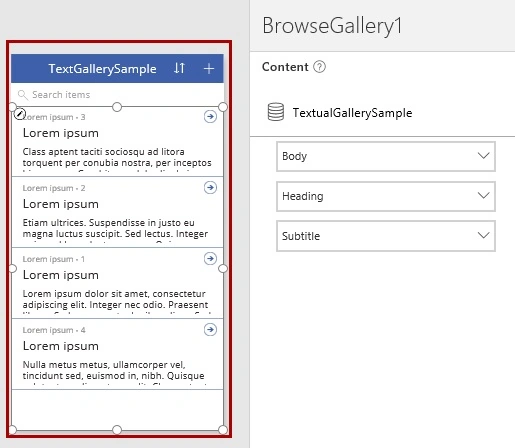

Step 11 Choose the Layout



Next, we have to add the layout to display the data from the table. Hence, choose the style, which you require.





Now, the style is applied.





Step 12 Configure Data Source to App



Now, we need to configure the data source to our PowerApps. Choose RankSheet from TextualGallerySample.

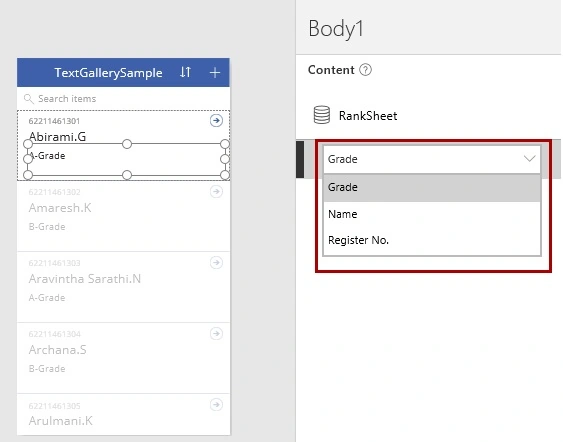

Choose the Columns to our TextBox.

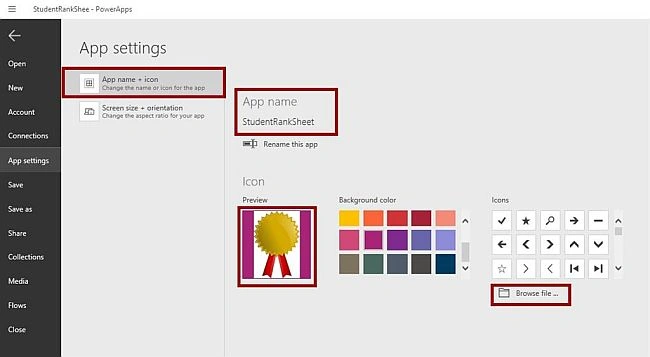

Step 13 Change the App Setting



Click on the File menu, where you need to see the app settings. Here, we change the app name, icon, and color of the app.

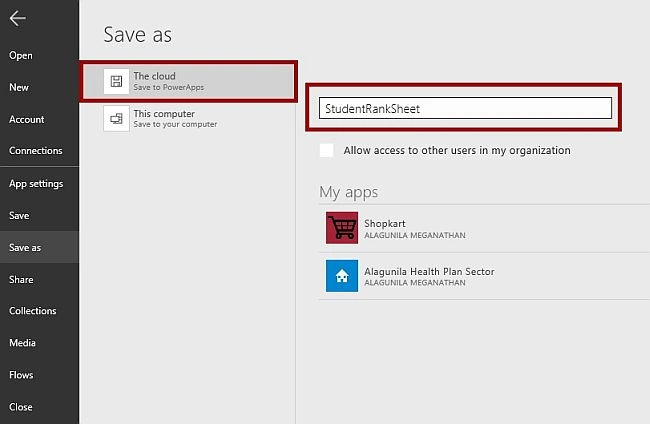

Step 14 Save the App



Now, we need to save it on Cloud or the local machine.

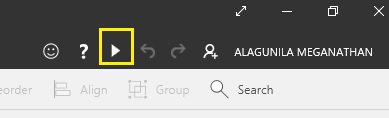

Step 15



Run the app.

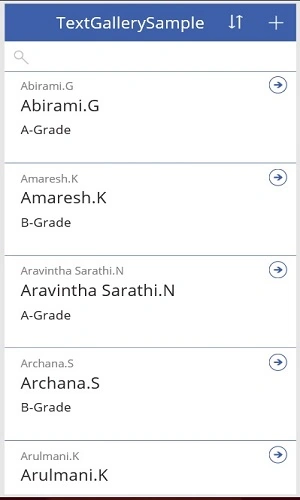

Output





Conclusion



I hope, you understood how to add an Excel data source in Microsoft PowerApps and how to run it.
