Understanding Raspberry Pi - GPIO

Introduction

In this article, we will discuss more about the GPIO pins, the function of each pin on the Pi board and GPIO numbering.

Getting Started

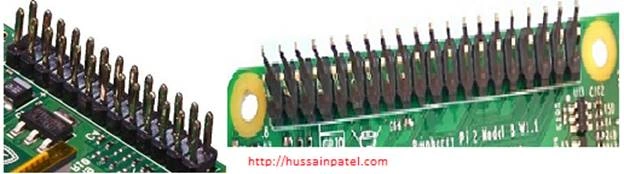

The main difference between a Raspberry Pi (tiny computer) and other computers is the GPIO (General Purpose Input Output) pins, as shown below.

Fig. 1

Desktop computers are UBIQUITIOUS i.e. they have a standard input and output (files, keyboard, mouse, touch, print, screen etc.) and they take information from the fixed input, process it, and give the results back to the standard output. This means a normal computer/machine does not have an interface to connect with the electronic devices like sensor and actuators. This is where Raspberry Pi (tiny computers) GPIO pins play an important role and make Raspberry Pi different from the other computers.

The Pi has GPIO pins that stick out from the top of the board. These pins act as an interface between Raspberry Pi and the physical world. These pins are used to communicate (both input / output) with other circuitry such as sensors, actuators, extension boards and custom circuits.

Understanding the Pins

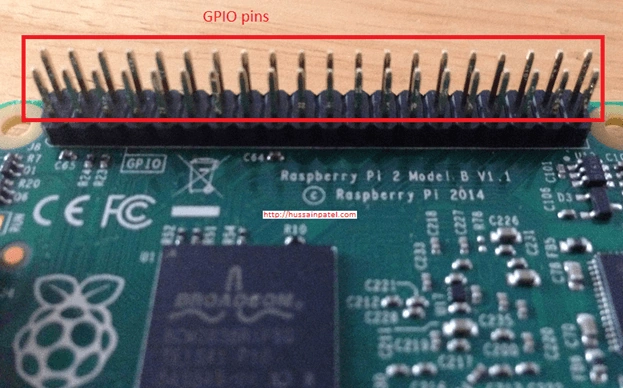

The GPIO pins, shown below vary, based on the Raspberry Pi model. The previous models have 26 pins and the latest models - Raspberry Pi 2 Model B and Raspberry Pi 3 Model B both have 40 Pins.


Fig. 2

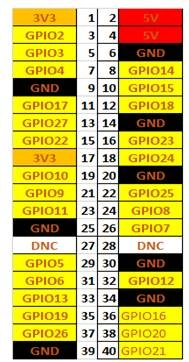

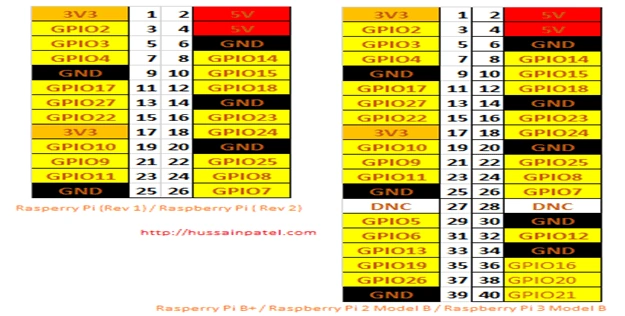

To maintain backward compatibility, the first 26 pins from the previous models still have the same functionality in the new Raspberry Pi models, as shown below.

Fig. 3

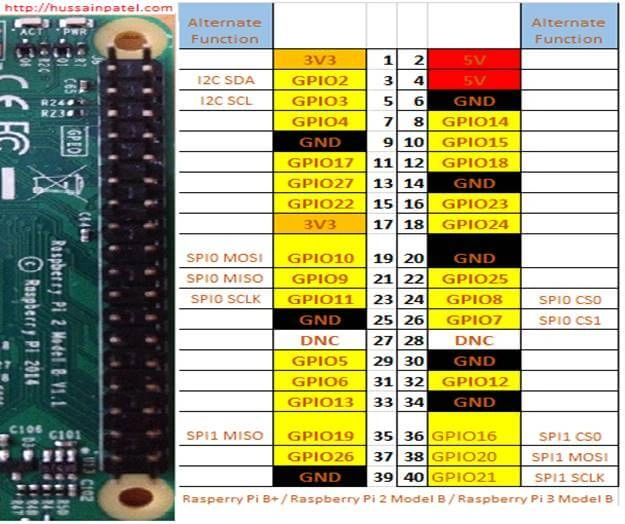

As shown below, each pin on Raspberry Pi has a function to do and also an alternate function is assigned. You can consider these pins like switches, which have a function. Alternate function can be turned on or off. Apart from the regular function/ standard I/O pins (GPIO), in alternate functions, these pins have GND (ground), SPI (Serial Peripheral Interface Bus), I2C (inter integrated circuits), power pins and UART (Universal asynchronous receiver /transmitter) pins.


Fig.4
GPIO numbering

As shown above, the GPIO pins diagram seems to be pretty complex and confusing and there is no easy way to remember each of the pins. You need to keep a printed reference sheet on top, while using them.

There is a solution to this problem and in the Raspberry Pi world, there are two different numbering schemes used when referencing Pins.
  1. Using the BCM
    Broadcom chip-specific pin number – example GPIO 10, GPIO23, GPIO24 etc.

  2. Physical numbering

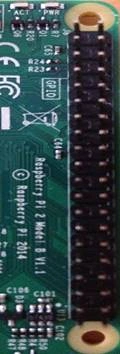

    In it, each number is based on the physical position of the pin. (Hold the Raspberry Pi up facing you; vertically with the pins on the right side then followed by counting from top left as pin 1 and next pin as 2 on the first row and the pin below 1 as 3 and below 2 as 4 and so on).


                               Fig, 5 Fig. 6

Note

You are free to use any of the above GPIO numbering systems, while invoking the GPIO pins in programs ( like python or C # ). Your code should reference one of the numbering systems which you are going to use. Example: In a Python program – the code looks, as shown below.



GPIO.BOARD is the physical numbering system and GPIO.BCM is the Broadcom numbering system. Don’t worry if you don’t understand the above code. We will learn all about in future articles.

Important Warning

You have to be careful when connecting devices and the GPIO pins directly with wires (called jumper cables) -- if these wires are connected to the wrong pins, it might damage the Pi board, so please read the instructions carefully before connecting wires directly to the pins.

I would highly recommend, using a Breadboard – where you can create the dummy circuits on the breadboard and then connect only to the required pins on the Pi. I would also recommend using a “breakout circuit” to connect the Raspberry Pi with breadboard. One end of the breakout board is connected to the Raspberry Pi and the other end into the breadboard.

References

https://developer.microsoft.com/en-us/windows/iot/docs/pinmappingsrpi
https://www.raspberrypi.org/documentation/usage/gpio/


In the next article, we will talk more about Breadboard and make our first circuit.
