Home » Silverlight » File Upload in Silverlight

File Upload in Silverlight

This article describes how to upload files on the Web in a Silverlight application.

Author Rank :
Page Views : 92994
Downloads : 2993
Rating :
 Rate it
Level : Beginner
   Print Read/Post comments Post a comment  Similar Articles
   Email to a friend  Bookmark  Author's other articles
Download Files:
FileUpload.zip


DevExpress Free UI Controls
Become a Sponsor
 Tag Cloud
 Latest Jobs
More ...
 Latest Interview Questions
More ...


In this article, I will discuss how you can create your own File Upload feature in a Silverlight application.

Step 1: First, create a Silverlight Web application in Visual Studio 2008. You will see your default Page.xaml.

Step 2: On Create Page.xaml, change your code by adding following Panel, Button, and TextBlock controls.

On buttin click event handler, I write code to call the OpenFileDialog that allows us to browse files and gives us the selected file name. Here is the code.

public void Button_Click(object sender, RoutedEventArgs e)
        {
            OpenFileDialog dlg = new OpenFileDialog();
            dlg.Multiselect = false;
            dlg.Filter = "All files (*.*)|*.*|PNG Images (*.png)|*.png";

            bool? retval = dlg.ShowDialog();

            if (retval != null && retval == true)
            {
                UploadFile(dlg.File.Name, dlg.File.OpenRead());
                StatusText.Text = dlg.File.Name;
            }
            else
            {
                StatusText.Text = "No file selected...";
            }
        }


As you can see from the above code, I call a method UploadFile by passing the selected file name from the OpenFileDialog.

The UploadFile method looks like following. In this code, I use a WebClient class and a PushData method.

private void UploadFile(string fileName, Stream data)
        {
            UriBuilder ub = new UriBuilder("http://localhost:3840/receiver.ashx");
            ub.Query = string.Format("filename={0}", fileName);

            WebClient c = new WebClient();
            c.OpenWriteCompleted += (sender, e) =>
            {
                PushData(data, e.Result);
                e.Result.Close();
                data.Close();
            };
            c.OpenWriteAsync(ub.Uri);
        }

        private void PushData(Stream input, Stream output)
        {
            byte[] buffer = new byte[4096];
            int bytesRead;

            while ((bytesRead = input.Read(buffer, 0, buffer.Length)) != 0)
            {
                output.Write(buffer, 0, bytesRead);
            }
        }

Step 3: Add a new Generic Handler receiver.ashx.

Now let's add a class. Right click on the project and Add a new item by selecting Generic Handler in the right side templates as shown below.



And add the following code on the coe behind:

<%@ WebHandler Language="C#" Class="receiver" %>

using System;
using System.Web;
using System.IO;

public class receiver : IHttpHandler {

       public void ProcessRequest (HttpContext context) {
        string filename = context.Request.QueryString["filename"].ToString();

        using (FileStream fs = File.Create(context.Server.MapPath("~/App_Data/" + filename)))
        {
            SaveFile(context.Request.InputStream, fs);
        }
    }

    private void SaveFile(Stream stream, FileStream fs)
    {
        byte[] buffer = new byte[4096];
        int bytesRead;
        while ((bytesRead = stream.Read(buffer, 0, buffer.Length)) != 0)
        {
            fs.Write(buffer, 0, bytesRead);
        }
    }

    public bool IsReusable {
        get {
            return false;
        }
    }
}


Step 4: Build and Run

That's all. You are done. Now just build and run your project.

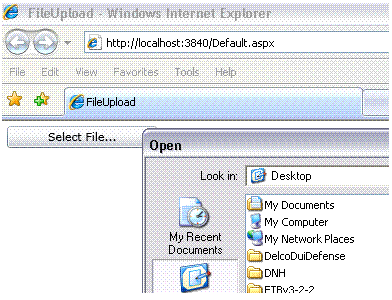

When you click the Select File button, you will see Browse files dialog that lets you browse the files.



Note: You need to make sure your folder on the Web has write permissions to upload files.
