In this article I tried to create a web page that is like a master page. There is no master page concept in Silverlight so here I tried to do similar like that.
First of all make a new Silverlight project and add some pages and put names of pages according to you.
MainPage.xaml
<UserControl x:Class="SLMasterPageSample.MainPage"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
xmlns:controls="clr-namespace:SLMasterPageSample"
mc:Ignorable="d">
<Grid x:Name="LayoutRoot" Background="White" Height="500" Width="700" >
<Grid.RowDefinitions>
<RowDefinition Height="110" />
<RowDefinition/>
<RowDefinition Height="30" />
</Grid.RowDefinitions>
<StackPanel Grid.Row="0" Background="Blue">
<Grid x:Name="sdf" Background="White">
<Grid.RowDefinitions>
<RowDefinition Height="80" />
<RowDefinition Height="30" />
</Grid.RowDefinitions>
<StackPanel Grid.Row="0">
<StackPanel.Background>
<LinearGradientBrush EndPoint="0.5,1" StartPoint="0.5,0">
<GradientStop Color="Black" Offset="0"/>
<GradientStop Color="#FF688CC6" Offset="1"/>
</LinearGradientBrush>
</StackPanel.Background>
<Image Source="Assets/CSSiteLogo.JPG" Height="70" Margin="4" VerticalAlignment="Center" HorizontalAlignment="Left">
<Image.OpacityMask>
<LinearGradientBrush EndPoint="0.5,1" StartPoint="0.5,0">
<GradientStop Color="Black" Offset="0"/>
<GradientStop Color="#FF3A729D" Offset="1"/>
</LinearGradientBrush>
</Image.OpacityMask>
</Image>
</StackPanel>
<StackPanel Grid.Row="1">
<StackPanel.Background>
<LinearGradientBrush EndPoint="0.5,1" StartPoint="0.5,0">
<GradientStop Color="Black" Offset="0"/>
<GradientStop Color="#FF7090EF" Offset="1"/>
</LinearGradientBrush>
</StackPanel.Background>
<Grid>
<Grid.RowDefinitions>
<RowDefinition></RowDefinition>
</Grid.RowDefinitions>
<Grid.ColumnDefinitions>
<ColumnDefinition Width="50"></ColumnDefinition>
<ColumnDefinition Width="50"></ColumnDefinition>
<ColumnDefinition Width="50"></ColumnDefinition>
<ColumnDefinition Width="69"></ColumnDefinition>
<ColumnDefinition Width="54"></ColumnDefinition>
<ColumnDefinition Width="127*" />
</Grid.ColumnDefinitions>
<HyperlinkButton x:Name="homehlb" Grid.Row="0" Grid.Column="0" Content="Home" Margin="5,10,0,10" FontSize="13.333" FontFamily="Arial Narrow" FontWeight="Bold" Click="homehlb_Click" /> <HyperlinkButton x:Name="blogshlb" Grid.Row="0" Grid.Column="1" Content="Blogs" Margin="5,10,0,10" FontSize="13.333" FontFamily="Arial Narrow" FontWeight="Bold" Click="blogshlb_Click" />
<HyperlinkButton x:Name="photoshlb" Grid.Row="0" Grid.Column="2" Content="Photos" Margin="5,10,0,10" FontSize="13.333"
FontFamily="Arial Narrow" FontWeight="Bold" Click="photoshlb_Click" />
<HyperlinkButton x:Name="interviewshlb" Grid.Row="0" Grid.Column="3" Content="Interviews" Margin="5,10,0,10"
FontSize="13.333" FontFamily="Arial Narrow" FontWeight="Bold" Click="interviewshlb_Click" />
<HyperlinkButton x:Name="forumshlb" Grid.Column="4" Content="Forums" Margin="5,10,10,10" FontSize="13.333"
FontFamily="Arial Narrow" FontWeight="Bold" Click="forumshlb_Click" />
<HyperlinkButton x:Name="articleshlb" Grid.Column="5" Content="Articles" Margin="5,10,9,10" FontSize="13.333"
FontFamily="Arial Narrow" FontWeight="Bold" Click="articleshlb_Click" />
</Grid>
</StackPanel>
</Grid>
</StackPanel>
<Grid Grid.Row="1" >
<Grid.Background>
<LinearGradientBrush EndPoint="0.5,1" StartPoint="0.5,0">
<GradientStop Color="Black" Offset="0"/>
<GradientStop Color="#FFDAB2B2" Offset="1"/>
</LinearGradientBrush>
</Grid.Background>
<Grid.ColumnDefinitions>
<ColumnDefinition Width="150" />
<ColumnDefinition />
</Grid.ColumnDefinitions>
<StackPanel Grid.Column="0">
<StackPanel.Background>
<LinearGradientBrush EndPoint="0.5,1" StartPoint="0.5,0">
<GradientStop Color="Black" Offset="0"/>
<GradientStop Color="#FFA3ABEB" Offset="1"/>
</LinearGradientBrush>
</StackPanel.Background>
<TextBlock Text="Left Bar" Margin="0,5, 0, 5" Foreground="White" />
</StackPanel>
<Grid x:Name="PageContainer" Grid.Column="1">
<Image Grid.Column="1" Margin="4,0,0,-20" Source="Assets/home.JPG" Stretch="Fill"/>
</Grid>
</Grid>
<Grid Grid.Row="2" >
<Grid.Background>
<LinearGradientBrush EndPoint="0.5,1" StartPoint="0.5,0">
<GradientStop Color="Black" Offset="0"/>
<GradientStop Color="#FFFBF5F5" Offset="1"/>
</LinearGradientBrush>
</Grid.Background>
<TextBlock x:Name="footer" Text="This is Footer" VerticalAlignment="Center" />
</Grid>
</Grid>
</UserControl>
MainPage.xaml.cs
public Home defaultPage { get; set; }
public Photos photos { get; set; }
public Blogs blogs { get; set; }
public Interviews interviews { get; set; }
public Forums forums { get; set; }
public Articles articles { get; set; }
public MainPage()
{
InitializeComponent();
defaultPage = new Home();
photos = new Photos();
blogs = new Blogs();
interviews = new Interviews();
forums = new Forums();
articles = new Articles();
}
private void homehlb_Click(object sender, RoutedEventArgs e)
{
PageContainer.Children.Clear();
PageContainer.Children.Add(defaultPage);
}
private void blogshlb_Click(object sender, RoutedEventArgs e)
{
PageContainer.Children.Clear();
PageContainer.Children.Add(blogs);
}
private void photoshlb_Click(object sender, RoutedEventArgs e)
{
PageContainer.Children.Clear();
PageContainer.Children.Add(photos);
}
private void interviewshlb_Click(object sender, RoutedEventArgs e)
{
PageContainer.Children.Clear();
PageContainer.Children.Add(interviews);
}
private void forumshlb_Click(object sender, RoutedEventArgs e)
{
PageContainer.Children.Clear();
PageContainer.Children.Add(forums);
}
private void articleshlb_Click(object sender, RoutedEventArgs e)
{
PageContainer.Children.Clear();
PageContainer.Children.Add(articles);
}

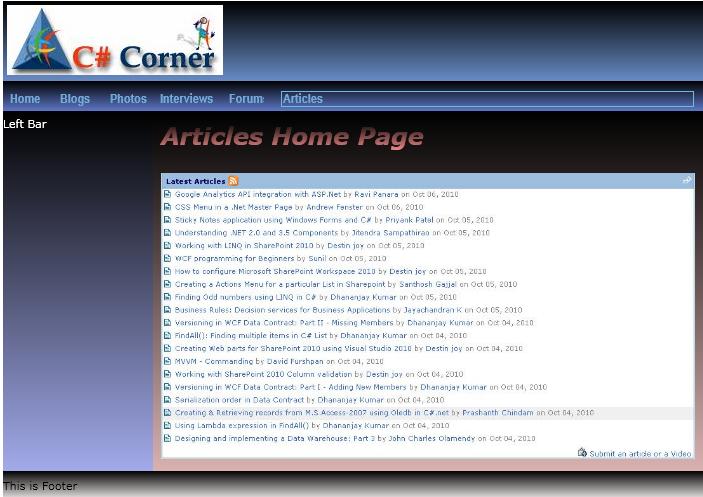

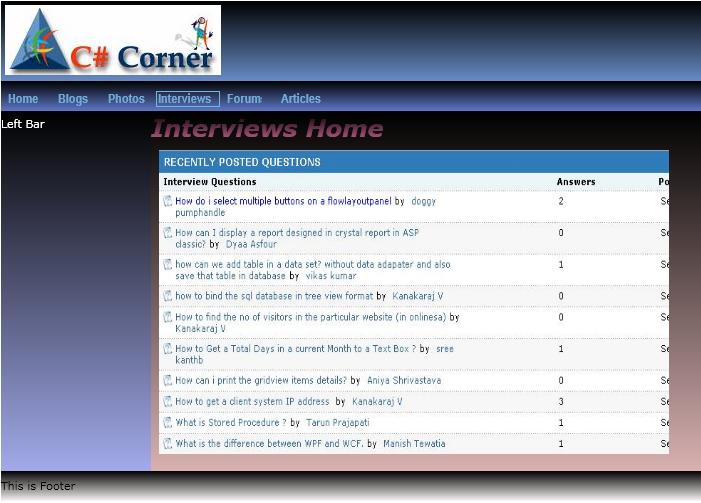

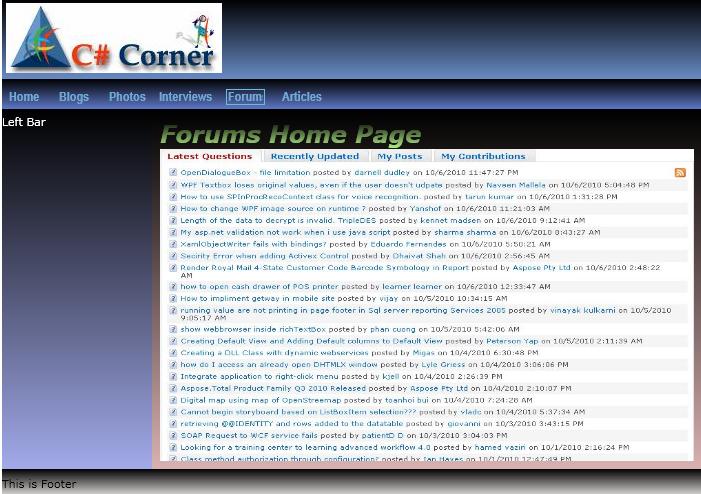

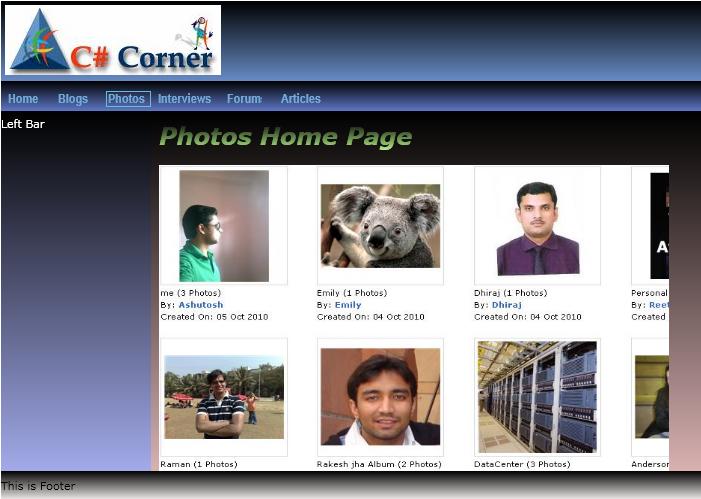

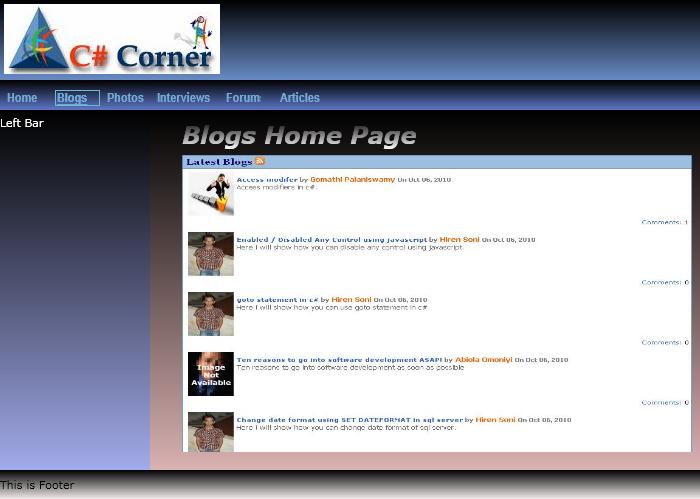

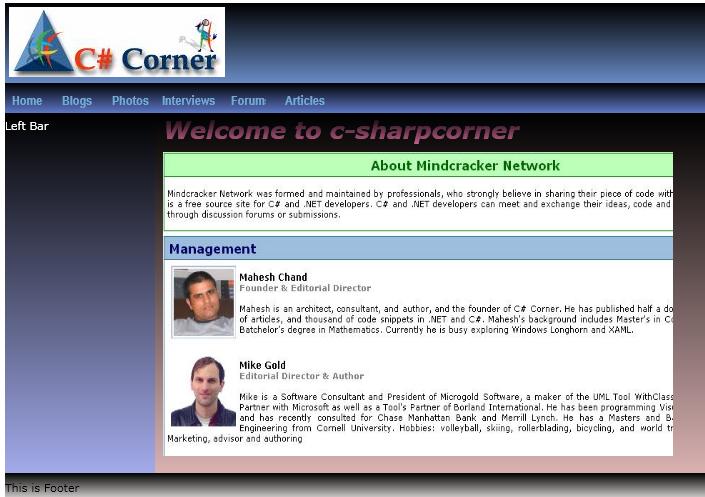

And now time to run and see the result. Click on header links.
Image1.
Image2.
Image3.
Image4.
Image6.
Note - I am not sure it is right concept or not if anybody has better solution of this then please add your code on c-sharp corner.
