Working with DropDownList and ListBox Controls in ASP.NET

Posted by Sushila Patel Articles | WebForms Controls July 29, 2003
In this article we'll see how to use DropDownList and ListBox Web controls to display data in various formats.
  • 0
  • 0
  • 592436

Introduction:

This article is based on queries in the newsgroup:

Query 1 :"In my application i am using dropdownlist to display all categories from a table. When the user clicks this control I display all records in that category. Category table also contains column called color.

I wanted display some categories in dropdown list different color and others in different color using ASP.NET."-Anonymous



So data in the database along with the desired output is as given below
















Note: The dropDownList has a bug which prevent us from assigning the style property to each item in the DropDownList.

This bug confirmed by Microsoft in Microsoft Knowledge Base Article - 309338

So as stated by the MS Article the alternative method to achieve this is by using the tag given below:

<SELECT id="DropDownList1" name="DropDownList1" runat="server"></SELECT>

Now our code.As far as coding the steps we would follow are as below:

  • Fill the DataSet
  • Populate the DropDownList with the DataSet
  • Navigate through the DropDownList to give appropriate color to each item in the dropdown.

C#

SqlConnection mycn;
SqlDataAdapter myda;
DataSet ds;
String strConn;
private void Page_Load(object sender, System.EventArgs e)
{
if (!IsPostBack)
{
strConn="Data Source=localhost;uid=sa;pwd=;Initial Catalog=northwind";
mycn =
new SqlConnection(strConn);
myda =
new SqlDataAdapter ("Select * FROM CategoryTable ", mycn);
ds =
new DataSet();
myda.Fill (ds,"Table");
DropDownList1.DataSource =ds.Tables [0] ;
DropDownList1.DataTextField =ds.Tables[0].Columns["CategoryName"].ColumnName.ToString();
DropDownList1.DataValueField =ds.Tables[0].Columns["CategoryId"].ColumnName.ToString();
DropDownList1.DataBind () ;
for (int i =0;i < DropDownList1.Items.Count ;i++ )
{
DropDownList1.Items[i].Attributes.Add("style", "color:" + ds.Tables[0].Rows[i]"CategoryColor"].ToString () );
}
}
}

VB.NET

Dim
myconnection As SqlConnection
Dim myda As SqlDataAdapter
Dim ds As DataSet
Private Sub Page_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load
myconnection =
New SqlConnection("Server=localhost;uid=sa;password=;database=northwind;")
myda =
New SqlDataAdapter("Select * from CategoryTable ", myconnection)
ds =
New DataSet
myda.Fill(ds, "AllTables")
DropDownList1.DataSource = ds
DropDownList1.DataSource = ds.Tables(0)
DropDownList1.DataTextField = ds.Tables(0).Columns("CategoryName").ColumnName.ToString()
DropDownList1.DataValueField = ds.Tables(0).Columns("CategoryId").ColumnName.ToString()
DropDownList1.DataBind()
Dim i As Integer
For i = 0 To DropDownList1.Items.Count - 1
DropDownList1.Items(i).Attributes.Add("style", "color:" + ds.Tables(0).Rows(i)"CategoryColor").ToString())
Next
End
Sub

Query 2 :"Is it possible for a listbox to show Products having Price above a specific value in one color and the ones below that value in different color"-Anonymous

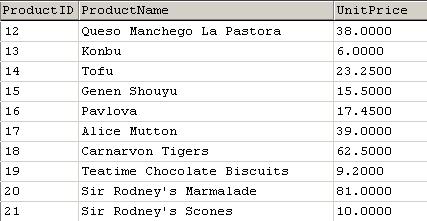

To solve this the concept remains same only thing we need to do is use the ListBox and navigate through each and every record in dataset to have item with appropriate color. So lets consider the Products Table in Northwind Database and expect the output as below:



Tag that we use:

<SELECT id="listBox1" size="10" runat="server" NAME="listBox1"></SELECT>

Coding Step:

  • Populate the dataset
  • Navigate through the Rows checking for the value in the DataBase and the specific value (in our case its set to 25)
  • Depending on the value assign the style property for each item in the ListBox

Code given below:

C#

SqlConnection mycn;
SqlDataAdapter myda;
DataSet ds;
String strConn;
private void Page_Load(object sender, System.EventArgs e)
{
if (!IsPostBack)
{
strConn="Data Source=localhost;uid=sa;pwd=;Initial Catalog=northwind";
mycn =
new SqlConnection(strConn);
myda =
new SqlDataAdapter ("Select * FROM Products ", mycn);
ds =
new DataSet();
myda.Fill (ds,"Table");
for(int i = 0 ;i < ds.Tables[0].Rows.Count - 1;i++)
{
listBox1.Items.Add (
new ListItem(ds.Tables[0].Rows[i]["UnitPrice"].ToString(),ds.Tables[0].Rows[i]["ProductID"].ToString()));
if(Convert.ToDouble(ds.Tables[0].Rows[i]["UnitPrice"].ToString()) <= 25 )
{
listBox1.Items[i].Attributes.Add("style", "color:red");
}
else
{
listBox1.Items[i].Attributes.Add("style", "color:green");
}
}
}
}

VB.NET

Dim
myconnection As SqlConnection
Dim myda As SqlDataAdapter
Dim ds As DataSet
Private Sub Page_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load
myconnection =
New SqlConnection("Server=localhost;uid=sa;password=;database=northwind;")
myda =
New SqlDataAdapter("Select * from Products ", myconnection)
ds =
New DataSet
myda.Fill(ds, "AllTables")
Dim i As Integer
For i = 0 To ds.Tables(0).Rows.Count - 1
listBox1.Items.Add(
New ListItem(ds.Tables(0).Rows(i)("UnitPrice"), ds.Tables(0).Rows(i)("ProductID")))
If ds.Tables(0).Rows(i)("UnitPrice") <= 25 Then
listBox1.Items(i).Attributes.Add("style", "color:red")
Else
listBox1.Items(i).Attributes.Add("style", "color:green")
End If
Next
End
Sub

Sample Code

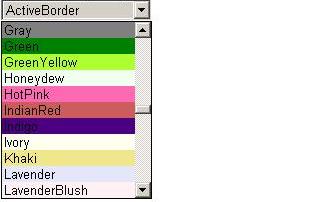

As we have done the coding for assigning style property to each item we might as well complete the code to develop a Color Picker in ASP.NET as below:

So the control we use is

<SELECT id="DropDownList1" name="DropDownList1" runat="server"></SELECT>

And code for this is as below:

Method 1:

We'll use the namespace System.Reflection to get the FieldInfo (i.e. Colors)

C#
using System.Reflection;
VB.NET
Imports System.Reflection

C#
private void Page_Load(object sender, System.EventArgs e)
{
if (!IsPostBack)
{
foreach(FieldInfo col in typeof(KnownColor).GetFields() )
{
if (col.FieldType == typeof(KnownColor) )
{
DropDownList1.Items.Add(
new ListItem(col.Name ,col.Name));
}
}
}
for (int i= 0 ;i < DropDownList1.Items.Count;i++)
{
DropDownList1.Items[i].Attributes.Add("style", "background-color:" + DropDownList1.Items[i].Text);
}
}

VB.NET

Private
Sub Page_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load
If Not Page.IsPostBack Then
Dim col As FieldInfo
For Each col In GetType(KnownColor).GetFields
If col.FieldType Is GetType(Drawing.KnownColor) Then
DropDownList1.Items.Add(New ListItem(col.Name, col.Name))
End If
Next
End If
Dim i As Integer
For i = 0 To DropDownList1.Items.Count - 1
DropDownList1.Items(i).Attributes.Add("style", "background-color:" + DropDownList1.Items(i).Text)
Next
End
Sub

Method 2:

The other way this can be done is by using Namespace System.ComponentModel and TypeDescripter Class.

C#
using System.ComponentModel;
VB.NET
Imports System.ComponentModel

C#
private void Page_Load(object sender, System.EventArgs e)
{
if (!IsPostBack)
{
foreach(Color c in TypeDescriptor.GetConverter(typeof(Color)).GetStandardValues())
{
ListItem li =
new ListItem();
li.Text = TypeDescriptor.GetConverter(c).ConvertToString(c);
this.DropDownList1.Items.Add(li);
}
}
for (int i= 0 ;i < DropDownList1.Items.Count;i++)
{
DropDownList1.Items[i].Attributes.Add("style", "background-color:" + DropDownList1.Items[i].Text);
}
}

VB.NET

Private
Sub Page_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load
If Not Page.IsPostBack Then
Dim c As Color
For Each c In TypeDescriptor.GetConverter(GetType(Color)).GetStandardValues()
Dim
li As New ListItem
li.Text = TypeDescriptor.GetConverter(c).ConvertToString(c)

Me
.DropDownList1.Items.Add(li)
Next c
End If
Dim i As Integer
For i = 0 To DropDownList1.Items.Count - 1
DropDownList1.Items(i).Attributes.Add("style", "background-color:" + DropDownList1.Items(i).Text)
Next
End
Sub
