XAML and C# within a Silverlight 2 context - Binding process: Part II

Posted by Bechir Bejaoui Articles | Silverlight with C# December 22, 2008
In this article, I will show different techniques to interact with a given XAML UI with a C# code behind object.
  • 0
  • 0
  • 7883
Download Files:


As a response for the first question posed as a part of the first part of the article How does an XAML interface interact with C# code behind within a Silverlight 2 context: Part I. I will provide real use case scenarios of binding between source object written in C# and XAML UI

Scenario 1: Create a binding within XAML code zone

It is quite simple to bind a C# code behind object to an XAML UI, but some rules should be respected. Let's consider this XAML UI:

<UserControl xmlns:data="clr-namespace:System.Windows.Controls;assembly=System.Windows.Controls.Data" x:Class="Silverlight.Page" xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" Width="300" Height="300">
    <Grid x:Name="LayoutRoot" Background="Azure" >
        <Grid.ColumnDefinitions>
            <ColumnDefinition Width="80"/>
            <ColumnDefinition Width="80"/>
        </Grid.ColumnDefinitions>
        <Grid.RowDefinitions>
            <RowDefinition Height="20"/>
            <RowDefinition Height="20"/>
            <RowDefinition Height="20"/>
        </Grid.RowDefinitions>
        <TextBlock Grid.Column="0" Grid.Row="0"> First name</TextBlock>
        <TextBlock Grid.Column="1" Grid.Row="0"> Last name</TextBlock>
        <TextBlock x:Name="txtFirstName" Grid.Column="0" Grid.Row="1" Text= "Bejaoui" />
        <TextBlock x:Name="txtLastName" Grid.Column="1" Grid.Row="1" Text="Bechir" />
    </Grid>
</
UserControl>

The result of this XAML is



Figure 1

Ok, what if I want to provide the data "Bejaoui" and "Bechir" from a given C# object, what's should I do?

Well, first let's define a Person object in the C# code behind

public class Person
{
   public Person()
 {
 }
public
Person(string FirstName, string LastName)
   {
     this
.FirstName = FirstName;
     this.LastName = LastName;
   }
     public
string FirstName
     {
        get
; set;
     }
    public
string LastName
     {
        get
; set;
     }
     }

The class must be public and must have at least a parameter less constructor otherwise a run time error will be raised.

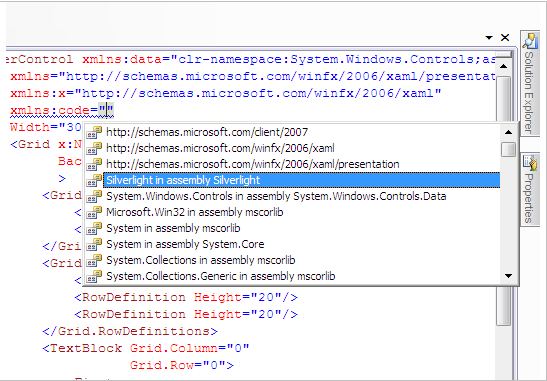

Then we switch to the XAML code editor and we add a reference to our namespace, In this case, my customized namespace that holds the Person object is called Silverlight.



Figure 2

<UserControl xmlns:data="clr-namespace:System.Windows.Controls;assembly=System.Windows.Controls.Data"  x:Class="Silverlight.Page"    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"     xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"     xmlns:code="clr-namespace:Silverlight"    Width="300" Height="300">

The word code is chosen arbitrary, you can use whatever you want as keyword, but once it is set it will be used to reference your namespace until the end of the project. Of Corse you can change it, but you have the obligation to change all the old keywords by the new ones throughout the entire project.

The next step is to create the resources for the both TextBlocks. We add a new tag for that purpose

<Grid.Resources></Grid.Resources>

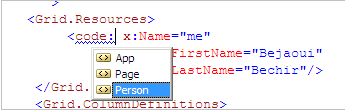

Those above tags should be nested within the Main container which is a Grid control in our case. Now, we can add a code as it is recognized now by the environment



Figure 3

Say that I want to create a person, first I have to give it an identifier through x:Name attribute, else a runtime error will be raised later when running the application.

<Grid.Resources>
        <code:Person x:Name="me" FirstName="Bejaoui" LastName="Bechir"/>
    </Grid.Resources>

At the other hand, the Text attribute of the both TextBlocks should be set as follow:

     <TextBlock x:Name="txtFirstName" Grid.Column="0" Grid.Row="1" Text= "{Binding FirstName,Source={StaticResource me}}" />
        <TextBlock x:Name="txtLastName" Grid.Column="1" Grid.Row="1" Text="{Binding LastName,Source={StaticResource me}}" />

As you can remark, the Binding attribute targets the object property and the StaticResource should refer to the given Person instance and therefore x:Name of the person instance should be set to a value that will be used as a reference.

This is the resulting XAML code:

<UserControl xmlns:data="clr-namespace:System.Windows.Controls;assembly=System.Windows.Controls.Data" x:Class="Silverlight.Page" xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" xmlns:code="clr-namespace:Silverlight" Width="300" Height="300">
    <Grid x:Name="LayoutRoot" Background="Azure" >
        <Grid.Resources>
            <code:Person x:Name="me" FirstName="Bejaoui" LastName="Bechir"/>
        </Grid.Resources>
        <Grid.ColumnDefinitions>
            <ColumnDefinition Width="80"/>
            <ColumnDefinition Width="80"/>
        </Grid.ColumnDefinitions>
        <Grid.RowDefinitions>
            <RowDefinition Height="20"/>
            <RowDefinition Height="20"/>
            <RowDefinition Height="20"/>
        </Grid.RowDefinitions>
        <TextBlock Grid.Column="0" Grid.Row="0"> First name</TextBlock>
        <TextBlock Grid.Column="1" Grid.Row="0"> Last name</TextBlock>
        <TextBlock x:Name="txtFirstName" Grid.Column="0" Grid.Row="1" Text= "{Binding FirstName,Source={StaticResource me}}" />
        <TextBlock x:Name="txtLastName" Grid.Column="1" Grid.Row="1" Text="{Binding LastName,Source={StaticResource me}}" />
    </Grid>
</
UserControl>

The result will be



Figure 4

Suppose now that I want to add a new member to the class Person, should this be reflected at the XAML level?

The response is simply yes. Say that the Person class will be modified as follow

public class Person
{
        public Person()
 {
 }
        public Person(string FirstName, string LastName, string PseudoName)
        {
            this.FirstName = FirstName;
            this.LastName = LastName;
            this.PseudoName = PseudoName;
         }
             public string FirstName
              {
                 get; set;
              }


If we move to the XAML side and try to verify that



Figure 5

Well, the rest is to configure the XAML UI so that it provides a place to the new coming value

<UserControl xmlns:data="clr-namespace:System.Windows.Controls;assembly=System.Windows.Controls.Data" x:Class="Silverlight.Page" xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" xmlns:code="clr-namespace:Silverlight" Width="300" Height="300">
    <Grid x:Name="LayoutRoot" Background="Azure" >
        <Grid.Resources>
            <code:Person x:Name="me" FirstName="Bejaoui" LastName="Bechir" PseudoName="Yougethen"/>
        </Grid.Resources>
        <Grid.ColumnDefinitions>
            <ColumnDefinition Width="80"/>
            <ColumnDefinition Width="80"/>
            <ColumnDefinition Width="80"/>
        </Grid.ColumnDefinitions>
        <Grid.RowDefinitions>
            <RowDefinition Height="20"/>
            <RowDefinition Height="20"/>
            <RowDefinition Height="20"/>
        </Grid.RowDefinitions>
        <TextBlock Grid.Column="0" Grid.Row="0"> First name</TextBlock>
        <TextBlock Grid.Column="1" Grid.Row="0"> Last name</TextBlock>
        <TextBlock Grid.Column="2" Grid.Row="0"> Pseudo name</TextBlock>
        <TextBlock x:Name="txtFirstName" Grid.Column="0" Grid.Row="1" Text= "{Binding FirstName,Source={StaticResource me}}" />
        <TextBlock x:Name="txtLastName" Grid.Column="1" Grid.Row="1" Text="{Binding LastName,Source={StaticResource me}}" />
        <TextBlock x:Name="txtPseudoName" Grid.Column="2" Grid.Row="1" Text="{Binding PseudoName,Source={StaticResource me}}" />
    </Grid>
</
UserControl>

Then the result will be:



Figure 6

Finally, what if I want to get an instance of that Person "me" as it is defined within the XAML side? Well, it is also a kid joke. You simply get the person instance by writing this simple C# line code,

Silverlight.Person Ich = LayoutRoot.Resources["me"] as Silverlight.Person;

Of Corse, the "LayoutRoot" is supposed to be the key name of the main container which is the grid control

<Grid x:Name="LayoutRoot"
Background="Azure

The C# instance has to have a different name than the used key within the XAML side, so "Ich" is different to "me", otherwise and error will be raised later.

Finally, if you have an XAML defined control and you want to handle it from within C# code then it is easier that a kid joke. Suppose that you have a textbox named "txtFirstName" within your XAML UI and you want to get an instance of it then you simply define a TextBox as follow:

TextBox instance = LayoutRoot.FindName("txtFirstName") as TextBox;

In the next article, we will show more techniques of binding process, so don't miss the next article how does an XAML interface interact with C# code behind within a Silverlight 2 context? -Binding Process-Part III, that's it.

Good Dotneting!!!
