How To Login With Encrypted Password In ASP.NET

In this blog, I will demonstrate how to create a login form with an encrypted password using ASP.NET step by step. I will decrypt the password from the database and login to the dashboard. I will implement sign out functionality and also prevent browser forward and backward using JavaScript.

Introduction

In this blog, I will demonstrate how to create a login form with an encrypted password using ASP.NET step by step. I will decrypt the password from the database and login to the dashboard. Also, I will implement the sign out functionality using JavaScript.



Step 1

Open SQL Server 2014 and create database table UserRegistration.
  1. CREATE TABLE [dbo].[UserRegistration](
  2.     [ID] [int] IDENTITY(1,1) NOT NULL,
  3.     [Name] [nvarchar](50) NULL,
  4.     [Email] [nvarchar](50) NULL,
  5.     [PhoneNumber] [nvarchar](50) NULL,
  6.     [Password] [nvarchar](50) NULL,
  7.     [Created] [datetime] NULL,
  8.  CONSTRAINT [PK_UserRegistration] PRIMARY KEY CLUSTERED
  9. (
  10.     [ID] ASC
  11. )WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY]
  12. ) ON [PRIMARY]
  13.
  14. GO
  1. CREATE procedure [dbo].[spRegister]
  2. (
  3. @Name nvarchar(50),
  4. @Email nvarchar(50),
  5. @PhoneNumber nvarchar(50),
  6. @Password nvarchar(50),
  7. @Created datetime
  8. )
  9. as
  10. begin
  11. insert into [dbo].[UserRegistration](Name,Email,PhoneNumber,Password,Created)
  12. values(@Name,@Email,@PhoneNumber,@Password,GETDATE())
  13. end
  1. Create procedure [dbo].[spLogin]
  2. (
  3. @Email nvarchar(50),
  4. @Password nvarchar(50)
  5. )
  6. as
  7. begin
  8. Select COUNT(*) from UserRegistration where Email=@Email and Password=@Password
  9. end
How To Login With Encrypted Password In ASP.NET

Step 2

Open Visual Studio 2015, create an empty web application project and give it a meaningful name. Right-click or double-click on web config file and database connection in it.
  1. <connectionStrings>
  2.   <add name="DBCS" connectionString="data source=DESKTOP-M021QJH\SQLEXPRESS; database=SampleDB; integrated security=true;"/>
  3. </connectionStrings>

Add the below line of code if you get a validation error.

  1. <appSettings>
  2.     <add key="ValidationSettings:UnobtrusiveValidationMode" value="None" />
  3. </appSettings>

Step 3

Right-click on the project, select Add, choose web form, and name it LoginForm.

Add the script and bootstrap 4 style plugin files in the header section of the login page.

  1. link rel="stylesheet" href="https://cdnjs.cloudflare.com/ajax/libs/font-awesome/4.7.0/css/font-awesome.min.css">
  2.     <link href="Content/bootstrap.min.css" rel="stylesheet" />
  3.     <script src="scripts/jquery-3.3.1.min.js"></script>
  4.     <script src="scripts/bootstrap.min.js"></script>
  5.     <style>
  6.         .bottom {
  7.             margin-bottom: 5px !important;
  8.         }
  9.     </style>
  10.        <script type="text/javascript">
  11.         function preventBack() { window.history.forward(); }
  12.         setTimeout("preventBack()", 0);
  13.         window.onunload = function () { null };
  14.     </script>

Design the web form using textbox control, button control, and validation control. Apply the respective bootstrap 4 class.

  1. <body>
  2.     <form id="form1" runat="server">
  3.         <div class="container py-4">
  4.             <div class="col-md-5 offset-md-3">
  5.                 <div class="card card-outline-secondary rounded-0">
  6.                     <div class="card-header bg-success rounded-0">
  7.                         <h4 class="text-center text-uppercase text-white">Login</h4>
  8.                     </div>
  9.                     <div class="card-body">
  10.                         <div class="form-group bottom">
  11.                             <label>Username (Email)</label>
  12.                             <div class="input-group">
  13.                                 <div class="input-group-prepend">
  14.                                     <div class="input-group-text"><i class="fa fa-envelope"></i></div>
  15.                                 </div>
  16.                                 <asp:TextBox ID="txtEmail" runat="server" CssClass="form-control"></asp:TextBox>
  17.                             </div>
  18.                             <asp:RequiredFieldValidator ID="rfvEmail" Display="Dynamic" ControlToValidate="txtEmail" CssClass="text-danger" runat="server" ErrorMessage="Please enter email address"></asp:RequiredFieldValidator>
  19.                             <asp:RegularExpressionValidator ID="revEmail" ControlToValidate="txtEmail" CssClass="text-danger" runat="server" ErrorMessage="Enter valid email" ValidationExpression="\w+([-+.']\w+)*@\w+([-.]\w+)*\.\w+([-.]\w+)*"></asp:RegularExpressionValidator>
  20.                         </div>
  21.                         <div class="form-group bottom">
  22.                             <label>Password</label>
  23.                             <div class="input-group">
  24.                                 <div class="input-group-prepend">
  25.                                     <div class="input-group-text"><i class="fa fa-lock"></i></div>
  26.                                 </div>
  27.                                 <asp:TextBox ID="txtPassword" TextMode="Password" runat="server" CssClass="form-control"></asp:TextBox>
  28.                             </div>
  29.                             <asp:RequiredFieldValidator ID="rfvPassword" ControlToValidate="txtPassword" CssClass="text-danger" runat="server" ErrorMessage="Please enter password"></asp:RequiredFieldValidator>
  30.                         </div>
  31.                         <div class="form-group">
  32.                             <asp:Button ID="btnLogin" CssClass="btn btn-success rounded-0 btn-block" runat="server" Text="Login" OnClick="btnLogin_Click" />
  33.                         </div>
  34.                         <div class="form-group text-center">
  35.                             <asp:HyperLink ID="linkRegistration" NavigateUrl="~/RegisterForm.aspx" CssClass="text-primary btn-link" runat="server">New User</asp:HyperLink>
  36.                             <asp:HyperLink ID="linkForgotPassword" NavigateUrl="~/ForgotPassword.aspx" CssClass="text-primary btn-link"  runat="server">Forgot Password</asp:HyperLink>
  37.                         </div>
  38.                         <div class="text-center">
  39.                              <asp:Label ID="lblMessage" CssClass="text-center" runat="server"></asp:Label>
  40.                         </div>
  41.                     </div>
  42.                 </div>
  43.             </div>
  44.         </div>
  45.     </form>
  46. </body>
Step 4

Double-click on the Login button and write the following C# code.

Add the following namespace.

  1. using System.Configuration;
  2. using System.Data;
  3. using System.Data.SqlClient;
  4. using System.Security.Cryptography;
  5. using System.IO;
  6. using System.Text;

Complete code of the login page -

  1. using System;
  2. using System.Configuration;
  3. using System.Data;
  4. using System.Data.SqlClient;
  5. using System.IO;
  6. using System.Security.Cryptography;
  7. using System.Text;
  8.
  9. namespace UserRegistration_Demo
  10. {
  11.     public partial class LoginForm : System.Web.UI.Page
  12.     {
  13.         protected void Page_Load(object sender, EventArgs e)
  14.         {
  15.             if (!IsPostBack)
  16.             {
  17.                 Session["Username"] = txtEmail.Text;
  18.             }
  19.         }
  20.         private string Decrypt(string clearText)
  21.         {
  22.             string EncryptionKey = "ABCDEFGHIJKLMNOPQRSTUVWXYZ123456789";
  23.             byte[] clearBytes = Encoding.Unicode.GetBytes(clearText);
  24.             using (Aes encryptor = Aes.Create())
  25.             {
  26.                 Rfc2898DeriveBytes pdb = new Rfc2898DeriveBytes(EncryptionKey, new byte[] { 0x49, 0x76, 0x61, 0x6e, 0x20, 0x4d, 0x65, 0x64, 0x76, 0x65, 0x64, 0x65, 0x76 });
  27.                 encryptor.Key = pdb.GetBytes(32);
  28.                 encryptor.IV = pdb.GetBytes(16);
  29.                 using (MemoryStream ms = new MemoryStream())
  30.                 {
  31.                     using (CryptoStream cs = new CryptoStream(ms, encryptor.CreateEncryptor(), CryptoStreamMode.Write))
  32.                     {
  33.                         cs.Write(clearBytes, 0, clearBytes.Length);
  34.                         cs.Close();
  35.                     }
  36.                     clearText = Convert.ToBase64String(ms.ToArray());
  37.                 }
  38.             }
  39.             return clearText;
  40.         }
  41.         protected void btnLogin_Click(object sender, EventArgs e)
  42.         {
  43.
  44.             string CS = ConfigurationManager.ConnectionStrings["DBCS"].ConnectionString;
  45.             using (SqlConnection con=new SqlConnection(CS))
  46.             {
  47.                 SqlCommand cmd = new SqlCommand("spLogin", con);
  48.                 cmd.CommandType = CommandType.StoredProcedure;
  49.                 con.Open();
  50.                 cmd.Parameters.AddWithValue("@Email",txtEmail.Text.Trim());
  51.                 cmd.Parameters.AddWithValue("@Password", Decrypt(txtPassword.Text.Trim()));
  52.                 int Username = (Int32)cmd.ExecuteScalar();
  53.                 if (Username == 1)
  54.                 {
  55.                     Session["Username"] = txtEmail.Text;
  56.                     Response.Redirect("Welcome.aspx");
  57.                     Session.RemoveAll();
  58.
  59.                 }
  60.                 else
  61.                 {
  62.                     lblMessage.ForeColor = System.Drawing.Color.Red;
  63.                     lblMessage.Text = "Invalid username and password";
  64.                 }
  65.             }
  66.         }
  67.     }
  68. }

Step 5

Run the project by pressing ctrl+F5.

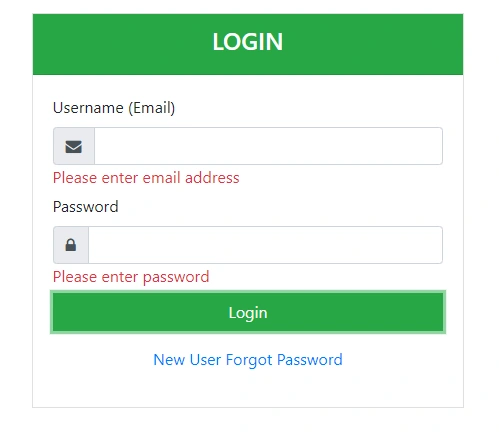

Screenshot 1



How To Login With Encrypted Password In ASP.NET
Screenshot 2



How To Login With Encrypted Password In ASP.NET
Screenshot 3

If we have entered a wrong username or password.

How To Login With Encrypted Password In ASP.NET

Step 6

In the dashboard, add a link button.
  1. <asp:LinkButton ID="linkbtnSignOut" CssClass="nav-link text-white" runat="server" OnClick="linkbtnSignOut_Click">Sign out</asp:LinkButton>

Step 7

Double click on the sign out link button.
  1. using System;
  2.
  3. namespace UserRegistration_Demo
  4. {
  5.     public partial class Welcome : System.Web.UI.Page
  6.     {
  7.         protected void Page_Load(object sender, EventArgs e)
  8.         {
  9.             if (!IsPostBack)
  10.             {
  11.                 lblUsername.Text = Session["Username"].ToString();
  12.             }
  13.         }
  14.
  15.         protected void linkbtnSignOut_Click(object sender, EventArgs e)
  16.         {
  17.             Session.RemoveAll();
  18.             Response.Redirect("LoginForm.aspx");
  19.         }
  20.     }
  21. }

Screenshot 4



How To Login With Encrypted Password In ASP.NET
