Create A Simple Web Service In ASP.NET Using C#

We will make a simple mathematical operation for Addition, Multiplication and Division. A web service will be created.

Initial chamber

Step 1: Open Visual Studio 2010 and create an empty website. Give a suitable name webservice_demo.

Step 2: In Solution Explorer you get your empty website, add a web form, Web Service. Here are the steps:

For Web Form

webservice_demo (Your Empty Website) - Right Click, Add New Item, then Web Form. Name it webservice_demo.aspx.

For WebService

webservice_demo (Your Empty Website) - Right Click, Add New Item, then Web Service.

Web Service

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.Services;
  6.
  7. /// <summary>
  8. /// Summary description for WebService
  9. /// </summary>
  10. [WebService(Namespace = "http://tempuri.org/")]
  11. [WebServiceBinding(ConformsTo = WsiProfiles.BasicProfile1_1)]
  12. // To allow this Web Service to be called from script, using ASP.NET AJAX, uncomment the following line.
  13. // [System.Web.Script.Services.ScriptService]
  14. public class WebService : System.Web.Services.WebService {
  15.
  16.     public WebService () {
  17.
  18.         //Uncomment the following line if using designed components
  19.         //InitializeComponent();
  20.     }
  21.
  22.     [WebMethod]
  23.     public string HelloWorld() {
  24.         return "Hello World";
  25.     }
  26.
  27.
  28.     [WebMethod]
  29.     public int mul(int a, int b)
  30.     {
  31.
  32.         return a * b;
  33.
  34.     }
  35.
  36.     [WebMethod]
  37.     public int add(int a, int b)
  38.     {
  39.
  40.         return a + b;
  41.
  42.     }
  43.
  44.     [WebMethod]
  45.     public int div(int a, int b)
  46.     {
  47.         return a / b;
  48.
  49.     }
  50.
  51. }
Design chamber

Step 3: Now open your webservice _demo.aspx file, where we create our simple design with the Textbox and a button.

webservice_demo.aspx
  1. <%@ Page Language="C#" AutoEventWireup="true" CodeFile="Default.aspx.cs" Inherits="_Default" %>
  2.
  3. <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
  4.
  5. <html xmlns="http://www.w3.org/1999/xhtml">
  6. <head runat="server">
  7.     <title></title>
  8.     <style type="text/css">
  9.         .style1
  10.         {
  11.             width: 301px;
  12.         }
  13.         .style3
  14.         {
  15.             width: 245px;
  16.             font-weight: bold;
  17.         }
  18.         .style4
  19.         {
  20.             width: 245px;
  21.         }
  22.         .style5
  23.         {
  24.             width: 301px;
  25.             font-weight: bold;
  26.         }
  27.     </style>
  28. </head>
  29. <body>
  30.     <form id="form1" runat="server">
  31.     <div>
  32.
  33.         <table style="width:100%;">
  34.             <tr>
  35.                 <td class="style3">
  36.                     <strong>Enter Your First Number:</strong></td>
  37.                 <td class="style1">
  38.                     <strong>
  39.                     <asp:TextBox ID="TextBox1" runat="server"></asp:TextBox>
  40.                     </strong>
  41.                 </td>
  42.                 <td>
  43.                     <strong>Your Answer:</strong></td>
  44.             </tr>
  45.             <tr>
  46.                 <td class="style3">
  47.                     Enter Your Second Number:</td>
  48.                 <td class="style1">
  49.                     <asp:TextBox ID="TextBox2" runat="server"></asp:TextBox>
  50.                 </td>
  51.                 <td>
  52.                     <asp:TextBox ID="TextBox3" runat="server"></asp:TextBox>
  53.                 </td>
  54.             </tr>
  55.             <tr>
  56.                 <td class="style3">
  57.                      </td>
  58.                 <td class="style5">
  59.                     What do you want to do ??</td>
  60.                 <td>
  61.                      </td>
  62.             </tr>
  63.             <tr>
  64.                 <td class="style4">
  65.                      </td>
  66.                 <td class="style1">
  67.                     <asp:Button ID="Button1" runat="server" onclick="Button1_Click"
  68.                         Text="Addition" />
  69.                     <asp:Button ID="Button2" runat="server" onclick="Button2_Click"
  70.                         Text="Multiply" />
  71.                     <asp:Button ID="Button3" runat="server" Height="25px" onclick="Button3_Click"
  72.                         Text="Division" />
  73.                 </td>
  74.                 <td>
  75.                      </td>
  76.             </tr>
  77.             <tr>
  78.                 <td class="style4">
  79.                      </td>
  80.                 <td class="style1">
  81.                      </td>
  82.                 <td>
  83.                      </td>
  84.             </tr>
  85.         </table>
  86.
  87.     </div>
  88.     </form>
  89. </body>
  90. </html>

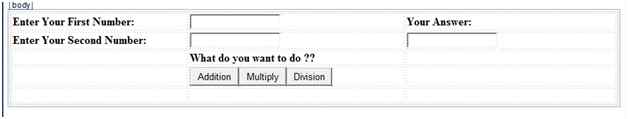

Your design looks like following image:

design

Code chamber

Step 4: Open your webservice_demo.aspx.cs and write some code so that our application starts working.

webservice_demo.aspx.cs
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.UI;
  6. using System.Web.UI.WebControls;
  7.
  8. public partial class _Default : System.Web.UI.Page
  9. {
  10.     WebService webserv = new WebService();
  11.     protected void Page_Load(object sender, EventArgs e)
  12.     {
  13.
  14.     }
  15.     protected void Button1_Click(object sender, EventArgs e)
  16.     {
  17.
  18.         int add;
  19.
  20.
  21.         add = webserv.add(int.Parse(TextBox1.Text), int.Parse(TextBox2.Text));
  22.         TextBox3.Text = add.ToString();
  23.
  24.
  25.     }
  26.     protected void Button2_Click(object sender, EventArgs e)
  27.     {
  28.         int mul;
  29.
  30.       mul= webserv.mul(int.Parse(TextBox1.Text), int.Parse(TextBox2.Text));
  31.         TextBox3.Text = mul.ToString();
  32.
  33.
  34.     }
  35.     protected void Button3_Click(object sender, EventArgs e)
  36.     {
  37.         int div;
  38.
  39.         div = webserv.div(int.Parse(TextBox1.Text), int.Parse(TextBox2.Text));
  40.        TextBox3.Text = div.ToString();
  41.
  42.     }
  43. }
Output chamber

Output

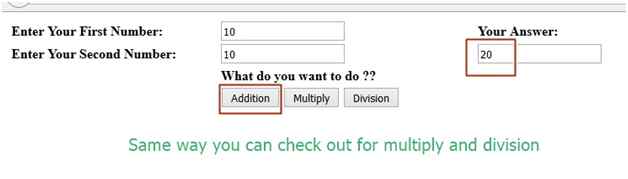

addition

Hope you liked it. Thank you for reading. Have a good day.
