This article shows how to insert data into a database using ASP.Net C# and a Stored Procedure. I used several textboxes and a button. When the user clicks on the “Insert” button the data is saved into the database.

INITIAL CHAMBER

Step 1

Open your Visual Studio 2010 and create an Empty Website, provide a suitable name (insert_demo).

Step 2

In Solution Explorer you get your empty website, then add a Web Form and SQL Server Database as in the following.

For Web Form:

insert_demo (Your Empty Website) then right-click then select Add New Item -> Web Form. Name it insertdata_demo.aspx.

For SQL Server Database:

insert_demo (Your Empty Website) then right-click then select Add New Item -> SQL Server Database. (Add the database inside the App_Data_folder.)

DATABASE CHAMBER

Step 3

In Server Explorer, click on your database (Database.mdf) then select Tables -> Add New Table. Make the table like this:

Table -> tbl_data (Don't Forget to make ID as IS Identity -- True)


Figure 1: Data Table

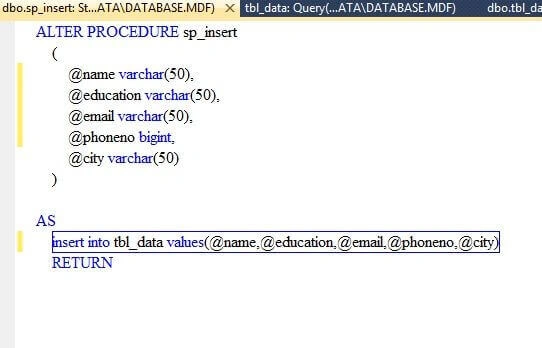

Make one Stored Procedure for inserting data into the database, by going to database.mdf then seelct Store Procedures then right-click then select Add New Store Procedure.

Sp_insert


Figure 2: Sp Insert

DESIGN CHAMBER

Step 4

Now make some design for your application by going to insertdata_demo.aspx and try the code like this.

insertdata_demo.aspx

  1. <%@ Page Language="C#" AutoEventWireup="true" CodeFile="Default.aspx.cs" Inherits="_Default" %>
  2. <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
  3. <html
  4. xmlns="http://www.w3.org/1999/xhtml">
  5. <head runat="server">
  6. <title></title>
  7. <style type="text/css">
  8. .style1
  9. {
  10. width: 139px;
  11. }
  12. .style2
  13. {
  14. width: 158px;
  15. }
  16. .style3
  17. {
  18. width: 139px;
  19. height: 23px;
  20. }
  21. .style4
  22. {
  23. width: 158px;
  24. height: 23px;
  25. }
  26. .style5
  27. {
  28. height: 23px;
  29. }
  30. .style6
  31. {
  32. font-size: large;
  33. text-decoration: underline;
  34. }
  35. </style>
  36. </head>
  37. <body>
  38. <form id="form1" runat="server">
  39. <div>
  40. <strong>
  41. <span class="style6">Insert Data into Database</span>
  42. </strong>
  43. <br />
  44. <table style="width:100%;">
  45. <tr>
  46. <td class="style1">
  47. </td>
  48. <td class="style2">
  49. </td>
  50. <td>
  51. </td>
  52. </tr>
  53. <tr>
  54. <td class="style1">
  55. Name</td>
  56. <td class="style2">
  57. <asp:TextBox ID="TextBox1" runat="server"></asp:TextBox>
  58. </td>
  59. <td>
  60. </td>
  61. </tr>
  62. <tr>
  63. <td class="style1">
  64. Education</td>
  65. <td class="style2">
  66. <asp:TextBox ID="TextBox3" runat="server"></asp:TextBox>
  67. </td>
  68. <td>
  69. </td>
  70. </tr>
  71. <tr>
  72. <td class="style1">
  73. Email</td>
  74. <td class="style2">
  75. <asp:TextBox ID="TextBox2" runat="server"></asp:TextBox>
  76. </td>
  77. <td>
  78. </td>
  79. </tr>
  80. <tr>
  81. <td class="style3">
  82. Phoneno</td>
  83. <td class="style4">
  84. <asp:TextBox ID="TextBox4" runat="server"></asp:TextBox>
  85. </td>
  86. <td class="style5"></td>
  87. </tr>
  88. <tr>
  89. <td class="style1">
  90. City</td>
  91. <td class="style2">
  92. <asp:TextBox ID="TextBox5" runat="server"></asp:TextBox>
  93. </td>
  94. <td>
  95. </td>
  96. </tr>
  97. <tr>
  98. <td class="style1">
  99. </td>
  100. <td class="style2">
  101. </td>
  102. <td>
  103. </td>
  104. </tr>
  105. <tr>
  106. <td class="style1">
  107. </td>
  108. <td class="style2">
  109. <asp:Button ID="Button1" runat="server" BorderColor="#CCFF66"
  110. ForeColor="#0066FF" onclick="Button1_Click" Text="Insert Data" />
  111. </td>
  112. <td>
  113. <asp:Label ID="Label1" runat="server" Text="Label"></asp:Label>
  114. </td>
  115. </tr>
  116. </table>
  117. </div>
  118. </form>
  119. </body>
  120. </html>

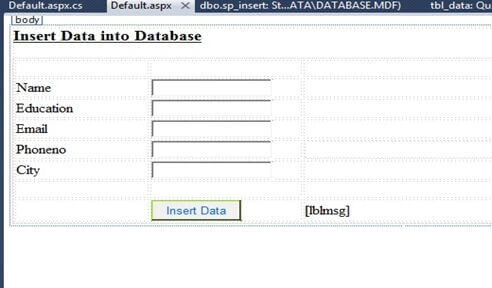

Your design will look like this:


Figure 3: Design Page

CODE CHAMBER

Step 5

Now it's time for server-side coding so that our application works. Open your insertdata_demo.aspx.cs file and code it as in the following.

insertdata_demo.aspx.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.UI;
  6. using System.Web.UI.WebControls;
  7. using System.Data;
  8. using System.Data.SqlClient;
  9. public partial class _Default: System.Web.UI.Page
  10. {
  11. protected void Page_Load(object sender, EventArgs e)
  12. {
  13. }
  14. protected void Button1_Click(object sender, EventArgs e)
  15. {
  16. SqlConnection con = new SqlConnection(@
  17. "Data Source=.\SQLEXPRESS;AttachDbFilename=|DataDirectory|\Database.mdf;Integrated Security=True;User Instance=True");
  18. SqlCommand cmd = new SqlCommand("sp_insert", con);
  19. cmd.CommandType = CommandType.StoredProcedure;
  20. cmd.Parameters.AddWithValue("name", TextBox1.Text);
  21. cmd.Parameters.AddWithValue("email", TextBox2.Text);
  22. cmd.Parameters.AddWithValue("education", TextBox3.Text);
  23. cmd.Parameters.AddWithValue("phoneno", TextBox4.Text);
  24. cmd.Parameters.AddWithValue("city", TextBox5.Text);
  25. con.Open();
  26. int k = cmd.ExecuteNonQuery();
  27. if (k != 0) {
  28. lblmsg.Text = "Record Inserted Succesfully into the Database";
  29. lblmsg.ForeColor = System.Drawing.Color.CornflowerBlue;
  30. }
  31. con.Close();
  32. }
  33. }
OUTPUT CHAMBER

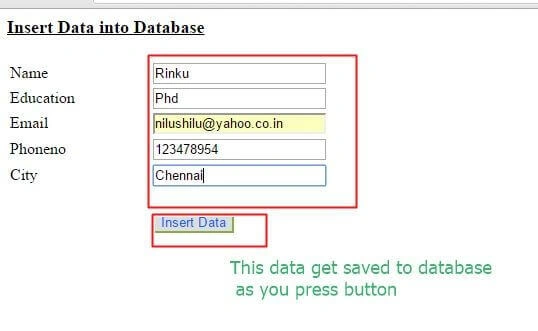

Figure 4: Output


Figure 5: Insert Data

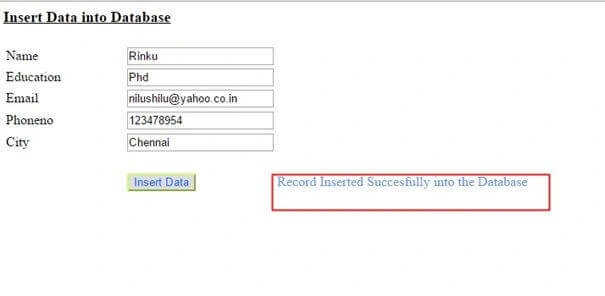

Figure 6: Save Data

I hope you like it, thank you for the reading. Have a good Day.
