Popup Control in Windows Store App

Introduction

Today we will discuss the Popup control of XAML files in Metro Style Applications. the popup control has a property IsOpen; this property takes a boolean value as input. In this application we will take a popup control that is associated with a Click event of a button control; on the click event we will swap the value of the IsOpen property to open and close the popup control. We will use any XAML control as a child control of the popup control such as image, canvas, StackPanel etc. Here we will use a StackPanel control.

In the following we are including the entire code of the XAML file and code behind file to create this mini application.

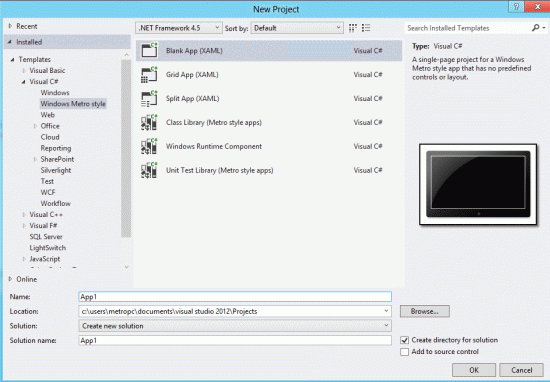

Step 1 : First, you will create a new Metro Style Application. Let us see the description with images of how you will create it.

  • Open Visual Studio 2012
  • File -> New -> Project
  • Choose Template -> Visual C# -> Metro Style Application
  • Rename the application

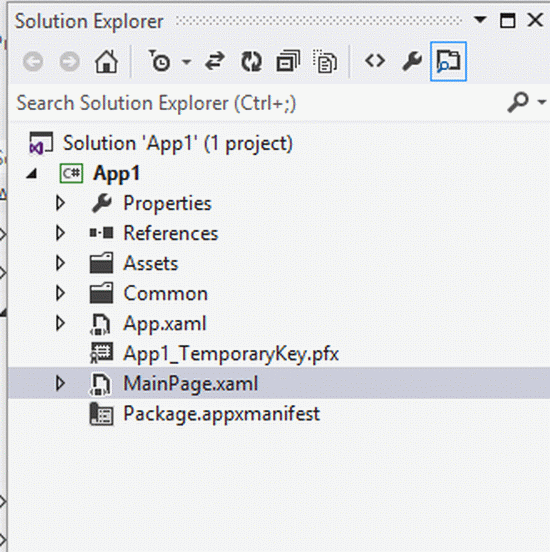

Step 2 : In the Solution Explorer there are two files that we will primarily work with; the MainPage.xaml and MainPage.xaml.cs files.


Step 3 : The MainPage.xaml file is as in the following code:

Code :

<Page

    x:Class="App1.MainPage"

    IsTabStop="false"

    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"

    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"

    xmlns:local="using:App2"

    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"

    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"

    mc:Ignorable="d">



    <Grid Background="Red">

        <Grid.ColumnDefinitions>

            <ColumnDefinition Width=".333*"></ColumnDefinition>

            <ColumnDefinition Width=".333*"></ColumnDefinition>

            <ColumnDefinition Width=".333*"></ColumnDefinition>

        </Grid.ColumnDefinitions>

        <Grid.RowDefinitions>

            <RowDefinition Height=".333*"></RowDefinition>

            <RowDefinition Height=".133*"></RowDefinition>

            <RowDefinition Height=".033*"></RowDefinition>

        </Grid.RowDefinitions>

        <TextBlock Text="Popup Control in Metro Apps" FontSize="30" Grid.Column="1"

                   FontWeight="Bold" VerticalAlignment="Bottom" Margin="0,0,0,50">

        </TextBlock>

        <Popup x:Name="ppup" IsOpen="False" Grid.Column="1" Grid.Row="1" >

           <StackPanel Background="Blue" Height="100" Width="400">

            <TextBlock Text="This is Pop up control of Xaml" FontSize="20" FontWeight="Bold">

            </TextBlock>

           </StackPanel>

        </Popup>

        <TextBlock x:Name="txt1" Text="Click button to On Popup control" FontSize="20"

                   FontWeight="Bold" Grid.Column="1" Grid.Row="1"

                   VerticalAlignment="Bottom" Margin="0,0,0,100">

        </TextBlock>

        <Button Click="Button_Click_1" Grid.Column="1" Grid.Row="2"

                Content="Open Popup" Background="Green">

        </Button>

   </Grid>

</Page>



Step 4 : The MainPage.xaml.cs file is as in the following code:

Code :

using System;

using System.Collections.Generic;

using System.IO;

using System.Linq;

using Windows.Foundation;

using Windows.Foundation.Collections;

using Windows.UI.Xaml;

using Windows.UI.Xaml.Controls;

using Windows.UI.Xaml.Controls.Primitives;

using Windows.UI.Xaml.Data;

using Windows.UI.Xaml.Input;

using Windows.UI.Xaml.Media;

using Windows.UI.Xaml.Navigation;



namespace App2

{

    public sealed partial class MainPage : Page

    {

        public MainPage()

        {

            this.InitializeComponent();

        }

        protected override void OnNavigatedTo(NavigationEventArgs e)

        {

        }



        private void Button_Click_1(object sender, RoutedEventArgs e)

        {

            if (ppup.IsOpen == false)

            {

                ppup.IsOpen = true;

                txt1.Text = "Click button to Off Popup Control";

            }

            else

            {

                ppup.IsOpen = false;

                txt1.Text = "Click button to On Popup control";

            }

        }

    }

}

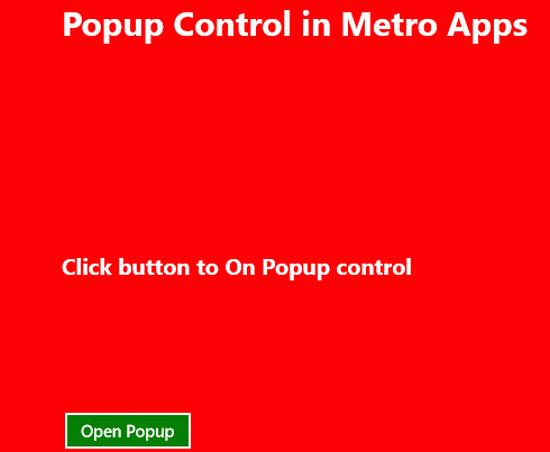

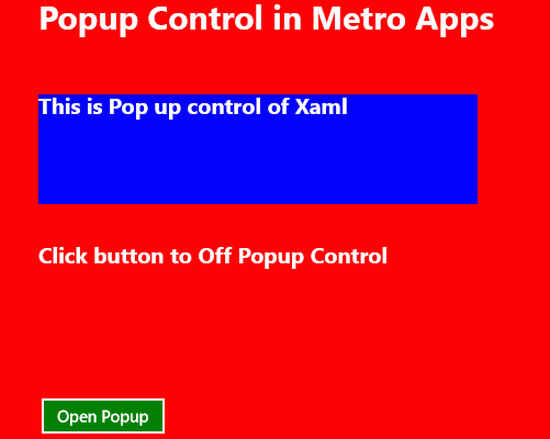

Step 5 : After running this code the output looks like this:
