Day 5: Improve Your Toast Message in Android App

Introduction


In my last article, we created a Toast Message that is quite basic. If you want to add an image in a Toast message then that is what we are going to do in this article, in other words, customize a Toast Message.

The agenda we will follow is the same as we did in the previous article as in the following:
  • First, add a button and TextView on the main_activity.xml
  • Then, create an XML file for the toast. Because this time, we are inflating the XML file to toast notification.
  • Last, we will call it from setOnClickListner().
The following is the procedure to follow.

Step 1: First, add a button and textView to the main_activity.xml layout.


Step 2: We will now add an XML file that acts as a toast popup when makeText() calls a toast instance.

Earlier, we had simply es a simple string as a toast message, but this time we will inflate a XML file as the toast's content.

So, we will make an additional XML file named custom_toast.xml as in the following:
  1. <?xml version="1.0" encoding="utf-8"?>
  2. <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
  3.    android:layout_width="match_parent"
  4.    android:layout_height="match_parent"
  5.    android:orientation="horizontal"
  6.    android:gravity="center" >
  7.
  8.    <ImageView
  9.       android:id="@+id/customImage"
  10.       android:layout_width="wrap_content"
  11.       android:layout_height="wrap_content"
  12.       android:contentDescription="@string/toastImage"
  13.       android:src="@drawable/ic_launcher" />
  14.
  15.    <TextView
  16.       android:id="@+id/customText"
  17.       android:layout_width="wrap_content"
  18.       android:layout_height="wrap_content"
  19.       android:contentDescription="@string/toastImage"
  20.       android:text="@string/toast_message" />
  21. </LinearLayout>

And in string.xml file, we have declared some new:
  1. <?xml version="1.0" encoding="utf-8"?>
  2.    <resources>
  3.       <string name="app_name">Customized Toast</string>
  4.       <string name="hello_world">Hello world!</string>
  5.       <string name="action_settings">Settings</string>
  6.       <string name="toastImage">My Toast</string>
  7.       <string name="toast_message">This is my Custom Toast</string>
  8. </resources>
Step 3
  1.    // Button Instance
  2.    Button myButton =(Button) findViewById(R.id.button1);
  3.
  4.    myButton.setOnClickListener(new OnClickListener() {
  5.
  6.    public void onClick(View arg0) {
  7.
  8.       // Creating layout inflater instance
  9.       LayoutInflater li= getLayoutInflater();
  10.
  11.       // Adding the XML file to inflator
  12.       View view =li.inflate(R.layout.custom_toast, (ViewGroup) findViewById(R.id.custom_toast_layout));
  13.
  14.       // Creating Toast Object
  15.       Toast myToast= new Toast(MainActivity.this);
  16.       myToast.setDuration(myToast.LENGTH_LONG);
  17.       myToast.setGravity(Gravity.CENTER, 00);
  18.       myToast.setView(view);
  19.       myToast.show();
  20.    }
  21. });
Inside setOnClickListner(), we created an inflater and a view. Then, added a custom_toast.xml file to the inflator. Now, we identify the entire XML file as a single view.

Finally, we target a Toast object and assign all the desired properties along with the setView() method where we our view (that we have inflated).

The final code will be like:
  1. package com.greensyntax.customizedtoast;
  2. import android.os.Bundle;
  3. import android.support.v7.app.ActionBarActivity;
  4. import android.view.Gravity;
  5. import android.view.LayoutInflater;
  6. import android.view.View;
  7. import android.view.View.OnClickListener;
  8. import android.view.ViewGroup;
  9. import android.widget.Button;
  10. import android.widget.Toast;
  11.
  12. public class MainActivity extends ActionBarActivity {
  13.
  14.    @Override
  15.    protected void onCreate(Bundle savedInstanceState) {
  16.       super.onCreate(savedInstanceState);
  17.       setContentView(R.layout.activity_main);
  18.
  19.       // Button Instance
  20.       Button myButton =(Button) findViewById(R.id.button1);
  21.
  22.       myButton.setOnClickListener(new OnClickListener() {
  23.
  24.       public void onClick(View arg0) {
  25.
  26.          // Creating layout inflater instance
  27.          LayoutInflater li= getLayoutInflater();
  28.
  29.          // Adding the XML file to inflator
  30.          View view =li.inflate(R.layout.custom_toast, (ViewGroup) findViewById(R.id.custom_toast_layout));
  31.
  32.          // Creating Toast Object
  33.          Toast myToast= new Toast(MainActivity.this);
  34.          myToast.setDuration(myToast.LENGTH_LONG);
  35.          myToast.setGravity(Gravity.CENTER, 00);
  36.          myToast.setView(view);
  37.          myToast.show();
  38.       }
  39.    });
  40.
  41.    }

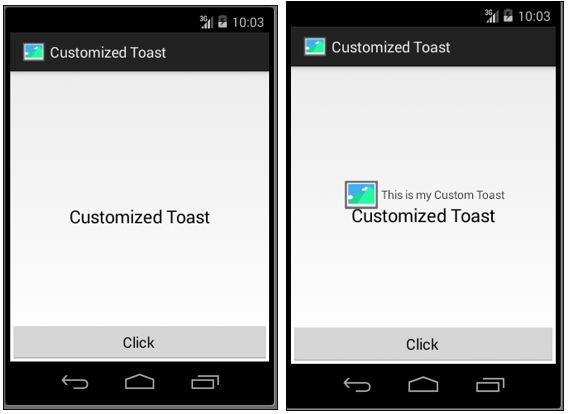

And, it shows like:



Conclusion


If you experience any issue then go for the enclosed file.
