Visual States In Universal Windows Platform

In this article you will learn about Visual States in Universal Windows Platform.

I think every one of you have played Subway Surfer, so I came up with a example that shows how states are changed in a game.

Start, Running => Game over and then Play again.

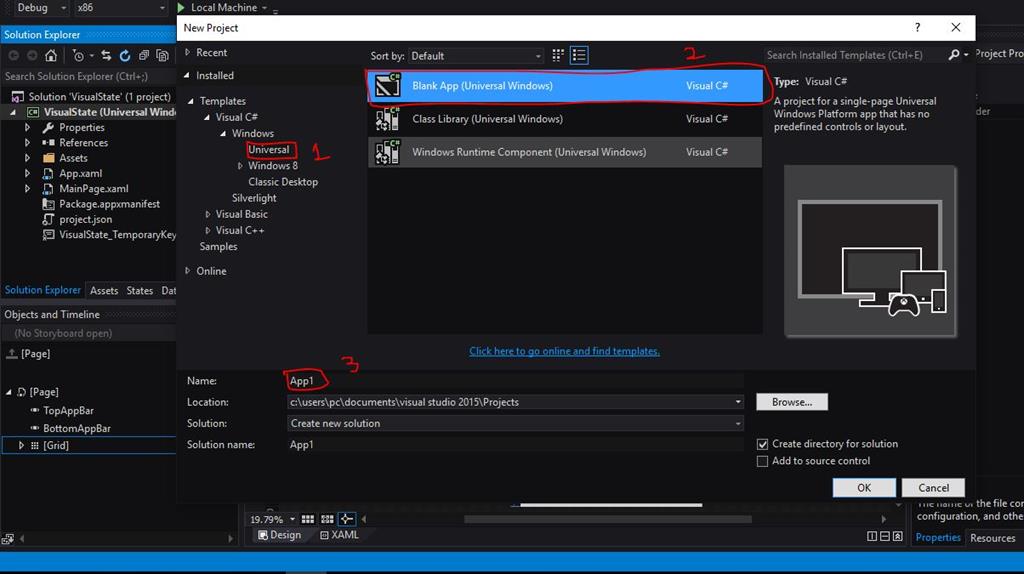

  • Create a new UWP blank project.

    Blank App

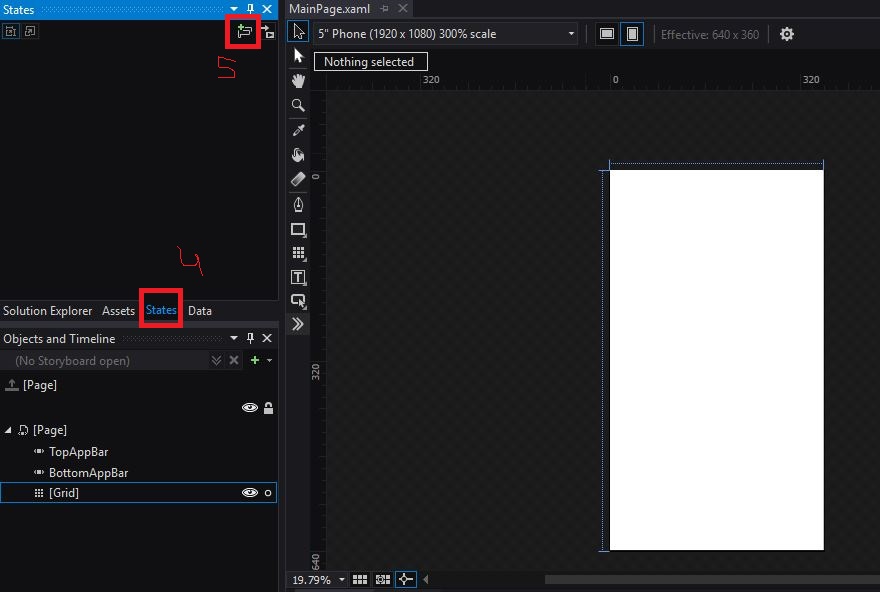

  • Go to states and add new states group and rename it as you like. I renamed it to State.

    States

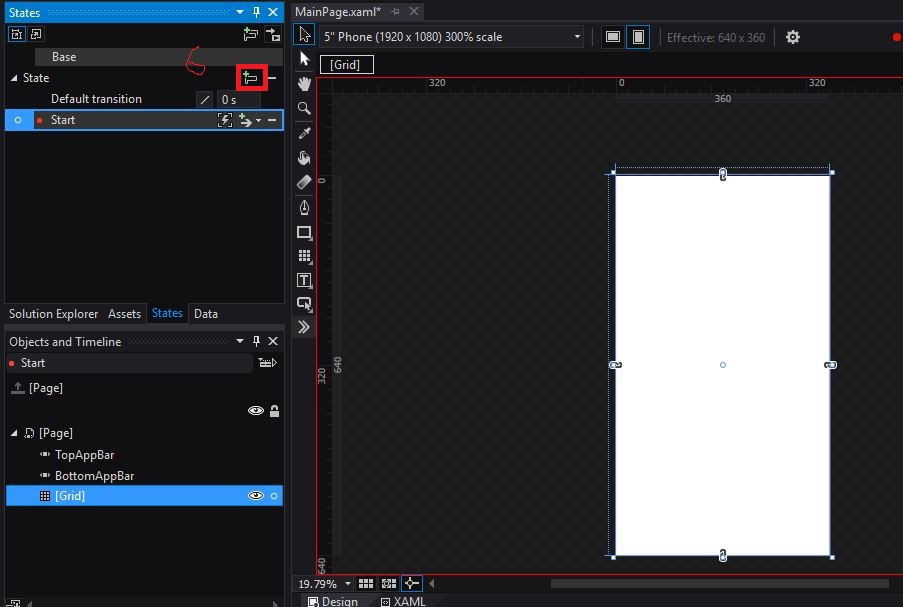

  • Follow step 6 in the image below to add new state to state group. I named it as Start.

    Grid image

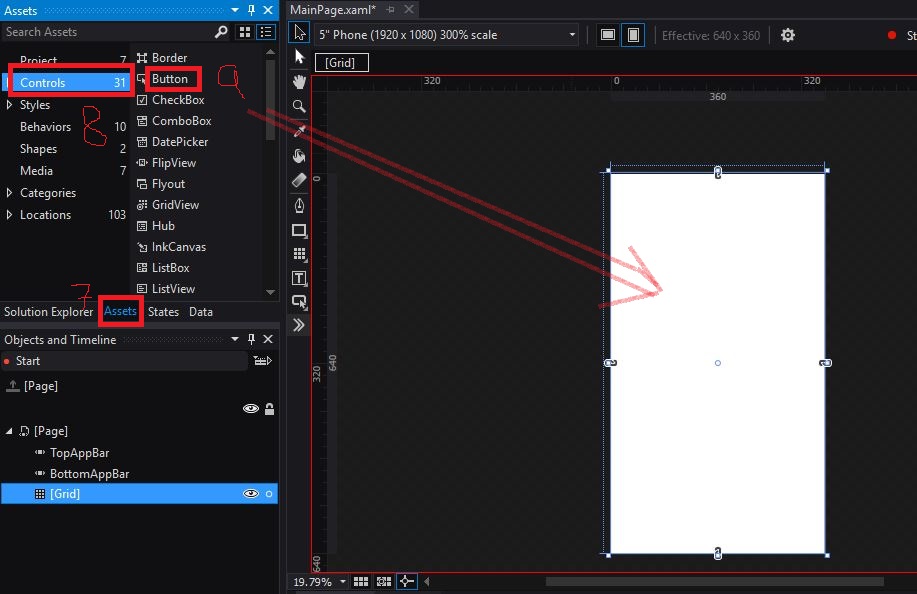

  • Proceed step 7, 8, 9 and drop button control to grid.

    Control

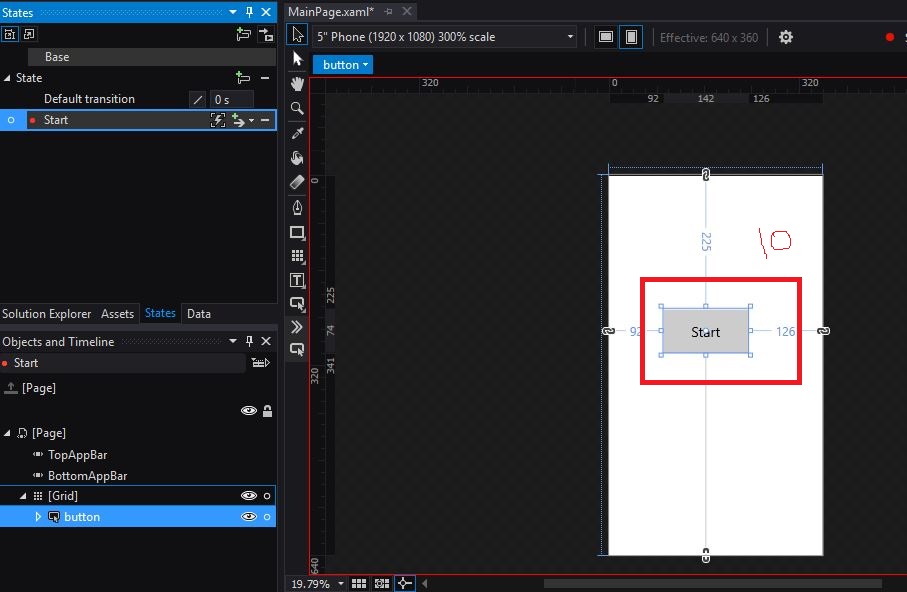

  • Now you have a Start named button in a start state.

    Start button

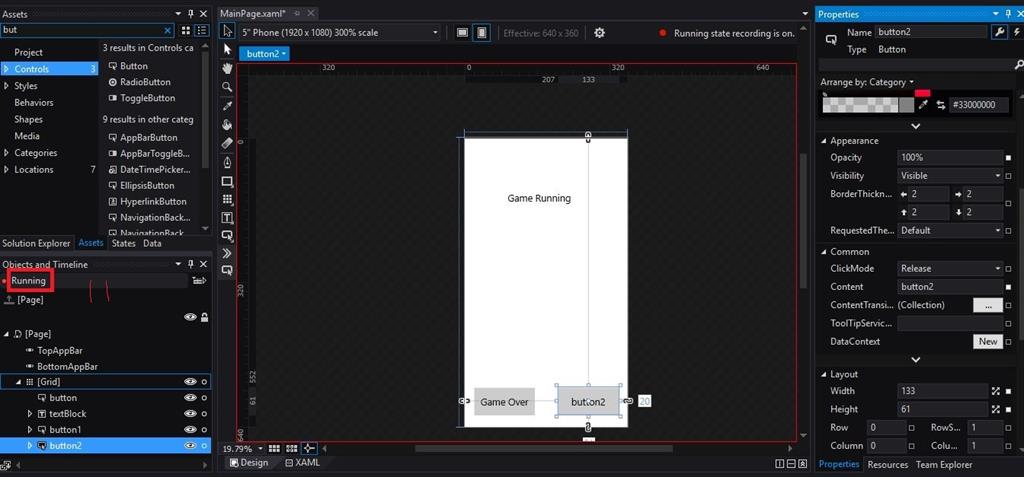

  • Add Running state by following step 6 as we had done before and add a textblock, 2 buttons.

    i renamed text block = game running
    Button = game over
    Button= Fire

    Add Running

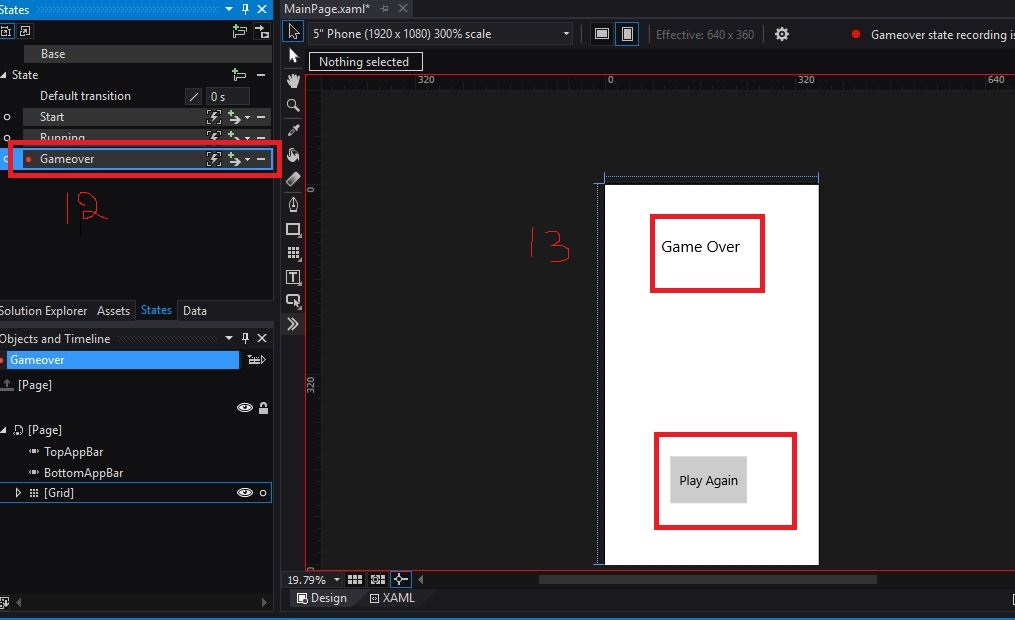

  • Add another state named Gameover and add two controls.

    Game over

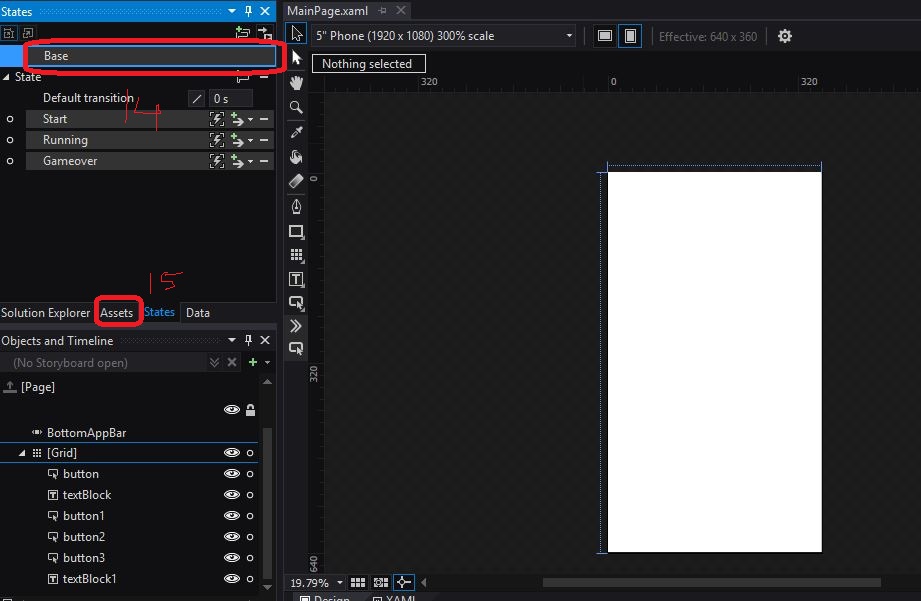

  • Now go to states and click base (That is your state which comes on start of your app) and then go to Assets

    base

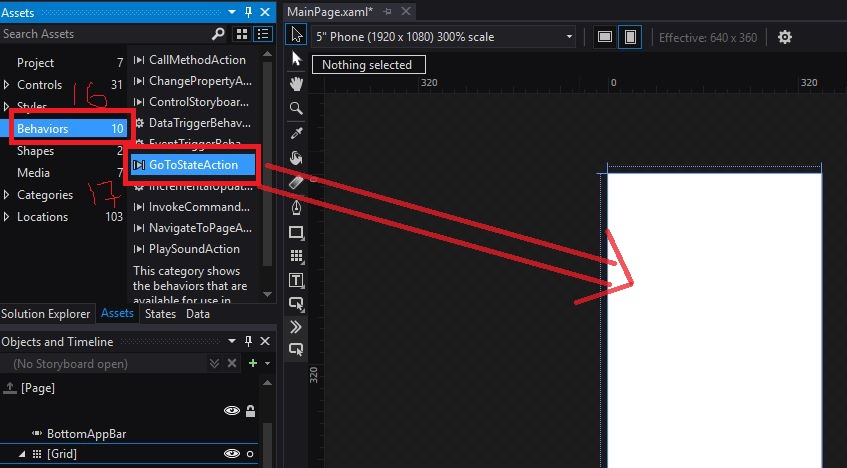

  • Behavior and then click GoToStateAction and drop it to your grid as shown below.

    grid

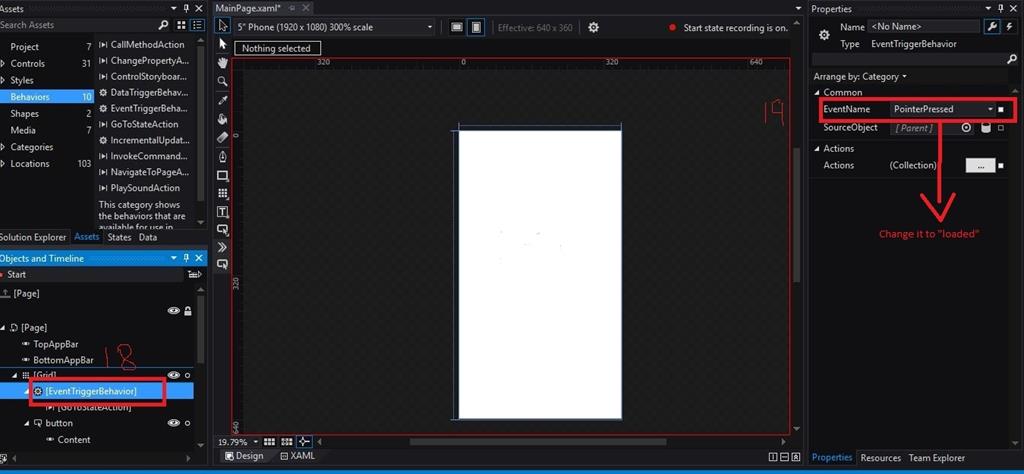

  • Follow step 18 to 22 to make your app run the start state at default.

    Note: The event triggerbehaviour only change to loaded on grid. Don't do this process on coming steps:

    Event

  • Change state name to Start.

    Base

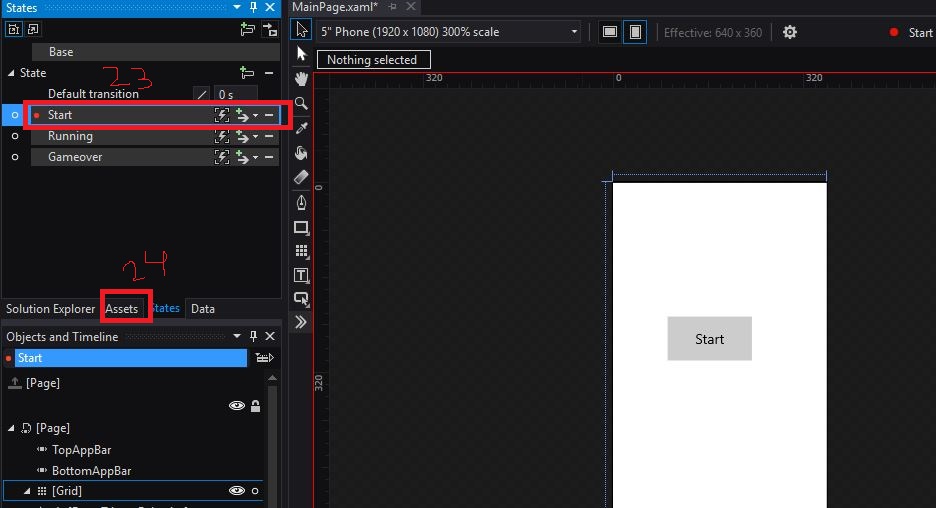

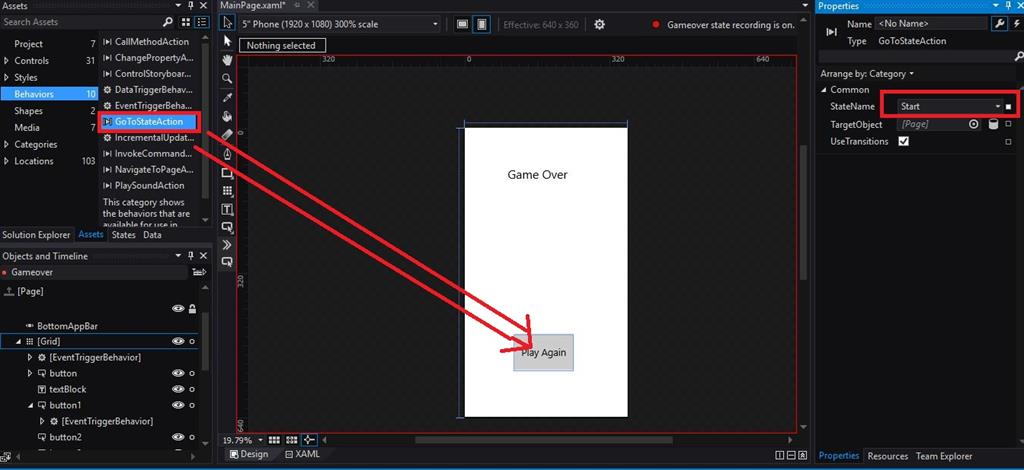

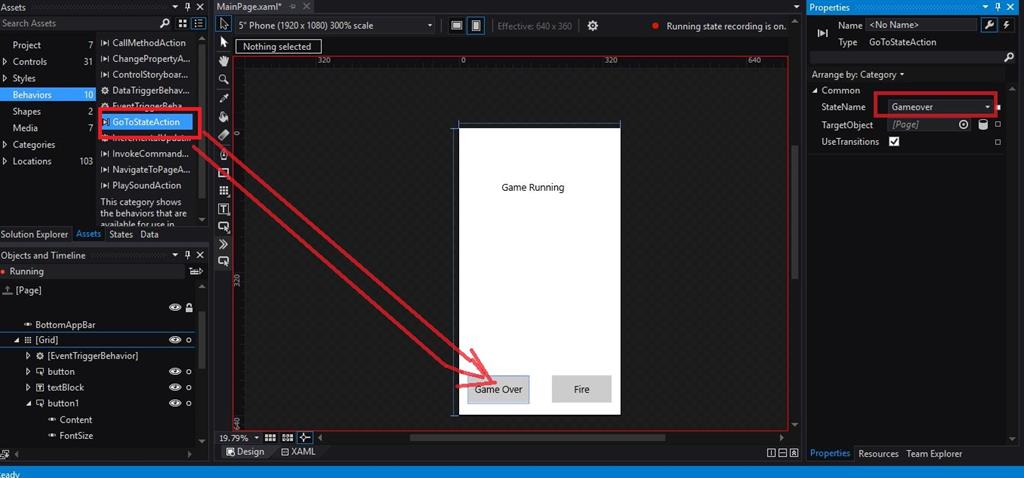

  • Select Start state, assets, then behaviour and then GoToStateAction and drop it in start button and change state name to Running.

    Assets

    Design

    Behaviors

    Goto action

  • At the end run the application and enjoy moving within the States.
