Update the Data of Checkbox List While Changing the Value of Dropdown List

Introduction

This article explains how to change the checkbox list depending on the changes of a dropdown list value in the Web API. In it the checkbox list data is bound with the Dropdown list .

Use the following procedure to create a sample application.

Step 1

First we create a Web API application as in the following:

  • Start Visual Studio 2013.
  • From the Start Window select "New Project".
  • From the New project window select "Installed" -> "Visual C#" -> "Web" -> "Visual Studio 2012".
  • Select "ASP.NET MVC4 Web Application" and click the "OK" button.

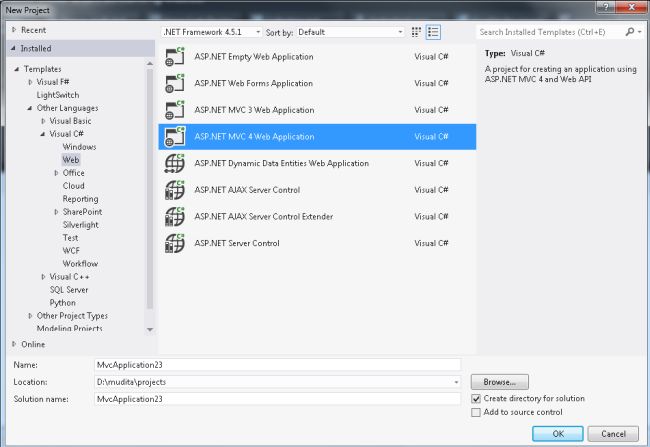

    Select MVC4 Application

  • From the "MVC4 project" window select "Web API".

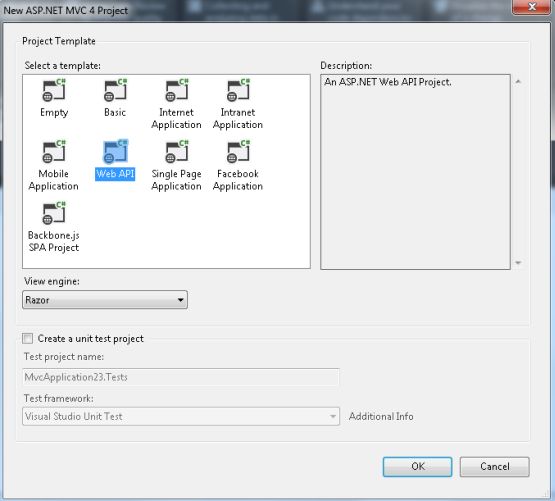

    Select Web API

  • Click on the "OK" button.

Step 2

Add a Model folder as in the following:

  • In the "Solution Explorer".
  • Right -click on the "Model folder".
  • Select "Add" -> "Class".
  • From the add item window select "Installed" -> "Visual C#".

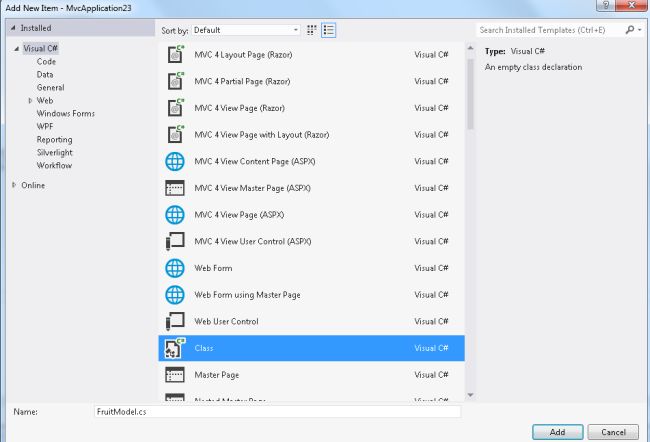

    Add Model Class

  • Select "Class" and click on the "Add" button.

Add the following code:

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. namespace MvcApplication23.Models
  6. {
  7.     public class FruitModel
  8.     {
  9.         public List<Fruit> FruitH { getset; }
  10.         public int SelectedFruit { getset; }
  11.         public List<FruitDetail> FruitLModel { getset; }
  12.     }
  13.     public class Fruit
  14.     {
  15.         public int Id { getset; }
  16.         public string FruitName { getset; }
  17.     }
  18.     public class FruitDetail
  19.     {
  20.         public int Id { getset; }
  21.         public int FruitId { getset; }
  22.         public string Fruit_T { getset; }
  23.     }
  24. }

Step 3

Now in the "Controller" we add the code that uses all the variables of the Model class. This file exists:

  • In the "Solution Explorer".

  • Expand the "Controller" folder.

  • Select the "HomeController".

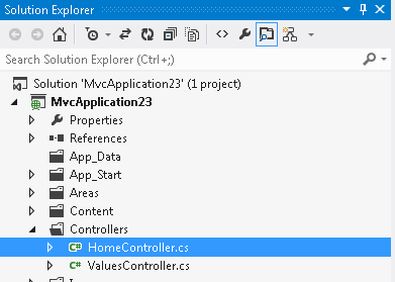

    Display Controller

Add the following code:

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.Mvc;
  6. using MvcApplication23.Models;
  7. namespace MvcApplication23.Controllers
  8. {
  9.     public class HomeController : Controller
  10.     {
  11.         public ActionResult Index()
  12.         {
  13.             FruitModel objfruit = new FruitModel();
  14.             objfruit.FruitH = GetAllFruit();
  15.             List<FruitDetail> obj= new List<FruitDetail>();
  16.             obj = GetAllFruitDetail();
  17.             objfruit.FruitLModel = obj;
  18.             objfruit.SelectedFruit = 0;
  19.             return View(objfruit);
  20.         }
  21.         [HttpPost]
  22.         public ActionResult Index(FruitModel objfruit)
  23.         {
  24.             objfruit.FruitH = GetAllFruit();
  25.             List<FruitDetail> objfruit1 = new List<FruitDetail>();
  26.             if (objfruit.SelectedFruit != 0)
  27.             {
  28.                 objfruit1 = GetAllFruitDetail();
  29.                 objfruit.FruitLModel = objfruit1.Where(m => m.FruitId == objfruit.SelectedFruit).ToList();
  30.             }
  31.             else
  32.             {
  33.                 objfruit1 = GetAllFruitDetail();
  34.                 objfruit.FruitLModel = objfruit1;
  35.             }
  36.             return View(objfruit);
  37.         }
  38.         public List<Fruit> GetAllFruit()
  39.         {
  40.             List<Fruit> objfruit = new List<Fruit>();
  41.             objfruit.Add(new Fruit { Id = 0, FruitName = "All" });
  42.             objfruit.Add(new Fruit { Id = 1, FruitName = "FruitList-1" });
  43.             objfruit.Add(new Fruit { Id = 2,FruitName = "FruitList-2" });
  44.             objfruit.Add(new Fruit { Id = 3, FruitName = "FruitList-3" });
  45.             return objfruit;
  46.         }
  47.         public List<FruitDetail> GetAllFruitDetail()
  48.         {
  49.             List<FruitDetail> objfruitmodel = new List<FruitDetail>();
  50.             objfruitmodel.Add(new FruitDetail { Id = 1, FruitId = 1, Fruit_T = "Apple" });
  51.             objfruitmodel.Add(new FruitDetail { Id = 2, FruitId = 1, Fruit_T = "Banana" });
  52.             objfruitmodel.Add(new FruitDetail { Id = 3, FruitId = 2, Fruit_T = "Graps" });
  53.             objfruitmodel.Add(new FruitDetail { Id = 4, FruitId = 2, Fruit_T = "Orange" });
  54.             objfruitmodel.Add(new FruitDetail { Id = 5, FruitId = 2, Fruit_T = "Gaava" });
  55.             objfruitmodel.Add(new FruitDetail { Id = 6, FruitId = 2, Fruit_T = "Cherry" });
  56.             objfruitmodel.Add(new FruitDetail { Id = 7, FruitId = 3, Fruit_T = "Coconut" });
  57.             objfruitmodel.Add(new FruitDetail { Id = 8, FruitId = 3, Fruit_T = "Mango" });
  58.             objfruitmodel.Add(new FruitDetail { Id = 9, FruitId = 3, Fruit_T = "Lychee" });
  59.             return objfruitmodel;
  60.         }
  61.     }
  62. }

Step 4

In the View write some code as in the following:

  • In the "Solution Explorer".

  • Expand the "Views Folder"

  • Select "Home" -> "Index.cshtml".

Add the following code:

  1. @model MvcApplication23.Models.FruitModel
  2. @{
  3.     ViewBag.Title = "Bind Data of checkbox list with the Dropdown list in Web API";
  4. }
  5. @using (Html.BeginForm("Index""Home"))
  6. {
  7.     <table width="30%">
  8.         <tr>
  9.             <td>
  10.                 Fruits :
  11.             </td>
  12.             <td align="left">@Html.DropDownList("SelectedFruit"new SelectList(Model.FruitH ,"Id""FruitName", Model.SelectedFruit))
  13.              <input type="submit" value="Search" />
  14.             </td>
  15.         </tr>
  16.         <tr>
  17.                 <td colspan="2">
  18.                 @foreach (var item in Model.FruitLModel)
  19.                 {
  20.                     <div>
  21.                     @Html.CheckBox("FruitNameLIst"falsenew { @value = item.Id })
  22.                     @Html.Label("lblname",item.Fruit_T)
  23.                     </div>
  24.                 }
  25.             </td>
  26.         </tr>
  27.         <tr>
  28.             <td colspan="2">
  29.               </td>
  30.         </tr>
  31.     </table>
  32. }

Step 5

Execute the application:

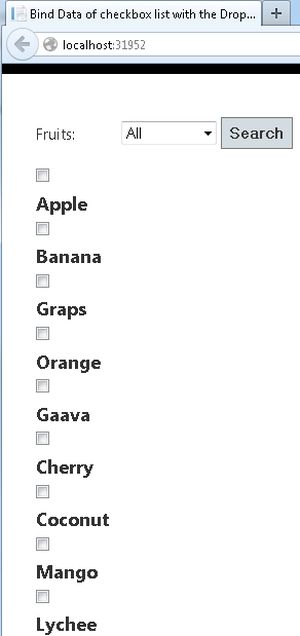

Output

Now select the the list of fruits from the dropdown list and click on search.

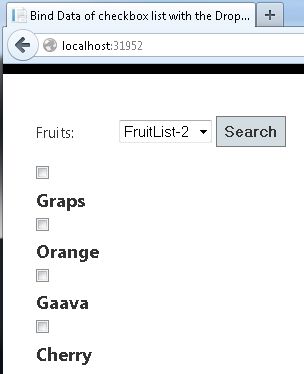

Display Fruit List 2 Value
