Perform Operations on WebForms From MVC

Introduction

As you know, Visual Studio 2013 has one of the most greatest features named "One ASP.NET" with which we can develop an application with the use of Web Forms, MVC and Web API. We can develop it all in one application. While using all these pieces of ASP.NET inside a single application there can be a couple of possibilities, like:

  • An existing Web Forms project can have the MVC functionality to generate the modules.
  • Modules can interact with Web Forms and receive data from the MVC controller.

There are some sections, as defined below, to develop the scenario in which we can send the data of the GridView to the new MVC controller and we can view it through the MVC View:

  • Creating an application
  • Adding MVC Controller and models
  • Creating View
  • Running the application

Creating an Application

In this section, we can create an empty project template and from the ASP.NET wizard we add the Web Forms project using the following procedure.

Step 1: Create an ASP.NET Web Application.

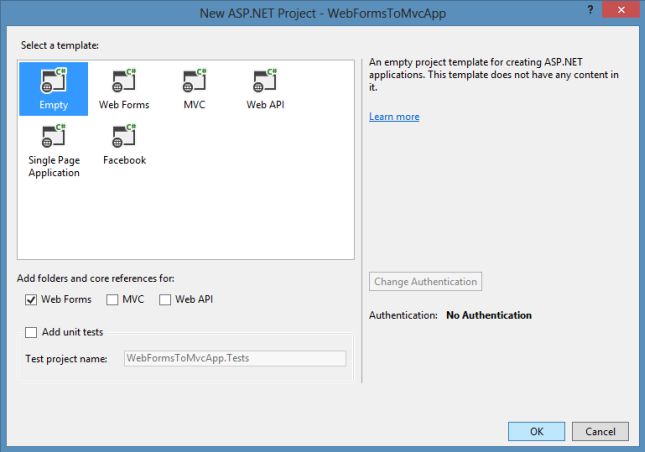

Step 2: Select the empty project and the web forms.

Empty Template with WebForms in VS 2013

Step 3: Add the WebForm named DataWebForm to the project.

Add New Web Form in Project

Step 4: Now add the GridView from the toolbox.

Adding MVC Controller and Models

In this section we'll create the model and controller for the project using the following procedure.

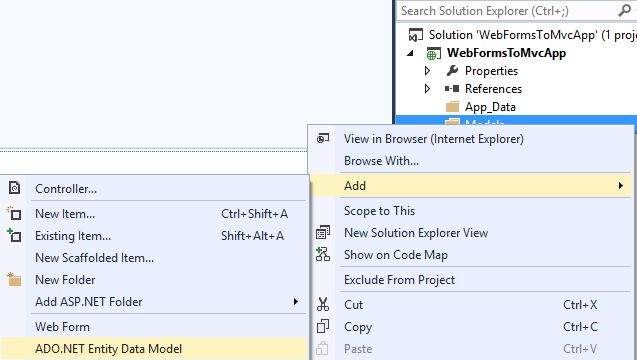

Step 1: Add the ADO.NET Data Entity Model to the Models folder.

Adding Entity Model in the Project

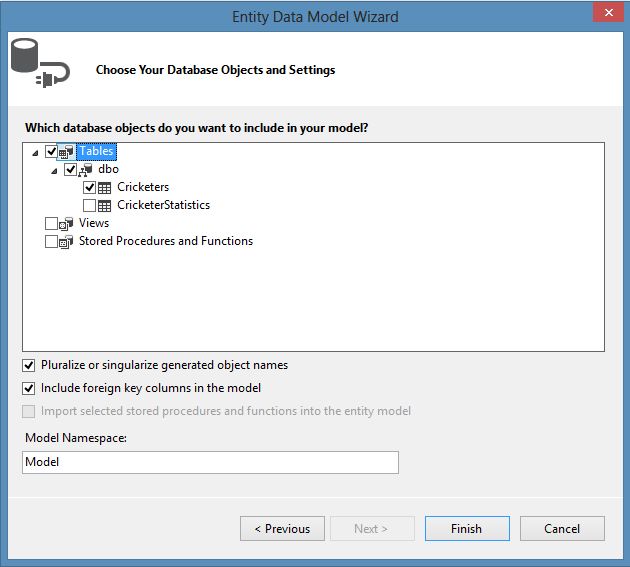

Step 2: Now configure the data model with the database table.

Configuring the Entity Model

Step 3: Now configure the data source for the Grid View and then add the Button template filed inside the GridView with the following code:

<asp:TemplateField ShowHeader="false">
    <ItemTemplate>
        <asp:Button ID="BtnEdit" Text="Edit" PostBackUrl="Cricketer/Edit" runat="server" />
    </ItemTemplate>
</asp:TemplateField>

In the code above we have set the PostBackUrl property to the Edit View page. We'll create it in the following procedure.

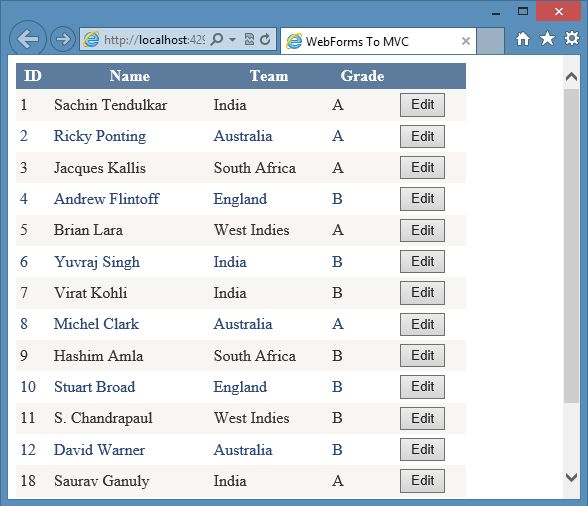

Step 4: Now run the application

GridView Data in WebForm

Step 5: Now add the following code of HiddenField and Literal after the GridView control:

<asp:HiddenField ID="FormToMVC" runat="server" />
<br />
<asp:Literal ID="Literal1" runat="server"></asp:Literal>

 Step 6: Add the jQuery to the Scripts folder. You can download it. Modify your page head part with the following code:

<head runat="server">
    <title>WebForms To MVC</title>
    <script src="Scripts/jquery-2.0.3.js"></script>
    <script type="text/javascript">
        $(document).ready(function () {
            $("input:submit").click(function (evt) {
                var Cric_Data = {};
                Cric_Data.ID = $(evt.target).closest("tr").children("td:eq(0)").html();
                Cric_Data.Name = $(evt.target).closest("tr").children("td:eq(1)").html();
                Cric_Data.Team = $(evt.target).closest("tr").children("td:eq(2)").html();
                Cric_Data.Grade = $(evt.target).closest("tr").children("td:eq(3)").html();
                $("#FormToMVC").val(JSON.stringify(Cric_Data));
            });
        });
    </script>
</head>

In the code above you can see that the ready handler is used to handle the click event for all buttons in the form and if the edit button is selected by the user then it creates the JavaScript object and sets the properties, like id, name and so on to the values from a GridView row. The closest method gets the reference of the table row for editing and then the html method returns the data inside the GridView.

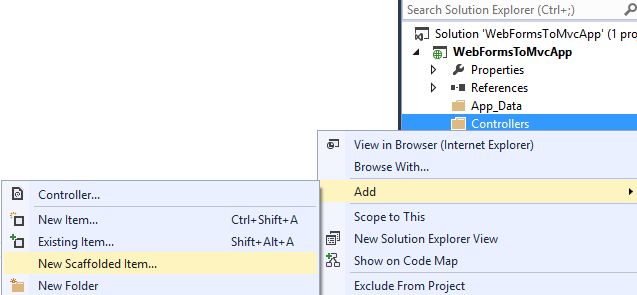

Step 7: Now we create a new folder named Controllers and add a new scaffolded item.

Add New Scaffolded Item in Controller

Note: Please build the solution before scaffolding.

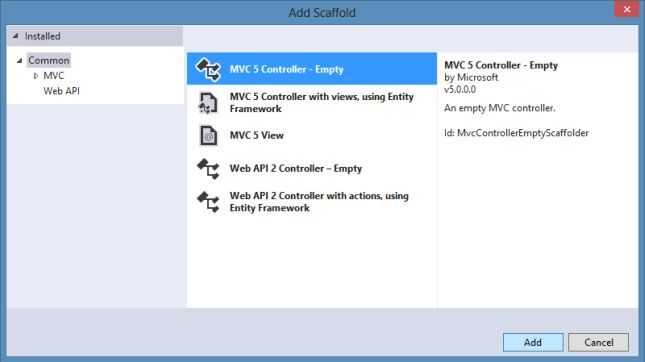

Step 8: Create a Empty MVC 5 Controller.

Add Scaffold in MVC 5

This will add the Content, App_Start,  fonts and Views folders to the project automatically. Now modify your controller with the code below:

using Newtonsoft.Json;
using System.Web.Mvc;
using WebFormsToMvcApp.Models;
namespace WebFormsToMvcApp.Controllers
{
    public class CricketerController : Controller
    {
        //
        // GET: /Cricketer/
        public ActionResult Index()
        {
            return View();
        }
        public ActionResult Edit()
        {
            string Jason_Data = Request.Form["FormToMVC"];
            Cricketer CricObj = JsonConvert.DeserializeObject<Cricketer>(Jason_Data);
            return View(CricObj);
        }
        public void Update(Cricketer CricObj)
        {
            CricketerSite_Entities CricDb = new CricketerSite_Entities();
            Cricketer Cric_Exist = CricDb.Cricketers.Find(CricObj.ID);
            Cric_Exist.Name = CricObj.Name;
            Cric_Exist.Team = CricObj.Team;
            Cric_Exist.Grade = CricObj.Grade;
            CricDb.SaveChanges();
            Response.Redirect("/DataWebForm.aspx?cricketerid=" + CricObj.ID);
        }
    }
}

In the code above, the Edit action method is used to read the JSON data sent from the webform and then the JSON.NET library is used to desterilize the JSON string ("FormToMVC") into the Cricketer class object.

We have also created the Update() to get the information of the Edit() View. It receives the data as the Cricketer object. It simply applies the changes to the database.

Step 9: Modify the Global.asax file with the following code:

using System;
using System.Web.Mvc;
using System.Web.Optimization;
using System.Web.Routing;
namespace WebFormsToMvcApp
{
    public class Global : System.Web.HttpApplication
    {
        protected void Application_Start(object sender, EventArgs e)
        {
            AreaRegistration.RegisterAllAreas();
            RouteConfig.RegisterRoutes(RouteTable.Routes);
            FilterConfig.RegisterGlobalFilters(GlobalFilters.Filters);
            BundleConfig.RegisterBundles(BundleTable.Bundles);
        }
    }
}

Creating View

In this section we'll create the view for the controller using the following procedure.

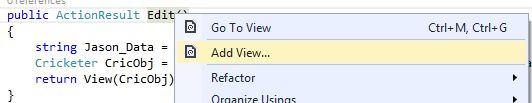

Step 1: Right-click on the Edit method for adding the view.

Adding View from Controller

Step 2: Edit and modify the view with the following code:

@model WebFormsToMvcApp.Models.Cricketer
@{
    ViewBag.Title = "Edit Cricketer";
}
<h2>Edit</h2>
@using (Html.BeginForm("Update","Cricketer",FormMethod.Post))
{
    <div class="form-horizontal">
        <h4>Cricketer</h4>
        <hr/>
        <div class="form-group">
            @Html.LabelFor(model=> model.ID)
            <div class="col-md-10">
                @Html.TextBoxFor(model=> model.ID)
            </div>
        </div>
        <div class="form-group">
            @Html.LabelFor(model => model.Name)
            <div class="col-md-10">
                @Html.TextBoxFor(model => model.Name)
            </div>
        </div>
        <div class="form-group">
            @Html.LabelFor(model => model.Team)
            <div class="col-md-10">
                @Html.TextBoxFor(model => model.Team)
            </div>
        </div>
        <div class="form-group">
            @Html.LabelFor(model => model.Grade)
            <div class="col-md-10">
                @Html.TextBoxFor(model => model.Grade)
            </div>
        </div>
        <div class="form-group">
            <div class="col-md-10">
                <input type="submit" value="Update" />
            </div>
        </div>
    </div>
}

The code defined above submits the data to the Update method.

Step 3: Now at last add the following code to the DataWebForm's Page_Load() event:

public partial class DataWebForm : System.Web.UI.Page
{
    protected void Page_Load(object sender, EventArgs e)
    {
        if (!string.IsNullOrEmpty(Request.QueryString["cricketerid"]))
        {
            Literal1.Text = "Cricketer" + Request.QueryString["cricketerid"] + "Updated Successfully";
        }
    }
}

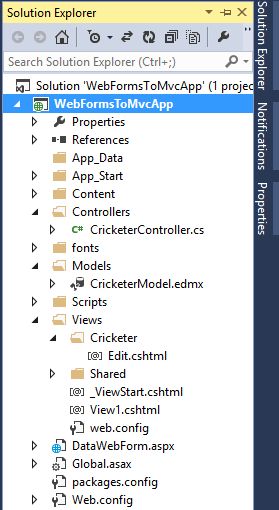

That's it. You can see the following figure of Solution Explorer to view the entire project:

Solution Explorer

Running the Application

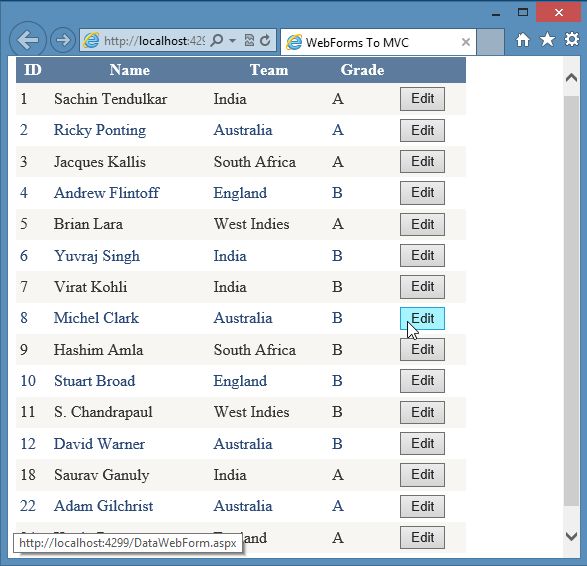

Step 1: Run the DataWebForm and click on the Edit button to update the data

Model Data in WebForm

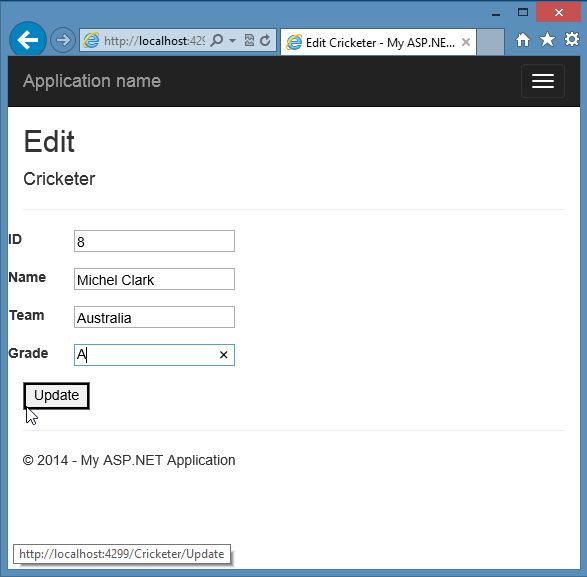

Step 2: Update the info and click on the Update

Update Details in MVC

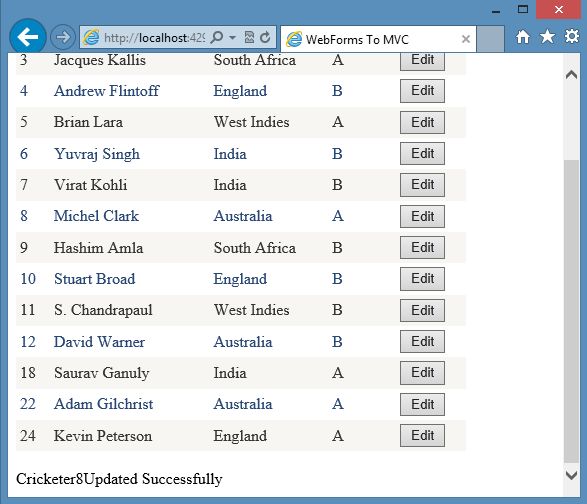

In the next screenshot you can see that the data was updated successfully.

Updated Data

Summary

This article will help you to update the data of an existing Web Forms project from the MVC controller through ASP.NET in Visual Studio 2013. Thanks for reading and Happy Coding.
