Update View Using JSON Data In MVC Using AJAX

Here are the steps,

Step 1: Create the basic structure of your project, View and View Model.

View and View Model

Step 2: Create Controller add Action which will return the JSON result, My Controller is as below. Note I have added action which return the JSON result.
  1. using DropdownGrid.Models;
  2. using System;
  3. using System.Web.Mvc;
  4. namespace DropdownGrid.Controllers
  5. {
  6.     public class JSONANDAJAXDemoController: Controller
  7.     {
  8.         public ActionResult Index()
  9.         {
  10.             MyMultipleUpdateViewModel obj = new MyMultipleUpdateViewModel();
  11.             obj.myTest1ViewModel = new MyTest1ViewModel();
  12.             obj.myTest1ViewModel.MyTestUpdate = "Test1";
  13.             obj.myTest2ViewModel = new MyTest2ViewModel();
  14.             obj.myTest2ViewModel.MyTestUpdate = "Test2";
  15.             return View(obj);
  16.         }
  17.         public JsonResult GetJSONObject()
  18.         {
  19.             MyMultipleUpdateViewModel obj = new MyMultipleUpdateViewModel();
  20.             obj.myTest1ViewModel = new MyTest1ViewModel();
  21.             obj.myTest1ViewModel.MyTestUpdate = "Test1" + DateTime.Now.ToString();
  22.             obj.myTest2ViewModel = new MyTest2ViewModel();
  23.             obj.myTest2ViewModel.MyTestUpdate = "Test2" + DateTime.Now.ToString();
  24.             return Json(obj, JsonRequestBehavior.AllowGet);
  25.         }
  26.     }
  27. }
Step 3: Include jQuery and AJAX in your project.

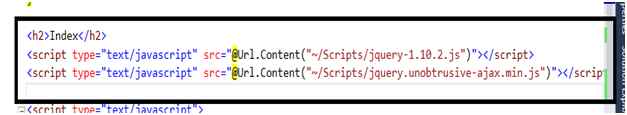

Include Jquery

Case 4
: Give call for your JSON action as in the following way,

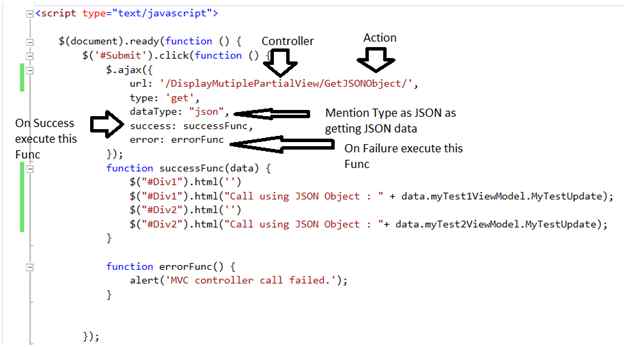

JSON action

This is my AJAX call to JSON action.
  1. <script type="text/javascript">
  2. $(document)
  3.     .ready(function ()
  4.     {
  5.         $('#Submit')
  6.             .click(function ()
  7.             {
  8.                 $.ajax(
  9.                 {
  10.                     url: '/JSONANDAJAXDemo/GetJSONObject/',
  11.                     type: 'get',
  12.                     dataType: "json",
  13.                     success: successFunc,
  14.                     error: errorFunc
  15.                 });
  16.
  17.                 function successFunc(data)
  18.                 {
  19.                     $("#Div1")
  20.                         .html('')
  21.                     $("#Div1")
  22.                         .html("Call using JSON Object : " + data.myTest1ViewModel.MyTestUpdate);
  23.                     $("#Div2")
  24.                         .html('')
  25.                     $("#Div2")
  26.                         .html("Call using JSON Object : " + data.myTest2ViewModel.MyTestUpdate);
  27.                 }
  28.
  29.                 function errorFunc()
  30.                 {
  31.                     alert('MVC controller call failed.');
  32.                 }
  33.             });
  34.     });
  35. </script>
Note: You may add table or design in any form of HTML.

Step 5: Include div’s in your code .
  1. <div id="Div1"> Initial State : @Model.myTest1ViewModel.MyTestUpdate </div>
  2. <div id="Div2"> Initial State : @Model.myTest2ViewModel.MyTestUpdate </div>
  3. <input type="submit" value="Load Json Object Data" id="Submit" />
Step 6: Run the project and click on button you will find the JSON data displaying in the Initial view state.

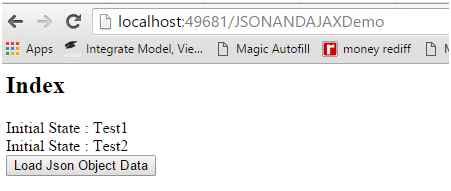

Run the project

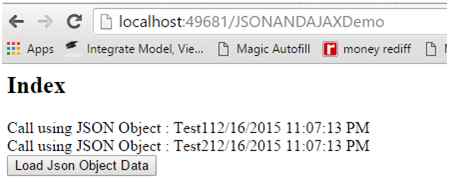

On click load button:

Index
