Assign Different/Multiple IP Address to NIC Network Card in Windows 7

In this article, we will learn how we can assign different /multiple IPs on a single network interface card(Lan card). Using this LAN card user can work with different network

start

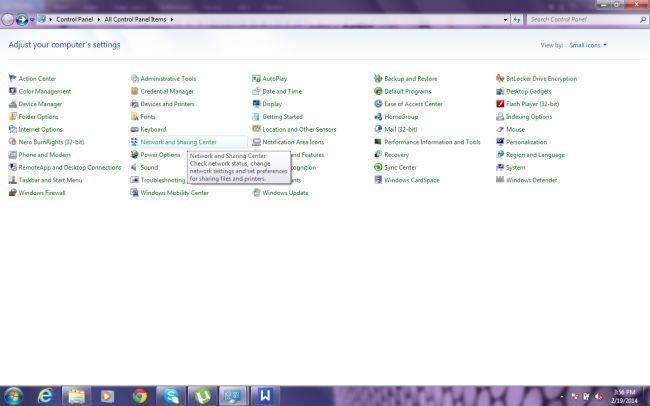

Click on start and go to the control panel

control panel

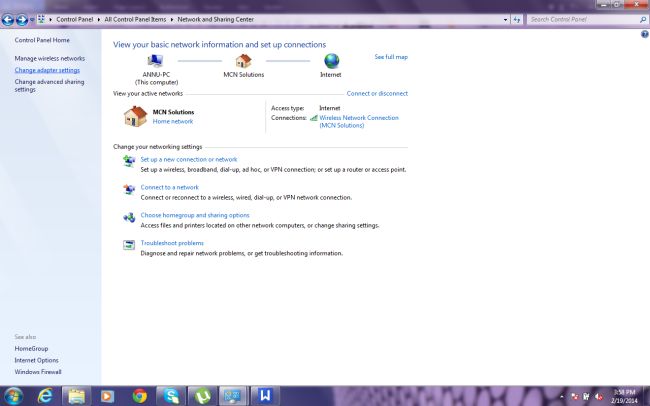

Click on Network and sharing center

Network and sharing center

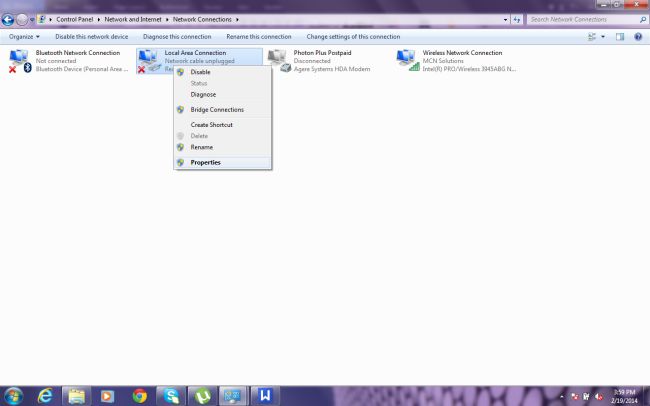

Click on change adapter settings

change adapter settings

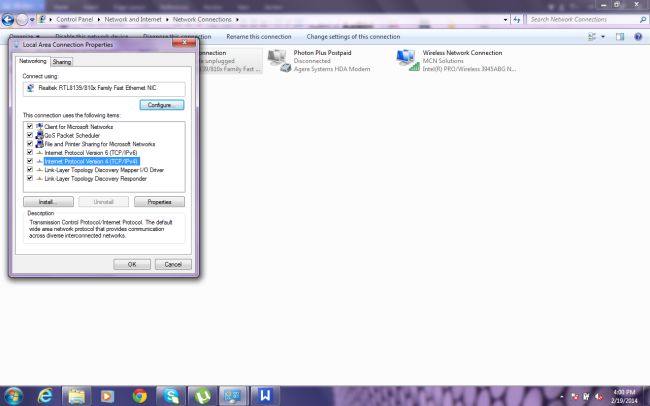

Right click on Local area connection and go to properties

Local area connection properties

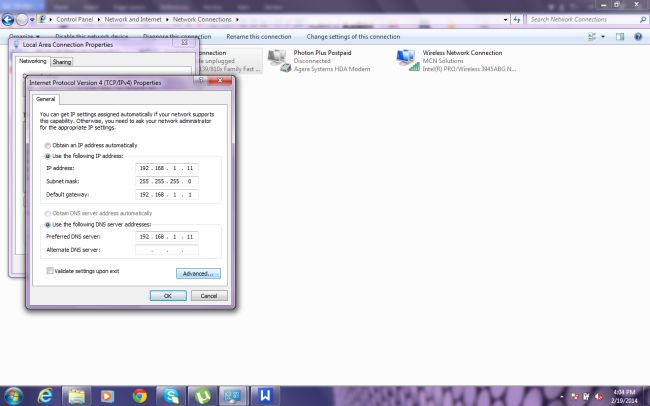

Double click on Internet Protocol Version(TCP/IPV4)

Internet Protocol Version

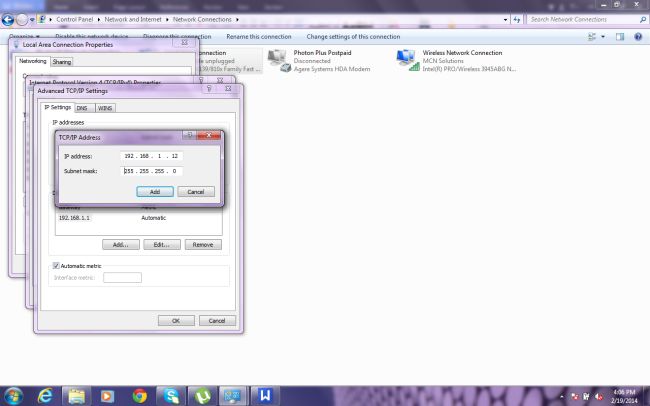

Click on Advance and go to IP Setting then click add ip address

IP Setting

And fill another IP 192.168.1.12 and subnet mask 255.255.255.0 now click on add

fill another ip

You will see two IP address in the IP address list;

Similarly, you can add multiple IP's, gateways IP's, and DNS IP's for a single network card.
