How to Mail the Grid in ASP.Net by Using C#

Today I'm explaining how to mail a Grid in ASP.Net using C#.

First of all I'm creating one table (tblstudent) and inserting 3 records.

  1. USE [csharp]
  2. GO
  3. SET ANSI_NULLS ON
  4. GO
  5.
  6. SET QUOTED_IDENTIFIER ON
  7. GO
  8.
  9. SET ANSI_PADDING ON
  10. GO
  11.
  12. CREATE TABLE [dbo].[tblstudent](
  13.     [id] [int] IDENTITY(1,1) NOT NULL,
  14.     [Name] [varchar](100) NOT NULL,
  15.     [MobileNo] [varchar](100) NOT NULL,
  16.     [EmailId] [varchar](100) NOT NULL,
  17.     [Address] [varchar](200) NOT NULL,
  18.  CONSTRAINT [PK_tblstudent] PRIMARY KEY CLUSTERED
  19. (
  20.     [id] ASC
  21. )WITH (PAD_INDEX  = OFF, STATISTICS_NORECOMPUTE  = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS  = ON, ALLOW_PAGE_LOCKS  = ONON [PRIMARY]
  22. ON [PRIMARY]
  23.
  24. GO
  25.
  26. SET ANSI_PADDING OFF
  27. GO

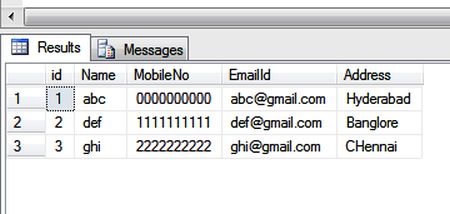

query results

Now I'm creating a project named “MailTheGrid”. Right-click in the project and add one WebForm and name it grid.aspx.

Grid.aspx

  1. <%@ Page Language="C#" AutoEventWireup="true" CodeBehind="grid.aspx.cs" Inherits="MailTheGrid.grid" %>
  2.
  3. <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
  4.
  5. <html xmlns="http://www.w3.org/1999/xhtml">
  6. <head runat="server">
  7.     <title></title>
  8. </head>
  9. <body>
  10.     <form id="form1" runat="server">
  11.     <div>
  12.         <asp:GridView ID="GridView1" runat="server" CellPadding="4" ForeColor="#333333"
  13.             GridLines="None">
  14.             <AlternatingRowStyle BackColor="White" />
  15.             <FooterStyle BackColor="#990000" Font-Bold="True" ForeColor="White" />
  16.             <HeaderStyle BackColor="#990000" Font-Bold="True" ForeColor="White" />
  17.             <PagerStyle BackColor="#FFCC66" ForeColor="#333333" HorizontalAlign="Center"             />
  18.             <RowStyle BackColor="#FFFBD6" ForeColor="#333333" />
  19.             <SelectedRowStyle BackColor="#FFCC66" Font-Bold="True" ForeColor="Navy" />
  20.             <SortedAscendingCellStyle BackColor="#FDF5AC" />
  21.             <SortedAscendingHeaderStyle BackColor="#4D0000" />
  22.             <SortedDescendingCellStyle BackColor="#FCF6C0" />
  23.             <SortedDescendingHeaderStyle BackColor="#820000" />
  24.         </asp:GridView>
  25.     </div>
  26.     </form>
  27. </body>
  28. </html>

Grid.aspx.cs

Before mailing the grid we need to put data in the Grid View. For that I'm using the following function.

  1. public void BindDataToGrid()
  2. {
  3.     SqlConnection conn = new SqlConnection(connec);
  4.     SqlCommand cmd = new SqlCommand();
  5.     cmd.Connection = conn;
  6.     cmd.CommandText = "select * from tblstudent";
  7.     cmd.CommandType = CommandType.Text;
  8.     DataSet ds = new DataSet();
  9.     SqlDataAdapter da = new SqlDataAdapter();
  10.     da.SelectCommand = cmd;
  11.     da.Fill(ds);
  12.     GridView1.DataSource = ds;
  13.     GridView1.DataBind();

Now the Grid View has some data. Now we will see how to mail this data.

Here I'm writing a function to mail.

  1. public void SendHTMLMail()
  2. {
  3.      MailMessage Msg = new MailMessage();
  4.      MailAddress fromMail = new MailAddress("[email protected]");
  5.      Msg.From = fromMail;
  6.      Msg.To.Add(new MailAddress("[email protected]"));
  7.      // Subject of e-mail
  8.      Msg.Subject = "Mail the Grid " + DateTime.Now.AddDays(-1).ToString("dd/MMM/yyyy");
  9.      Msg.Body = GetGridviewData(GridView1);
  10.      Msg.Body += "<br/> Thank & Regards,<br/>Venkat Kumar Chigulla ";
  11.      Msg.IsBodyHtml = true;
  12.      SmtpClient a = new SmtpClient();
  13.      a.Host = "smtpout.secureserver.net";
  14.      a.EnableSsl = false;
  15.      NetworkCredential NetworkCred = new NetworkCredential();
  16.      NetworkCred.UserName = Msg.From.Address;
  17.      NetworkCred.Password = "abc";
  18.      a.UseDefaultCredentials = true;
  19.      a.Credentials = NetworkCred;
  20.      a.Port = 3535;
  21.      a.Send(Msg); //sending Email

If you observe closely, the preceding function is calling GetGridViewData().

  1. // This Method is used to render gridview control
  2. public string GetGridviewData(GridView gv)
  3. {
  4.      StringBuilder strBuilder = new StringBuilder();
  5.      StringWriter strWriter = new StringWriter(strBuilder);
  6.      HtmlTextWriter htw = new HtmlTextWriter(strWriter);
  7.      gv.RenderControl(htw);
  8.      return strBuilder.ToString();

Here we have one override method that will verify whether or not the control is rendered.

  1. public override void VerifyRenderingInServerForm(Control control)
  2. {
  3.      /* Verifies that the control is rendered */

Now call the BindDataToGrid() and SendHTMLMail() functions in the page load event.

  1. string connec = ConfigurationManager.ConnectionStrings["conn"].ConnectionString;
  2. protected void Page_Load(object sender, EventArgs e)
  3. {
  4.      if (Page.IsPostBack == false)
  5.      {
  6.          BindDataToGrid();
  7.          SendHTMLMail();
  8.      }
  9. }

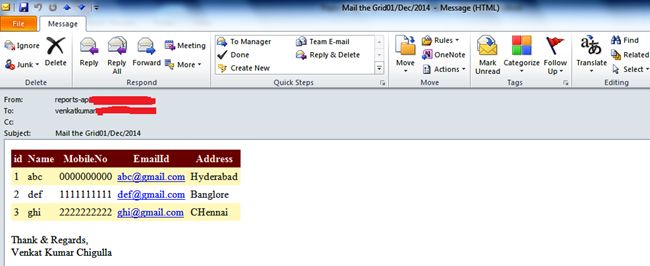

output
