LongListSelector in Windows Phone 8 is a very flexible control. You can use this control to implement Grouping of Items in the list.

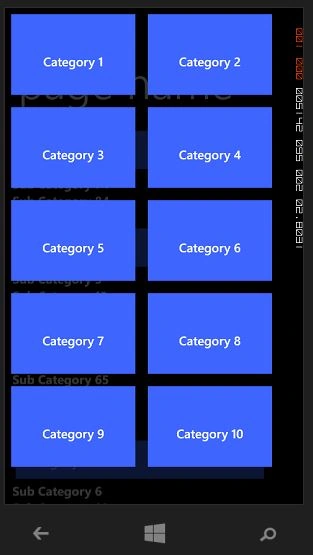

Let us say we have some Categories and associated Sub-Categories as shown in the emulator snapshot below:
XAML
Add a DataContext to phone:PhoneApplicationPage, I have used the MVVM Pattern.
  1. DataContext="{Binding CatSubCat, Source={StaticResource Locator}}"
LongListSelector:
  1. <phone:LongListSelector ItemsSource="{Binding Categories}"
  2. JumpListStyle="{StaticResource CategoryJumpListStyle}"
  3. Background="Transparent"
  4. GroupHeaderTemplate="{StaticResource CategoryHeaderTemplate}"
  5. ItemTemplate="{StaticResource SubCategoryItemTemplate}"
  6. LayoutMode="List"
  7. IsGroupingEnabled="true"
  8. HideEmptyGroups ="true"/>
So we need CategoryJumpListStyle, CategoryHeaderTemplate, and SubCategoryItemTemplate.
Add them in PhoneApplicationPage.Resources as in the following:
  1. <phone:PhoneApplicationPage.Resources></phone:PhoneApplicationPage.Resources>
CategoryJumpListStyle :
  1. <phone:JumpListItemBackgroundConverter x:Key="BackgroundConverter"/>
  2. <phone:JumpListItemForegroundConverter x:Key="ForegroundConverter"/>
  3. <Style x:Key="CategoryJumpListStyle" TargetType="phone:LongListSelector">
  4. <Setter Property="GridCellSize" Value="220,150"/>
  5. <Setter Property="LayoutMode" Value="Grid" />
  6. <Setter Property="ItemTemplate">
  7. <Setter.Value>
  8. <DataTemplate>
  9. <Border Background="{Binding Converter={StaticResource BackgroundConverter}}" Height="150" Margin="10" >
  10. <TextBlock TextWrapping="Wrap" Text="{Binding CategoryName}" FontFamily="{StaticResource PhoneFontFamilySemiBold}" FontSize="20" Padding="6"
  11. Foreground="{Binding Converter={StaticResource ForegroundConverter}}" TextAlignment="Center" VerticalAlignment="Center"/>
  12. </Border>
  13. </DataTemplate>
  14. </Setter.Value>
  15. </Setter>
  16. </Style>
CategoryHeaderTemplate :
  1. <DataTemplate x:Key="CategoryHeaderTemplate">
  2. <Border Background="Transparent" Padding="5">
  3. <Border Background="{StaticResource PhoneAccentBrush}" BorderBrush="{StaticResource PhoneAccentBrush}" BorderThickness="2" Width="400"
  4. Height="62" Margin="0,0,18,0" HorizontalAlignment="Left">
  5. <TextBlock Text="{Binding CategoryName}" Foreground="{StaticResource PhoneForegroundBrush}" FontSize="24" Padding="6"
  6. FontFamily="{StaticResource PhoneFontFamilySemiLight}" HorizontalAlignment="Left" VerticalAlignment="Center"/>
  7. </Border>
  8. </Border>
  9. </DataTemplate>
SubCategoryItemTemplate:
  1. <DataTemplate x:Key="SubCategoryItemTemplate">
  2. <StackPanel VerticalAlignment="Top">
  3. <TextBlock FontWeight="Bold" Text="{Binding SubCategoryName}" />
  5. </StackPanel>
  6. </DataTemplate>
Code:
LongListSelector for grouping needs an object of type: List<List<T>>.

In our case we use List<T> as in the following:
  1. public class SubCategoryGroup : List<SubCategory>
  2. {
  3. public string CategoryName { get; set; }
  5. public SubCategoryGroup(IEnumerable<SubCategory> subCategoryList,string Name)
  6. {
  7. this.CategoryName = Name;
  8. this.AddRange(subCategoryList);
  9. }
  10. }
And our View Model should return List<List<T>> (in our case List<SubCategoryGroup>) as in the following:
  1. public class CatSubCatViewModel : ViewModelBase
  2. {
  3. IRepository db;
  4. public List<SubCategoryGroup> Categories { get; set; }
  5. public CatSubCatViewModel(IRepository _db)
  6. {
  7. db = _db;
  8. Categories = new List<SubCategoryGroup>();
  10. var allCategories = db.GetAllCategories();
  12. var allSubCategories = db.GetAllSubCategories();
  14. foreach (var categoryItem in allCategories)
  15. {
  16. Categories.Add(new SubCategoryGroup(allSubCategories.Where(p => p.CategoryId == categoryItem.CategoryId),categoryItem.CategoryName));
  17. }
  18. }
  21. }
So we have used the Categories Property to contain a List<SubCategoryGroup> that we directly bind to our LongListSelector.
That's all about the basics, you can customize it more depending on your requirements. I hope the article is helpful. Happy WP Coding!
