Display Records Using TreeView in ASP.Net C#

This article shows how to show our records in a tree view using ASP.NET C#.

The following is my Data table design.

design view
                                                   Image 1

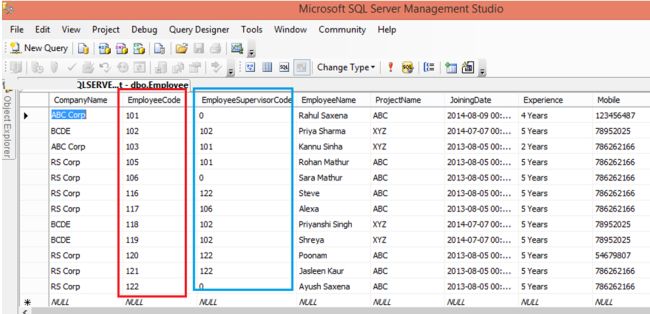

The following  are the records in my Data Table:

table record
                                                                                    Image 2

Here I have Employees and their SupervisorEmployee relationship.

The following is my aspx code:

  1. <%@ Page Language="C#" AutoEventWireup="true" CodeFile="Default.aspx.cs" Inherits="_Default" %>
  2.
  3. <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
  4. <html xmlns="http://www.w3.org/1999/xhtml">
  5. <head runat="server">
  6.     <title>Tree View Example in ASP.NET C#</title>
  7. </head>
  8. <body>
  9.     <form id="form1" runat="server">
  10.     <table cellpadding="4" cellspacing="4" width="50%" align="center" style="background-color: SkyBlue;">
  11.         <tr>
  12.             <td align="center" style="font-family: Times New Roman; font-size: 14pt; color: Green;">
  13.                 <h3>
  14.                     Team Leader and their Team Employee Information</h3>
  15.             </td>
  16.         </tr>
  17.         <tr>
  18.             <td style="background: #F5F5F5; padding-left: 30px;">
  19.                 <asp:TreeView ID="TreeView1" runat="server" ImageSet="XPFileExplorer" NodeIndent="15">
  20.                     <HoverNodeStyle Font-Underline="True" ForeColor="#6666AA" />
  21.                     <NodeStyle Font-Names="Tahoma" Font-Size="8pt" ForeColor="Black" HorizontalPadding="2px"
  22.                         NodeSpacing="0px" VerticalPadding="2px"></NodeStyle>
  23.                     <ParentNodeStyle Font-Bold="False" />
  24.                     <SelectedNodeStyle BackColor="#B5B5B5" Font-Underline="False" HorizontalPadding="0px"
  25.                         VerticalPadding="0px" />
  26.                 </asp:TreeView>
  27.             </td>
  28.         </tr>
  29.     </table>
  30.     </form>
  31. </body>
  32. </html>
Now, my aspx.cs code:
  1. using System;
  2. using System.Configuration;
  3. using System.Data;
  4. using System.Linq;
  5. using System.Web;
  6. using System.Web.Security;
  7. using System.Web.UI;
  8. using System.Web.UI.HtmlControls;
  9. using System.Web.UI.WebControls;
  10. using System.Web.UI.WebControls.WebParts;
  11. using System.Xml.Linq;
  12. using System.Data.SqlClient;
  13. using System.Configuration;
  14.
  15. public partial class _Default : System.Web.UI.Page
  16. {
  17.     protected void Page_Load(object sender, EventArgs e)
  18.     {
  19.         if (!this.IsPostBack)
  20.         {
  21.             DataTable dt = this.GetData("SELECT EmployeeCode, EmployeeName FROM Employee Where EmployeeSupervisorCode=0");
  22.             this.PopulateTreeView(dt, 0, null);
  23.         }
  24.     }
  25.
  26.     private void PopulateTreeView(DataTable dtParent, int parentId, TreeNode treeNode)
  27.     {
  28.         foreach (DataRow row in dtParent.Rows)
  29.         {
  30.             TreeNode child = new TreeNode
  31.             {
  32.                 Text = row["EmployeeName"].ToString(),
  33.                 Value = row["EmployeeCode"].ToString()
  34.             };
  35.             if (parentId == 0)
  36.             {
  37.                 TreeView1.Nodes.Add(child);
  38.                 DataTable dtChild = this.GetData("SELECT EmployeeCode, (EmployeeName+ ', '+ Experience + ', '+ Address) As EmployeeName FROM Employee WHERE EmployeeSupervisorCode = " + child.Value);
  39.                 PopulateTreeView(dtChild, int.Parse(child.Value), child);
  40.             }
  41.             else
  42.             {
  43.                 treeNode.ChildNodes.Add(child);
  44.             }
  45.         }
  46.     }
  47.
  48.     private DataTable GetData(string query)
  49.     {
  50.         DataTable dt = new DataTable();
  51.         string constr = @"Server=MyPC\SqlServer2k8;database=Test;Integrated Security=true;";
  52.         using (SqlConnection con = new SqlConnection(constr))
  53.         {
  54.             using (SqlCommand cmd = new SqlCommand(query))
  55.             {
  56.                 using (SqlDataAdapter sda = new SqlDataAdapter())
  57.                 {
  58.                     cmd.CommandType = CommandType.Text;
  59.                     cmd.Connection = con;
  60.                     sda.SelectCommand = cmd;
  61.                     sda.Fill(dt);
  62.                 }
  63.             }
  64.             return dt;
  65.         }
  66.     }
  67. }
Now, run the application:

tree view example
                                                                           Image 3
