Cascading Drop-Down List in SharePoint 2010 List Using jQuery

This article explains how to implement a Cascading Drop-Down List in a SharePoint 2010 List using jQuery and Sp services.

Introduction

This article explains how to implement a Cascading Drop-Down List in a SharePoint 2010 List using jQuery and Sp services.

To implement a Cascading Drop-Down List in a SharePoint 2010 List using jQuery and Sp services use the following procedure.

Object

  1. Create a Country custom list:

    Country List

  2. Create a State Custom list: with a Country lookup column:

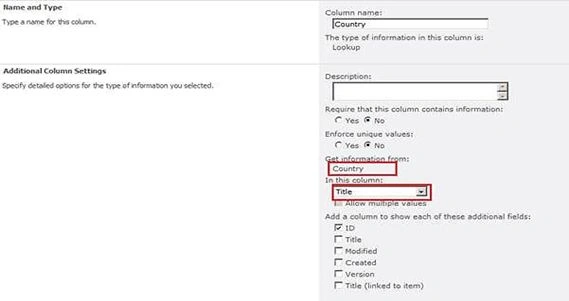

    State Column List

    Look up Column Settings:

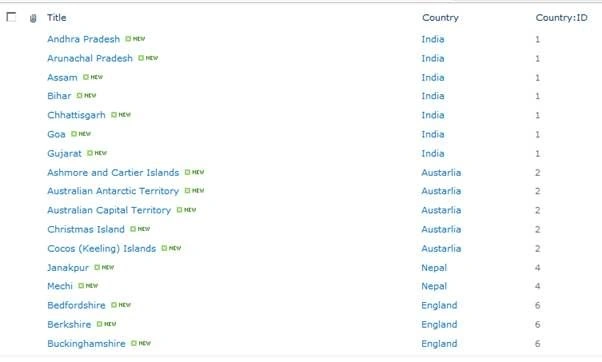

    State List

    State List

  3. Create a CascadeDropDownList with Country and State lookup columns.

  4. Select the Default New Form under the List tab of the newly created List CascadeDropDownList.

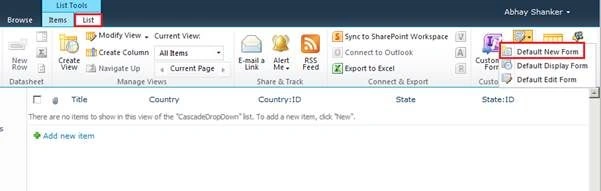

    Default New Form

  5. Add a Content Editor Web part and select Edit HTML Source under the Format Text Tab.

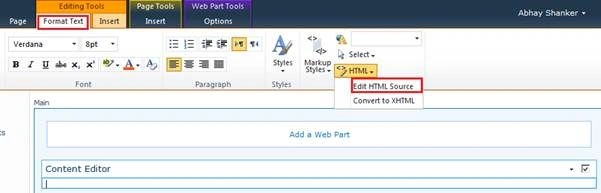

    HTML Source in Form

  6. Copy and Paste the following code in the HTML Editor:
    1. <script language="javascript" src="/JSLibrary/jquery-1.4.2.min.js" type="text/javascript">
    2. </script> <script language="javascript" src="/JSLibrary/jquery.SPServices-0.5.7.min.js" type="text/javascript"></script>
    3. <script type="text/javascript">
    4.
    5.   $(document).ready(function() {
    6.
    7.             $().SPServices.SPCascadeDropdowns({
    8.
    9.                 relationshipList: "State",
    10.
    11.                 relationshipListParentColumn: "Country",
    12.
    13.                 relationshipListChildColumn: "Title",
    14.
    15.                 relationshipListSortColumn: "ID",
    16.
    17.                 parentColumn: "Country",
    18.
    19.                 childColumn: "State",
    20.
    21.                 promptText: "Choose State...",
    22.
    23.                 debug: true
    24.
    25.             });
    26.
    27. });
    28. </script>

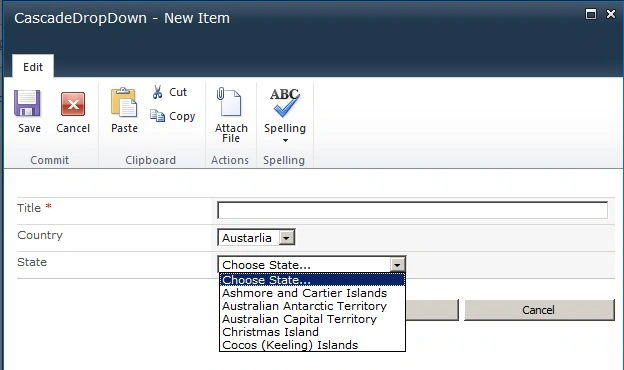

            Cascade Drop DownList

Summary

In some scenario we need to implement a cascading type of concept in OOB forms as for example by selecting a Country's respective states or cities. It's not easier in SharePoint.
