Abstract

In this article, we will discuss what was presented in the session for ASP.NET in Delhi Developer's day held on November 15, 2014.

It was an awesome event where all developers united under a common platform. All enjoyed and tried to explore their knowledge of ASP.NET MVC.

In this session, we covered the very basics of ASP.NET MVC, that is a very important build foundation of the ASP.NET MVC framework.

Here are the topics we covered in this session:

Introduction to MVC

A background to ASP.Net MVC:

Is an open source and the code is available in Code Plex (In 2009 it was released under the Microsoft Public License and in 2012 it was released under the Apache License 2.0).

We can simply say that ASP.NET MVC is a framework that provides us the ability to create a web project, web application (called Rapid Application Development (RAD)).

Why MVC

Take a moment and think about the valuable Software Pattern Model-View-Controller. We can also predicts from the image that the MVC pattern divides a software application into three interconnected parts/components. Basically, it's a concept of separation (here just separation of internal representation of information from ways/logics/techniques how it is being represented to the end-user).

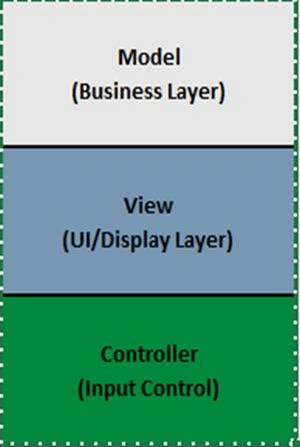

MVC

FIGURE 1: DEFINING MVC

As in the preceding image, let's elaborate on Model View Controller (MVC).

A Controller can send commands/directions to the model to update its state as well as commands to the view.

Associated views and the controller are notified by the Model as in changes of its state.

The Model provides a specific result as an output upon the request of the View to represent:

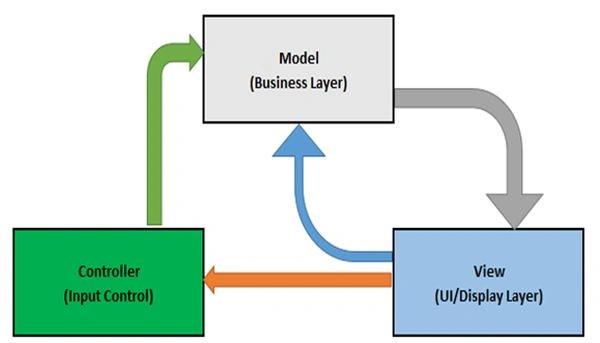

DEFINING MVC

FIGURE 2: DEFINING MVC

Let's understand this from the above associated image.

In simple words, we can say that MVC is providing a facility to make our layers separate that are separated and interacting with each other.

ASP.NET MVC over ASP.NET Web-Forms

There are numerous reasons to choose ASP.Net for web development over ASP.Net Web Forms:

Flexibility (provides various view engines that render HTML; Razor View Engine is the most famous).

Let's think of a scenario where we are writing an application in ASP.NET Web Forms. There are two classes for one thing. Let's say a default page that includes Default.aspx and Default.aspx.cs pages and our designer page.

A designer page has all the server control and aspx pages, that contain visualization of our server controls (UI part) and finally our cs page (class) contains all the functionality and other logic. Our class is based on an ASP.NET Page lifecycle (for complete details refer to: ASP.NET Page Life Cycle Overview).

We can't completely test our Web-Forms. To make it properly testable at some instance, we need to implement some other UI Design pattern such as MVP, MVVM or MVC.

If we are implementing the MVC UI Pattern to our Web Forms then why don't we use the ASP.NET MVC framework that already uses this pattern and provides everything required to create web apps?

Overview of Model View Controller

"This section of the session was a part of great discussion, what we learned until now. Please comment in this article what we discussed (all queries and so on). I'll update this section later."

Here is the conclusion that we discussed (for the ASP.Net MVC framework).

Models

Views

Controllers

Overview working of MVC

In the following we will explore MVC more:

REQUEST RESPONSE

FIGURE 3: REQUEST RESPONSE

High level overview says: the browser sends a request to ASP.Net MVC and it returns a response back to the browser (the request is a HTTP request and the response is a HTTP response).

WORKING OF ASP.NET MVC

FIGURE 4: WORKING OF ASP.NET MVC

In a broader way: The first request comes to the Route Tables then passes to a specific controller before interaction with the Model Binding. It goes through Authentication and Authorization and afterwards fires a specific Action Method and executes the results to the View.

Overview of routes collection

In simple words, the routes collection (we also can say Route table) is nothing but a collection of routes.

Routes

A system works on a pattern matching mechanism. A route matches an incoming request to meet a specific pattern and allows once matched else denied.

What happens at runtime

At runtime, the routing engine uses a route table (contains various routes) to match incoming URLs with the defined route patterns (URL patterns).

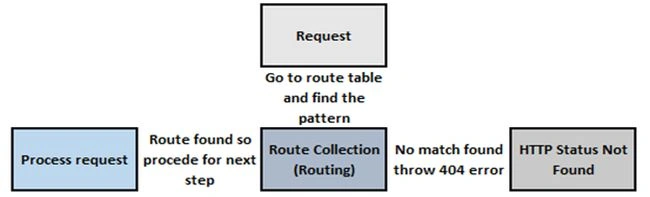

ROUTE COLLECTION

FIGURE 5: ROUTE COLLECTION

In the above image, the URL will be processed if any match is found else it will throw the HTTP Status code Not Found (404 error).

Example of typical route collections:

public class RouteConfig
{
    public static void RegisterRoutes(RouteCollection routes)
    {
        routes.IgnoreRoute("{resource}.axd/{*pathInfo}");

        routes.MapRoute(
            name: "Default",
             url: "{controller}/{action}/{id}",
            defaults: new { controller = "Home", action = "Index", id = UrlParameter.Optional }
            );
    }
}

Conclusion

In this very first session, we covered: ASP.Net MVC Series For Beginners: Part 1
