ASP.Net MVC4, a Walk-Through

MVC specifies options for how the project should be created.

Application Templates

There are several templates available in ASP.NET MVC 4 development work. These templates are as follows:

• The internet application template
• The intranet application template
• The basic template
• The empty template
• The mobile application template
• The web API template

The internet application template

The intranet application template was added as part of the AS.NET MVC 3 tools update. It is similar to an internet application template. But the account management functions run against Windows accounts rather than the ASP.NET membership system.

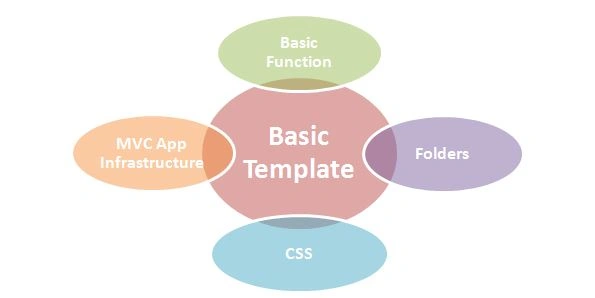

The basic template

The template is pretty minimal. It still contains:

Running an application created using the empty template that gives you an error message.
The basic template is intended for experienced MVC developers who want to set up and configure how you want them to be.

The Empty Template

In the most general cases the basic Template is called the Empty Template, but developers have some issues regarding this matter. They complained that:
"It wasn't quite empty enough, with MVC 4, the previous empty template was renamed BASIC and the new Empty Template is about as empty as you can get."

The mobile application template is re-configured with jQuery mobile to jump-start creating a mobile only website. It includes these most important base structures or we can say the functionalities:

The ASP.NET Web API is nothing but a framework for creating HTTP services. The web API template is similar to the internet application template.
Web API functionality is also available in the other MVC project templates and even in non-MVC project types.

Razor View Engine (RVE)

The Razor View Engine is one of the most popular and utilitarian features that existed in MVC 3. Further, it is developed for more advanced functionality in MVC 4.

The razor engine has been the first major update to rendering HTML since ASP.NET 1 shipped almost a decade ago. It was something new that developers were looking for, none at that time was familiar with the fact that this "Razor Engine, that is neither a new language nor a puppet or a framework" will be a trump card of MVC in developing network based applications.

The default view engine used in MVC 1 and MVC 2 for rendering functionality was commonly called the Web Forms View Engine, because it applies the same aspx/ascx/master files and syntax generally used in web courses.

It was planned to support editing controls in a graphical editor or any editor that can be utilized for delivering functionality.

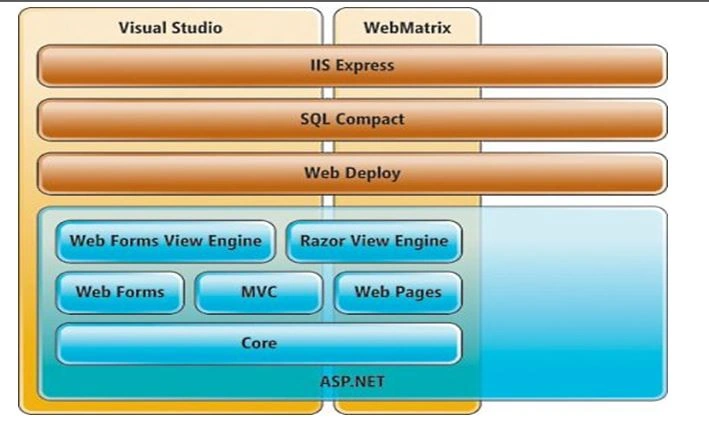

Structure View | RVE

The structural position of a Razor engine is something like:

(For a more elaborate survey of the Razor View Engine, please proceed through this article link:

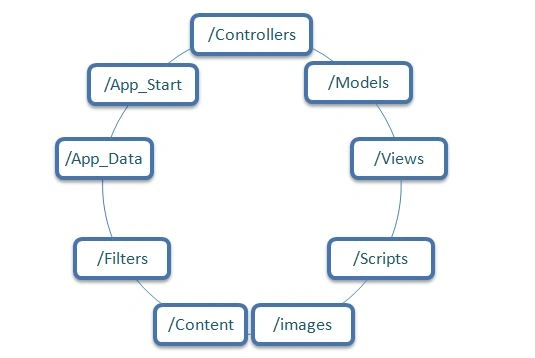

MVC Application Structure

When you create a new MVC application with Visual Studio, it automatically adds several files and directories to the project.

· /Controllers

It is the directory where you place your controller classes that handle the URL requests. When we expand the controller directory, it shows two sub controller directories:

• HomeController
• AccountController

· /Models

It is the directory where you place your classes that represent and manipulate data and business objects. It contains three sub-directories:

• Account
• Home
• Shared

· /View

It is the directory where you place your UI template files that are responsible for rendering output, such as HTML.

· /Scripts

It is the directory where you place your JavaScript library files and scripts.

· /Images

It is the directory where you place your images being used in site.

· /Content

It is the directory where you place your CSS and other site content, other than scripts and images used.

· /Filters

It is the directory where you place your filter code. A Filter is an advanced feature of MVC. It is useful with MVC 4.

· /App_Data

It is the directory where you place your data files, on which you need to perform Read/Write operations.

· /App_Start

It is the directory where you place your configuration code for features like:

• Routing
• Bundling
• Web API
