Introduction

In the previous article, we learned about the code-first approach of the Entity Framework. A Simple Step to Entity Framework: Code First Approach.
Now we are discussing the database first approach.
This approach uses the development scenario of our database is already developed and we have an existing database and we need to go directly to the coding part. So we can directly create the EDMX for the existing database and we have the option to update the data model when the database schema is changed.
A quick start
Create an application.
asp web form

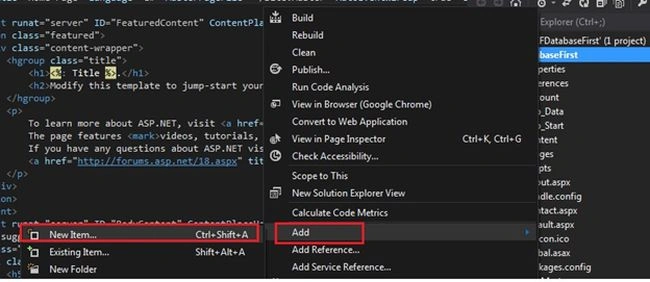

Add a new item to the project.
add new item
Add an ADO.NET Entity Data Model.
ado dot net

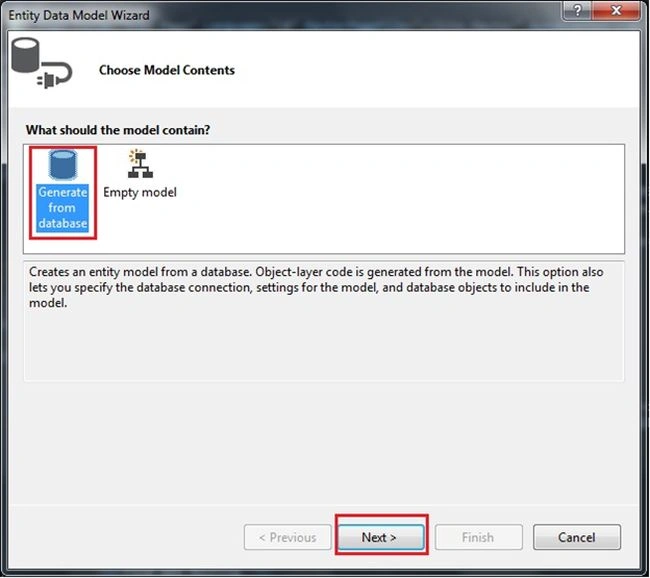

Select the option Generate from Database and click on the Next button.
generate form database
Click on the New Connection button.
new connection

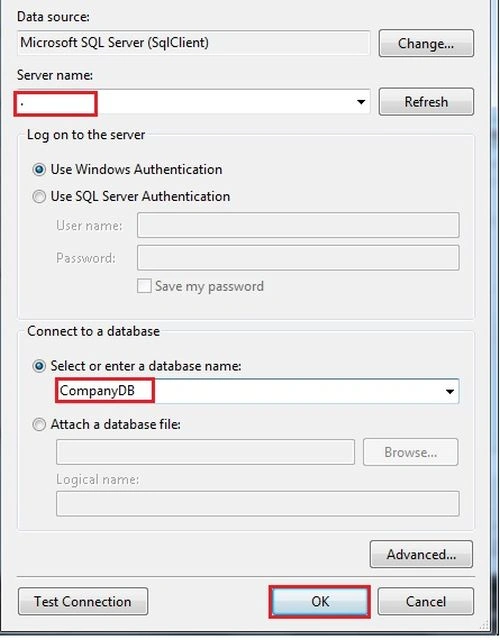

Enter the credentials of the database server and select the database name in this wizard.
select database

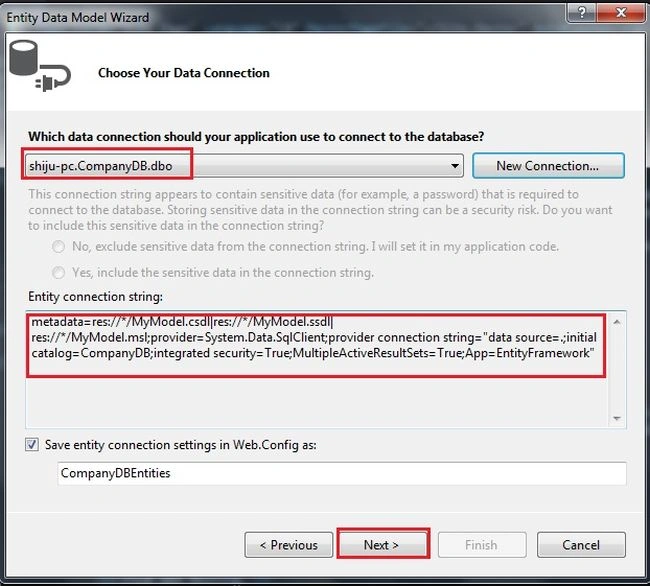

Our connection details will show in the next wizard. Click on the Next button.
connection string

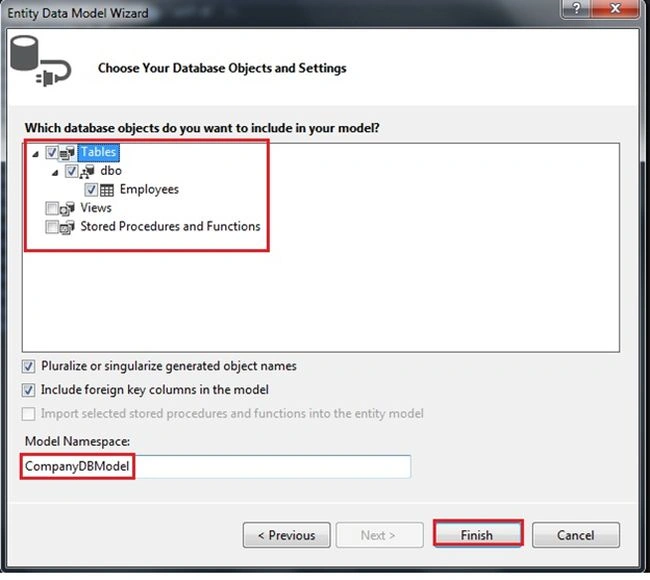

In this wizard, we have the option to select the tables, views, Stored Procedures, and functions. Click on the Finish button.
select table

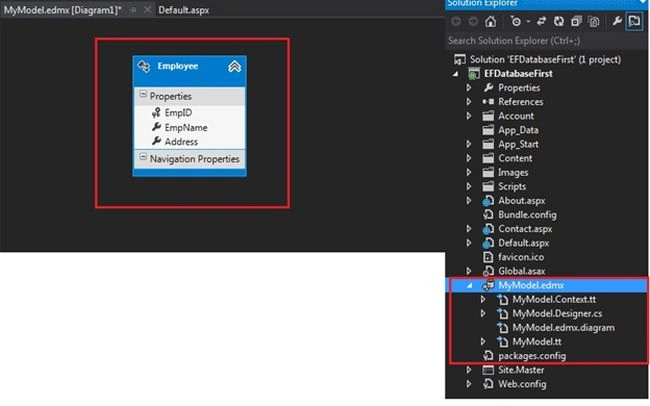

Now our EDMX s created.
model
Right-click on the diagram; we can see many options for managing the EDMX.
nevigation properties

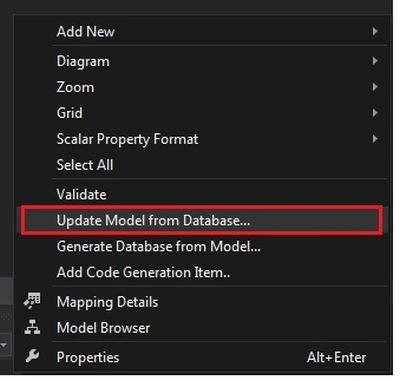

Here one of the options is Update Model from Database, it is for updating the model when we have changed in the database schema.
update model

Conclusion

In this article, we learned the basic details of the Database First Approach of the Entity Framework.
