Introduction

In the previous articles we learned about the Code First Approach and Database First Approach of Entity Framework.

The Model First Approach provides the option to create entities and relationships directly on the design interface of the EDMX and then we can execute it.

A quick start

Create an application.

Create an application

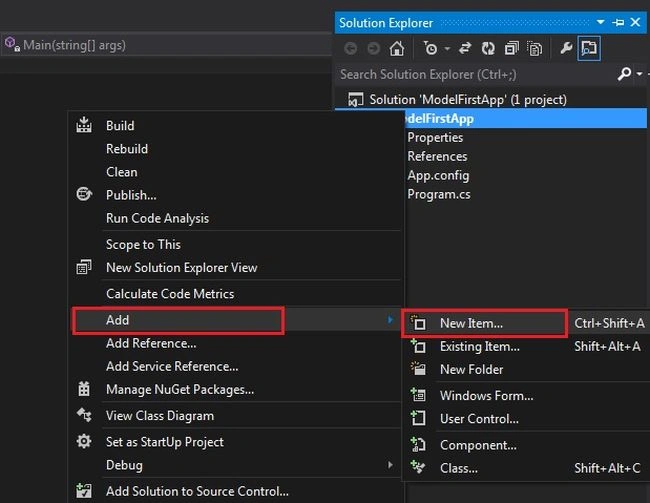

Add new item.

Add new item

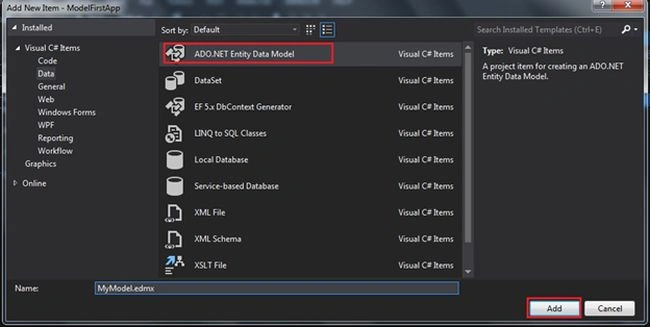

Add ADO.NET Entity Data Model.

Entity Data Model

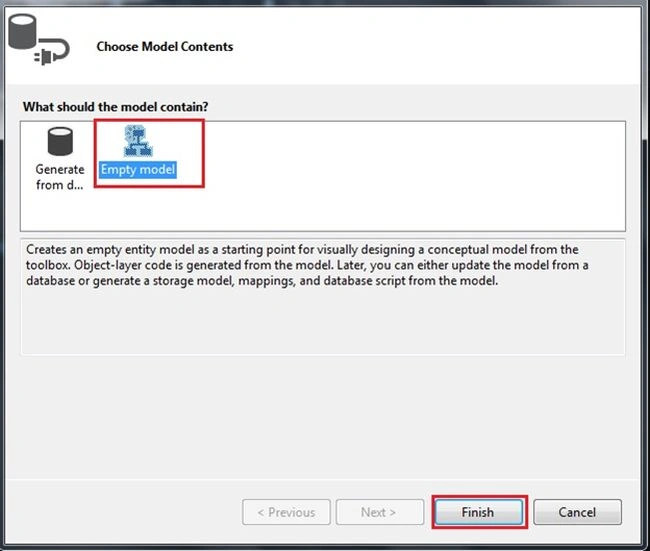

Select Empty Model.

Select Empty Model

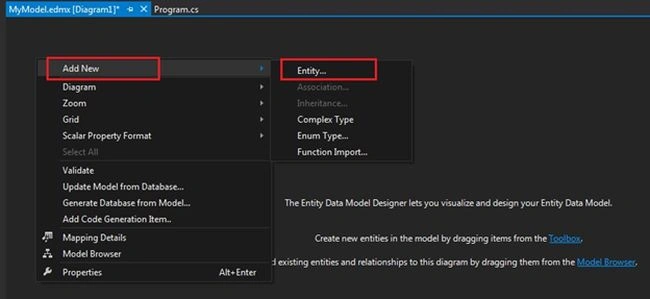

Right-click on the designer then select Add New => Entity.

Add New Entity

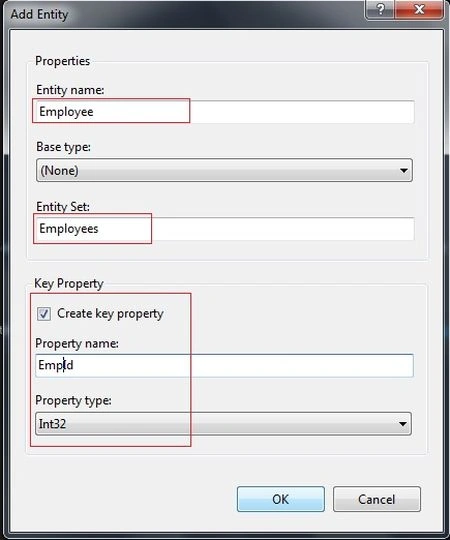

Enter the entity name in this Wzard.

Enter the entity name

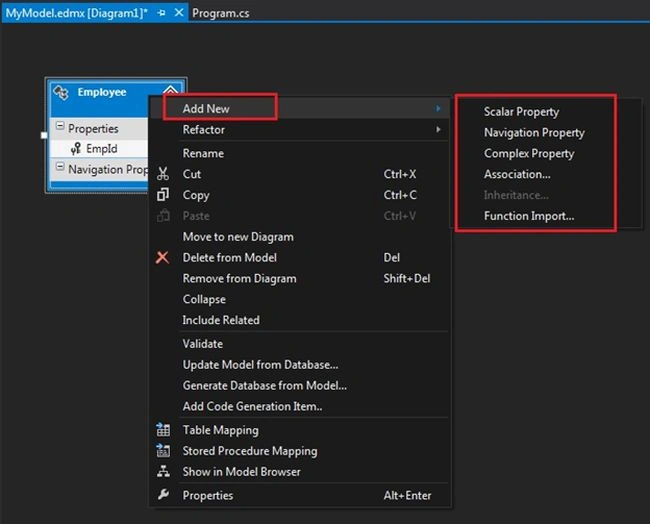

Right-click and add the new scalar property.

add new scalar property

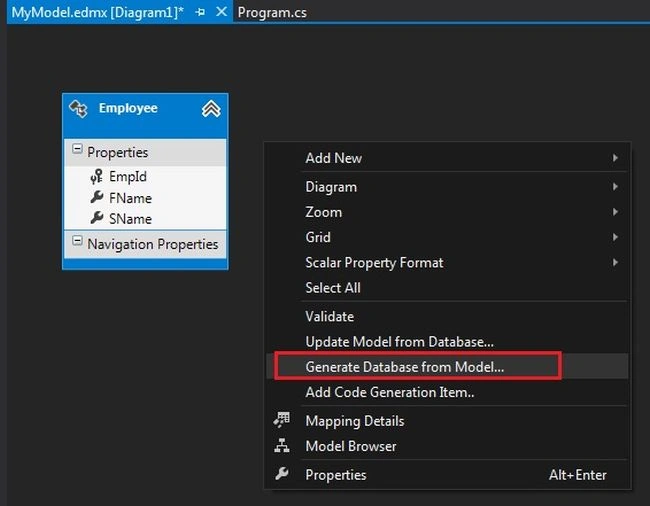

Then click on the option Generate Database from Model.

Generate Database from Model

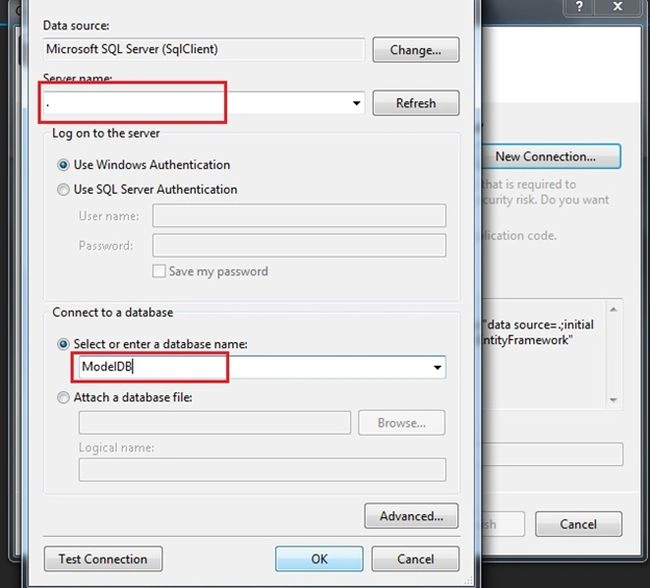

Enter the Sever details and DB Name.

server name

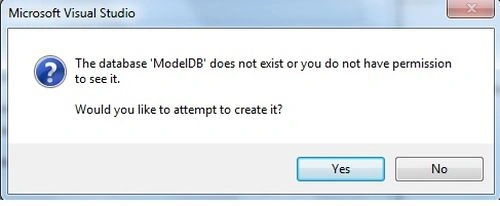

Sever details

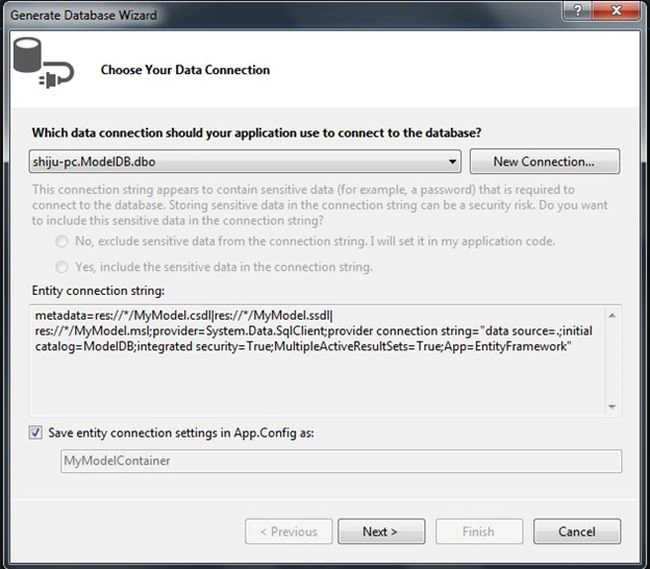

Our connection details are here.

connection details

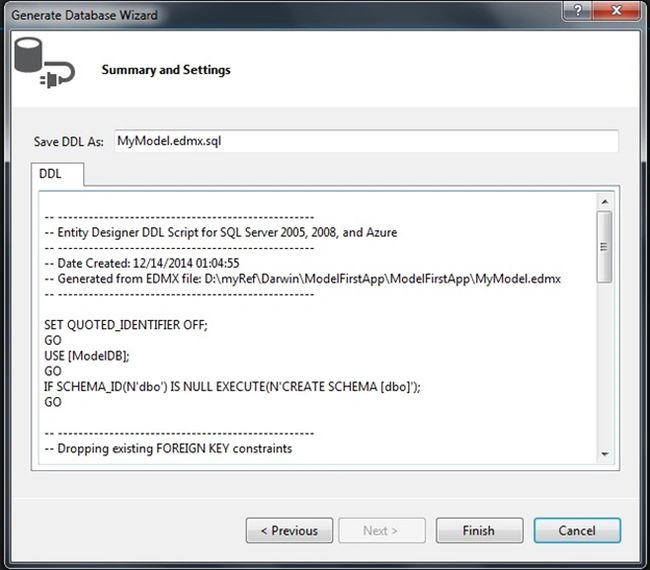

In the Summary and Settings, click on Finish.

Summary of settings

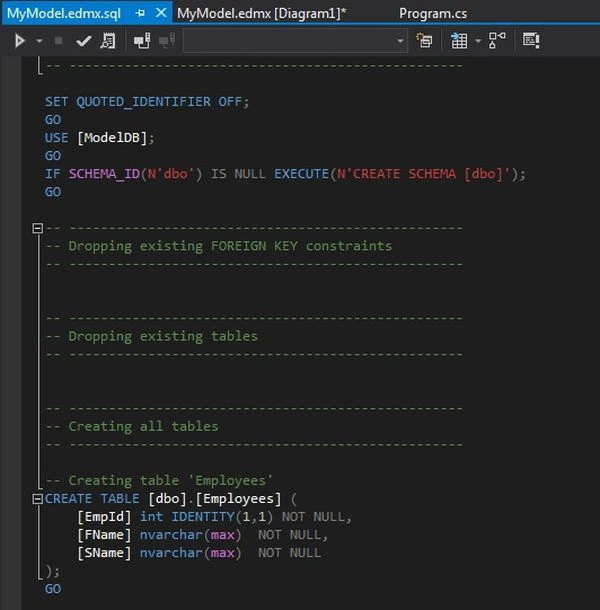

Now our MyModel.edmx.sql file has been created.

MyModel edmx

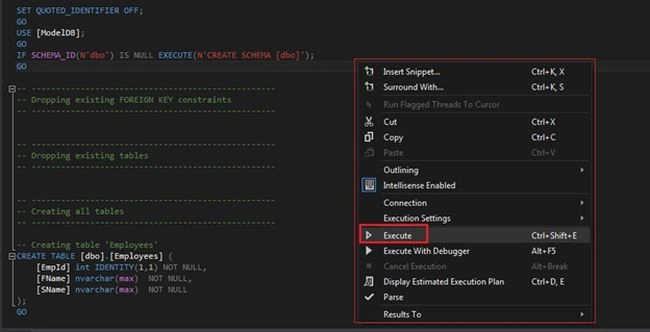

Right-click on the file then select Execute.

execute file

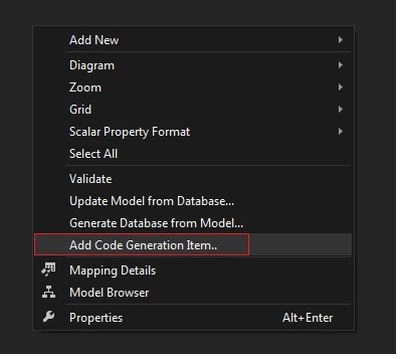

Add a Code Generation item.

add code generation

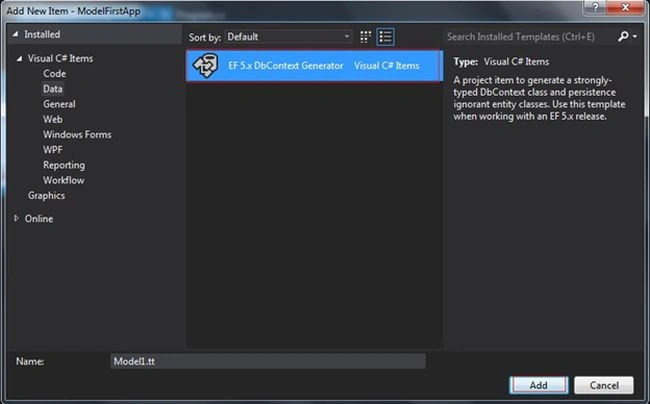

Code Generation item

All the files are created in the solution.

created in the solution

Check with the DB server, the database and tables are created.

Check with DB server

If we need to update/add new items in/to the model, add the item in the model and generate the db then our .sql file will update and execute the file again.

execute the file again

Conclusion

In this article we learned the basic details of the Model First Approach of the Entity Framework.
