Access Library in Windows Phone 7

In this article we will discuss how to access the Image Library in Silverlight in Windows Phone 7.

Step 1

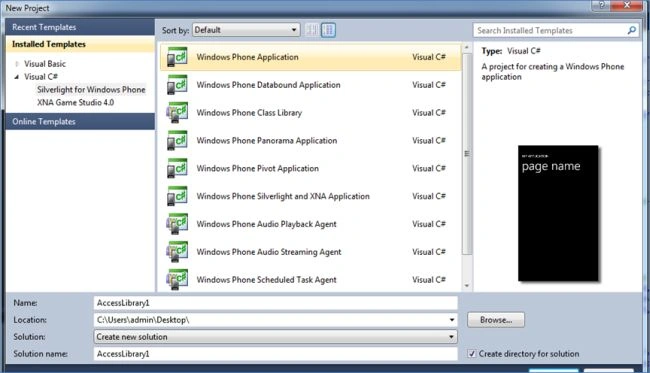

First we click on File:-> New Project. Here we select the Silverlight for Windows Phone application and then we select Windows Phone application:



Step 2

After that we take two controls (Image and TextBox). Here an image is used to display the images which we want to access and a TextBox is used to set the value in our program. Here we set the value and the visibility of the TextBox is Collapsed:

<Grid x:Name="ContentPanel" Grid.Row="1" Margin="12,1,12,-1">

<Image Height="361" HorizontalAlignment="Left" Margin="69,106,0,0" Name="image1" Stretch="Fill" VerticalAlignment="Top" Width="304" ManipulationStarted="image1_ManipulationStarted" />

<TextBox Height="72" HorizontalAlignment="Left" Margin="10,10,0,0" Name="textBox1" Text="1" VerticalAlignment="Top" Width="460" Visibility="Collapsed" />

</Grid>

Step 3

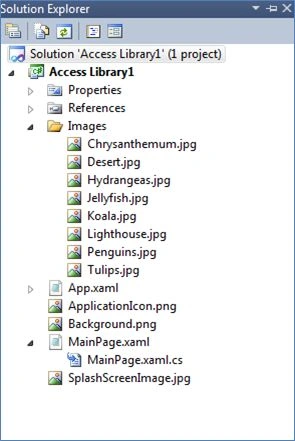

Now we will take an Images folder in our program and set the images:



Step 4

After that we write the following code in the .cs page:

public MainPage()

{

InitializeComponent();

image1.Source = (ImageSource)new ImageSourceConverter().ConvertFromString("Images/Desert.jpg");

}

private void image1_ManipulationStarted(object sender, ManipulationStartedEventArgs e)

{

if (textBox1.Text=="1")

{

image1.Source = (ImageSource)new ImageSourceConverter().ConvertFromString("Images/Jellyfish.jpg");

textBox1.Text = "2";
